Miller M-150 MIG Welding GUN 15ft #249041
Part Number: 249039
UPC: 715959557757
Discontinued - Replaced by Miller M-100 MIG Welding Gun, 10FT #248282

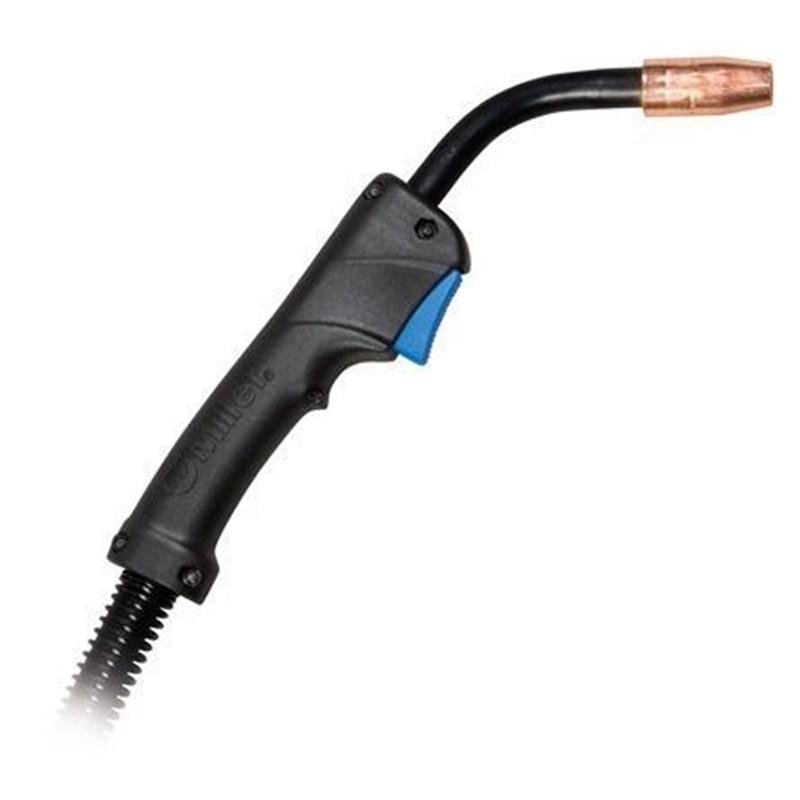

Miller M-150 MIG Welding GUN 15ft #249041
The M-150 MIG welding gun made by Miller can be a direct replacement for the M-15. Both are capable of welding wire from 0.030 to 0.035 diameters, and come with 15 ft lead cables (#249041). This can be connected to and working in conjunction with Millermatic 185 or 210 MIG welders and the Reach Feeder.
Veiw all our welding machine accessories available online at Welders Supply.
Download literature of this product:
General Specifications |
|
| Amperage Rated Output | 150 |
| Cable Length | 15 |
| Warranty | Miller's True Blue Warranty |
| Torch Handle Type | Single piece |
| Torches Type | MIGmatic M Series |
| Wire Size | .030 .035 |
SHIPPING DIMENSIONS |
|
| Height: | 3.20 Inches |
| Width: | 19.30 Inches |
| Length: | 20.30 Inches |
| Weight: | 5 Lb(s) 4 Oz |
Accessories
Consumables
Product Questions and Answers
Q - Can this be used with other manufacturers' welding equipment?
A - There are optional adapter kits that will allow this gun to be used with equipment from other manufacturers.
Q - What wire feeders will this work with?
A - It works with all recent Miller wire feeders, Millermatic MIG welders and Multimatic 215 multi-process welders.
How to install the gun:
- Insert gun.
Loosen knob. Insert gun end until it bottoms against drive assembly. Tighten knob.
- Insert into receptacle.
Insert into receptacle, and tighten threaded collar.

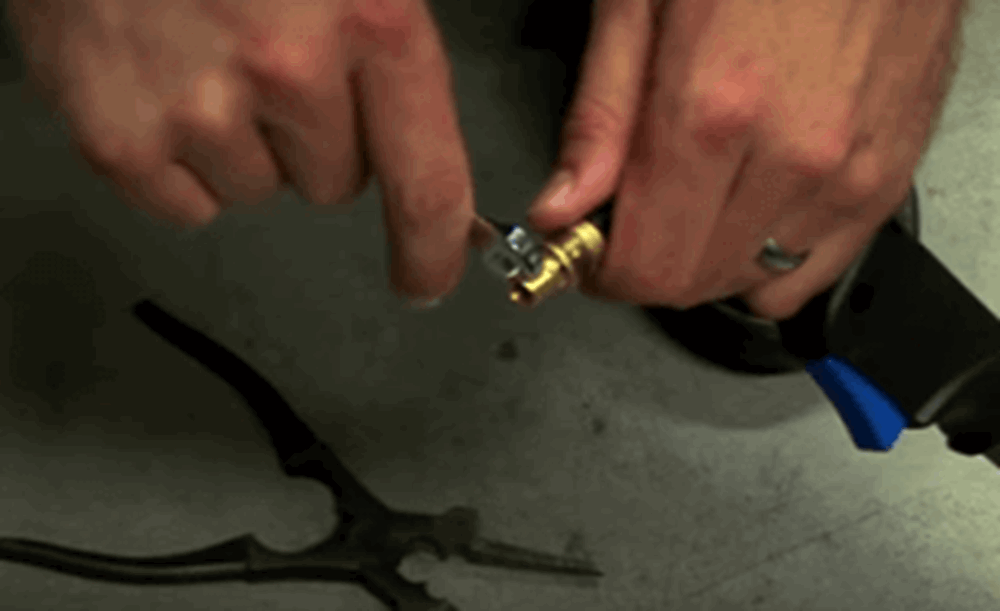

- Cut off trigger plug.
Some applications will require cutting off trigger plug and installing 0.250 female friction terminals onto end of leads.
- Check power source.
See power source manual for threading procedure.
Have a question about this product? Submit your question using the form below
