Miller Dynasty 400 Foot Control Complete Package #951694

Part Numbers: 951694
1 Review
$15,924.00
$18,393.00* Save $2,469.00

Included with your purchase:

Select your Bundle!
Edit

    Welding type:

    Stick

    Stick

    Tig

    Tig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    Power supply:

    220V Single Phase

    220V Single Phase

    220V 3 Phase

    220V 3 Phase

    460V

    460V

    • Multi-Process
    • Multi-Phase
    • Multi-Voltage
    • Torch Included
    • 8 ft Power Cord
    • 3-Year Warranty

    Miller Dynasty 400 Foot Control Complete Package #951694

    Designed for high-performance TIG and Stick welding capabilities in demanding large-scale manufacturing and high-end applications, the Dynasty 400 is a powerhouse loaded with Miller’s most innovative technologies. This package includes a foot-operated remote control.

    Exclusive Miller features include:

    • DIG control: allowing changes in arc characteristics by specific application and electrode
    • Hot Start™ for positive arc starts without any sticking
    • Lift-Arc™ for frequency control and added stability
    • Blue lightning™ Allows high-frequency arc starts for non-contact arc initiation
    • Auto-Line™ power management for connection to any input from 208v to 575v

    This Dynasty 400 Complete Package comes with everything you need to get up and running, including a foot-operated remote control (#194744). Welders Supply offers this package at the lowest possible price, with free shipping anywhere within the continental US.

    Miller backs the Dynasty 400 with their True Blue 3-year parts and labor warranty, and when you buy from Welders Supply you get the lowest price possible with free shipping anywhere within the continental US.

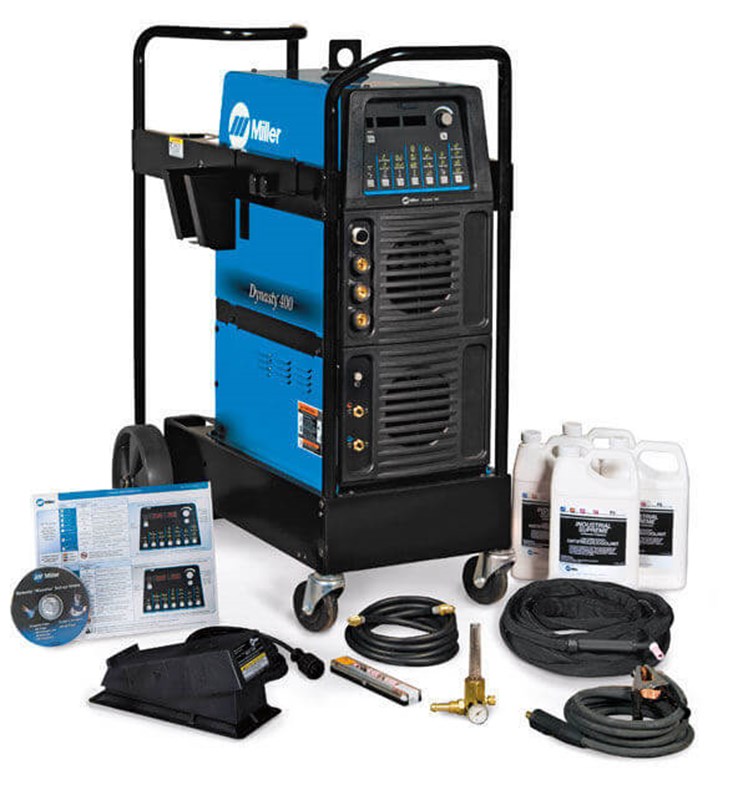

    Included with the Dynasty 400 Foot Control Package:

    • 8-foot power cord
    • Setup DVD and reference guide
    • Runner™ Cart #300244
    • Coolmate™ 3.5 #300245 and 4 gallons of coolant #043810
    • W-375 torch kit #301268
    • Foot-operated remote control #194744
    View our large selection of welders, welding machine accessories, and welding gloves & apparel with the greatest values online.

    Miller Dynasty 400 Wireless Foot Control #951694 Complete Specifications:

    Input Voltage Options 208 V
    220/230/240 V
    380/400 V
    460/480 V
    575 V
    Input Phase 1- and 3-Phase
    Input Hz 50 / 60 Hz
    Current Type AC/DC
    Max Open Circuit Voltage 75 VDC
    Weld Output CC
    Processes TIG (GTAW)
    Pulsed TIG (GTAW-P)
    Stick (SMAW)
    Air carbon arc (CAC-A) 1/4 in. maximum
    Industrial Applications Precision fabrication
    Heavy fabrication
    Pipe and tube fabrication
    Aerospace
    Aluminum ship repair
    Anodized aluminum fabrication
    Weldable Metals Aluminum
    Specialty Metals
    Steel
    Stainless Steel
    Net Width 23 1/8"
    Net Height 43 1/8"
    Net Length 43 3/4"
    Net Weight 134 lb. (61 kg)
     Performance Specifications
      3-Phase 1-Phase
    Rated Output
    250 A at 30 V,100% duty cycle
    300 A at 32 V, 60% duty cycle
    200 A at 27.2 V, 100% duty cycle
    250 A at 29 V, 60% duty cycle
    TIG Duty Cycle 400 A, 20%
    300 A, 60%
    250 A, 100%
    300 A, 60%
    250 A, 100%
    300 A, 20%
    Stick Duty Cycle 400 A, 20%
    300 A, 60%
    250 A, 100%
    300 A, 60%
    250 A, 100%
    300 A, 20%
    AC TIG Material Thickness Range .015–5/8 in.
    (0.38–15.9 mm)
    .015–5/8 in.
    (0.38–15.9 mm)
    DC TIG Material Thickness Range .012–5/8 in.
    (0.3–15.9 mm)
    .012–5/8 in.
    (0.3–15.9 mm)
    Stick Electrode Maximum Diameter 6010: 1/4 in. (6.4 mm)
    7018: 1/4 in. (6.4 mm)
    7024: 1/4 in. (6.4 mm)
    6010: 1/4 in. (6.4 mm)
    7018: 1/4 in. (6.4 mm)
    7024: 1/4 in. (6.4 mm)
    Carbon Arc Grouping (CAC-A) Maximum 1/4 in. (6.4 mm) 1/4 in. (6.4 mm)
    Generator Requirement 20kW 20kW
     Ancilliaries
    Warranty Miller's True Blue Warranty
    Portability Lift Eye (Standard)
    Running Gear / Car (Standard)

    SHIPPING DIMENSIONS

    Height: 50.00 Inches
    Width: 23.00 Inches
    Length: 44.00 Inches
    Weight: 367 Lb(s) 0 Oz

    Manufacturer Reviews

    By: Rbaroquefix
    We've used just about every brand welder you can think of (including Miller), and without a doubt, this is the best we've ever experienced. We've used a Miller 320 since 1965 (it's still going strong), and several cheaper Chinese welders, which worked well, but didn't last, and finally convinced the folks that control the money that, for the work we do (vacuum and high-vacuum welding), we really needed the real thing, and we finally got it. We do a lot of fairly heavy (1/2"+) aluminum, as well as lots of stainless, from .03 to .5 inch thick. This new Dynasty 400 makes switching from one to another remarkably easy. All controls are intuitive and easy to use, and being able to save programs is a great time saver.

    Product Questions and Answers


    Q - What does Auto Line do? A - It allows you to use any input voltage hookup (from 208 to 575 V) with no manual linking.
    Q - What is the DIG feature on this welder? A - It allows you to change the arc characteristics for different applications and electrodes. You would use a lower setting for smooth running electrodes like E7018 and increase it for stiffer electrodes like the E6010.
