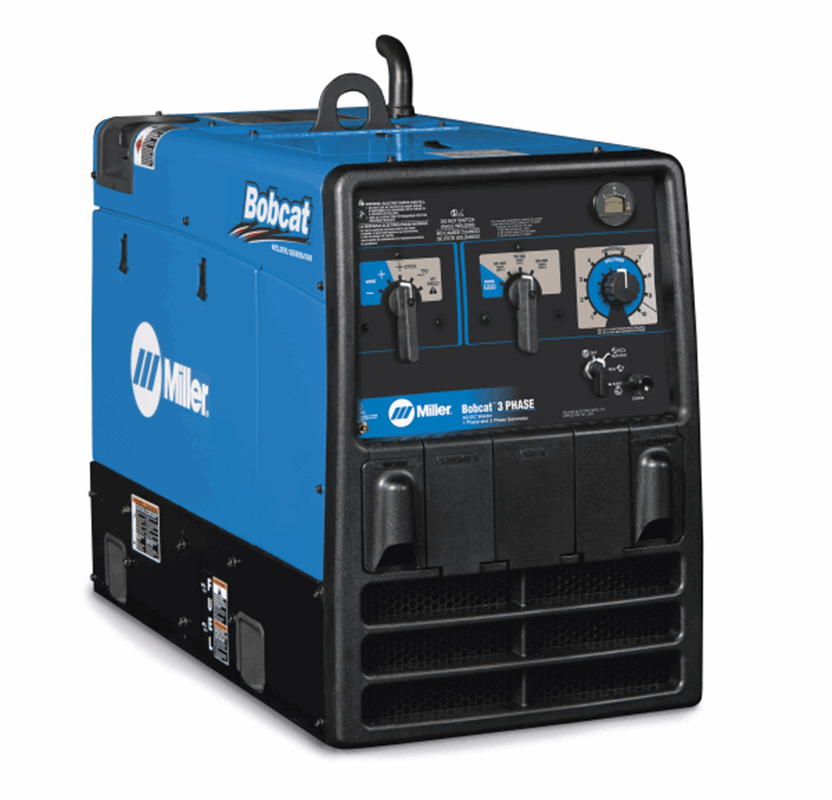

Miller Bobcat™ 3 Phase (Kohler), GFCI #907505

Part Numbers: 907505
1 Review
$10,455.00

Included with your purchase ( ) :

See Bundle Details!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Mig

    Mig

    Stick

    Stick

    Tig

    Tig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    • MIG Welding
    • Stick Welding
    • TIG Welding
    • Smaller and Lighter Design
    • 3-Phase Input
    • 3-Year Power Warranty

    Miller Bobcat™ 3 Phase (Kohler), GFCI #907505

    Miller designed this Bobcat for farmers and ranchers who need single and three-phase power to run 480-volt three-phase pivot irrigation systems or for backup power around the farm. Miller has made significant reductions in the sound level of this generation of Bobcat by rotating the engine toward the front, which creates more efficient airflow and as much as a 25% reduction in sound.

    Unlike many generators, the Bobcat is Accu-Rated at 11,000 watts of usable peak power delivered for a minimum of 30 seconds for maximum generator loads like plasma cutting, MIG welding and motor starting. Miller's Accu-Rated peak power is superior to the competition's ridiculously short surge power. And unlike a lot of other generator/welders on the market, the Bobcat is made entirely in the USA at Miller's facility in Appleton, Wisconsin.

    What's Included

    • GFCI receptacles
    For the best prices on welding equipmentwelding machines and generator welders, shop Welders Supply online.

    Bobcat™ 3 Phase Processes:

    • Flux Cored (FCAW)
    • MIG (GMAW)
    • Stick (SMAW)
    • TIG (GTAW)
    • Plasma (PAC)

    Miller Bobcat™ 3 Phase (Kohler), GFCI Specifications:

    Industries Interests Farm and Ranch
    DIY / Home Hobbyist
    Current Type AC / DC
    Engine Brand Kohler
    Engine Idle Speed 2300 RPM
    Portability Lift Eye (Standard)
    Running Gear / Cart (Optional)
    Trailer (Optional)
    Engine Weld Speed 3600 RPM
    Fuel Tank Size 12 Gallon
    Net Height 28 in
    Fuel Type Gasoline
    Net Length 40.5 in
    Horsepower 23.5 hp
    Net Weight 495 lbs
    Weldable Metals Aluminum
    Steel
    Stainless Steel
    Net Width 20 in
    Rated Output CC/AC Stick/TIG 200 A at 25 V, 100% duty cycle
    CC/DC Stick/TIG 210 A at 25 V, 100% duty cycle
    CV/DC MIG/FCAW 200 A at 25 V, 100% duty cycle
    Single Phase Generator Continuous Power 9500 W
    Warranty Engine Warranties
    Miller's True Blue Warranty
    Single Phase Generator Peak Power 11000 W
    Sound Rating Idle: 72 dB / Weld: 73.5 dB
    Three Phase Generator Continuous Power 10000 W
    Three Phase Generator Peak Power 11000 W
    Amperage Range 50 - 210

    SHIPPING DIMENSIONS

    Height: 20.00 Inches
    Width: 33.00 Inches
    Length: 41.00 Inches
    Weight: 495 Lb(s) 0 Oz

    Manufacturer Reviews

    By: Lee
    Welding and providing power to our Field service equipment

    Product Questions and Answers


    Q - How powerful is the generator? A - Peak: 11,000 watts, Continuous: 9,500 watts 120/240 V, 84/42 A on single-phase. On Three phase, Peak: 11,000 watts Continuous: 10,000 watts 480 V, 13 A.
    Q - What Kohler engine is in this? A - It has a Kohler CH730 four-cycle, air-cooled gasoline engine.
