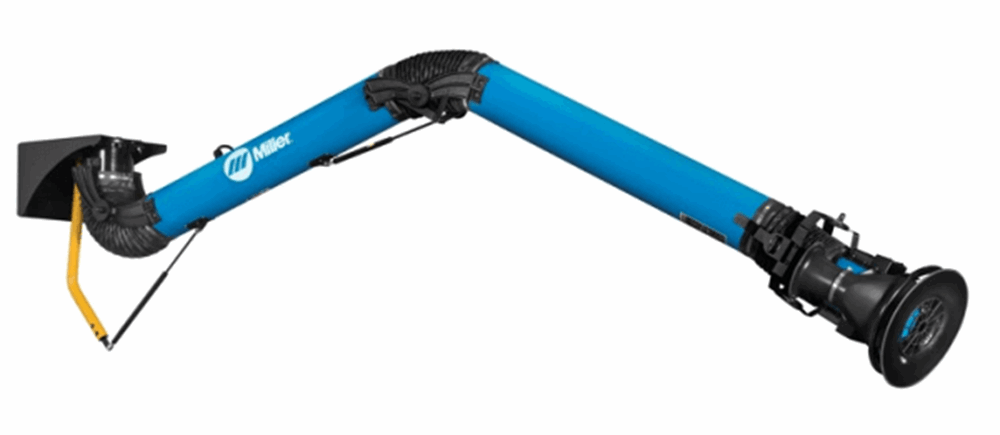

Miller FILTAIR® systems are designed specifically for fume capture in welding environments. The extraction arms come pre-assembled for fast installation and are designed for convenient and easy operation. With an innovative extended-capture fume extraction system, the FILTAIR® can capture more fumes from further distances. This means it can stay out of your way and still do its job more effectively than other fume extractors. These wall-mounted arms are flexible and easy to adjust, so they can cover large areas with minimal adjustment. Pre-assembled extraction arms are available in 7-, 10-, or 12-foot lengths to fit your unique workspace.
This specific model is the 10-foot option. We recommend considering the dimensions of your welding workspace when choosing which FILTAIR® to install in your shop.

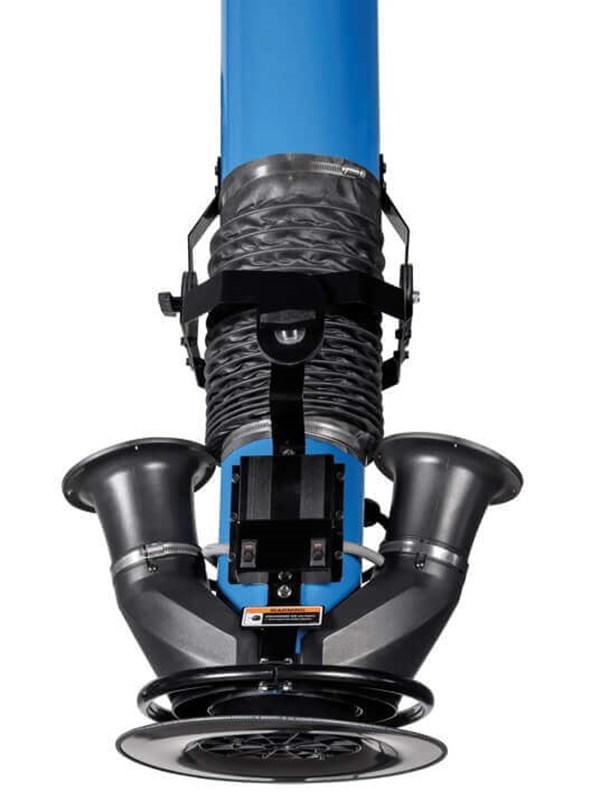

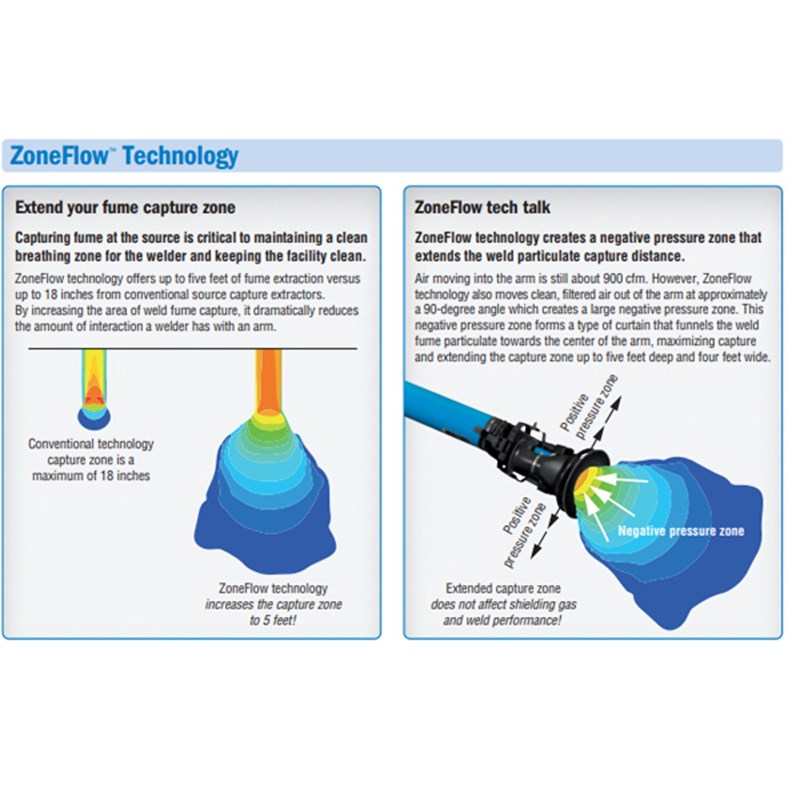

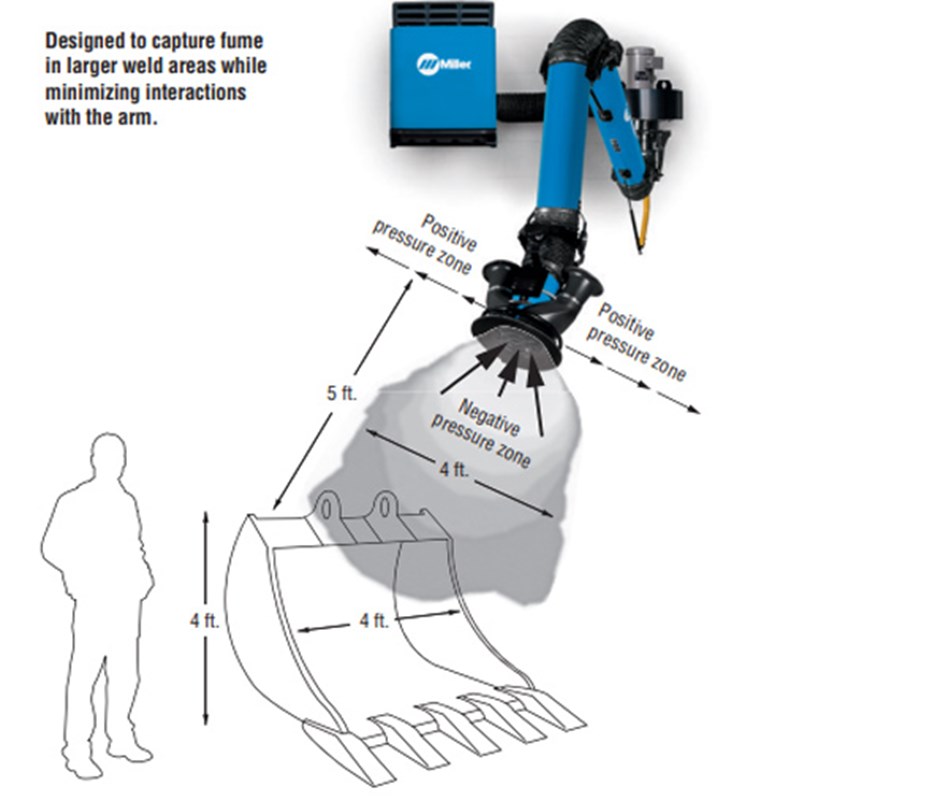

Creates a much larger capture area than existing source-capture products and minimizes arm interactions.
Miller FilTek XL Filter Technology is specifically designed for welding fumes. Miller filters outlast, out-filter, and outperform all the rest. Has longer filter life - up to 2 times that of treated cellulous filters. Superior filtering of up to 95% of weld fume particulates. FilTek XL's surface loading filters vs. competitors' depth loading filters gives Miller filters advantages that benefit you: Easier and more complete filter cleaning results in longer filter life. More efficient airflow through the filter results in lower operating costs and stronger suction power for a cleaner workspace.
Filters are rated on a MERV scale which measures filter efficiency based on particle count. MERV ratings range from 1 - 16, with 16 being the best at filtering small particles - such as those found in weld fume. Filters common in air filtration often have MERV ratings between 7 and 11. The SWX FilTek XL filter is rated at a class-leading MERV 15 to capture up to 95% of weld fume particulates!
FilTek XL's innovative surface loading Filter Technology and cleaning mechanism are designed to increase productivity and greatly increase filter life! The self-cleaning mechanism is easy to use. Just push a button to activate the pulse cleaning cycle that lasts about 1 minute. Surface loaded weld fume particulate is removed from the filter and safely deposited in the storage/disposal drawer.

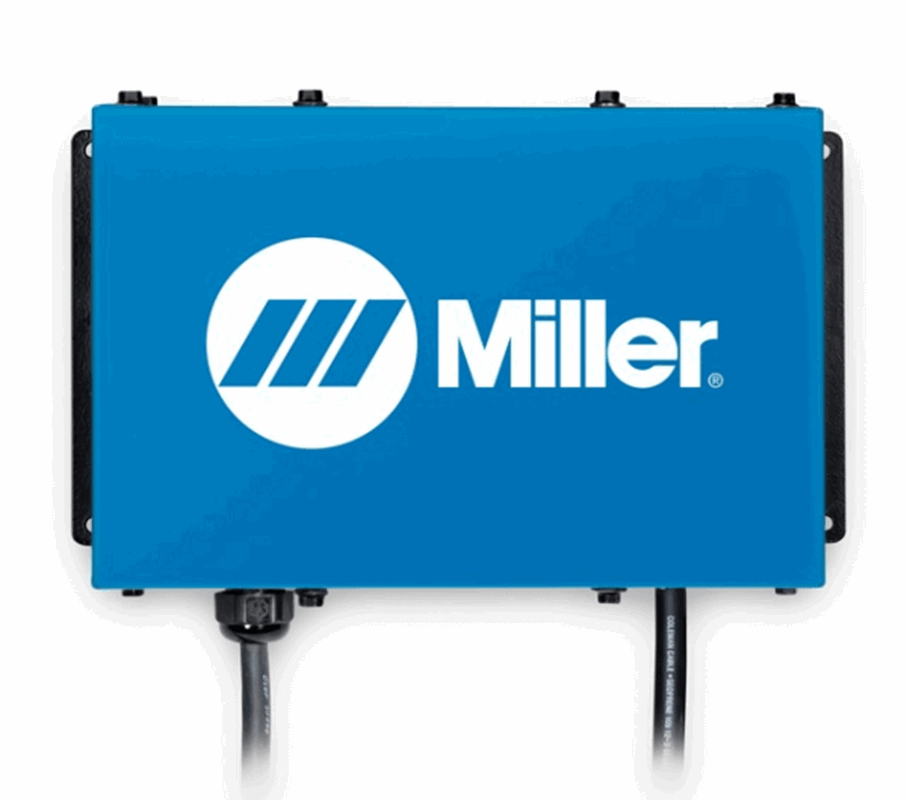

A front panel Filter Pressure Gauge is easy to read with color-coded graphics. The gauge indicates when pressure drop increases and the filter needs to be replaced(SWX-D) or cleaned(SWX-S). Note: On the self-cleaning model, the filter gauge and cleaning control are mounted on a remote control box for easy access.

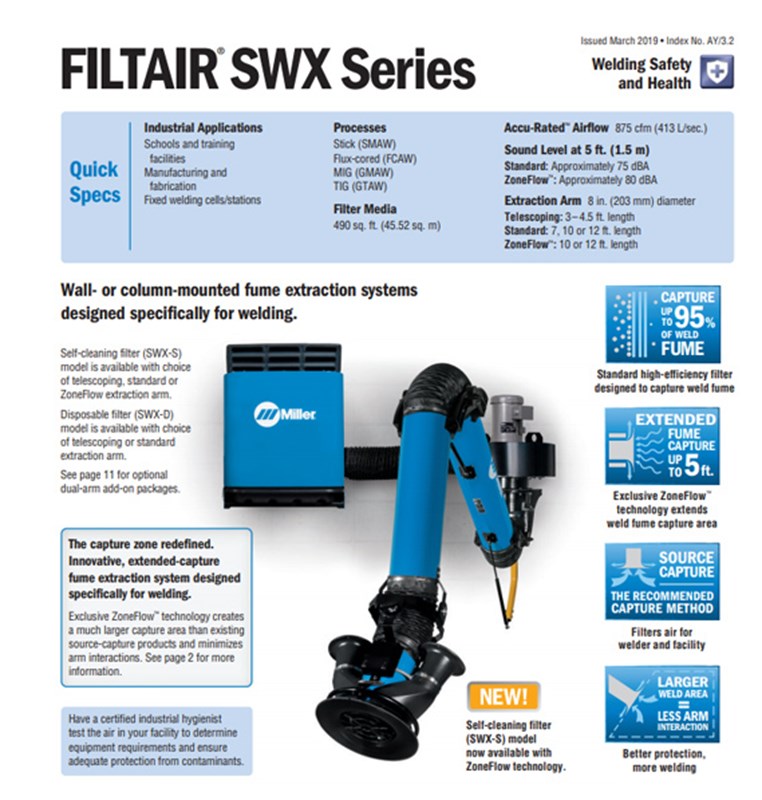

| Industrial Applications | Processes | Filter Media | Accu-Rated Airflow | Sound Level | Extraction Arm |
| Schools & training facilities | Stick (SMAW) | 490 sq. ft. (45.52 sq. m) | 875 cfm (413 L/sec) | Standard: Approx. 75 dBA | Telescoping: 3 - 4.5 ft. length |
| Manufacturing & fabrication | Flux-Cored (FCAW) | ZoneFlow: Approx. 80 dBA | Standard: 7, 10 or 12 ft. length | ||
| Fixed welding cells/stations | MIG (GMAW) | ZoneFlow: 10 or 12 ft. length | |||
| TIG (GTAW) |
SHIPPING DIMENSIONS |
|
| Height: | 27.00 Inches |
| Width: | 37.00 Inches |
| Length: | 78.00 Inches |
| Weight: | 142 Lb(s) 0 Oz |
