Magswitch Magsquare 400 #8100238

Part Number: 8100238
$135.00
Out of Stock

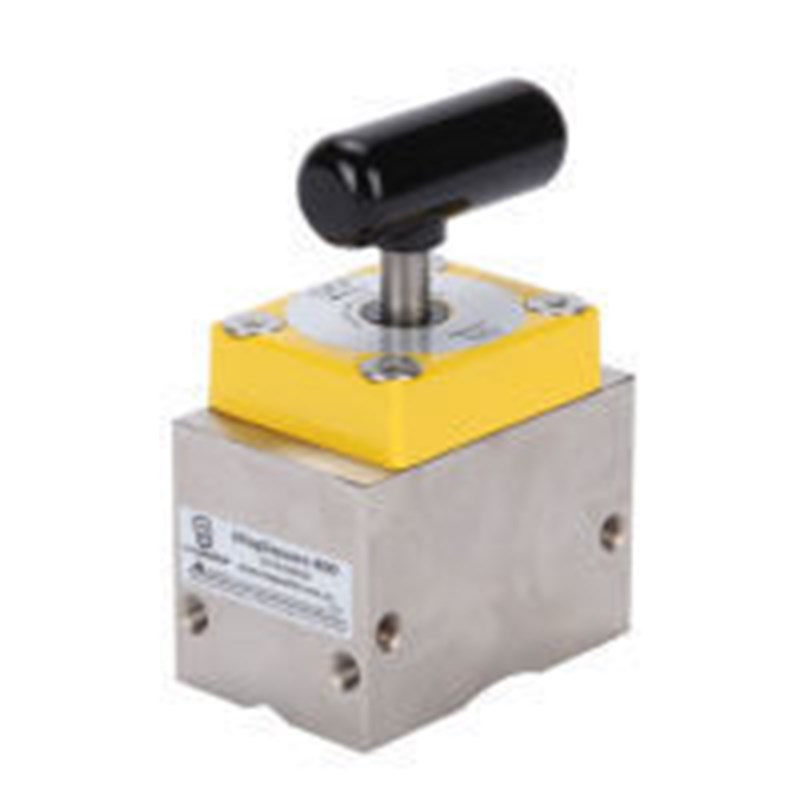

Magswitch Magsquare 400 #8100238

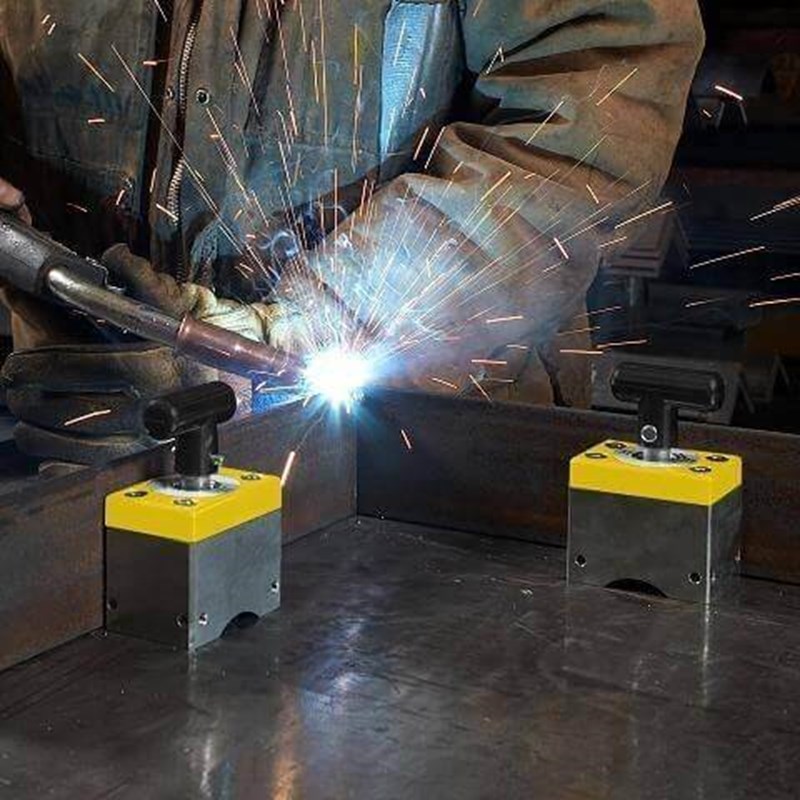

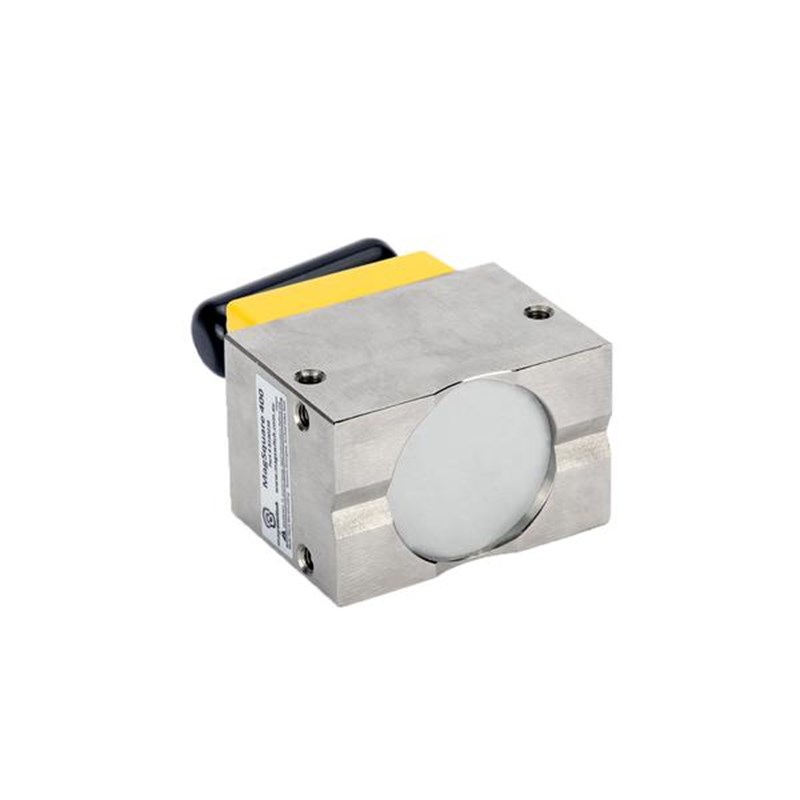

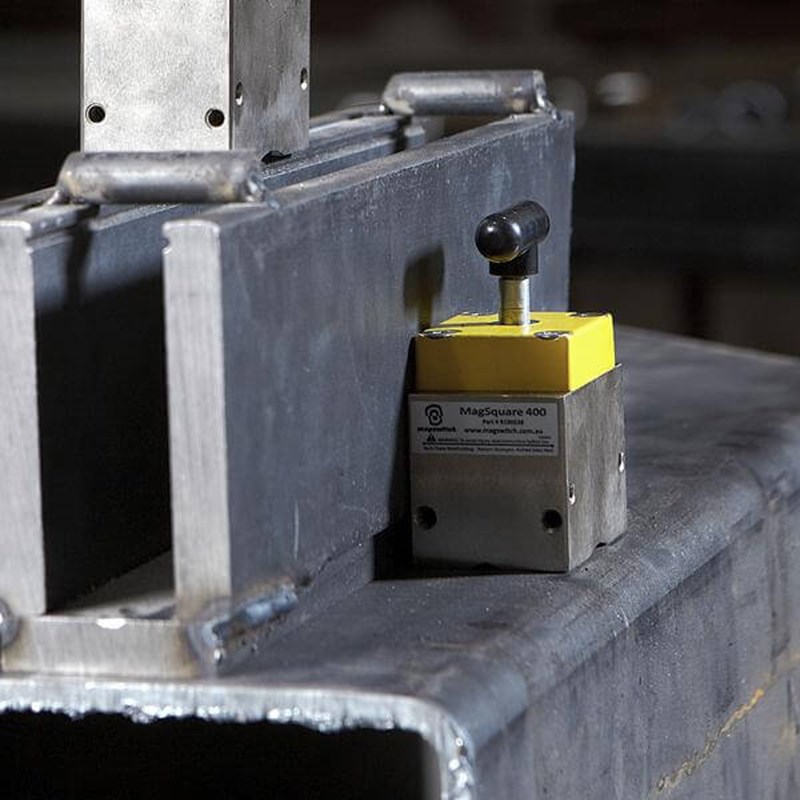

Designed for the creation of 90° angles, this Magswitch square is magnetic on all four sides. The bottom has been specially engineered to hold flat, rounded, or even angular metals with a v-shaped channel. It also has M5x0.8 threaded holes on four sides to allow for custom fabricated jigs, and can be turned on or off with a simple flip of a switch.

  • On/Off Switch makes for easy positioning and allows metal debris to be cleaned off easily
  • Magnetic on 5 sides
  • Strong attraction on 3 sides
  • Able to be attached to custom jigs
Shop all welding magnets and clamps at Welders Supply.

View a video of this product:

Magswitch 400

Magswitch Magsquare 400 - #8100238

Max Breakaway:

  • 400 lbs

Product Weight:

  • 2.1 lbs

Magnetic Pole Footprint:

  • 64mm x 41.26mm

Height:

  • 90mm / 3.54in

Product Questions and Answers


Q - What is the holding power on this? A - It's rated at 400 lbs of hold force on 1/4" steel.
Q - What is the spacing between the threaded holes? A - On the long side, the spacing is 2.09". On the short side, the spacing is 1.27". The holes are threaded metric: M5x8.

Have a question about this product? Submit your question using the form below
