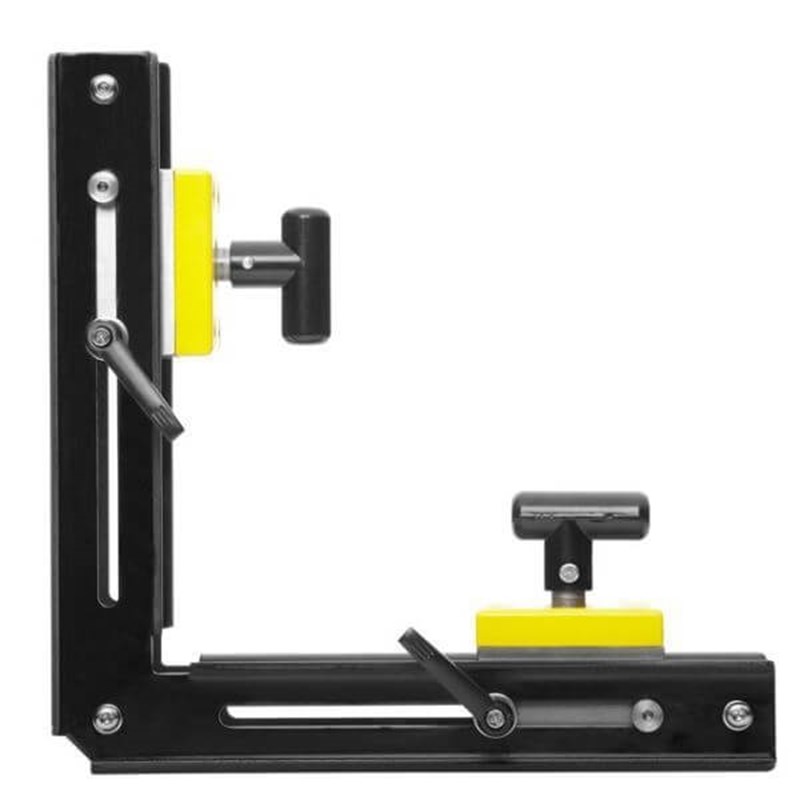

Magswitch 90 Degree Angle 600 #8100495

$361.00
Product Number: 8100495

Product Number: 8100495

Magnet Strength: 600 lbs/272 kg

Full Saturation Thickness: 3/8” / 10mm

2:1 Shear Working Load: 61 lbs/ 27 kg

Net Weight: 8.2 lbs/3.7 kg

Overall Height: 11.2in/288 mm

Magnetic Pole Footprint: 75mm x 51.5mm

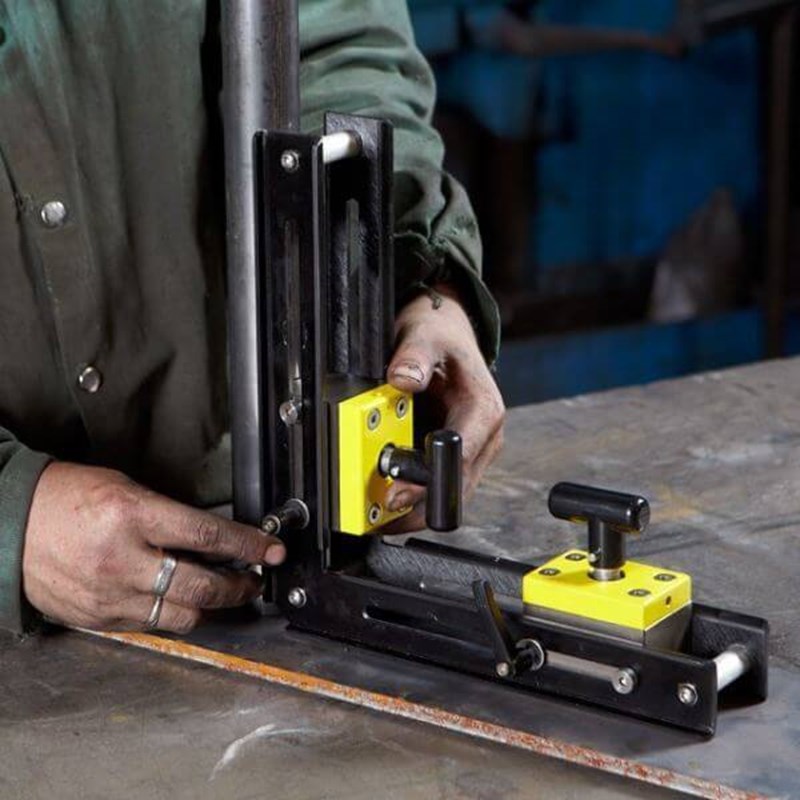

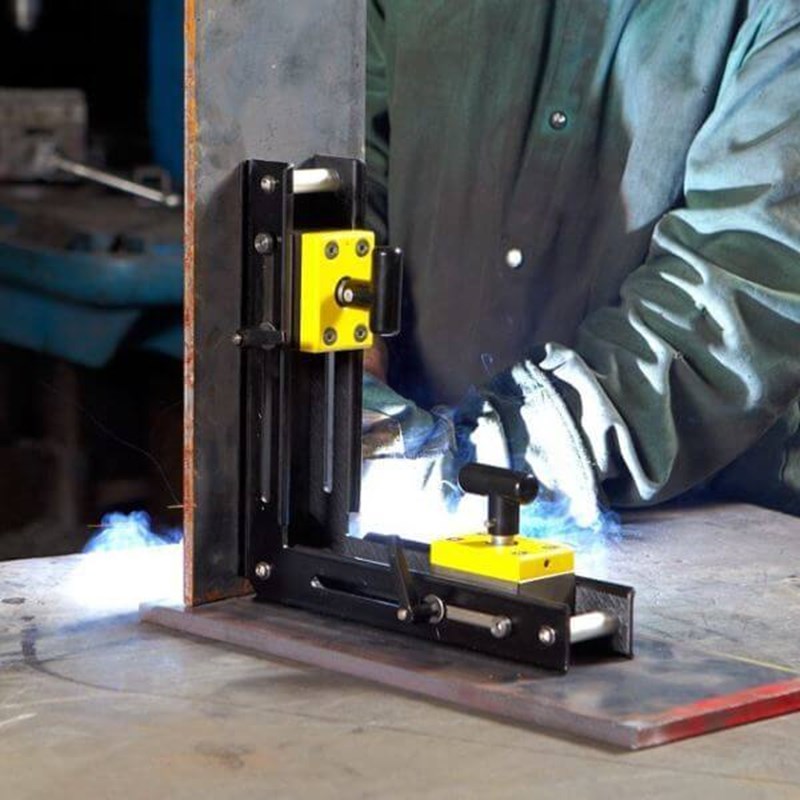

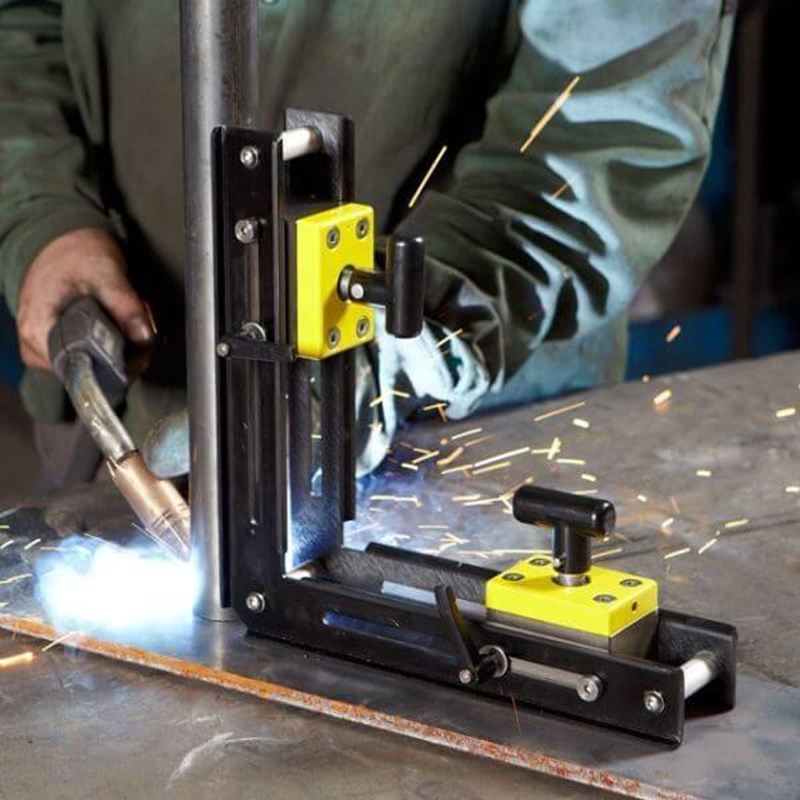

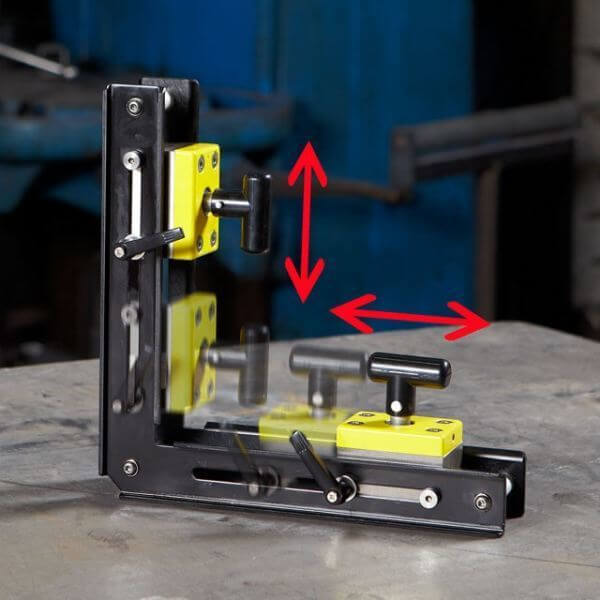

Magswitch 90 degree Welding Angles are the most versatile in the market. Featuring the benefits of Magswitch, including incredible power and precision control. Magswitch 90 degree angles are easy to use, and can be used on larger and heavier pieces steel and other metals. All Magswitch 90 degree angles allow you to adjust the magnets up or down on each axis (only vertical axis on #8100503), or reverse from outside to inside. If you want more strength, just add more MagSquares.

  • 12’ square featuring two super-strong 50mm MagSquares, each with up to 550-lbs breakaway force
  • Unlike competitive brands, when the Magswitch is off, it easily allows debris to fall away
  • Fast, easy on/off magnet control

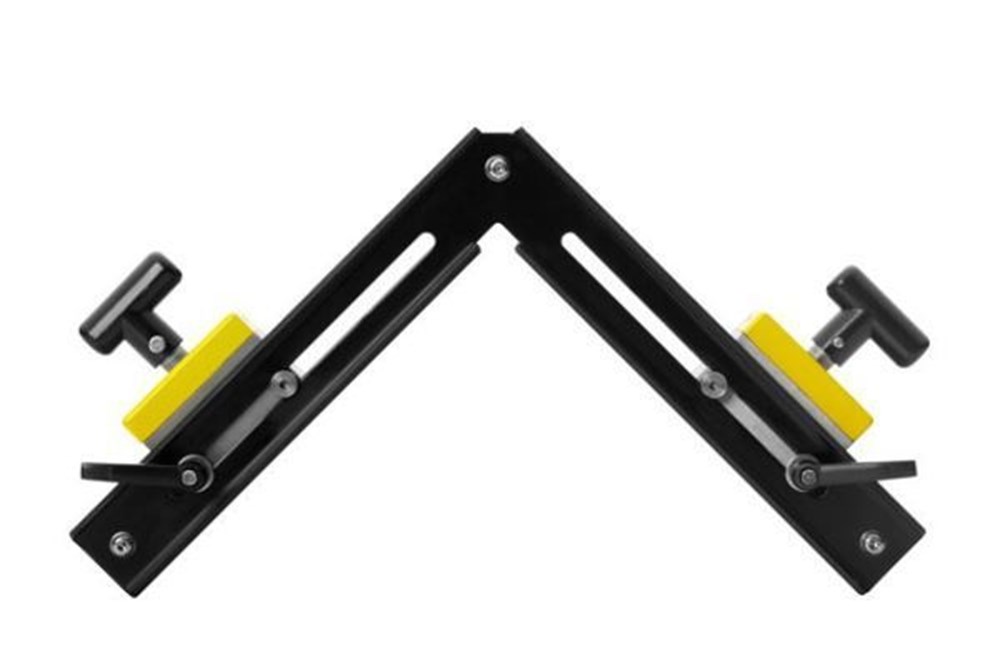

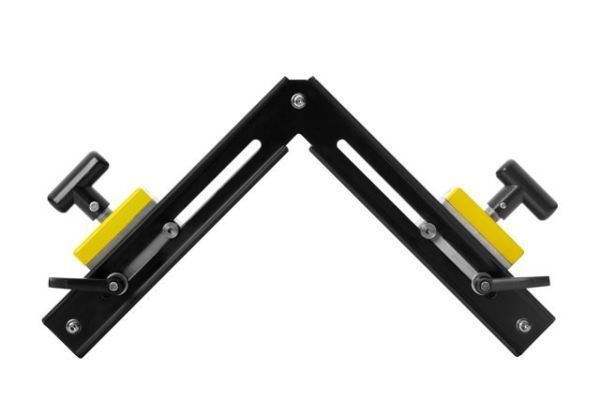

  • Reversible for inside and outside hold
  • Holds flat and pipe 180-degree turn off the Magswitch knob to activate/deactivate
  • Magswitch holding force gradually increases as knob is turned, allowing precise positioning
  • Versatile: pre-tapped holds to change Magswitch position for inside or outside angles
  • Non-marring hold
  • Unlike competitive brands, when the Magswitch is off, debris easily falls away
  • Locking knob for added safety
  • Add additional Magswitches for greater strength
  • Never before has a super-strong permanent magnet been so easy to control
  • Magswitch has created a powerful magnetic device that can be turned on and off with a simple half turn of a knob
  • No batteries
  • No electricity

Product Questions and Answers


Q - Do you need to buy anything else to use this? A - No, it comes ready to use. No batteries required with Magswitch.
Q - Will this leave marks on the workpiece? A - No, it holds without marring.
