Magswitch Pivot Angle 200 #8100367

Part Number: 8100367
$226.99
Starts at $37.83/month with

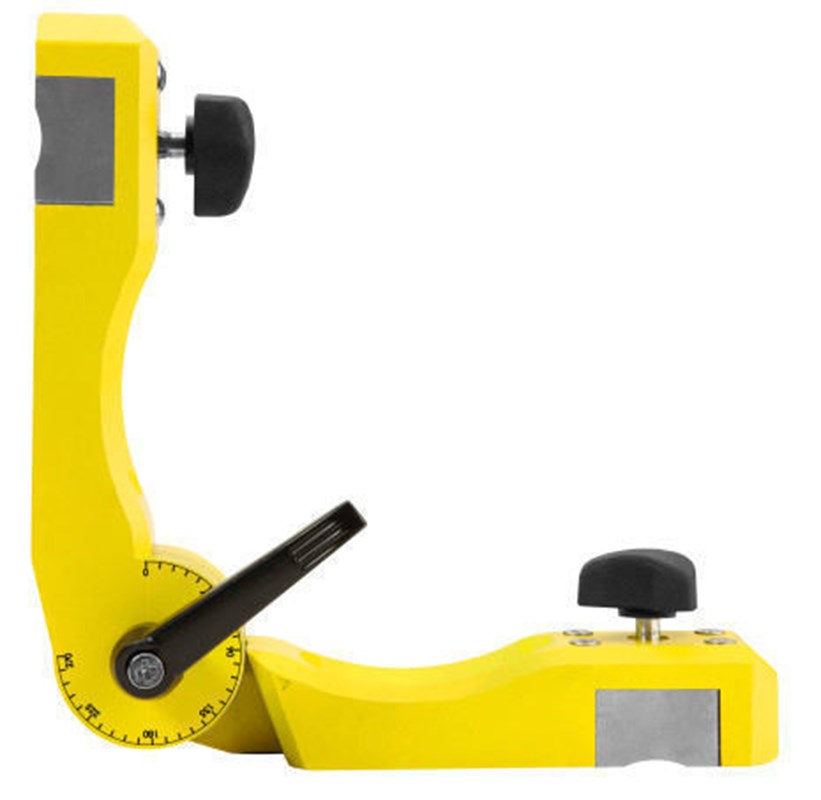

Magswitch Pivot 200 #8100367

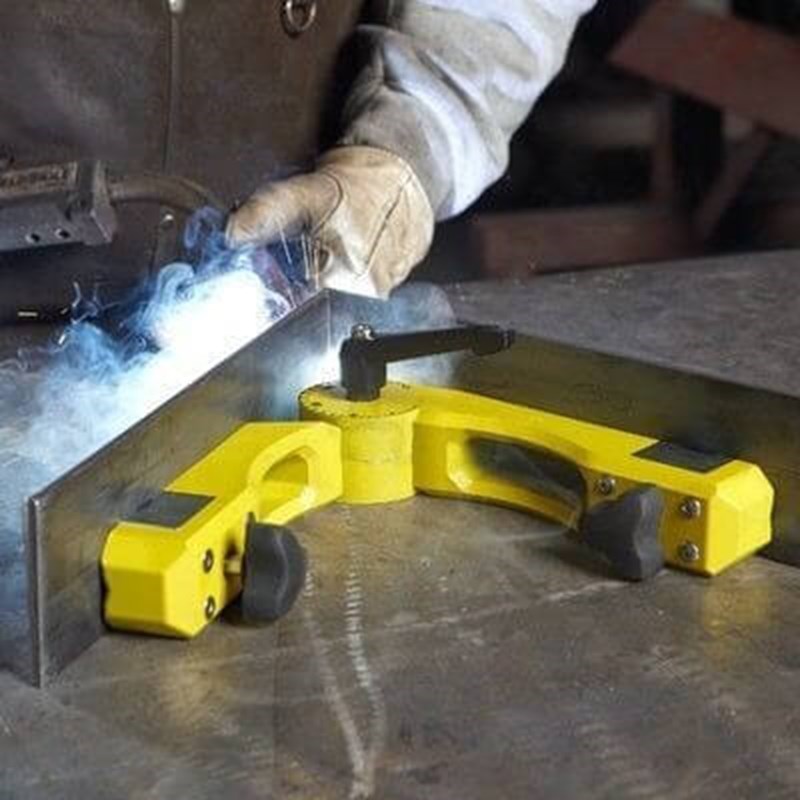

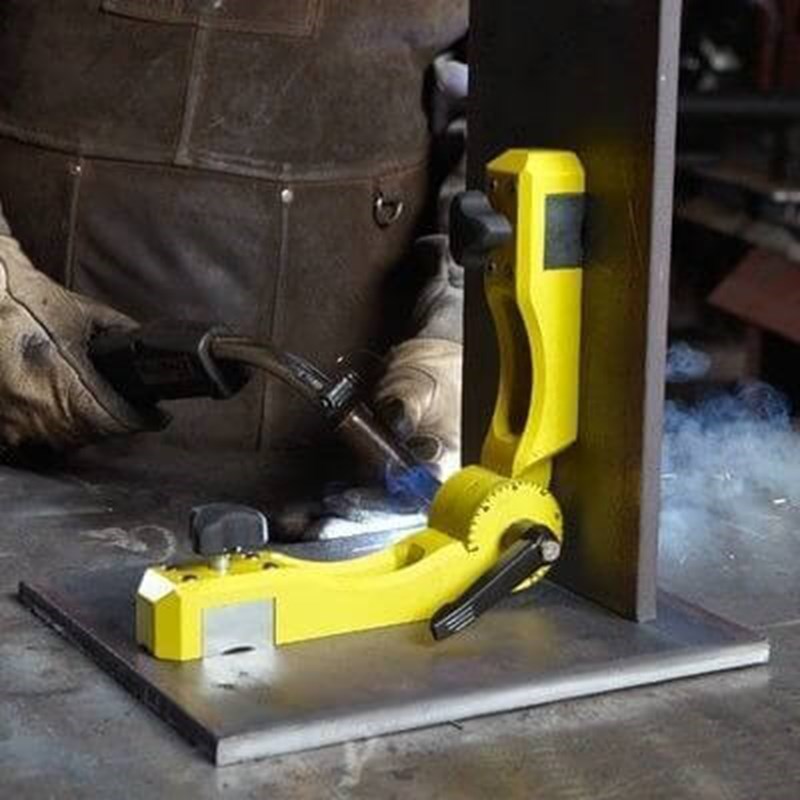

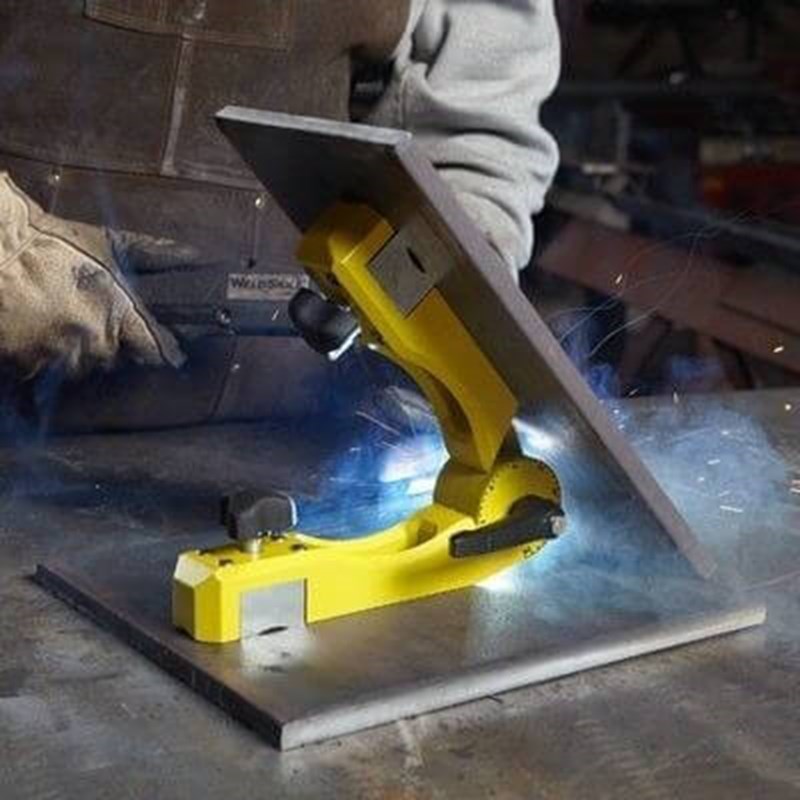

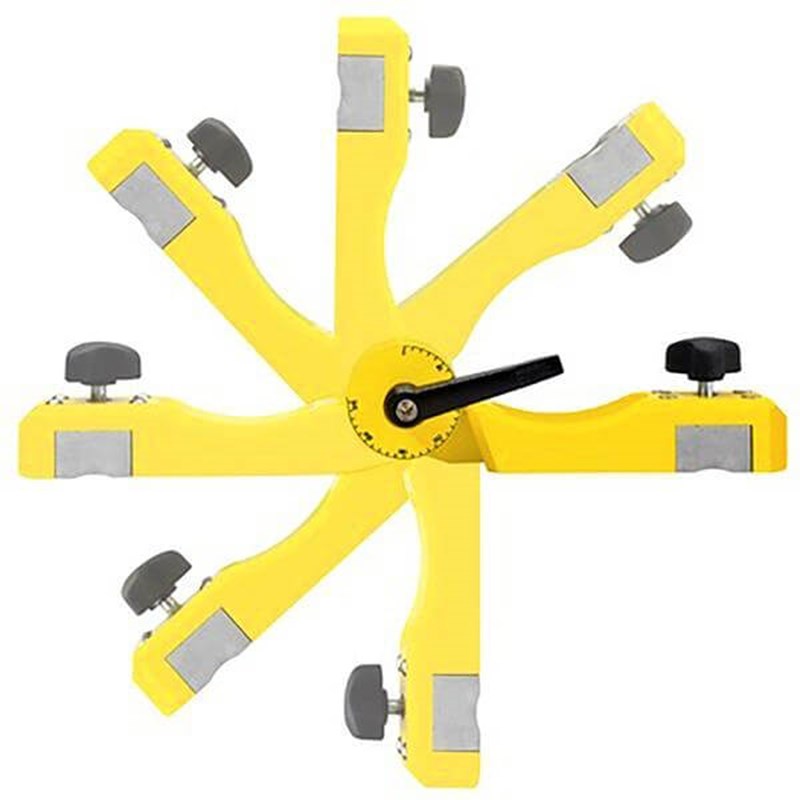

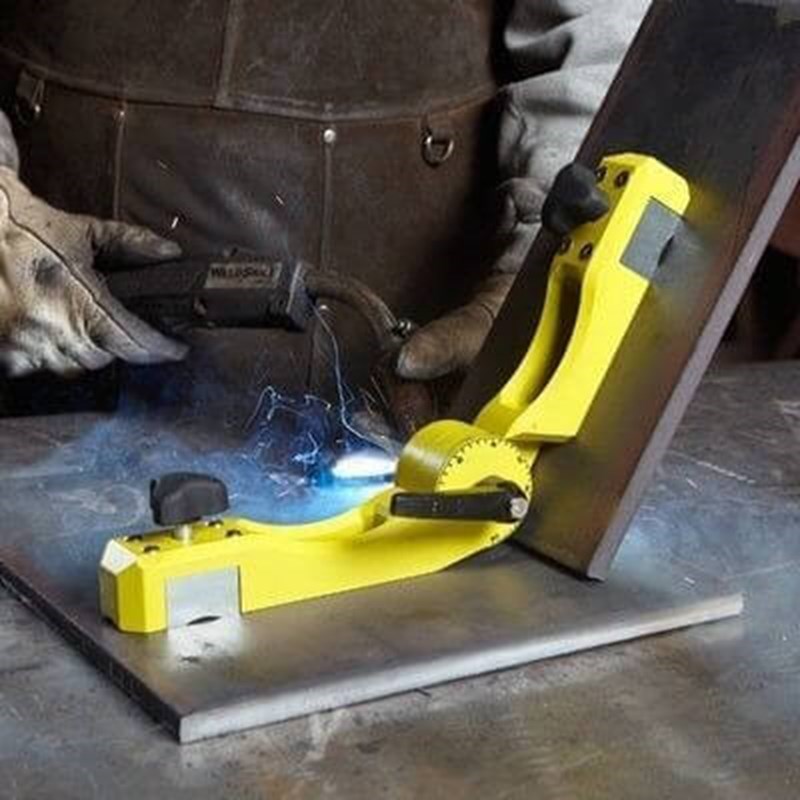

Get the perfect 22° to 270° weld for popular metals up to 3/16 inches thick with the Magswitch Pivot 200 (8100367). Each one of these magnets holds flat and rounded metals with over 200 lbs of pure force by simply turning the knob to activate the magnet's ultra-strong pull.

  • Magnet Strength: 200 lbs/90 kg
  • Full Saturation Thickness: 3/16” /4.75 mm
  • Max Safe Shear: 48.4 lbs/22 kg
  • Net Weight: 3.5 lbs/1.6 kg
  • Overall Height: 9.4in/240 mm
  • Magnetic Pole Footprint: 41.25mm x 56mm
Welding Tables For Sale Welding Table Clamps for Sale Welding Workbenches for Sale
Shop all welding magnets, magnetic squares and clamps at Welders Supply.

Watch a video of this product:

Magswitch Pivot Angle 200

Magswitch Pivot Angle 200 #8100367 Specs

Max Breakaway
  • 200 lbs / 90 kg
Full Saturation Thickness
  • 3/16" / 4.75mm
2:1 Shear Working Load
  • 48.4 lbs/22 kg
Net Weight
  • 3.5 lbs/1.6 kg
Overall Height
  • 90 mm
Magnetic Pole Footprint
  • 41.25mm x 56mm

Product Questions and Answers


Q - Do you have to clean metal fragments off of the magnets after use? A - No, the magnets shed all metal when turned off.
