Magswitch Hand Lifter 60-CE #8800487
Part Number: 8800487
Documents
VideosMagswitch 60-CE #8800487

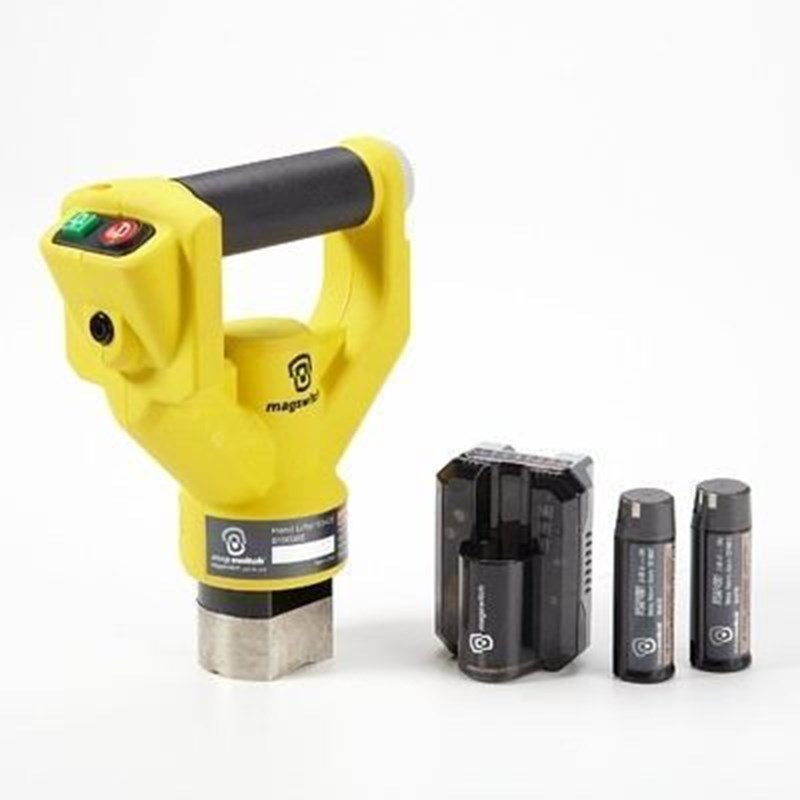

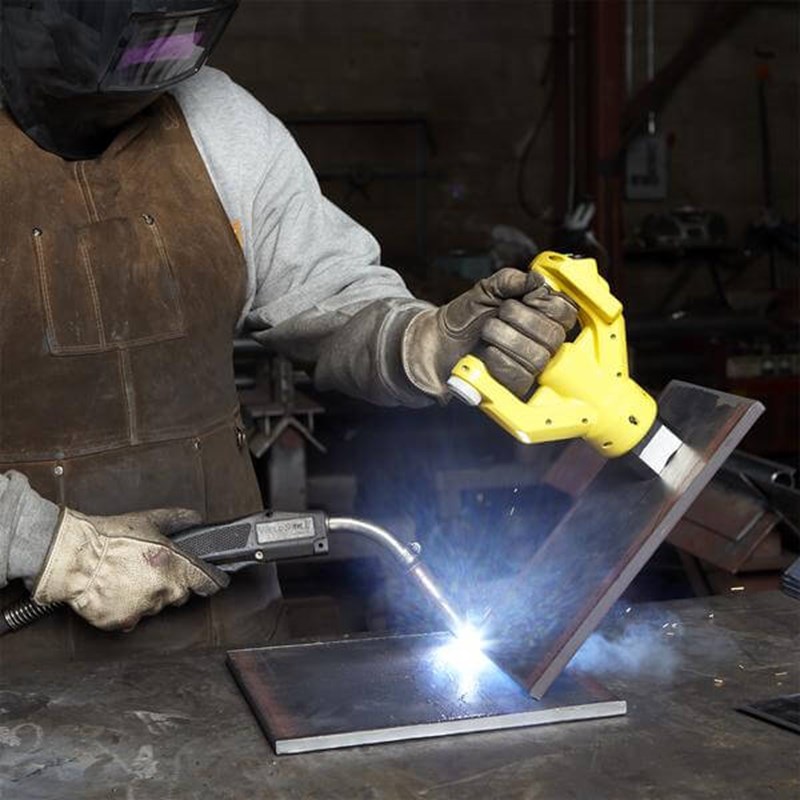

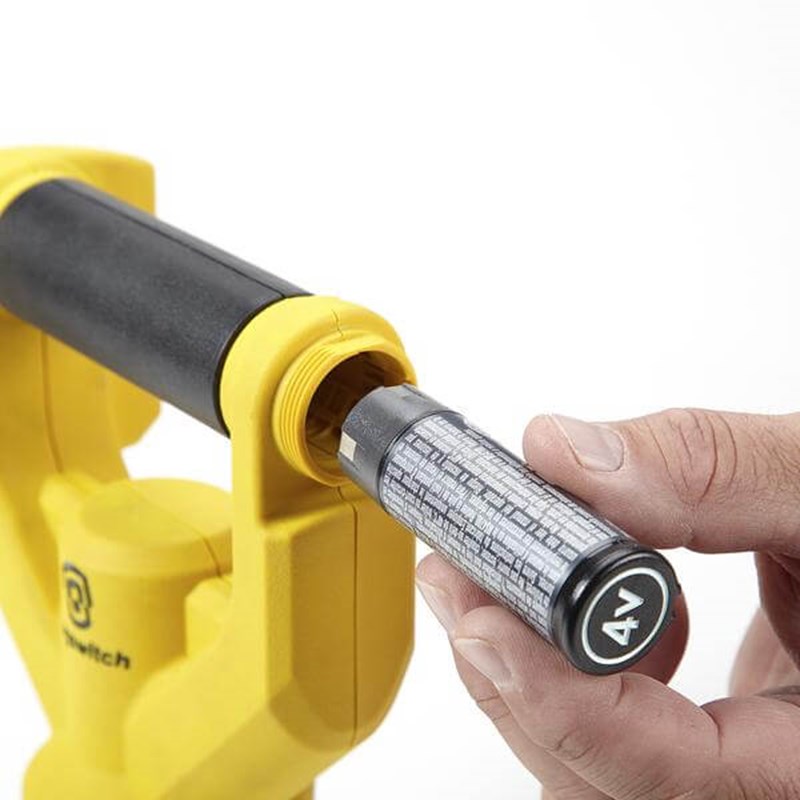

The Magswitch 60-CE (Cordless Electric) Hand Lifter allows you to manipulate flat and rounded metals before, during, and after working on them-- all while remaining protected from sharp edges and heat produced by your welding, cutting or gouging. The magnet is powered by a 4 volt detachable battery pack. A battery strength indicator light keeps you informed of battery strength, and recharging takes less than 20 minutes with the included recharge station. The Magswitch 60-CE comes with 2 packs of rechargeable batteries, so your workday will never be put on hold by a dead battery.
Shop all welding magnets, magnetic squares and clamps at Welders Supply.
Watch a video about this product:
Specifications: |
|
| Magnet Strength | 235 ibs/106kg |
| Full Saturation Thickness | 0.25” / 6 mm |
| 2:1 Shear Working Load | 45lbs / 20 kg |
| Net Weight | 2.4 lbs/1.1 kg |
| Overall Height | 8.2in/209 mm |
| Magnetic Pole Footprint | 56mm x 42mm |
Consumables
Product Questions and Answers
Q - How long does it take to recharge the battery?
A - 20 minutes.
Q - Will this hold tubing?
A - Yes, it holds both flat and round steel.
How to use:
- Store in OFF position.
Ensure that the Magswitch Magnet is stored in teh "off" position when not in contact with metals.
- Test Connection.
Always test connection before attempting to use the Magswitch Hand Lifter to ensure that it is capable ofholding the material securely.
- Never exceed rated capacity.
Never exceed the rated capacity of the device or attempt to alter the device in any way. Each magnet has up to 60 lbs of Safe Working Load.
- Avoid sudden jerking or shock force.
Avoid sudden jerking or shock force as this will cause the magnet to lose its hold.

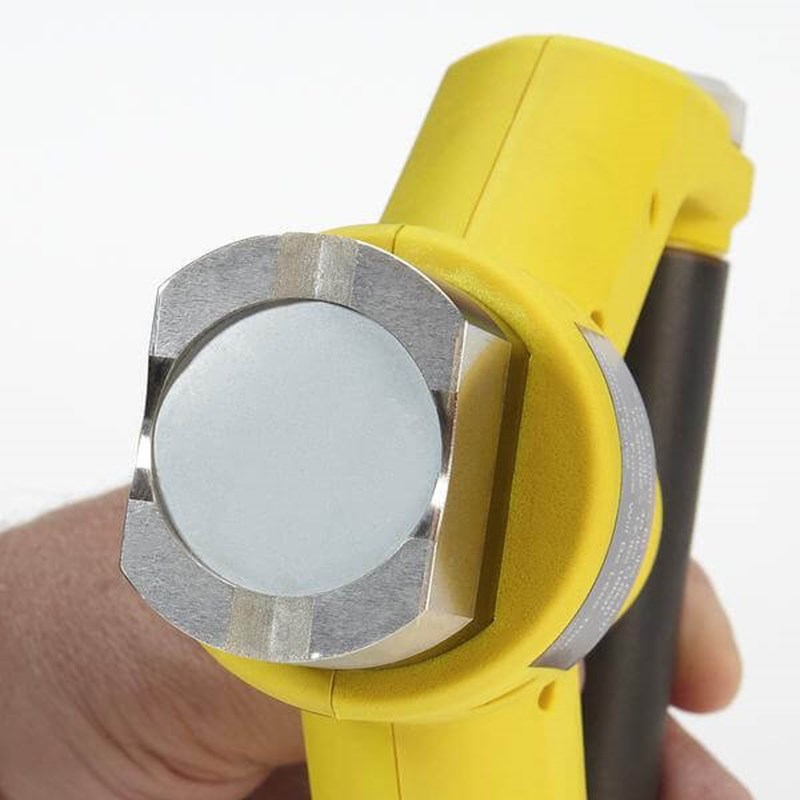

- Ensure bottom surface of magnet is flat.
For safe operation, the bottom surface of the magnet must always be flat and smooth. Always file any burrs that interfere with full contact.
