Magswitch MLAY1000X4 Lifting Magnet #8100418

$1,999.00
Product Number: 8100418
QTY:
Financing AVAILABLE!

Magswitch MLAY1000X4 #8100418

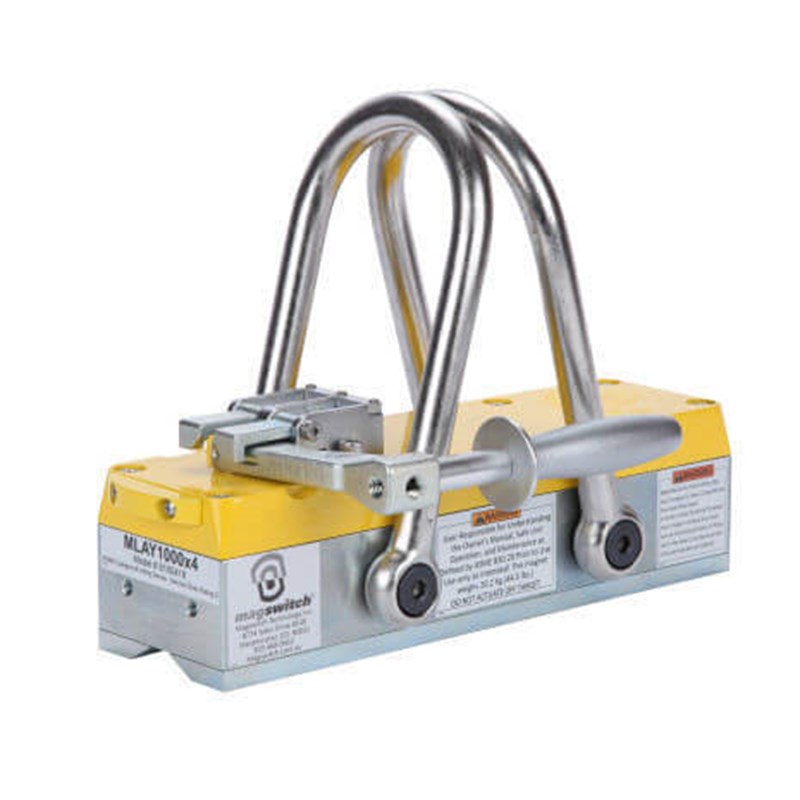

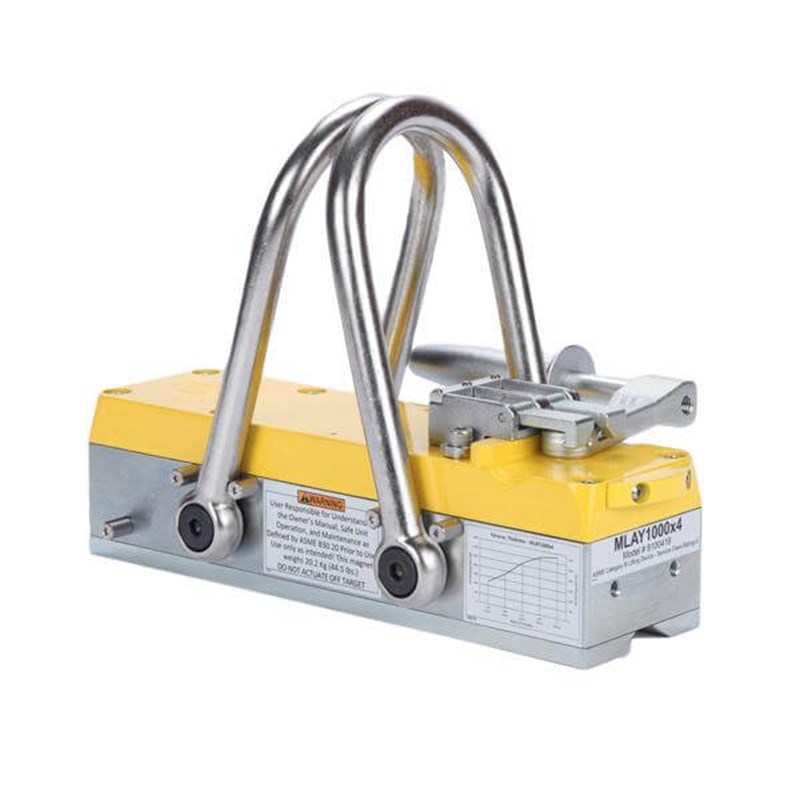

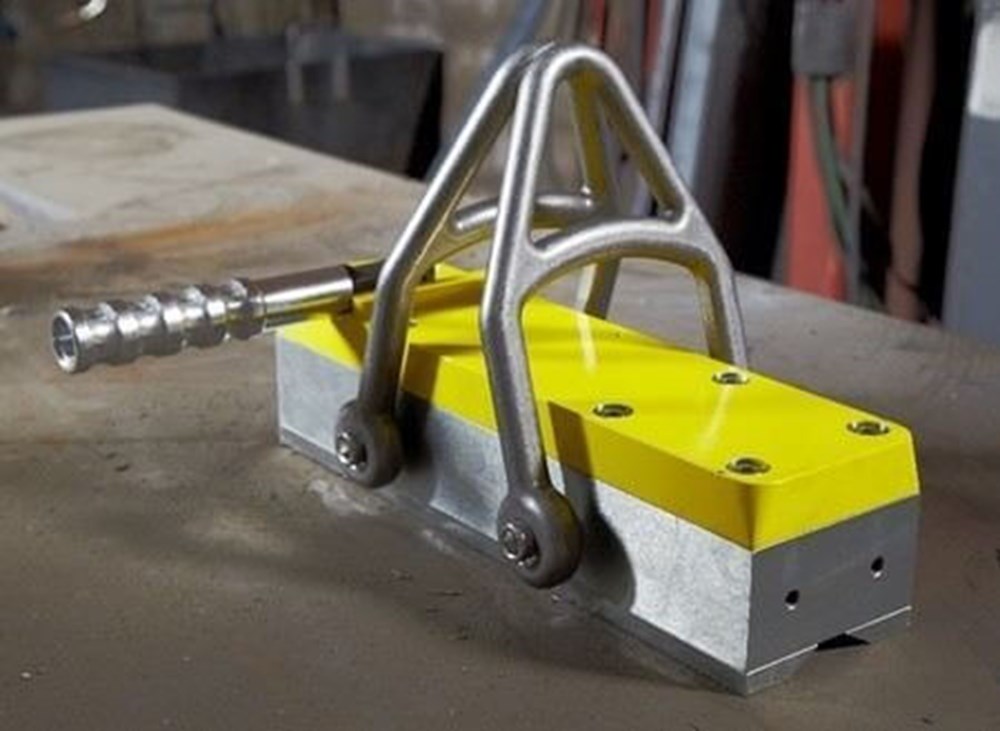

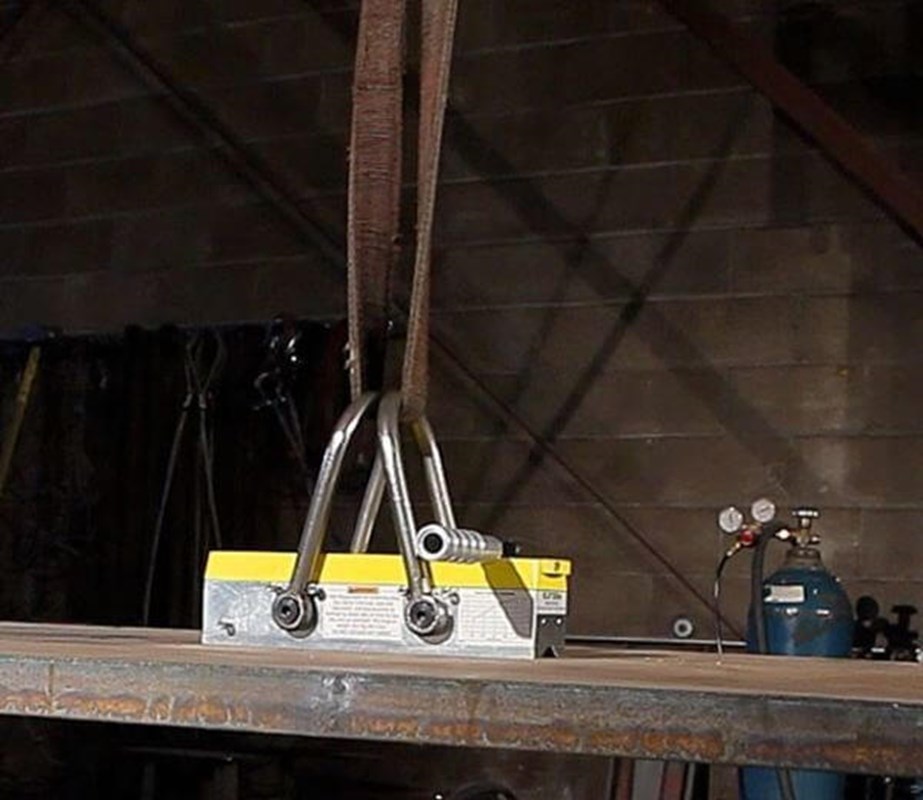

The Magswitch MLAY1000x4 lifting magnet is built for heavy-duty lifting, our magnet technology is powerful without the need for a power source. Safely lock in both the On and Off position with a magnetic holding force of 3640 pounds. The dual lift hook offers the stability to lift horizontally and a single hook to lift into a vertical position.

Features

  • Superior hold force on Thin steel (70mm deep field).
  • Compact, light weight and easy actuation.

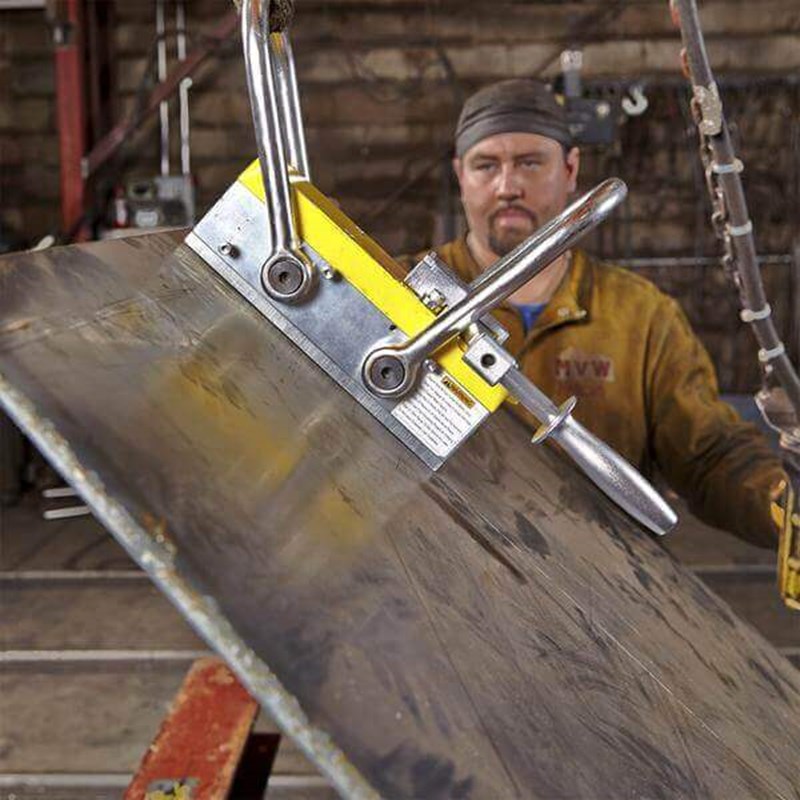

  • Pivoting Hook allows lift from horizontal to vertical.

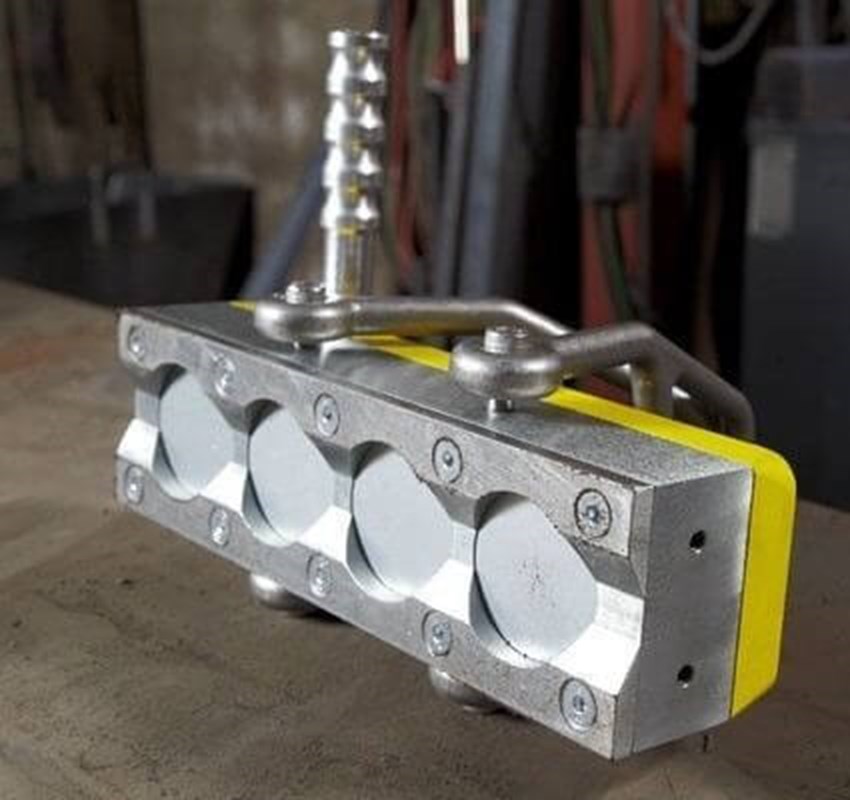

  • Pole Shoes – replaceable for long life, or make custom shoes match to target.
  • Lock on/ off handle.
  • Lifts Flat or Pipe.
  • Superior performance in the presence of air gaps such as rust, paint and uneven surfaces.
  • Better performance on thin steel allows Magswitch to fit the job with a lighter magnet and usually at a better price.







Shop all welding magnets, magnetic squares and clamps at Welders Supply.

Watch a video about this product:

MLAY1000X4

Specifications:

Magnet Strength 3900 lbs/1773 kg
Safe Working Load 1300 lbs/591 kg
Full Saturation Thickness 3/4” / 12.7mm
Max Safe Shear 283 lbs/128.6 kg
Minimum Thickness for De-Stack 3/4” / 12.7mm
Net Weight 45.2 lbs/20.5 kg
Mounting Thread M8x1.25
Overall Height 9.9in/250.79 mm
Magnetic Pole Footprint 336.0×97.6 mm

Product Questions and Answers


Q - What is the most weight this can lift? A - Magswitch literature says the maximum safe working load is 1,213 lbs.
Q - How well does this work with rusted and uneven surfaces? A - It works extremely well with porous materials and uneven surfaces, as well as thin steel.
