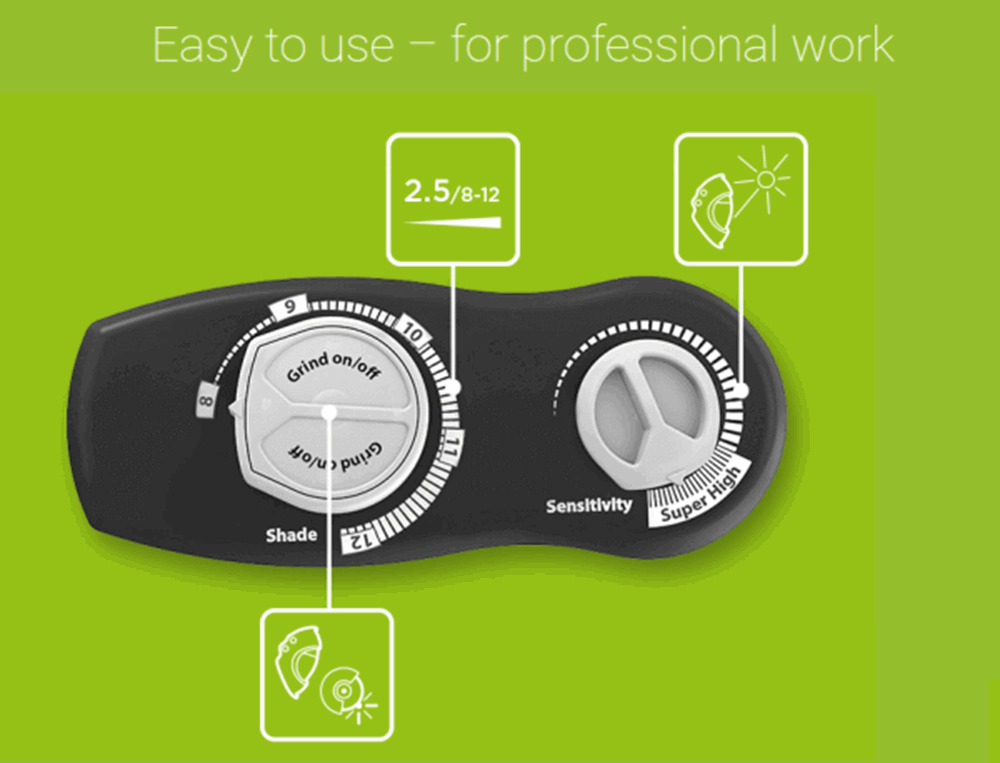

Infinite Shade Level Adjustment – External controls enable welders to manually adjust their shade level from 8-12 to meet the needs of their welding application without removing their helmet
True Color Filter – ADF lenses are specially coated to optimize the view of colors in almost true form, allowing welders to easily read red LEDs on welding devices without raising their helmets.
Sensitivity Control – Welders working in close proximity to one another can adjust the Sensitivity of their ADF, preventing it from responding too soon or not at all to their arc flash. This can also be used when welding at low amperages and the ADF does not darken.
Opening Delay – The Opening Delay function allows welders to adjust the time it takes to switch from dark to light, making the transition easier on the eyes.
Sensor Slide – optrel’s patented Sensor Slide allows the detection angle to be reduced from 120° to 60°, preventing the ADF from responding to nearby welders’ arcs.
Overhead Welding – The optrel expert line’s curved helmet design deflects smoke, particles, and other debris when performing overhead welding.
Respiratory Protection – Available with e3000 powered air purifying respirator
Multi-Purpose Use – Appropriate for grinding and overhead welding
| Replacement Lens |
5012.470 |
|---|---|
| Shade Levels |
2.5 / 8-12 |
| Adaptive Shade Autopilot |
No |
| Sensitivity Control |
Yes |
| Opening Delay |
Yes |
| # Sensors |
3 |
| High Definition Viewing |
No |
| Optical Class |
1/1/1/2 |
| True Color Filter |
Yes |
| Twilight ADF Technology |
No |
| Helmet Weight |
17.002 oz. |
| e3000 Compatible |
Yes |
| Overhead Welding |
yes |
| Grind Mode |
Yes – Shade Level 2.5 |
| Switching Time / Light to Dark |
0.100ms at room temperature, 0.070ms at 131F |
| Switching Time / Dark to Light |
0.1s – 1.0s (adjustable) |
| Warranty |
2 Years Standard (3 Years with Registration on optrel.com_=) |
| Welding Applications |
All Electrical Arc Welding, Electrode Welding (Stick Welding, SMAW), Flux Cored Wire Welding, GMAW High Melting Rate Process, MAG (GMAW), Micro Plasma Arc Welding, MIG, Oxy-Gas Welding, Plasma Arc Welding, Plasma Cutting, Prohibited for laser and gas welding!, TIG Welding (GTAW) |
| Color |
Black |
SHIPPING DIMENSIONS |
|
| Height: | 12.00 Inches |
| Width: | 12.00 Inches |
| Length: | 12.00 Inches |
| Weight: | 10 Lb(s) 0 Oz |
Push in one side clip to release the front cover lense and them remove it.
Attach the new front cover lens to one side clip.
Pull front cover lens round to the second side clip and clip into place.
