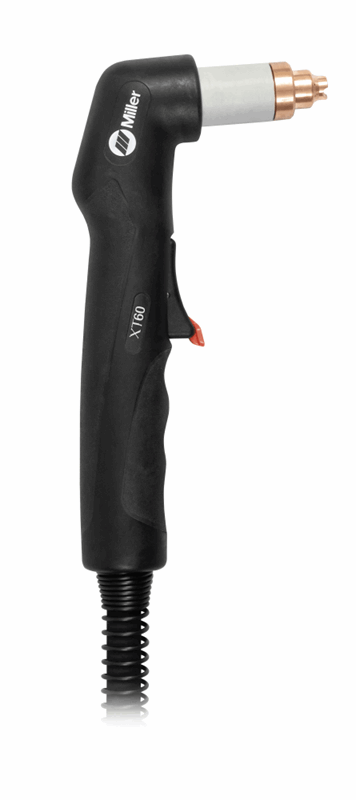

Miller XT60 50 ft Hand Held Torch #249954
Miller XT60 50 ft Hand Held Torch #249954
Plasma Torch Type:

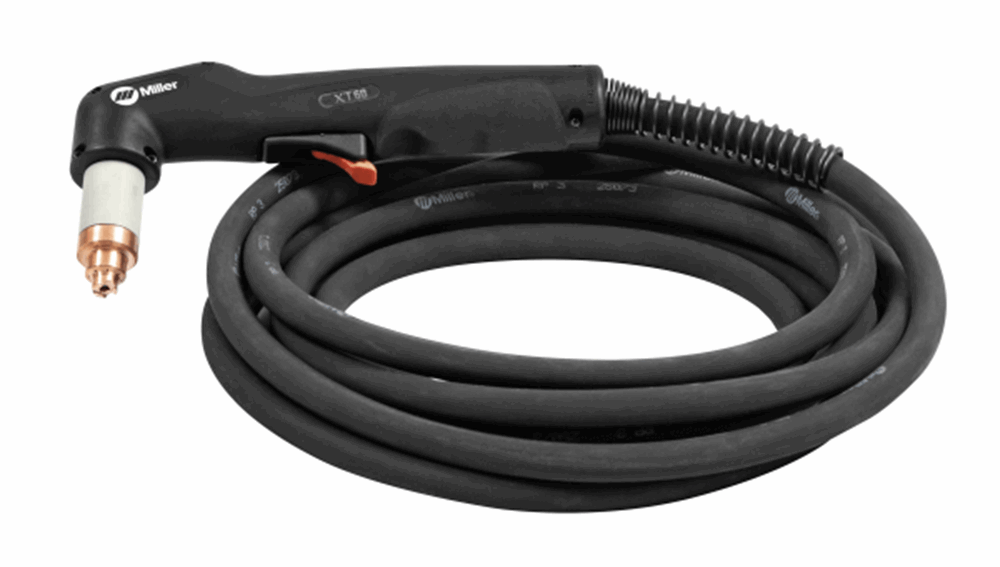

The Miller XT60 replacement hand-held plasma torch(#249954) features High speeds and precision cuts at a low cost. This plasma gun uses 50 ft(15.2 m) leads and excels at plasma arc welding, plasma spraying, plasma cutting and plasma gasification for waste disposal. Use the XT60 to cut through electrically conductive materials such as steel, stainless steel, aluminum, brass, copper and more with ease.
The Miller XT60 replacement plasma gun is compatible with all Miller Spectrum® 875 and 875 Auto-Line plasma cutters ONLY.
Power Source | Stock Number | Description |
---|---|---|
Spectrum 875 208/230 V, 1-phase |
907583 |
With 20 ft. (6.1 m) XT60 hand-held torch |
907583001 |
With 50 ft. (15.2 m) XT60 hand-held torch |
|
907583002 |
With 25 ft. (7.6 m) XT60M long body machine torch |
|
907583003 |
With 25 ft. (7.6 m) XT60M short body machine torch |
|
Spectrum 875 Auto-Line 208 – 575 V, 1- or 3-phase |
907584 |
With 20 ft. (6.1 m) XT60 hand-held torch |
907584001 |
With 50 ft. (15.2 m) XT60 hand-held torch |
|
907584002 |
With 25 ft. (7.6 m) XT60M long body machine torch |
|
907584003 |
With 25 ft. (7.6 m) XT60M short body machine torch |
|
907584004 |
With 50 ft. (15.2 m) XT60M long body machine torch |
|
907584005 |
With 50 ft. (15.2 m) XT60M short body machine torch |
SHIPPING DIMENSIONS |
|
Height: | 4.50 Inches |
Width: | 19.00 Inches |
Length: | 19.50 Inches |
Weight: | 9 Lb(s) 7 Oz |
Turn off power source and disconnect input power.
Push torch connector onto receptacle and quick connect until collar secures nipple.
Rotate securing pin clockwise to lock connector to unit.
Use supplied hook and loop strap to manage torch and work cables.
