Hypertherm 180 Mini Machine Torch Assembly 25' Lead - 059482

Product Number: 059482
$545.00
$655.00 You Save $110.00

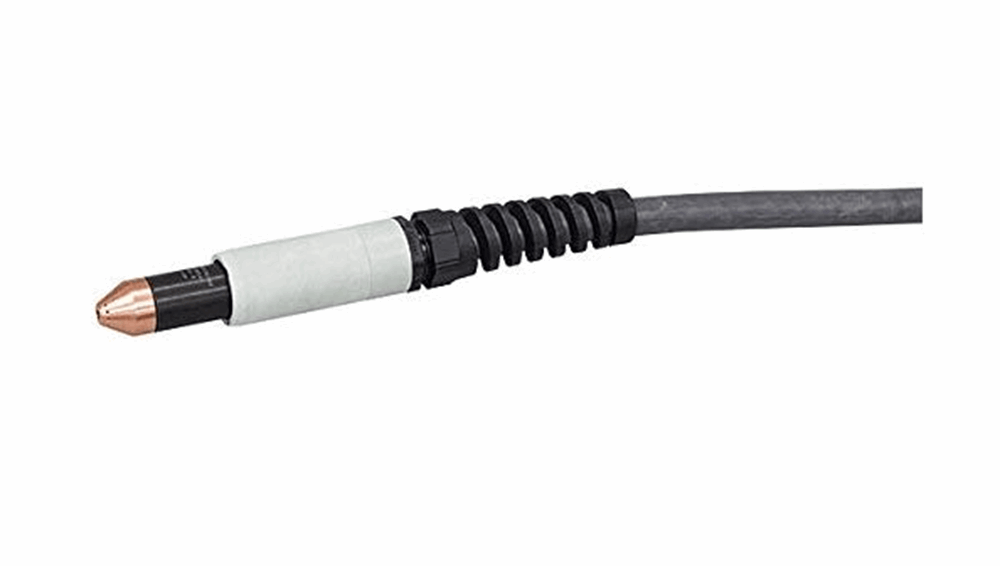

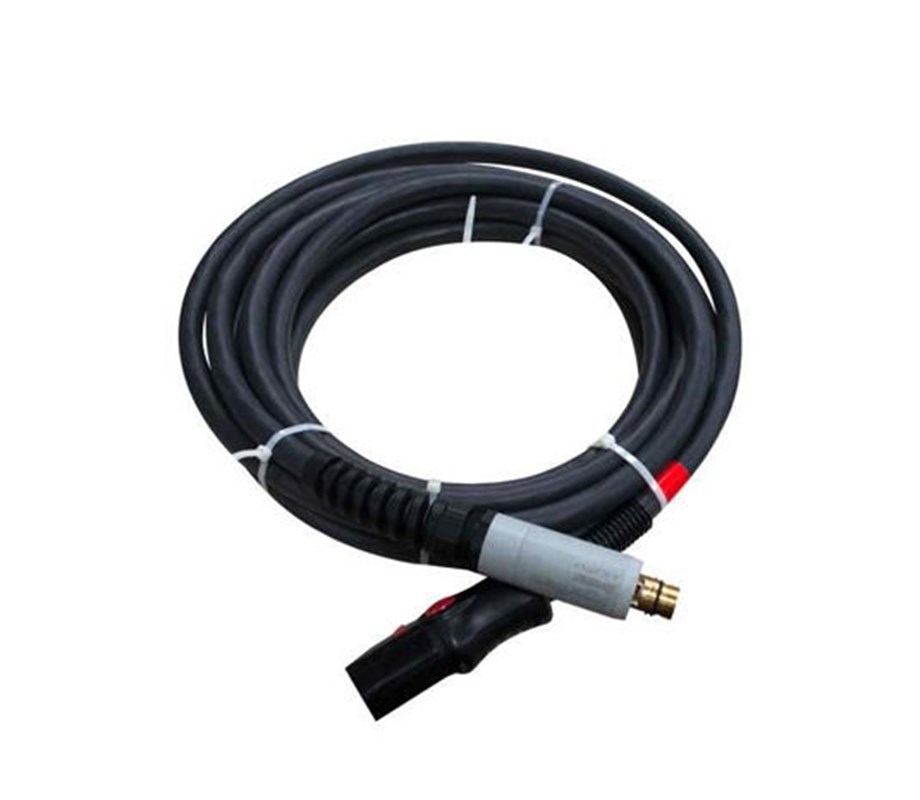

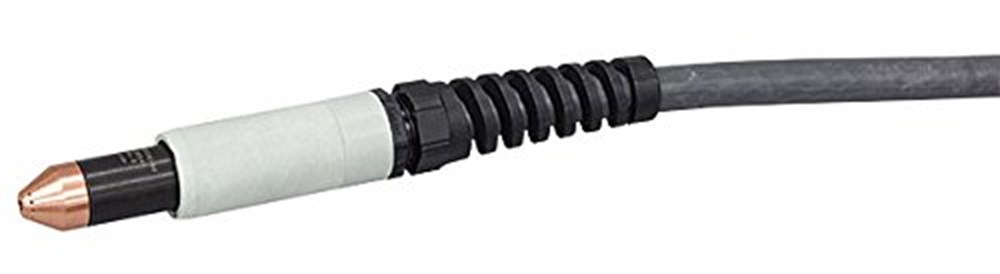

Hypertherm® Mini Machine Plasma Torch with 25' Lead, #059482

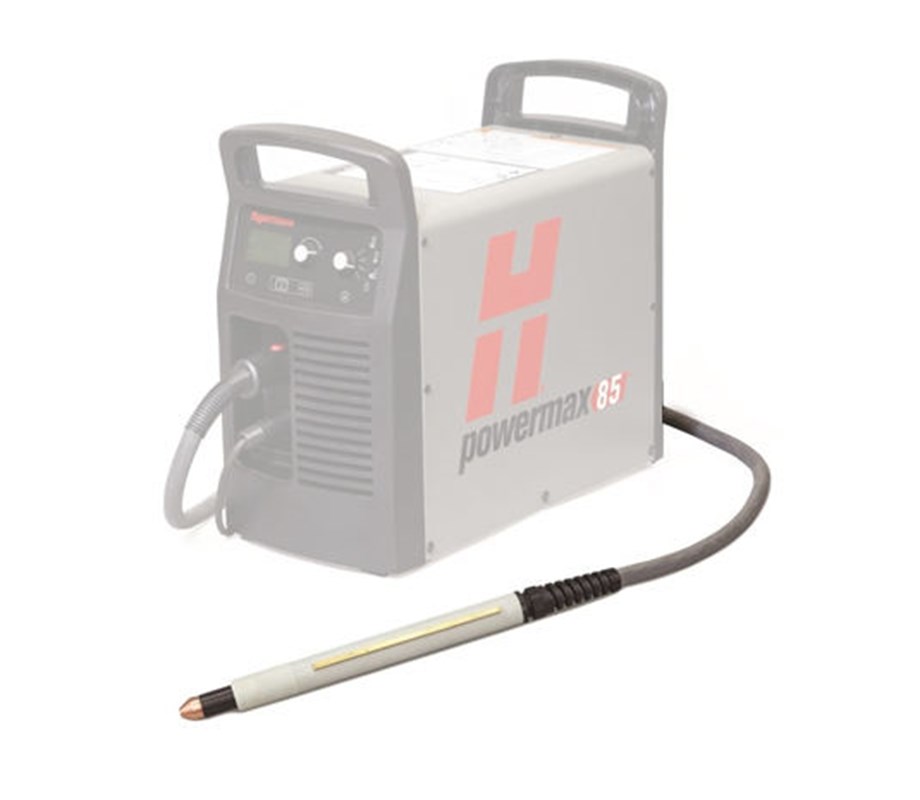

This Hypertherm® Mini Machine Plasma Torch with 25' Lead and 180° head was manufactured for use with Powermax65®, Powermax85®, and Powermax105® Mechanized Plasma Cutter. Hypertherm is known for industry-leading innovation and manufacturing torches built to last.

Hypertherm® Mini Machine Plasma Torch Key Torch Advantages:

  • The handle is more heat resistant and performs at least five times longer in high impact tests than previous torches.
  • Conical Flow™ nozzle increases arc energy density for superior cut quality with little dross.
  • Patent pending shield reduces dross buildup and enables smoother drag cutting for a better cut.

Consumables sold separately.

Compatible with:

This torch will not work with older Powermax 45 units equipped with the T45V torch.

Hypertherm 180 Mini Machine Torch Assembly 25' Lead - 059482 video

Shop other Hypertherm ProductsPlasma Cutting ConsumablesPlasma Cutting MachinesAccessoriesWelding HelmetsHelmet AccessoriesGlovesJacketsApronsCaps, and Pants.

Hypertherm® Mini Machine Plasma Torch Machine Torch Cut Capacity

  • Mechanized Pierce Capacity:5/8" (16mm)
  • Gouging metal removal rate: of 19.5 lbs. (8.8 kg) per hour
  • Groove Profile: .23"(5.8mm) D x .28"(7.1 mm) W

Dimensions

  • 44 mm (1 3/4" diameter barrel
  • 18.3cm (7.2") length

Hypertherm 180 Mini Machine Torch Assembly 25' Lead #059482 Maintenance

Hypertherm 180 Mini Machine Torch Assembly 25' Lead #059482 Torch Options Overview

Product Questions and Answers


Q - What is the part number for the O-ring? A - #8-3486
Q - Can this only be used with the Cutmaster 102 and 152 plasma cutters? A - It has the most often used consumables for those machines.
Q - Can I use this with the old Powermax 45? A - No, though it works with the newer 45XP.
Q - Will this work on a CNC machine? A - Yes, with the appropriate plasma cutter equipped with a CPC port.

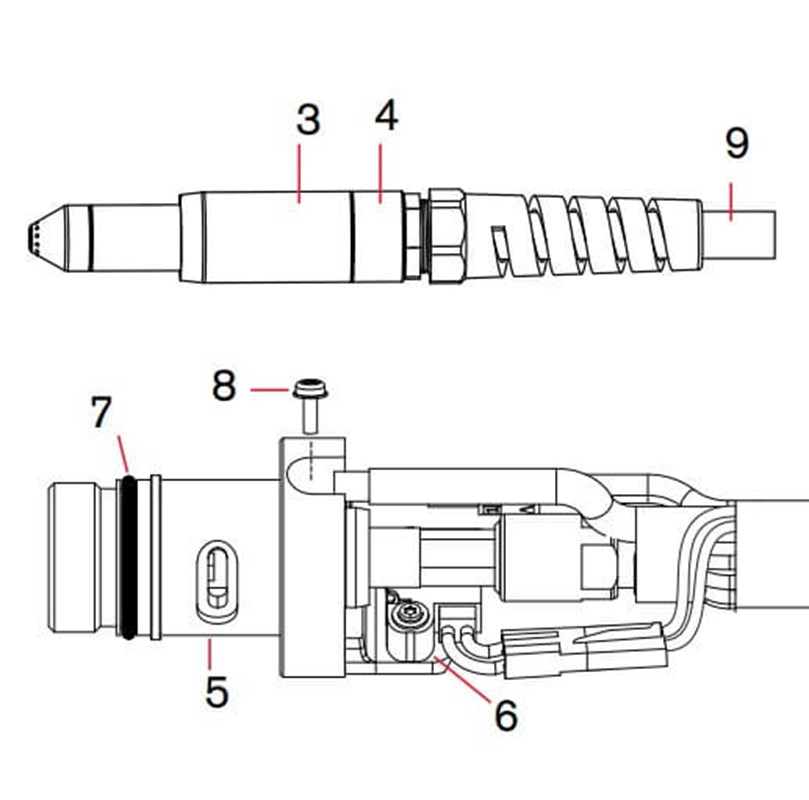

How to Mount a Torch:

  1. Disconnect Torch Lead.

    Disconnect the torch lead from the power supply and remove the consumables from the torch.

  2. Unscrew Strain Relief.

    Unscrew the strain relief body from the strain relief nut and slide the strain relief body back along with the torch lead.

  3. Remove Nut.

    Unscrew the strain relief nut from the positioning sleeve (full-length machine torch) and slide the nut back along with the torch lead.

  4. Unscrew Sleeve.

    Unscrew the positioning sleeve from the coupler.

  5. Unscrew Coupler.

    Unscrew the coupler from the mounting sleeve.

  6. Remove Sleeve.

    Remove the three screws from the consumable’s end of the mounting sleeve and slide the mounting sleeve off the front of the torch body.
