Miller Panel ,4 Person Filtration System, 123CFM, 10PPM 275970

Part Numbers: 275970

Included with your purchase ( ) :

$5,266.40
$5,266.40

Call 1-844-682-0205 or CHAT for more options

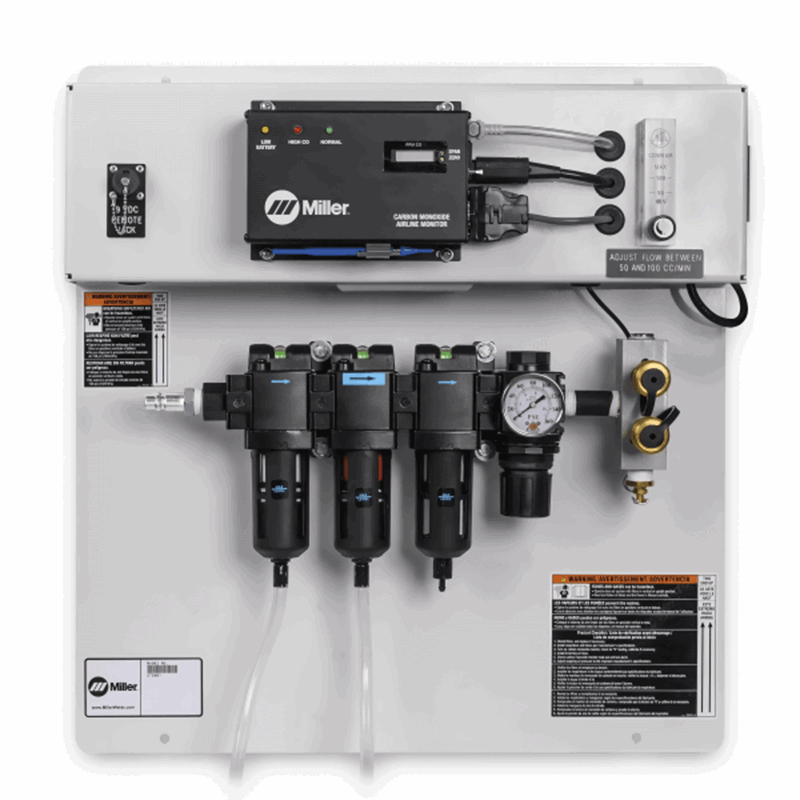

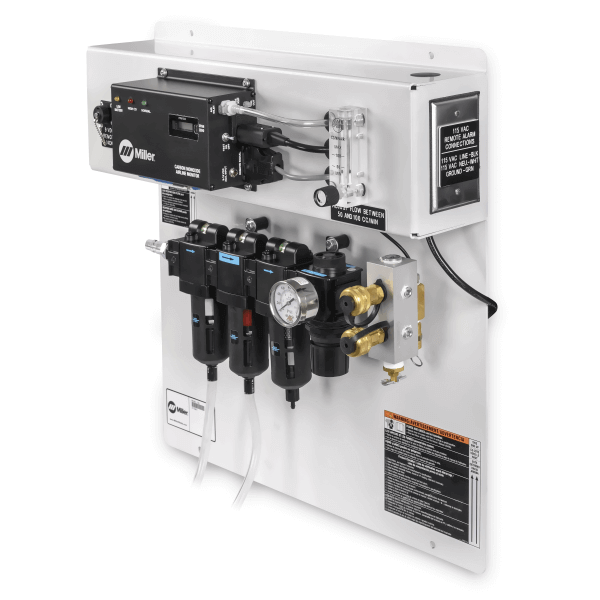

Miller Panel, 4 Person Filtration System, 123CFM, 10PPM 275970

Miller's BreatheAir™ Filtration System uses a three-stage filtration process to provide welders with Grade-D breathing air while monitoring for CO during use, ensuring welder safety. The first stage removes 95 percent of liquids and particulate, the second stage removes 99.99 percent of fine oil mists and particulates, then the third stage removes organic vapors, odors, and tastes. External warning lights and alarms are quick to notify welders of rising CO levels, minimizing response time and ensuring worker safety. The BreatheAir™ system is designed to withstand and perform in the toughest industrial environments. Depending on your unique requirements, the BreatheAir™ comes in portable or stationary configurations, supporting up to two or up to four operators each. Ensure welder safety and protect them from harmful fumes in their work environment.

BreatheAir™ panel filtration system provides the user Grade-D breathing air for use with the C50 SAR system.

First Stage Removes 95 percent of liquids and particulate down to 5.0 microns.
Second Stage Removes 99.99 percent of fine oil mists and particulate down to .01 microns in size.
Third Stage Removes organic vapors, odors and tastes.

Filter change indicators clearly notify users of needed change, eliminating guesswork and amplifying unit performance.

  • Unmatched filter change process is quick and easy, minimizing downtime.
  • Automatic condensation drain extends filter life.
  • Internal monitor continuously monitors carbon monoxide (CO) levels in the breathing air.
Welders Supply is proud to provide the best prices on Welding safety equipment, including Miller Auto Darkening Welding Helmets.

BreatheAir™ Filtration Systems 275970 Specifications

BreatheAir Filtration Specifications

Product Questions and Answers


Q - What comes with this? A - A regulator, three-stage filters, quadruple manifold with 1/2" industrial interchange quick disconnect fittings (female) and a built-in CO monitor with visual and audible alarms.
Q - What respirator to you use with this? A - Miller recommends their Supplied Air Respirator with C50 regulator.
