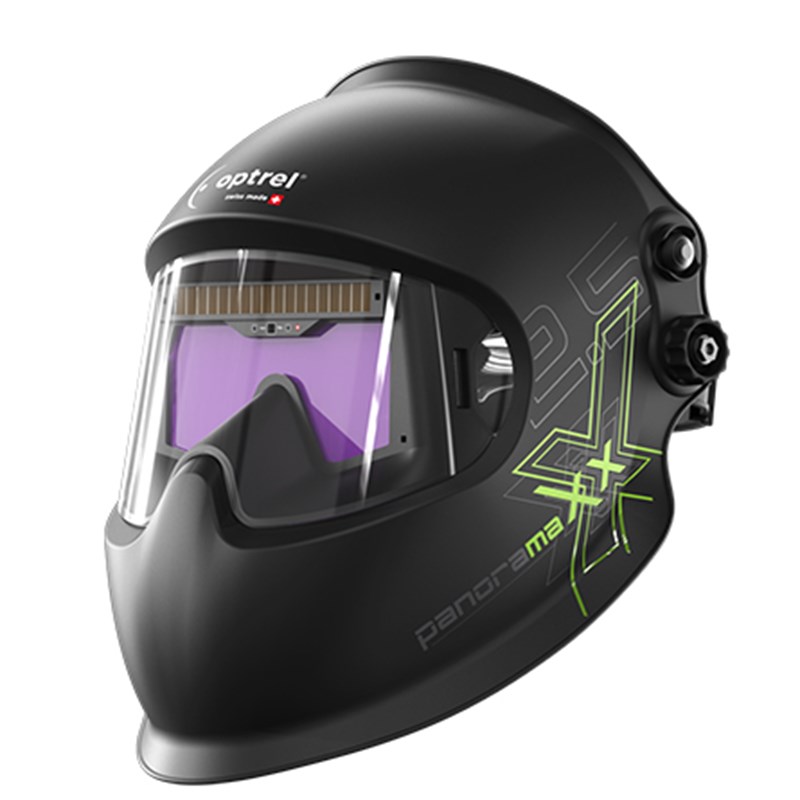

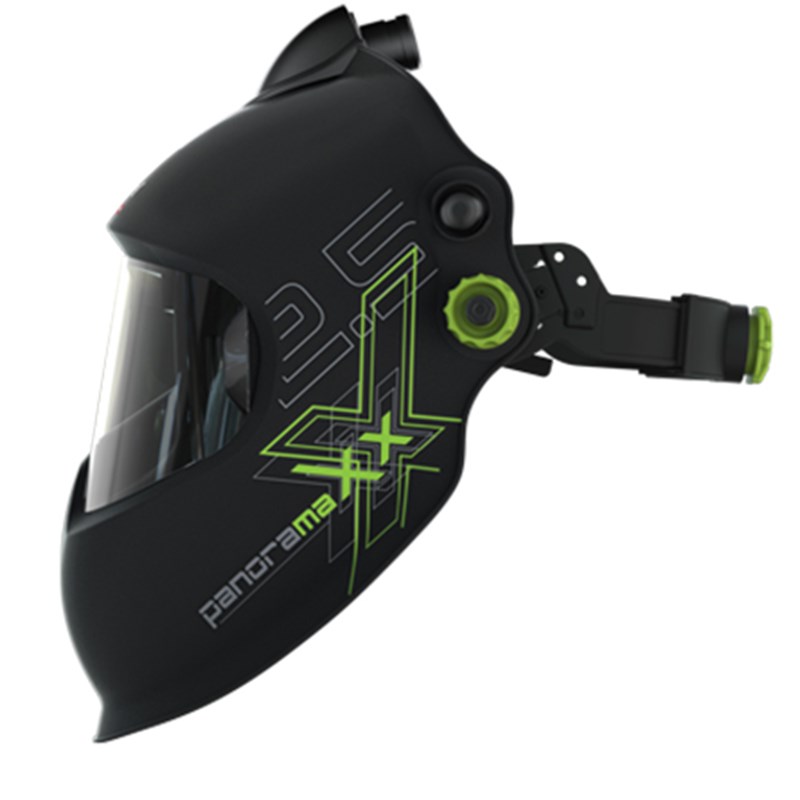

Optrel Panoramaxx Quattro 1010.100
The panoramaxx quattro was developed for use in heavy metal construction, where work is often carried out with a lot of energy and in a wide variety of welding positions. Especially in constrained positions, there is no straight view of the welding point. Perfect viewing angle dependence, confirmed by the best test mark of 1 according to the EN 379 standard, guarantees that panoramaxx quattro welders always have the best view of the welding process without manual adjustment of the protection level. This results in uninterrupted and fatigue-free working and improved performance.
Offers the view in all positions.

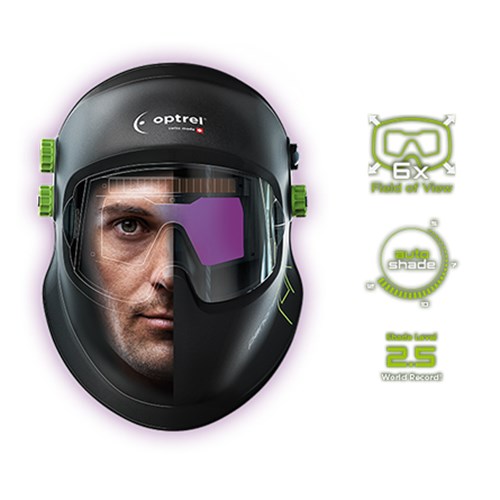

The panoramaxx quattro is a heavy-duty welding helmet for extreme use. It has a panoramic field of vision that always offers optimum protection even at difficult viewing angles. Its extremely good visibility is confirmed by the classification 1/1/1/1 according to DIN EN 379.
The Optrel Panoramaxx as a personal assistance system.
In addition to the large field of vision and crystal-clear optics, which form an actual assistance system, all members of the Panoramaxx series are equipped with the latest digital electronics. The patented Shadetronic and Fadetronic technologies in combination with the 5-point sensor system and the re-charge energy concept are the core elements.
They enable welders to focus on their work and allow them to work without interruption. This results in quality and efficiency. Thanks to the ergonomic design of the perfectly fitting Optrel lsoFit® headband, the Panoramaxx is light as a feather and fatigue-free. All Panoramaxx welding helmets are highly robust at the lowest weight and protect users against external mechanical impacts such as high-speed particles that hit the helmet at up to 120 m/s. And thanks to grinding mode, which can be easily operated externally, and the incomparable appearance, even grinding work is more fun.
The patented Optrel ShadeTronic® technology automatically adjusts the protection level to the changing light conditions of the welding arc. This allows welders to work without interruption.
A sophisticated Shadetronic sensor continuously measures the light intensity of the welding arc and regulates the glare protection progressively from SN 4 to a maximum of SN 13 fully automatically.
With the patented Optrel Fadetronic technology, the opening of the anti-glare display can be continuously adjusted after welding. The unpleasant afterglow is faded out – especially for high ampere applications. Eye fatigue is significantly reduced thanks to the display opening smoothly and being adapted to the eye.
The unique and environmentally-friendly Optrel re-charge energy concept ensures that welding helmets always have enough energy. Thanks to the latest solar technology, a rechargeable lithium-polymer battery is recharged either by the welding light or by the ambient light. In addition, the battery can also be charged directly with any USB charger via a micro-USB interface. The tiresome changing of batteries is no longer necessary and the environment is protected.
The Optrel 5-point detection integrated in the Panoramaxx series is an intelligent sensor control with five sensors. Sophisticated software and clever positioning of four sensors at the corners and one sensor in the upper center ensures the glare shield is switched on and off perfectly, even in the most difficult lighting conditions and in constrained positions, as well as permanent dark level adjustment (Shadetronic®, patented) during welding.
Like most Optrel welding helmets, the products in the Panoramaxx series have a grinding mode. It can be conveniently operated externally by means of a robust and well-protected pressure switch. Once activated, the anti-glare display remains deactivated, which guarantees trouble-free grinding work. At the touch of another button, the glare shield is then immediately ready for welding work. Your Optrel welding helmet becomes a true multifunctional work safety device.
Check out more Optrel welding equipment or contact Welders Supply to find the right welding helmet.
Fields of Application:
- Elektrode Welding (Stick Welding, SMAW)
- MIG/MAG (GMAW)
- GMAW High melting rate process
- Flux Cored Wire Welding
- TIG Welding (GTAW)
- Plasma Arc Welding
- Plasma Cutting
- Gas Welding
- Grind Mode
Optrel Panoramaxx Welding Helmet
ShadeTronic inactive: shade level 3.0
active, manual: shade levels 8-13
ShadeTronic 4-13 with individual calibration option ± 2
solar cells, Li-polymer battery pack, chargeable via Micro-USB
|Battery life range||
300 to 500 charging cycles
|Sensitivity||continuously, new with "Super High" sensitivity|
light to dark:
0.090 ms at 20°C
0.070 ms at 55°C
dark to light:
0.1 s to 2.0 s (with FadeTronic)
|Field of vision||
2.3 to 6.3 times bigger than a 100 x 50 mm standard ADF
Mask: up to 220°C
Front cover lens: up to 137°C
UV/IR protection: maximum protection at all shade levels
-10°C to + 55°C / 14°F to 131°F
-20°C to + 70°C / -4°F to 158°F
575 g / 20.3 oz (PAPR 745g)
|Scope of delivery||
Welding helmet, Optrel IsoFit® headgear, manual, bag, Micro USB cable, front cover lens, warranty card
1-year warranty extension (except batteries) for online product registration within the first 6 months
