Lincoln Electric Prism® Circulator w/ PTFE Filter (575V) #K5140-6

Part Number: K5140-6
UPC: 15082703541

Ships Free To Lower 48 States

Lincoln Electric Prism® Circulator w/ PTFE Filter (575V) #K5140-6

Part Number: K5140-6
UPC: 15082703541
$37,077.46 + Free Shipping $41,106.00*
SAVE $4,028.54

Related Products

  • 575 volt input575V Input
  • 3-phase input power3-Phase Input
  • 4000 SCFM air filtration4000 SCFM
  • 4 PTFE Filters heavy duty welding air filtration4 PTFE Filters (Oily Applications)
  • Lincoln Electric 3-Year WarrantyLincoln Electric 3-Year Warranty

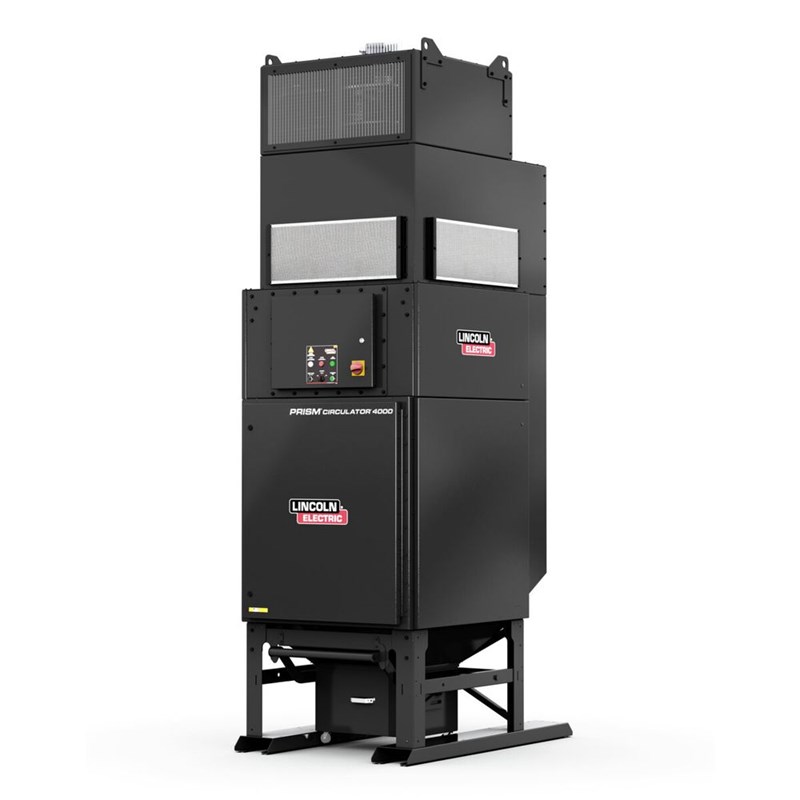

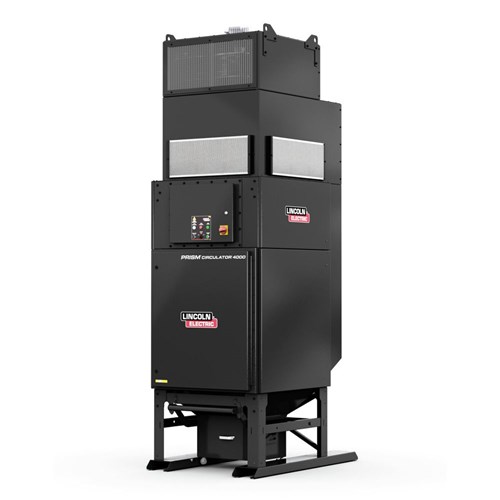

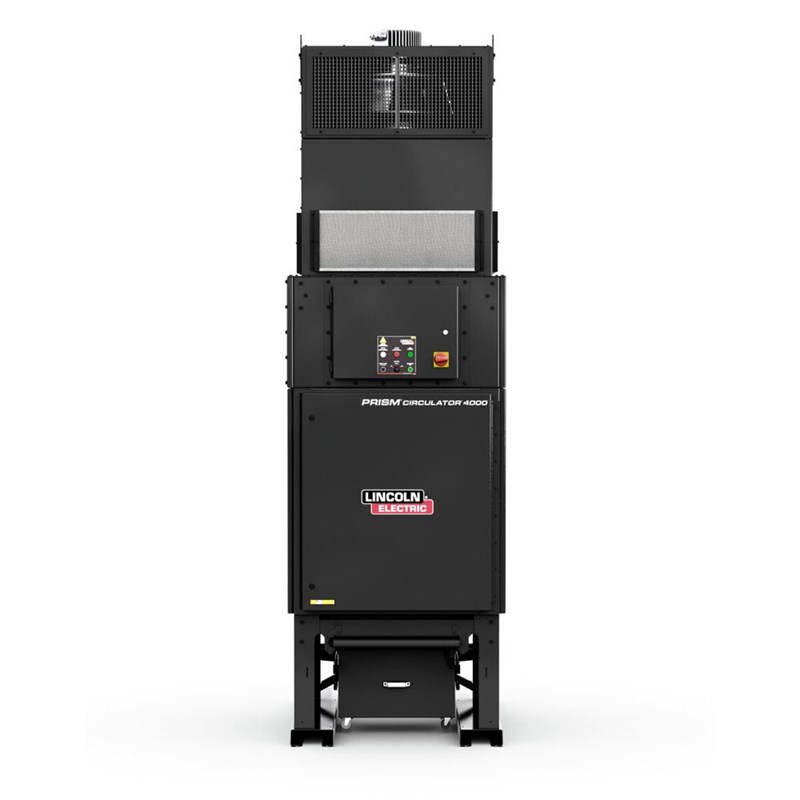

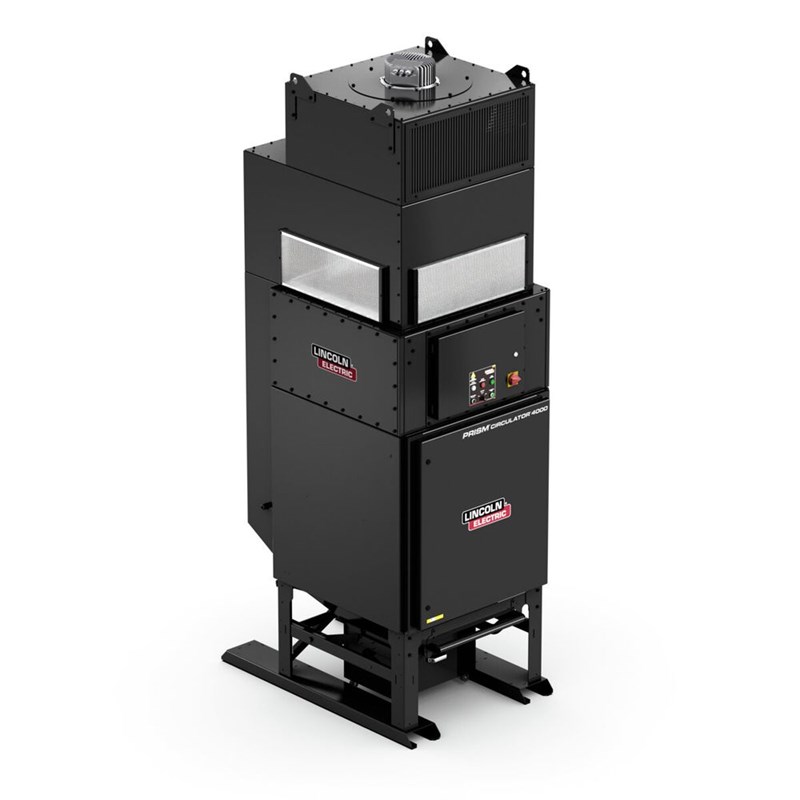

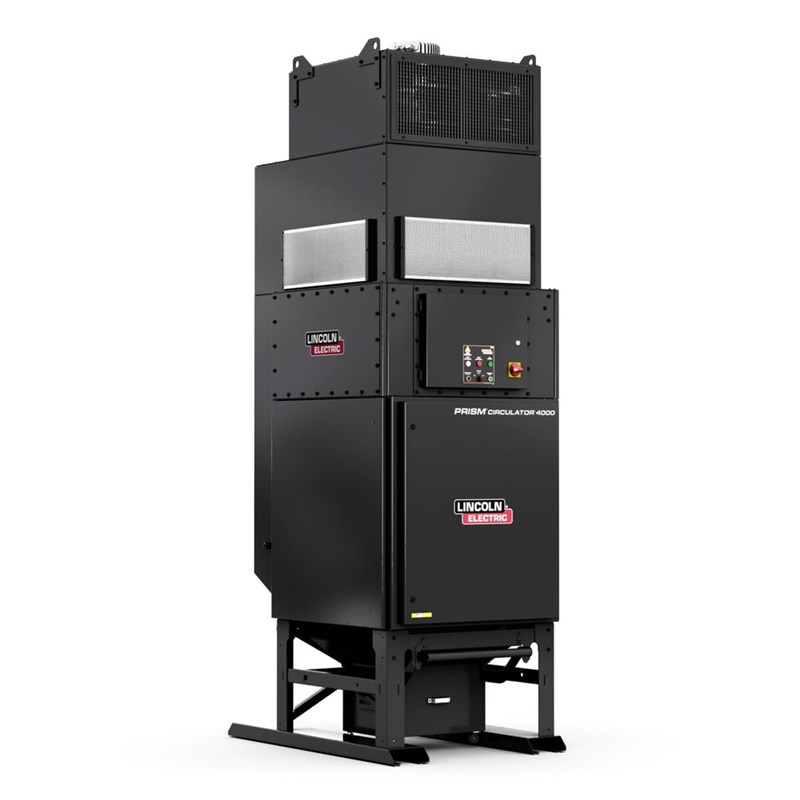

Lincoln Electric Prism® Circulator High-Flow Air Filtration System with PTFE Filter (575V) #K5140-6

The Lincoln Electric Prism® Circulator is a powerful and efficient air filtration system designed to extract welding fumes in facilities where additional ductwork is not feasible.

This high-flow unit continuously circulates and filters ambient air, making it ideal for both large and small shop environments.

Lincoln Electric warranty

Highlights

  • 4000 SCFM high airflow capacity
  • Filters 40,000 cu. ft. of ambient air every 10 minutes
  • PTFE filter for oily particulate capture
  • Easy transport and 1-hour installation
  • 575V power input

Industries

  • Manufacturing
  • Fabrication Shops
  • Welding Schools
  • Maintenance Facilities
  • Shipyards

What’s Included

  • Lincoln Electric Prism® Circulator unit
  • PTFE filter
  • Operator’s manual
  • Limited warranty documentation

Benefits of the Lincoln Electric Prism® Circulator

  • Improves air quality without the need for additional ductwork
  • Highly efficient PTFE filter captures fine welding particulates
  • Portable design allows for flexible placement in various shop layouts
  • Quick setup reduces downtime during installation
  • Helps maintain compliance with air quality regulations
  • Reduces overall facility maintenance by minimizing fume buildup

Fast, Free Shipping & Easy Returns

At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE, and demo items. For more details, contact our customer service team at 1-844-682-0205.

Browse all fume extractors or explore Lincoln Electric welding supplies at the best prices online.

General

Product Type Plug and Play
Style Circulator
Motor Power (HP) 7.5 EC Motor
Protection Class Fan Motor IP55
Input Current (Amps) 9
Input Hertz 60
Input Phase 3
Input Voltage 575
Duty Cycle 100%
Sound Level 72 db
Air Flow 4000 SCFM @ 6.5 IN WG

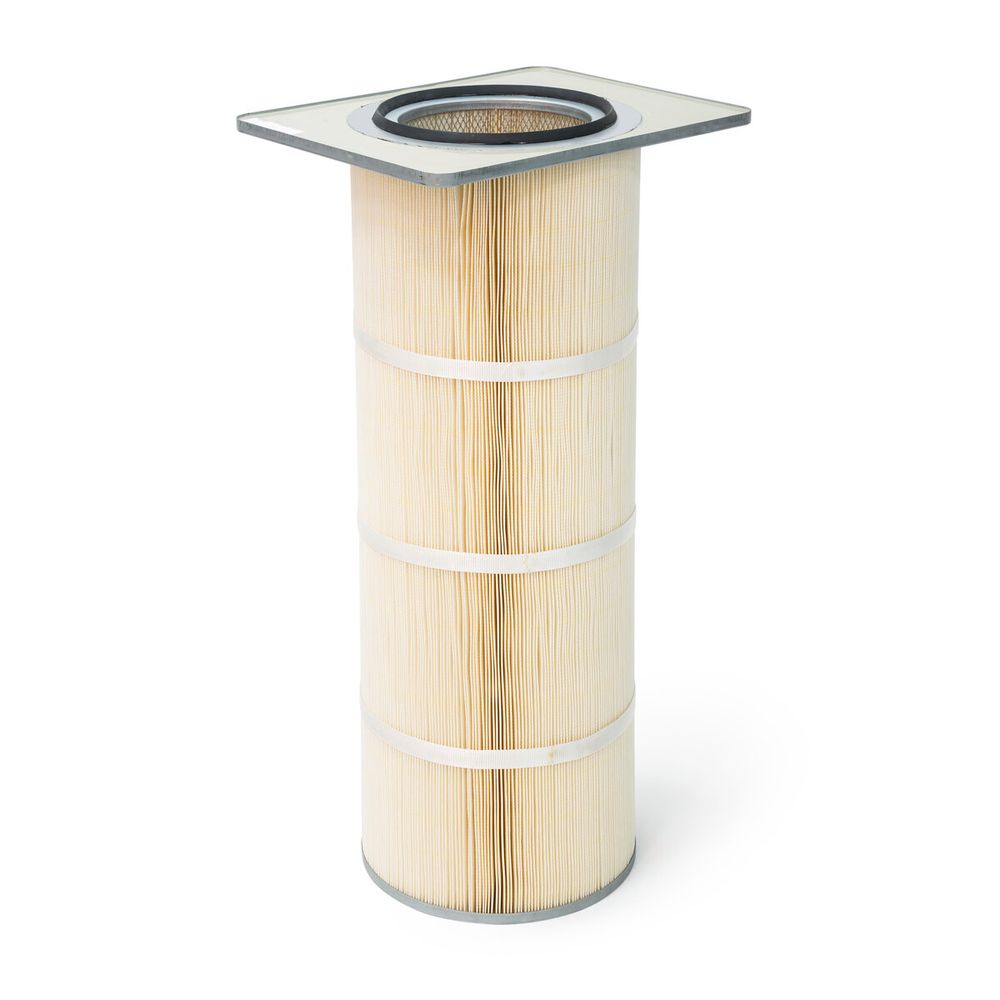

Filtration (4) KP4519-3 PTFE Filters
Filter Type (MERV Rating) MERV 16 PTFE
Type of Cleaning Pulse Jet
High Vac or Low Vac Low Vac
Minimum Temperature F(C) -4(-20)
Maximum Temperature F(C) 113(45)

Warranty

Warranty 3 Year

SHIPPING DIMENSIONS

Height: 147.00 Inches
Width: 45.00 Inches
Length: 65.00 Inches
Weight: 1830 Lb(s) 0 Oz
