Ellis 6000 Belt Grinder #6000

Part Number: 6000
$1,888.00
$1,995.00* Save $107.00
Out of Stock

Ellis Belt Grinder #6000

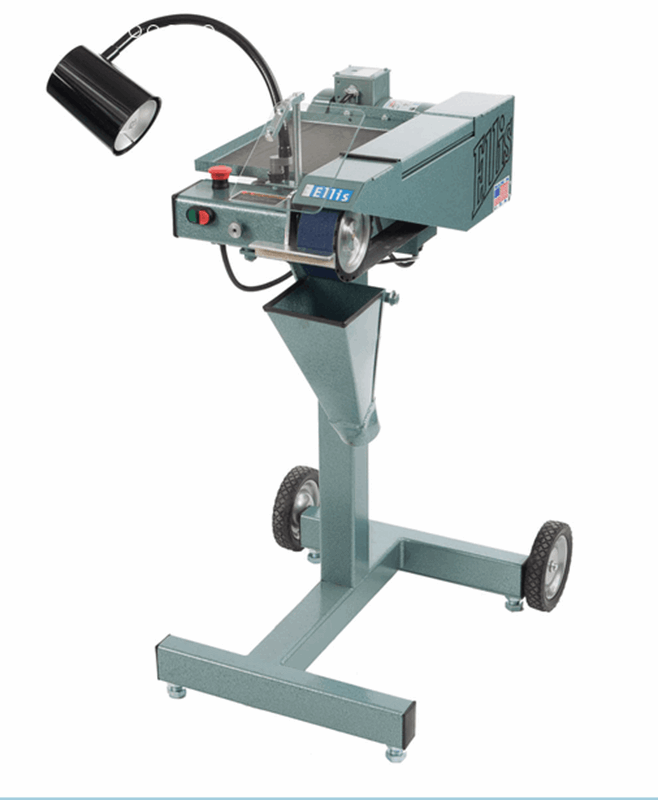

The Ellis 6000 Belt Grinder #6000 is without doubt one of the finest belt grinders available today. With its robust design, low noise level and reputation for safe, dependable operation, this grinder is an excellent choice of all-around use in any shop. Grinding, beveling, descaling, deburring, polishing and finishing, as well as tool sharpening—the Ellis 6000 does it all.

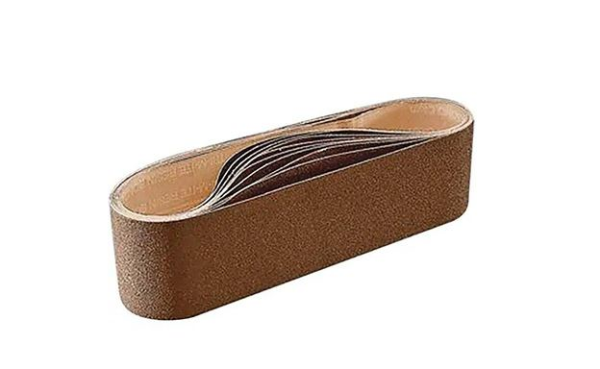

Equipped with both a contact wheel and a flat grinding surface, the Ellis 6000 Belt Grinder offers tremendous versatility. You can use this grinder on mild steel, tool steel, stainless steel, aluminum, brass, copper and hardened steel. Changing belts mid-job is quick and easy. A 50-grit belt is included with the grinder, and replacement belts are available in 36, 36, 50, 60, 80, 100, 120, 180 and 220 grit.) As with all grinders, gloves and eye protection are required to ensure the safety of the operator.

Available accessories include: a safety shield that pivots out of the way when working with large pieces; a work rest to help you stabilize small parts for more detailed work; a dust chute that can either be connected to a vacuum or used to funnel grindings into a waste bucket; and a work light you can quickly swing off to the side when not needed.

Features:

  • Reduced Grinding Time
  • Dependable and Safe
  • Low Noise Level

Grinds:

  • Mild Steel
  • Tool Steel
  • Stainless Steel
  • Aluminum, Brass, Copper
  • Hardened Steel

Note: The dust collector and lamp that is shown in some of the product pictures are not included with purchase - they would have to be purchased separately.



View all our quality welding equipment and supplies online.

Specifications

Belt Dimension 2 1/2” x 60”
Belt Grits 36, 50, 60, 80, 100, 120, 180, 220
Belt Speed 5000 SFM
Dimensions Width 24”
Length 30”
Height 48”
Shipping Weight 185 lbs.
Motor 1 HP Special Duty
3450 rpm, 60 Hz
110/208,230
Contact Wheel Precision Balanced
6” Diameter, 2 1/2” Wide
70 Duro, Serrated
Optional - not included, must be ordered separately  Work Rest, Safety Shield and Adjustable Dust Chute, Portable with Wheels
Optional - not included, must be ordered separately Heavy Duty 100 Watt Multi-Lamp

Product Questions and Answers


Q - What size belt does this run? A - 2 1/2" x 60"
Q - Where is this made? A - Made in Verona, Wisconsin.

How to start-up machine:

  1. Plug in power cord.

    Plug power cord into 115V AC 60 HZ single phase power receptacle.

  2. Check red emergency stop button.

    Check to see that the red emergency stop button is in the upright position, otherwise turn it clockwise.

  3. Check the belt alignment.

    Check the belt alignment by turning the grinder on and off quickly. Watch to see that the belt is centered on the contact wheel.
