Razorweld RWX5000 Automatic Welding Helmet

Part Number: RWX5000

$95.70

Features
Specs
Documents
Consumables
FAQS

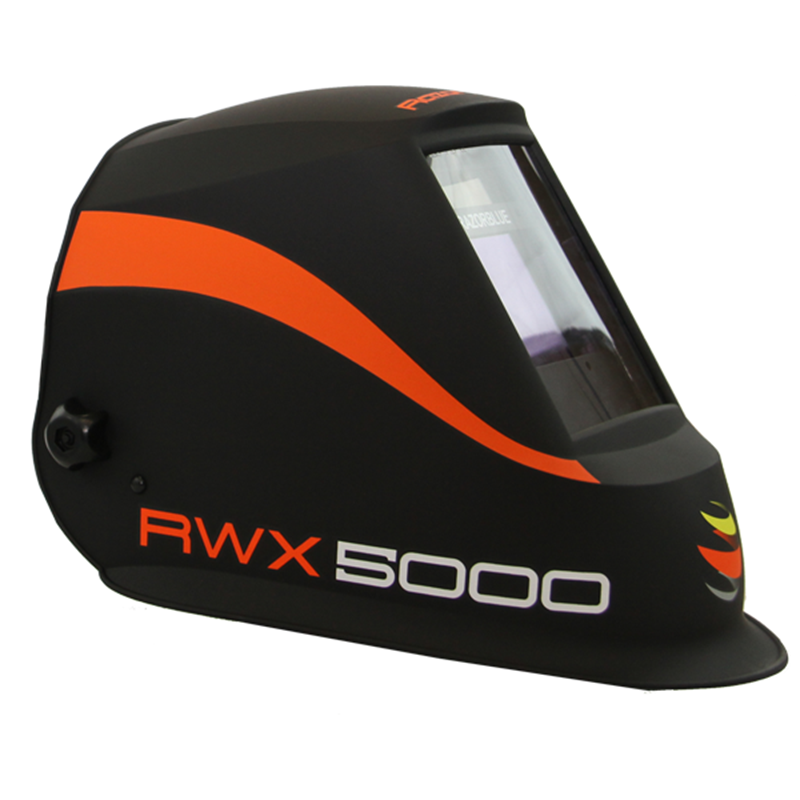

RWX5000 Welding Helmet

The RAZORWELD RWX5000 is a premium auto-darkening welding helmet featuring RAZORBLUE lens technology, a large 3.94" x 2.36" viewing area, 4 arc sensors, and a 9–13 variable shade range. With TIG capability down to 5 amps, grind mode, and stepless adjustable sensitivity and delay settings, it delivers high performance and protection across MIG, TIG, Stick, and Plasma applications—all backed by a 2-year warranty.

Highlights

Wide Viewing Area: 3.94" x 2.36" lens provides a clear, spacious view of the weld zone
RAZORBLUE Lens Tech: Delivers enhanced clarity and color accuracy for better weld visibility
Certified Clarity & Safety: Optical classification of 1/1/1/2 and UV/IR protection up to DIN 15
Arc-Sensitive Precision: 4 independent arc sensors ensure fast and accurate light response
TIG Capable to 5 Amps: Operates with low-amp TIG for precision welding applications
Variable Shade Control: External DIN 9–13 control plus built-in grind mode for versatility
Stepless Adjustments: Smooth, stepless control of delay and sensitivity for a personalized welding experience
Durable & Comfortable: Lightweight shell with full neck and head protection ensures comfort and safety
Dual Power Source: Solar-powered with replaceable battery backup for long-term reliability
Backed by Warranty: Covered by a 2-year manufacturer warranty for added peace of mind

What's Included:

RAZORWELD RWX5000 Auto Darkening Goggles
Carry Bag
1 x Spare Outer Lens
1 x Spare Inner Lens
Operating Manual

Feature	Specification
Filter Dimensions	5.25" x 4.5"
Viewing Area	3.94" x 2.36"
Light Shade	DIN 4
Dark Shade Range	DIN 9–13
UV/IR Protection	Up to DIN 15
Switching Time	1/10,000 s
Delay Time (Dark to Light)	0.1 – 0.9 s
Sensitivity / Delay	Adjustable (Stepless)
Grind Function	Yes
Power Supply	Solar Cells & Replaceable Battery
Operating Temperature	14°F – 149°F
Optical Classification	1/1/1/2
Warranty	2 Years
