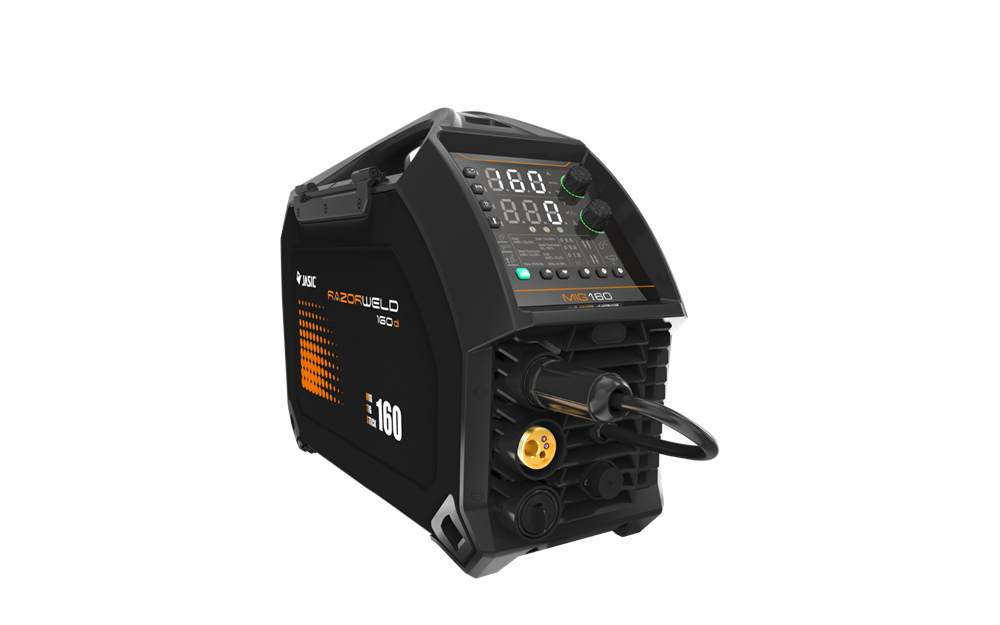

Razorweld 160di Multi-Process Welder #JRW160di
Part Number:
JRW160di
Ships Free To Lower 48 States
Razorweld 160di Multi-Process Welder #JRW160di
Part Number:
JRW160di
DocumentsRazorweld 160di Welder #JRW160di
The Razorweld 160di is a professional-grade 3-in-1 welding system designed for the workshop or jobsite. With synergic MIG control, foot pedal readiness, spool gun compatibility, and power factor correction, it’s equipped for precision and power. This portable machine delivers smooth, reliable performance across MIG, TIG, and Stick processes with multi-material capability and up to 160A output.
Highlights
- All-in-One Multiprocess System: Welds MIG, TIG, and Stick with a single compact, professional-grade machine
- Synergic MIG Programs: Intelligent arc control simplifies setup and ensures optimal performance

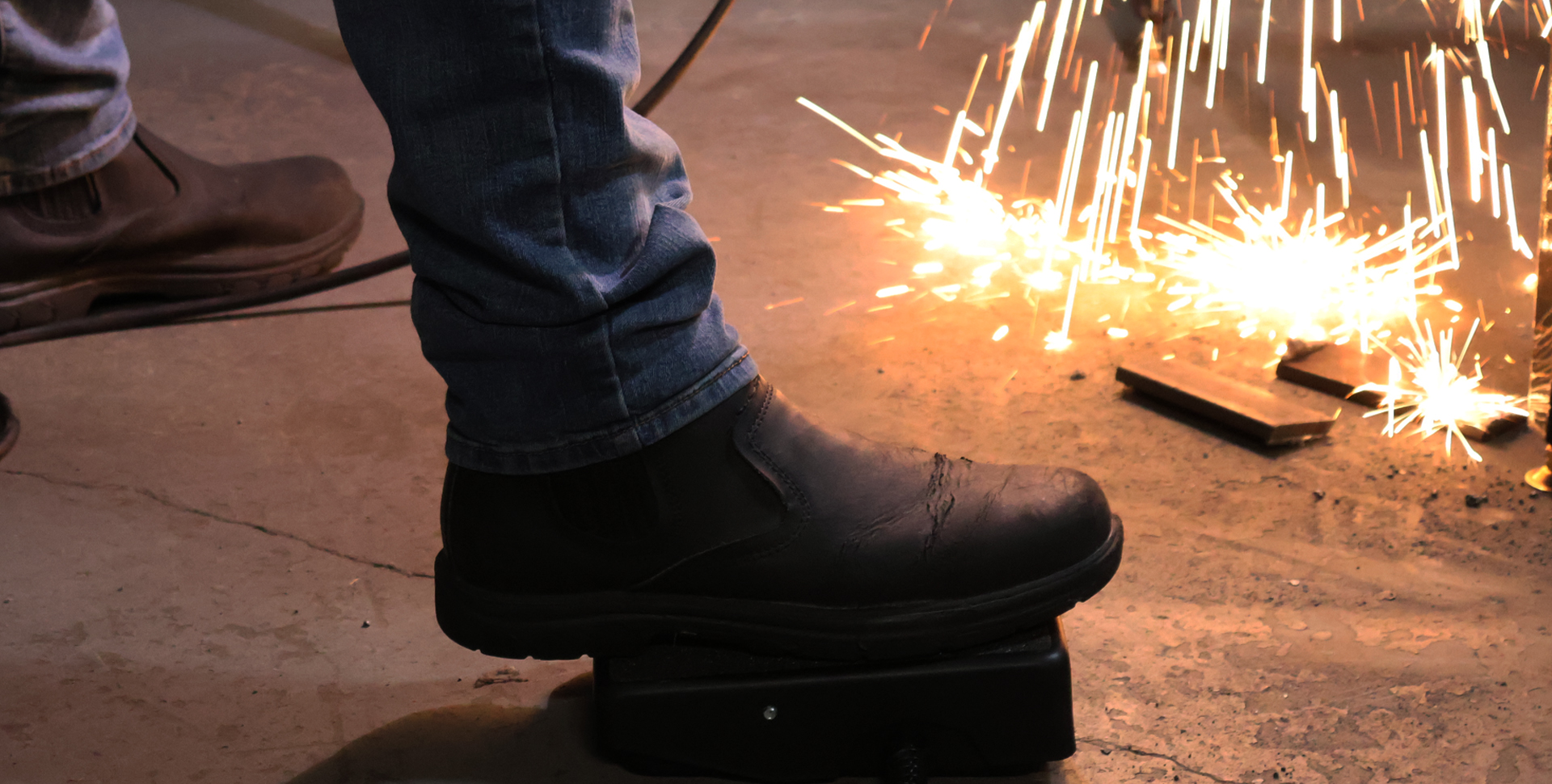

- Foot Pedal & Spool Gun Ready: Compatible with foot pedal for TIG and spool gun for aluminum MIG welding
- Power Factor Correction: Optimizes energy use and allows efficient welding even on long extension cords
- Portable but Powerful: Weighs just 37 lbs and delivers up to 160A output, making it ideal for shop and field work
- Dual Voltage Input: Runs on 115V or 230V power, with 6-50 NEMA plug for flexible operation
- Multi-Material Capability: Welds mild steel, stainless steel, cast iron, aluminum, silicon bronze, and copper
- Built to Last: Rated IP21S, CSA/Canada compliant, and includes a 3-year warranty
What's Included:
- RAZORWELD 160di Welder
- TWECO 2 Style 10FT MIG Torch
- Arc Lead Set
- Ground Cable
- Regulator
- Power Adaptor
- Operating Manual
| General Technical Data | |
|---|---|
| SKU | JRW160di |
| Input Voltage | 115V / 230V |
| Supply Plug | 6-50 NEMA |
| Rated Output | 30% @ 160A |
| IEFF | 14.5 A |
| Protection Class | IP21S |
| Insulation Class | B |
| Minimum Generator Size | 10 kVA |
| Dinse Connector | 35/50 |
| Standards | CSA / CAN |
| Weldable Materials | Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminum, Copper |
| Warranty | 3 Years |
| Dimensions | 22" x 8.6" x 16" |
| Weight | 37 lbs (Machine Only) |
| MIG Specifications | |
|---|---|
| Current Range | 30–160A |
| Duty Cycle | 30% @ 160A |
| Wire Size | 0.023"–0.035" |
| Spool Size | 11 lb |
| Thickness Range | 1/32" – 3/16" |
| Drive Roller Size | 30/10 |
| TIG Specifications | |
|---|---|
| Function Type | DC Lift Arc |
| Current Range | 5–160A |
| Duty Cycle @ 105°F | 30% @ 160A, 60% @ 114A, 100% @ 88A |
| Thickness Range | 3/16" – 1/4" |
| Stick Specifications | |
|---|---|
| Current Range | 20–140A |
| Duty Cycle @ 105°F | 30% @ 140A, 60% @ 100A, 100% @ 77A |
| Electrode Range | 1/16" – 5/32" |
| Thickness Range | 3/32" – 1/2" |
SHIPPING DIMENSIONS |
|
| Height: | 16.00 Inches |
| Width: | 8.60 Inches |
| Length: | 22.00 Inches |
| Weight: | 37 Lb(s) 0 Oz |
- Razorweld 160i User Manual
- Razorweld 160i Brochure
