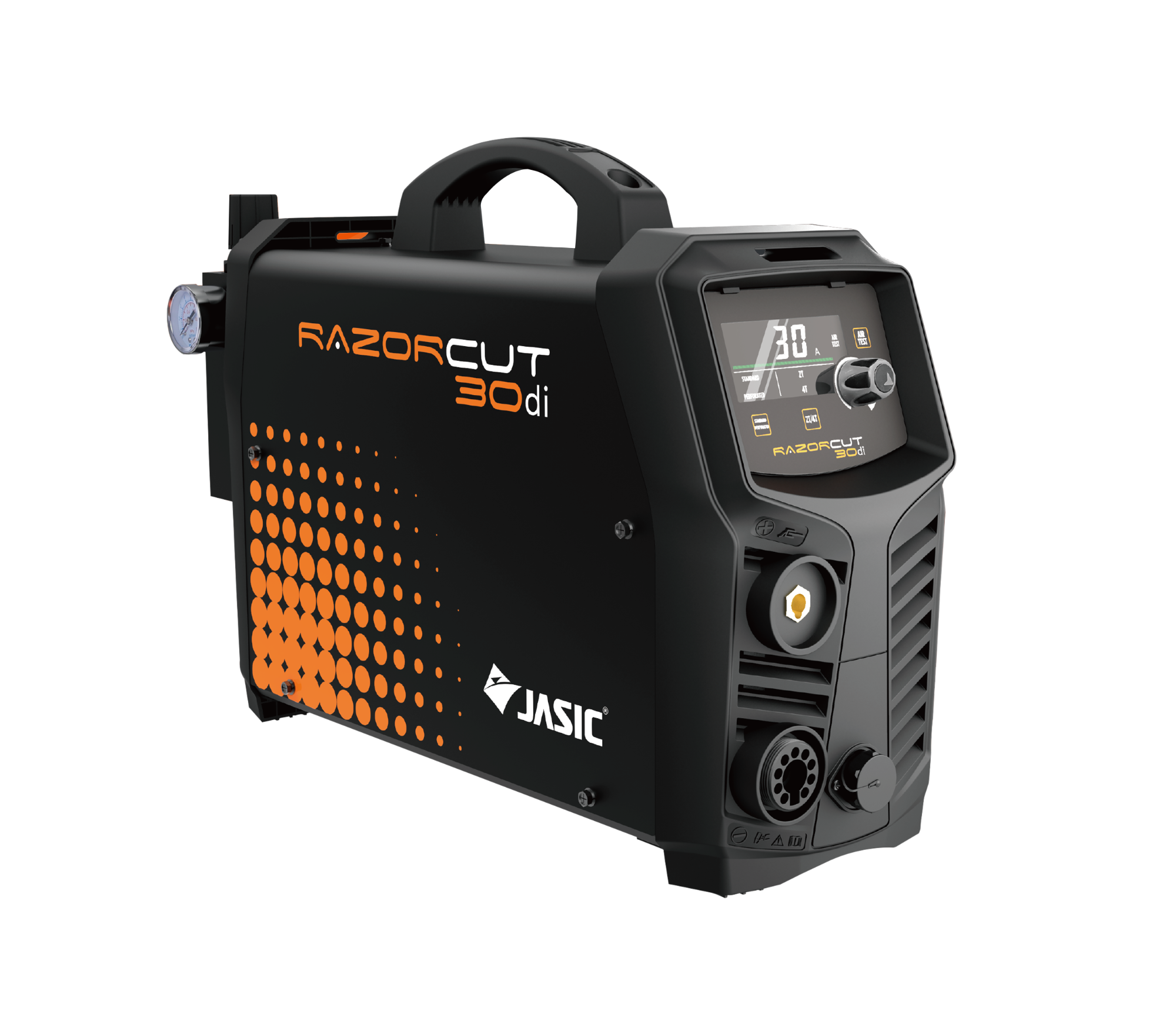

Razorweld Razorcut 30di Plasma Cutter - JRWCUT30di
Part Number:
JRWCUT30di
Ships Free To Lower 48 States
Razorweld Razorcut 30di Plasma Cutter - JRWCUT30di
Part Number:
JRWCUT30di
Plasma Torch Type:
DocumentsRazorcut 30di #JRWCUT30di
The RAZORCUT 30di is a compact, high-performance plasma cutter designed for both precision and portability. With dual voltage input (115/230V), Pilot Arc start, and CNC compatibility, it’s the ideal solution for light fabrication, repair work, and DIY cutting of mild steel, aluminum, and stainless. Clean cuts up to 5/16" and severance up to 3/8" make this machine a powerhouse in a portable package.
Highlights
- Dual Voltage Input: Operates on both 115V and 230V power for maximum versatility
- Pilot Arc Start: Enables easy and reliable arc initiation without direct contact
- CNC Compatibility: Built-in CNC port makes it ready for mechanized plasma cutting
- Digital Control Panel: Sleek interface with 2T/4T torch control, air test mode, and perforated cutting modes
- Lightweight and Portable: Compact design with just 19 lbs of weight—ideal for transport and field use
- Clean Cut Performance: Cuts clean through up to 5/16" mild steel, aluminum, and stainless
- 1/2" Severance Capability: Handles thick material when needed, up to 1/2" severance
- Thermal Overload Protection: Automatically warns and protects against overheating during extended use
- CSA/CAN Certified: Built to meet North American safety and performance standards
What's Included:
- RAZORCUT 30di Plasma Cutter
- 19.5FT Plasma Torch
- Ground Cable
- Power Adaptor
- Operating Manual
| RAZORCUT 30di Specifications | |
|---|---|
| Input Voltage | 115/230V Single Phase |
| Rated Input Power | 4.6 kVA |
| Rated Output Voltage | 92V |
| Plasma Cut Current Range | 20–30A |
| Plasma Cut Duty Cycle @ 40°C | 35% @ 30A |
| Clean Cut Thickness (Mild/Aluminum/Stainless) | 5/16" (8mm) |
| Severance Thickness (Mild/Aluminum/Stainless) | 1/2" (12mm) |
| Air Flow Draw Off | 65–75 L/min |
| Air Flow Pressure | 3.5–4.5 bar |
| Protection Class | IP21S |
| Insulation Class | B |
| Minimum Generator Size | 9.0 kVA |
| Dimensions (L x W x H) | 21" x 6.5" x 13.5" |
| Weight | 19 lbs |
SHIPPING DIMENSIONS |
|
| Height: | 13.50 Inches |
| Width: | 6.50 Inches |
| Length: | 21.00 Inches |
| Weight: | 19 Lb(s) 0 Oz |
