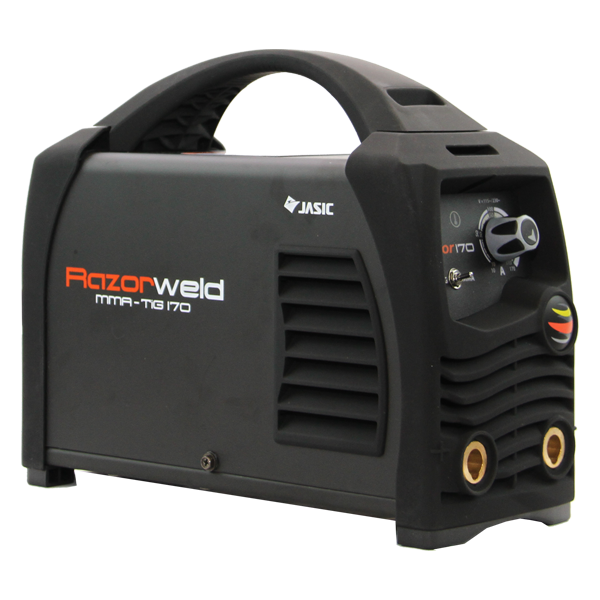

Razorweld 170 Stick/TIG Welder - KUMJRRW170CT
Part Number:
KUMJRRW170CT
Ships Free To Lower 48 States
Razorweld 170 Stick/TIG Welder - KUMJRRW170CT
Part Number:
KUMJRRW170CT
DocumentsRazorweld Stick/TIG Welder #KUMJRRW170CT
The RAZORWELD 170 is a compact and durable Stick/TIG welder designed for portability and precision. With dual input voltage, Hot Start, Arc Force, and Smart Lift TIG, it's ready for workshop tasks or jobsite demands. Includes a hard carry case for easy transport and protection.
Highlights
- Rugged Portability: Compact and ergonomic with included hard carry case
- Dual Voltage Capability: Operates on both 115V and 230V input power
- Stick & TIG Versatility: Weld with Stick or Lift Arc TIG for different applications
- Arc Control Features: Hot Start and Arc Force features reduce sticking and improve arc performance
- Built for Jobsite Use: Durable design suited for workshops and industrial job sites
What's Included:
- RAZORWELD 170 Welder
- Hard Carry Case
- Arc Lead Set
- Ground Cable
- 17V 13FT TIG Torch
- Regulator
- Power Adaptor
- Operating Manual
| RAZORWELD 170 Specifications | |
|---|---|
| Power Supply / Phase | 115V/230V – 1 Phase ±15% |
| Rated Input Power | 8.5 kVA |
| Ieff (Amps) | 20A @ 115V / 20A @ 230V |
| Imax (Amps) | 36A @ 115V / 39A @ 230V |
| Rated Output | 170A / 26.8V MMA 170A / 16.8V TIG |
| Welding Current Range | 10–170A |
| No-Load Voltage | 63V |
| Duty Cycle @ 104°F | 30% @ 170A MMA 35% @ 170A TIG |
| Protection Class | IP21S |
| Dimensions (L x W x H) | 12.2" x 5.11" x 9.84" |
| Weight | 10.4 lbs |
| Warranty | 3 Years (Power Source) |
SHIPPING DIMENSIONS |
|
| Height: | 9.84 Inches |
| Width: | 5.11 Inches |
| Length: | 12.32 Inches |
| Weight: | 10 Lb(s) 6 Oz |
