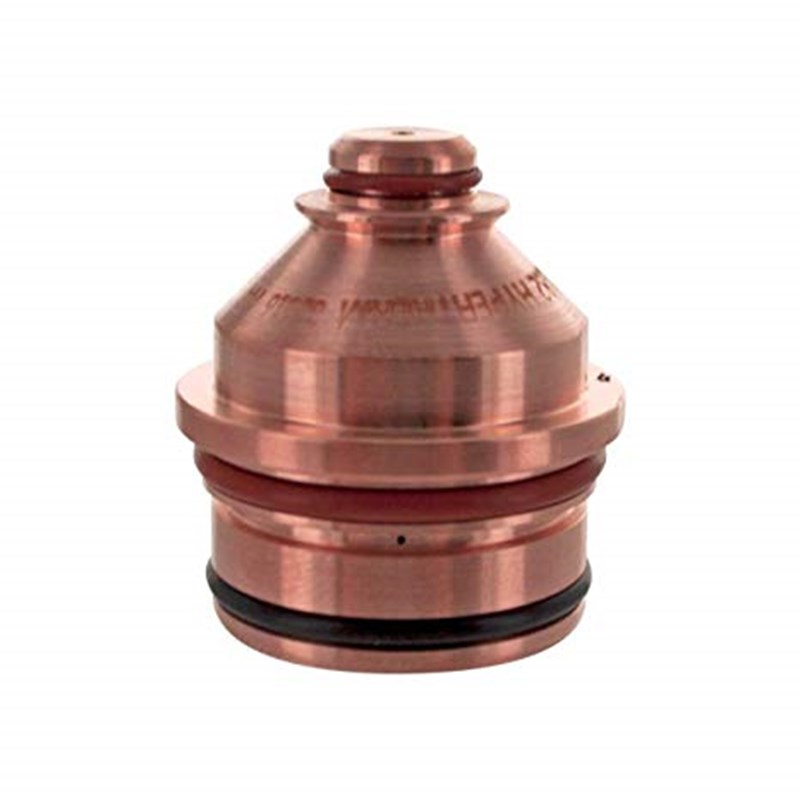

Hypertherm HPR130XD & HPR260XD Consumables Mild Steel Nozzle #220182

Product Number: 220182
$23.00

Hypertherm Consumables: HPR130XD & HPR260XD Mild Steel Nozzle #220182

The #220182 130 Amp Mild Steel Nozzle from Hypertherm is one of the key components of Hypertherm's line of mechanized plasma systems. The mild steel patented nozzle is compatible with select plasma systems like the HD and HPR series HyPerformance® plasma systems. These HyPerformance® plasma systems are specifically made for efficiencies in manufacturing environments for all industries, that's why they're designed and constructed for maximum performance and productivity in x-y, bevel, and robotic cutting operations.

The Nozzle includes:

  • Fast cutting speeds
  • Rapid process cycling
  • Quick changeovers
  • High reliability that gives you unmatched HyPerformance cut quality
This is all thanks to the performance consumables like the #220182 Nozzles. Finish the project the first time around with this nozzle that is a cut above the rest, with the protection and durability for submerged and air plasma cutting.

HyPerformance® Mechanized Plasma System Adaptability:

The nozzle can adapt to the following Hypertherm Plasma cutting systems for 130 A only.

  • HyPerformance® Plasma HPR800XD ®
    • Mild Steel
  • HyPerformance® Plasma HPR400XD ®
    • Mild Steel
  • HyPerformance® Plasma HPR260XD ®
    • Mild Steel
  • HyPerformance® Plasma HPR130XD ®
    • Mild Steel
  • HyPerformance® Plasma HPR260 ®
    • Mild Steel
  • HyPerformance® Plasma HPR130 ®
    • Mild Steel
  • HyPerformance® Plasma HD4070 ®
    • Mild Steel
  • HyPerformance® Plasma HD3070 ®*

Amperage Range: 130 A

Shop other Hypertherm productsPlasma Cutting Machinesplasma cutting consumablesAccessoriesWelding HelmetsHelmet AccessoriesGlovesJacketsApronsCaps, and Pants.

Hypertherm Mild Steel Nozzle Features:

Chambered Swirl Ring Gradually reduces gas pressure at the end of the cut to stabilize the hafnium insert prior to arc termination; this extends nozzle and electrode life.
Coaxial-assist™ Jet Increases cutting speed and cut quality by extending the tip of the nozzle and electrode life.
Dimpled Electrode Extends electrode back life by preventing material from blowing on the nozzle when first ignited.
Conical Flow™ Nozzle technology increases arc energy density for superior cut quality with little dross.
LongLife® Ramps current and gas flow up and down in a tightly controlled manner
to reduce electrode and nozzle erosion.
HyDefinition Vented nozzle technology aligns and focuses the plasma arc for powerful precision cutting, superior quality, and consistency.
Quality Made in the USA.

Hypertherm Consumables Technology

Product Questions and Answers


Q - Do I need to replace anything else when I replace the nozzle? A - It is recommended that when a nozzle wears out, the electrode is replaced, and when an electrode is replaced, the nozzle should also be replaced to keep cuts consistent and precise.
Q - When should I change the nozzle? A - You should change your nozzle whenever you see notching, an orifice that isn't round, or rounded edges during your regular inspection.
Q - What does the nozzle do? A - Nozzles focus the arc by funneling gas flow.

Have a question about this product? Submit your question using the form below

* required

Related Products

Hypertherm HPR130XD & HPR260XD Consumables Mild Steel Electrode
Hypertherm HPR130XD & HPR260XD Consumables Mild Steel Electrode #22055...
$16.00
$17.20* You Save $1.20
View Product
Product Number: 220552

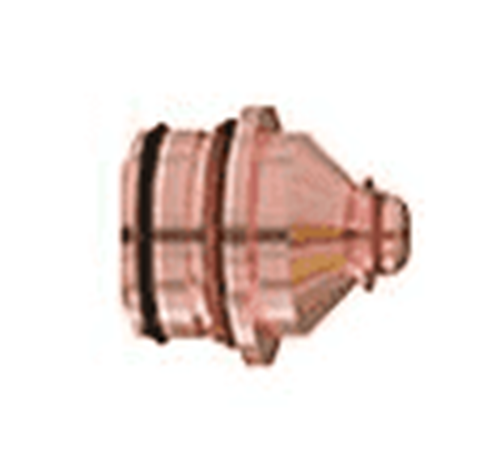

Hypertherm HPR130XD & HPR260XD Consumables Mild Steel Nozzle
Hypertherm HPR130XD & HPR260XD Consumables Mild Steel Nozzle #220193
$20.00
$22.40* You Save $2.40
View Product
Product Number: 220193

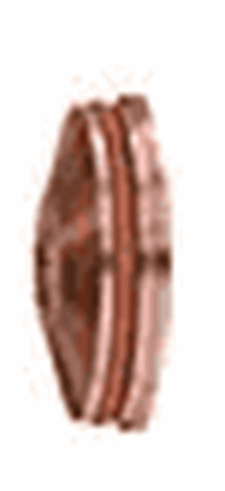

Hypertherm HPR130XD & HPR260XD Consumables Mild Steel Shield #220194
Hypertherm HPR130XD & HPR260XD Consumables Mild Steel Shield #220194
$14.25
$15.60* You Save $1.35
View Product
Product Number: 220194
Hypertherm HPR130XD & HPR260XD Consumables Mild Steel Swirl Ring
Hypertherm HPR130XD & HPR260XD Consumables Mild Steel Swirl Ring #2205...
$24.75
$27.00* You Save $2.25
View Product
Product Number: 220553
Hypertherm HPR130XD & HPR260XD Consumables Mild Steel Water Tube
Hypertherm HPR130XD & HPR260XD Consumables Mild Steel Water Tube#22034...
$24.50
$27.25* You Save $2.75
View Product
Product Number: 220340

Competitive Products

Hypertherm Powermax 65 25ft Hand Torch
Hypertherm Powermax 65 25ft Hand Torch #083270
$3,075.00
Free Shipping
View Product
Product Number: 083270

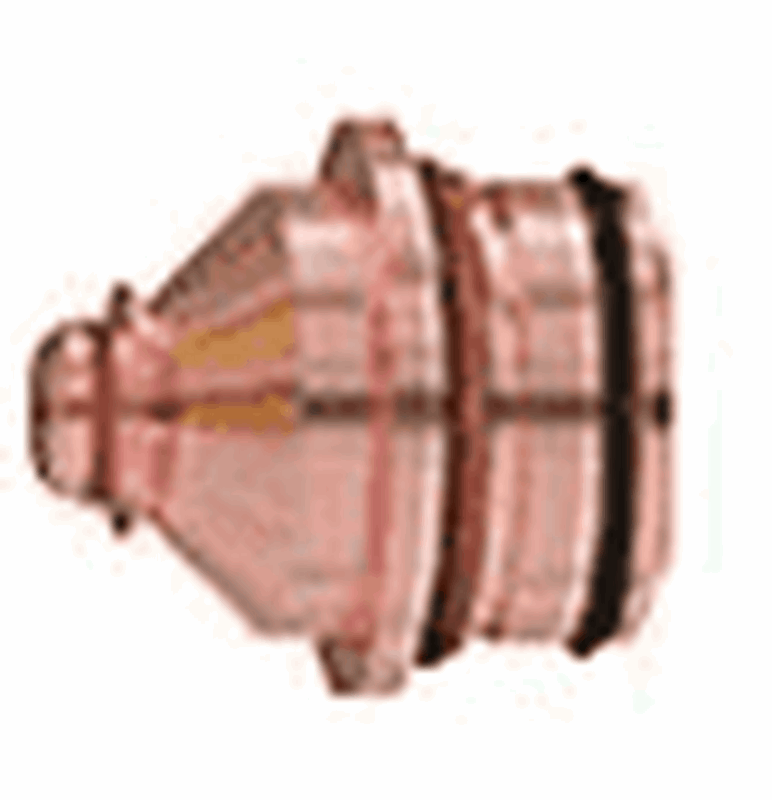

Hypertherm HPR130XD & HPR260XD Consumables Mild Steel Nozzle
Hypertherm HPR130XD & HPR260XD Consumables Mild Steel Nozzle #220193
$20.00
$22.40* You Save $2.40
View Product
Product Number: 220193

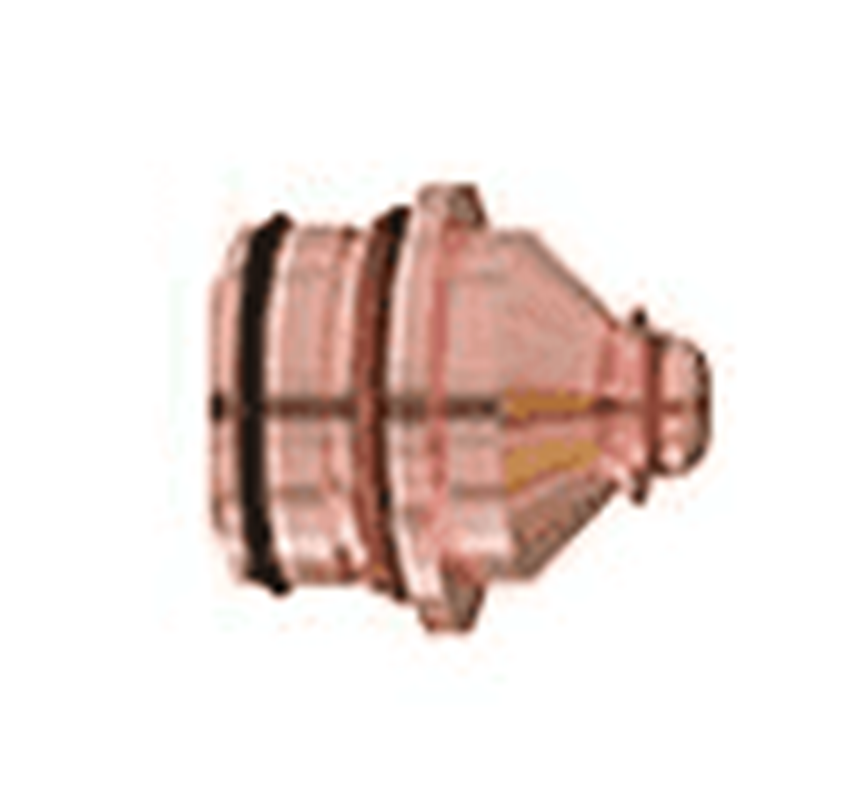

Hypertherm HPR130XD & HPR260XD Consumables Mild Steel Nozzle
