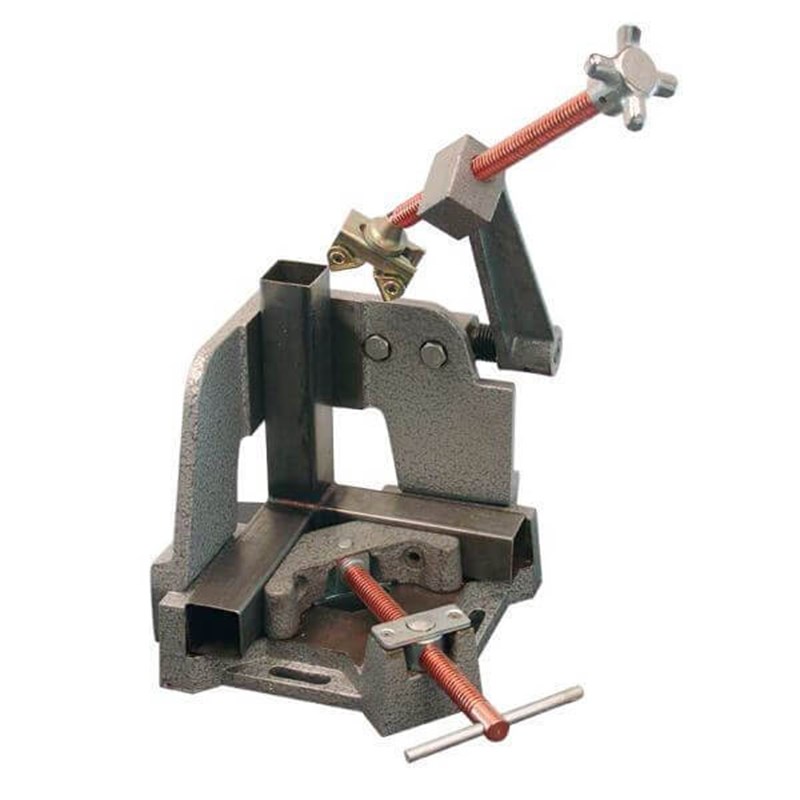

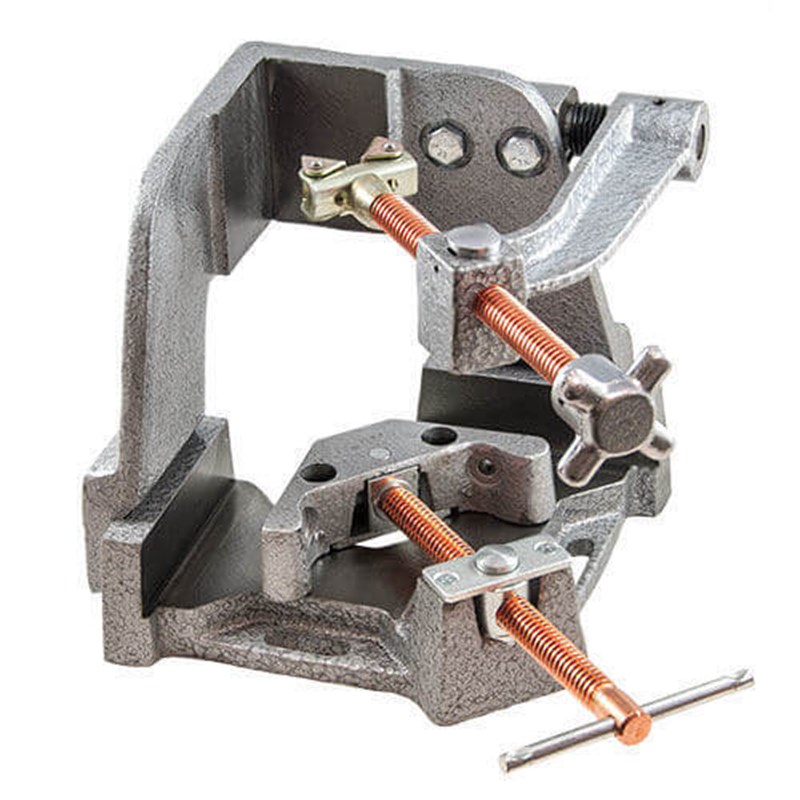

Strong Hand Welding Clamp (3 Axis) #WAC35-SW & #WAC45-SW

Strong Hand Welding Clamp #WAC35-SW & #WAC45-SW

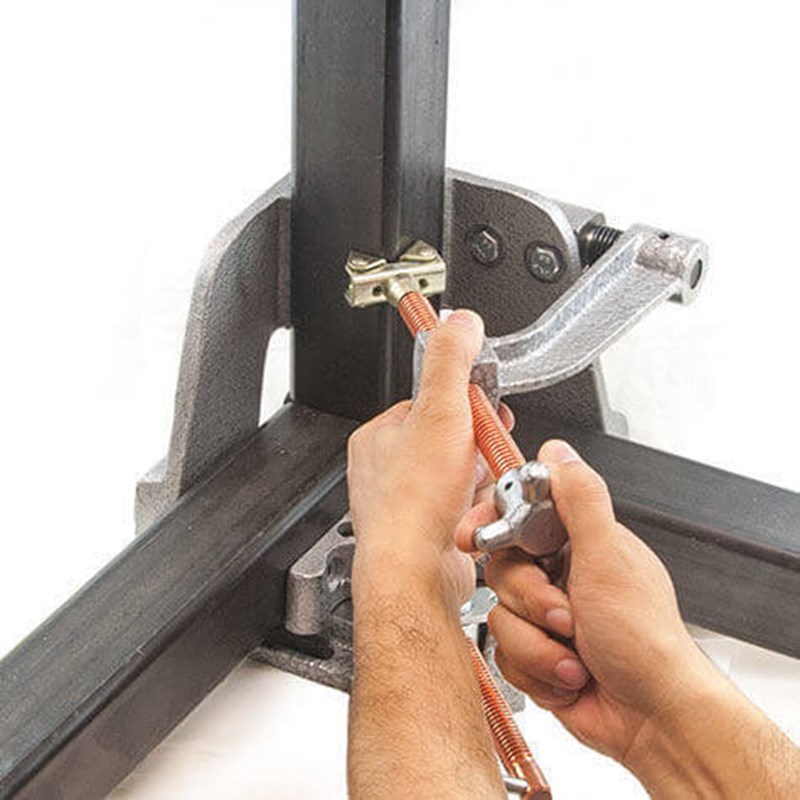

The Strong Hand clamps #WAC35-SW and #WAC45-SW are virtually identical in most respects save for the WAC45-SW comes standard with a curved arm for an even greater open space for the work piece to be removed from the clamp itself. However both of these clamps can be used to hold a work piece in position tightly during welding, cutting or gouging. It achieves this by way of 2 different areas of pressure being applied to it by quick acting screws. These screws allow for easy tightening and release with large easy to maneuver handles attached at their ends that can still be used even while wearing bulky welding gloves, and are available in 3.75in and 4.75in capacities. Making these units ideal for holding metal while welding, cutting, or gouging, and ensures that the part does not become distorted due to contraction when it cools down.

Shop all welders supply quality clamps, hand tools or work benches.

• Part No. WAC35-SW

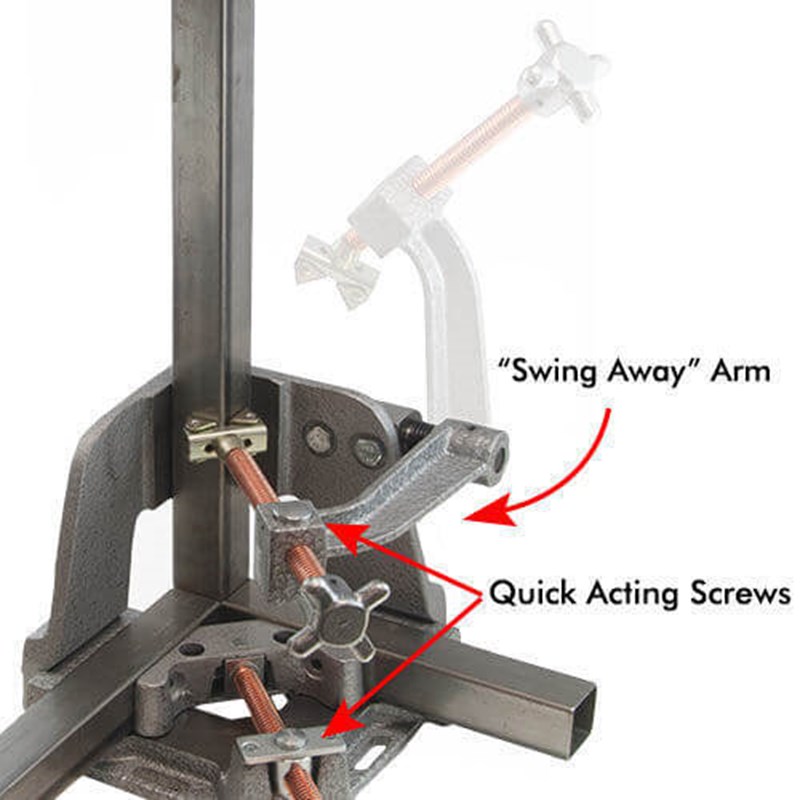

• Features 3-Axis Fixture, Quick Acting Screw, Two stand-offs "Swing Away" Arm

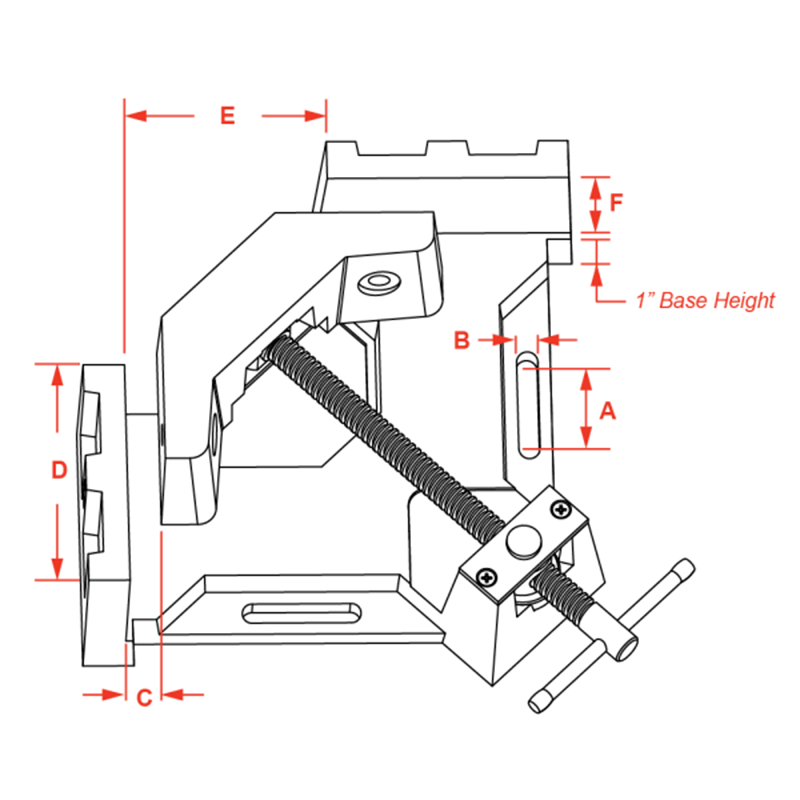

• Slot Size (A) 1.18" (30 mm)
• Slot Width (B) 0.43" (11 mm)
• Miter Joints (C) 3.75" (95 mm)
• Jaw Length (D) 4.80" (122 mm)
• T-Clearance (E) 2.45" (62 mm)
• Jaw Height (F) 1.38" (35 mm)
• Weight  24 LBS (11.0 kg)

• Part No. WAC45-SW
• Features 3-Axis Fixture, Quick Acting Screw, Two stand-offs "Swing Away" Arm
• Slot Size (A) 2" (50.9 mm)
• Slot Width (B) 0.43" (11.1 mm)
• Miter Joints (C) 4.75" (120 mm)
• Jaw Length (D) 5.32" (135 mm)
• T-Clearance (E) 3.92" (100 mm)
• Jaw Height (F) 2.25" (57 mm)
• Weight  43 LBS (20.0 kg)
