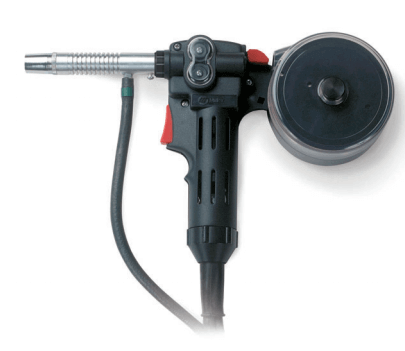

Miller Spoolmate 3035 #195016
Lightweight and well balanced for prolonged use by the welder is what the Miller Spoolmate 3035 (195016) was designed for. That and feeding aluminum wire through itself while MIG welding. This MIG welding gun has extra contact tips that come along with it complementary to allow for continual use without needing to go out and replace the parts that become worn or damaged through use. Meaning that with the 20 foot flexible cable that comes along with it and a spool canister shaped to protect the wire this gun will allow you to easily see the spool as well as enable plenty of reach and accessibility to your work. All while pushing out 150 amps of energy at only a 60% duty cycle it is no wonder that this MIG welding gun is one of the best industrial spool guns on the market to date.
- Auto / Cycle (Racing, Customizing, Restoring)
- DIY / Home Hobbyist
- Farm and Ranch
- Metal Art / Sculptures
- Boat / Yacht
- High Purity Processing
View our large selection of welding machine accessories with the greatest values online.
|Amperage Rated Output||150 A at 60% Duty Cycle|
|Cable Length||20 ft|
|Net Height||11.5 in|
|Net Length||8 in|
|Net Weight||9 lbs|
|Net Width||2.25 in|
|Warranty||Miller's True Blue Warranty|
|Head Angle||Straight Barrel|
|Torch Handle Type||Pistol Style Grip|
|Torches Type||Air Cooled|
|Wire Size||.023-.035 in (0.6-0.9 mm)|
|Weight:||12 Lb(s) 0 Oz|
Product Questions and Answers
How to Change Liner on the Spoolmate:
- Turn OFF.
Turn off power at welding source before you begin.
- Remove Nozzle Tip.
Remove nozzle and contact tip.
- Replace Liner.
Remove and replace liner on the gun.
- Assemble Nozzle Tip.
Reinstall the nozzle and contact tip in the same order as they were removed.
