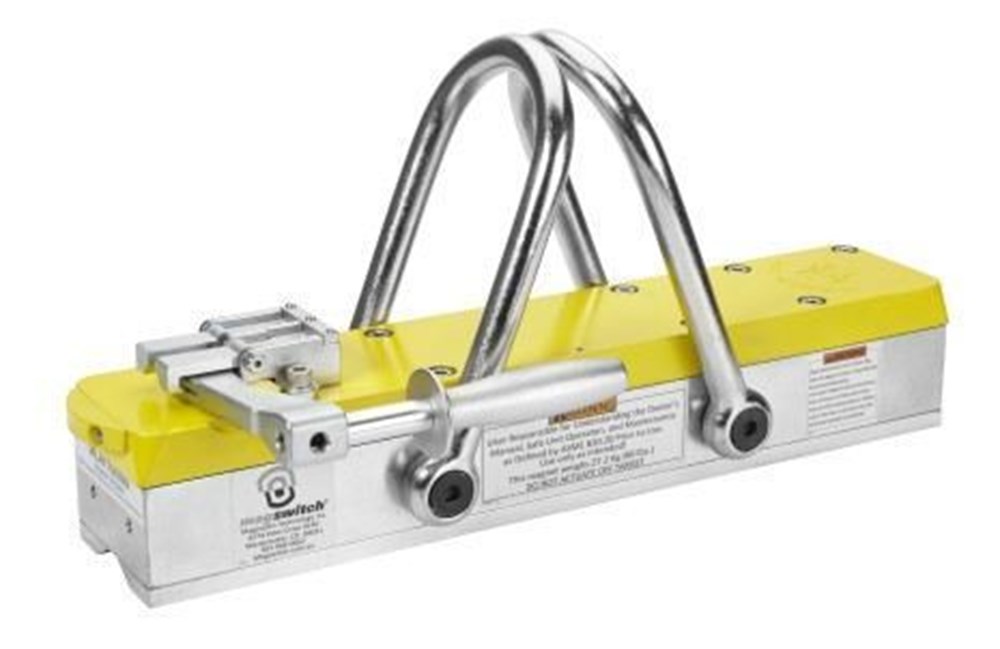

Magswitch MLAY1000X6 Lifting Magnet #8100482
Share
Print
Documents
VideoMagswitch MLAY1000X6 #8100482

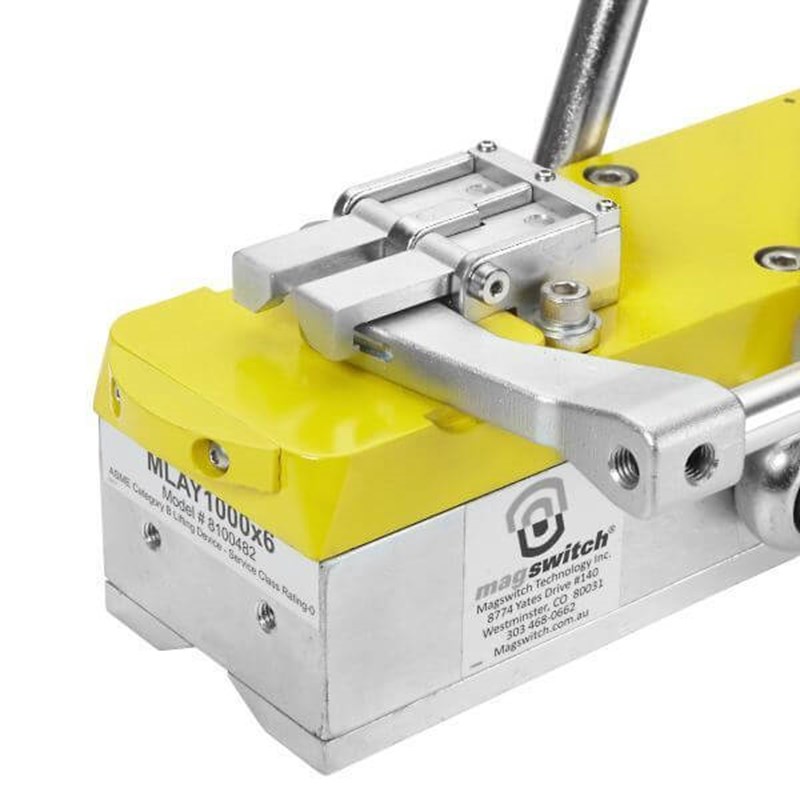

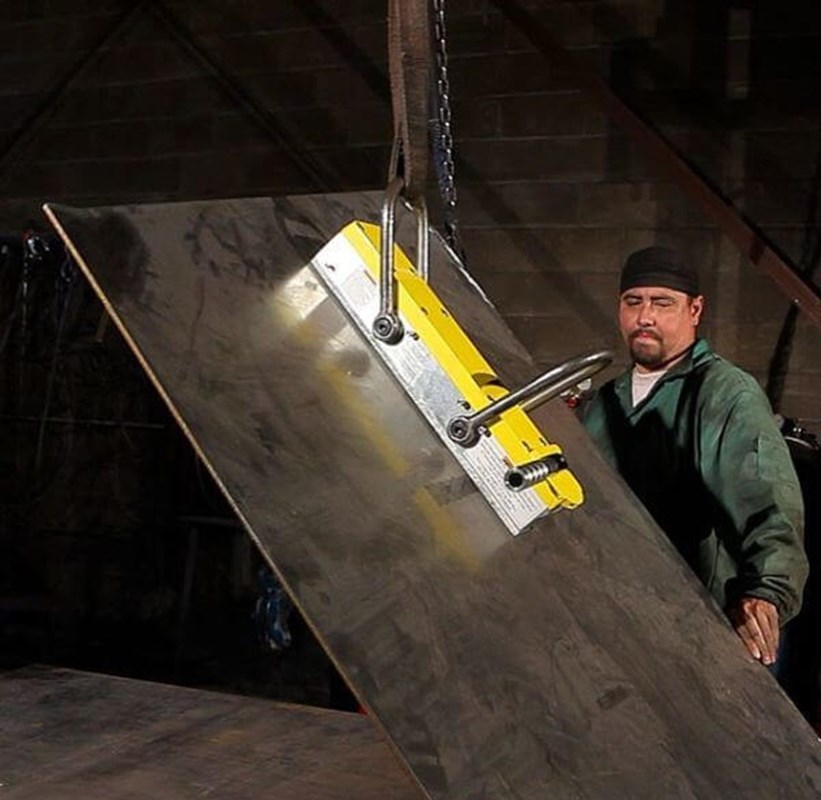

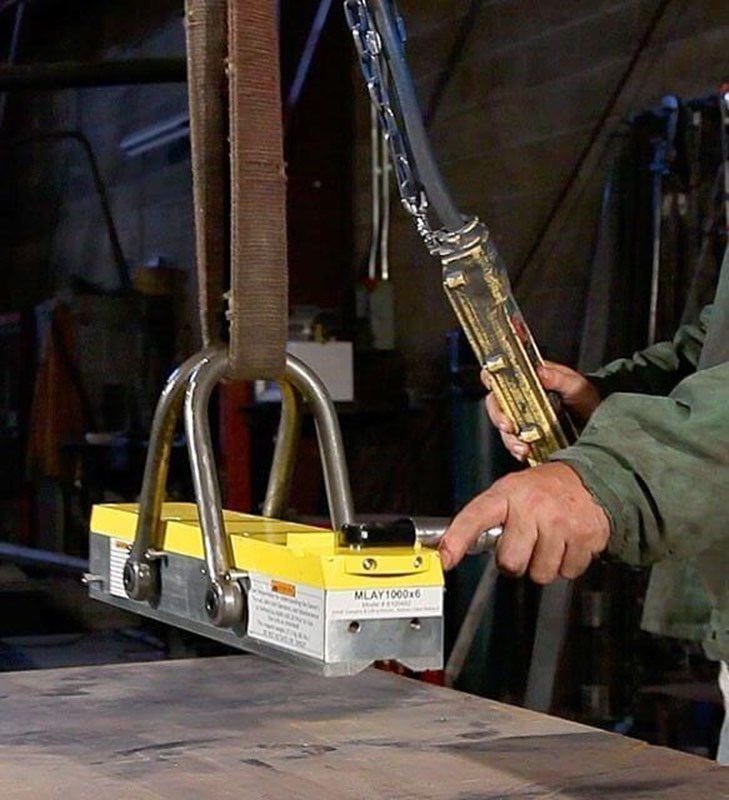

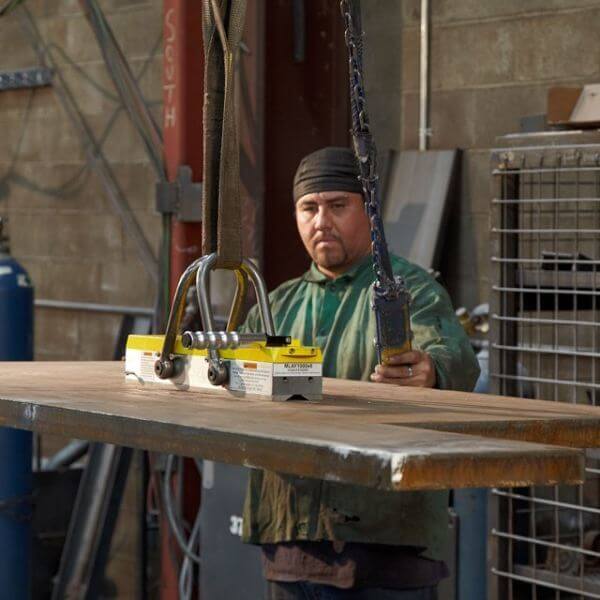

Lift flat or rounded metals securely with a lock on/off handle with the Magswitch MLAY 1000X6 (8100482). The MLAY 1000X6 works on surfaces that have air gaps from abrasions and bulges in the metal caused by rust or paint. The lift has two hooks that create superior stabilization in horizontal applications. Vertical lifting is enabled when only one hook is used. The addition of changeable pole shoes means this lift can be customized to meet your needs and that it can easily be repaired if it becomes damaged or worn. This lift outperforms other magnetic lifts on the market for thin metals due to its versatility and interchangeable parts.
Shop all welding magnets, magnetic squares and clamps at Welders Supply.
Watch a video about this product:
Specifications: |
|
| Max Breakaway | 6446 lbs/2930 kg |
| Safe Working Load | 2149 lbs/977 kg |
| Full Saturation Thickness | 1” / 25.4mm |
| Max Safe Shear | 617 lbs/280.4 kg |
| Min. Thickness for De-Stack | 1 ” / 25.4mm |
| Net Weight | 60.3 lbs/27.4 kg |
| Mounting Thread | M8x1.25 |
| Overall Height | 9.5in/242.5 mm |
| Magnetic Pole Footprint | 492.75×97.6 mm |
Product Questions and Answers
Q - Does this have one large magnet or multiple magnets?

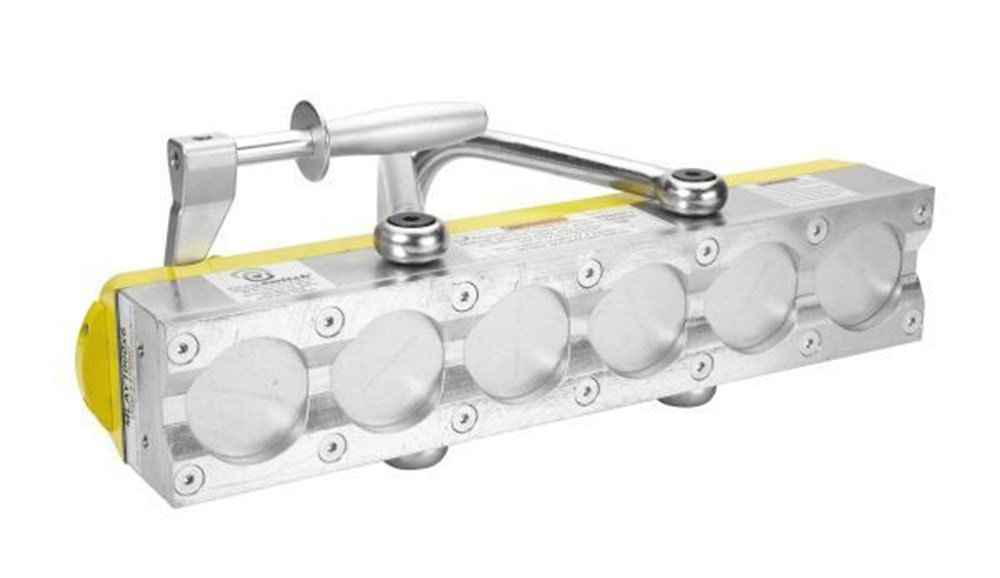

A - It uses six 70mm magnets
Q - What's the max this can hold?
A - Magswitch says the safe working load for this is 2,029 lbs, but their literature also says it can lift up to 2,140 lbs.
