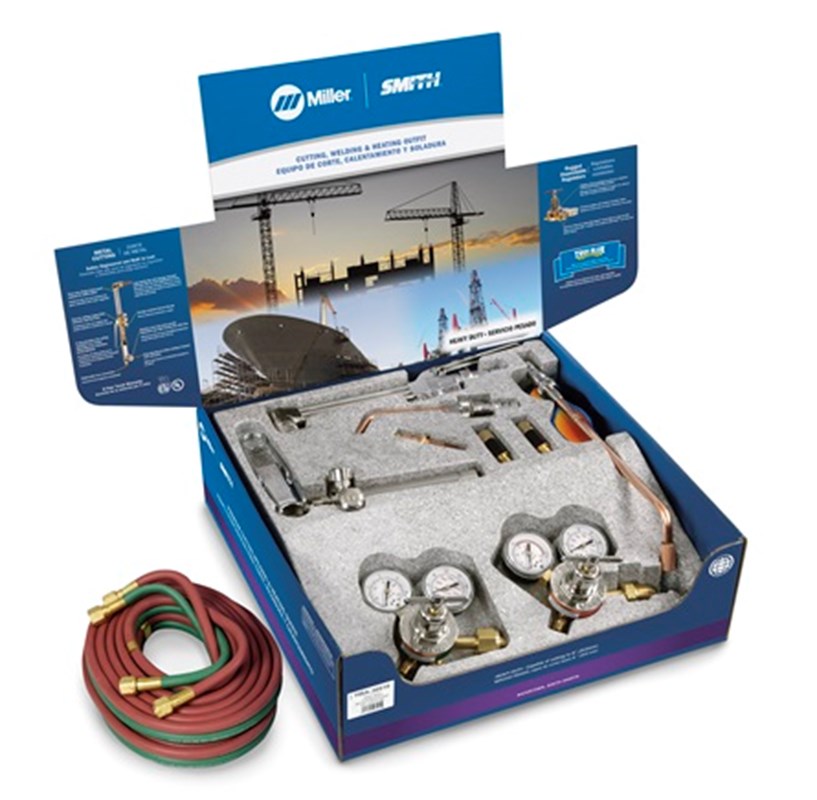

Miller Heavy Duty Combination Torch Outfit with Acetylene Tips, CGA 510 #HBA-30510

Miller Heavy Duty Torch Outfit with Acetylene Tips, CGA 510 #HBA-30510

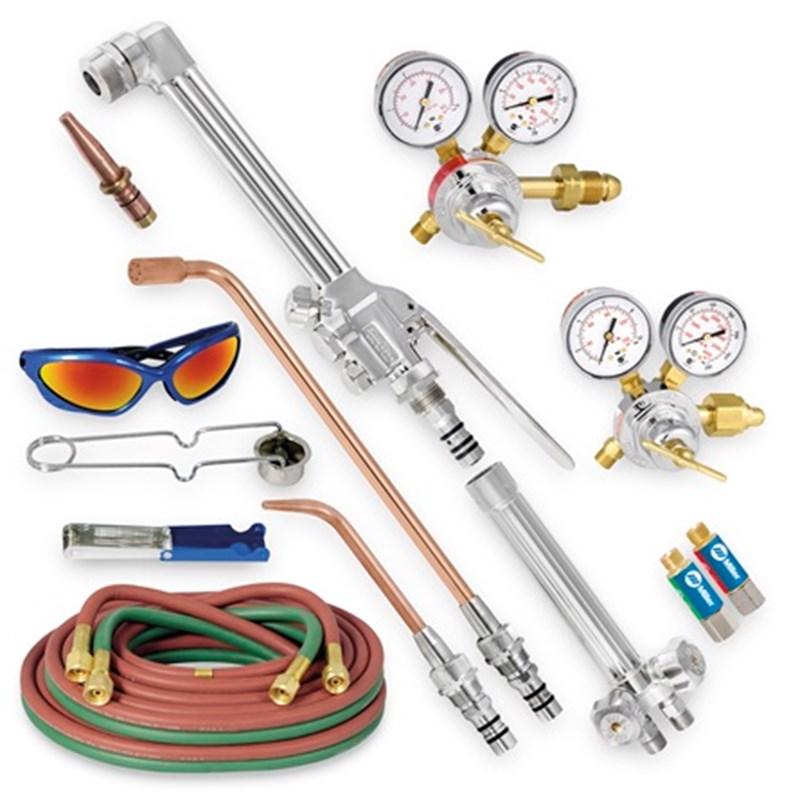

What's Included

• Torch Handle (WH200A)
• Safety Glasses (78000)
• Cutting Attachment (SC209)
• Oxygen Regulator(30-100-540)
• Acetylene Regulator (30-15-510)
• Cutting Tip (SC12-1)
• Welding Tip (SW205)
• Heating Tip (ST602)
• 25-ft 1/4" Twin Hose (RL1131)
• Friction Lighter (16571)
• Tip cleaner (16570)
• Torch Mount Flashback Arrestors (H743)
• Operations Manual

Features

• Double-Tube Handle - Tube-within-a-tube design provides strength while reducing weight.
• Internal Threads - Threads are protected from damage if torch is dropped.
• Adjustable Valve Resistance - PTFE packing provides a gas-tight seal while allowing the "drag" to be adjusted to the individual preference.
• Replaceable Hose Connections - Connections are easily replaced if damaged reducing maintenance costs.
• Flo-Trol™ Valve - Eliminates seat burn out due to reverse flow of mixed gases.
• Center Pre-Heat Valve - Usage for both left and right-handed operators.
• Dual Filters Including Sure Seat™ - The regulator dual filter design protects the high-pressure seat from debris for reliable operation and long service life.
• External Relief Valve - Protects regulator from damage due to inadvertent high-pressure surge. Relief valve will release excessive pressure and automatically reset.
• Neoprene Composite Diaphragm - Resists corrosion for extended service life.
• Graf-Tite® Soft Seat Tip - Protects the tip seat from nicking for longer use. Learn More
• SC12 Series Heavy Duty Cutting Tips - Preheat cutting tips for general hand and machine cutting with acetylene gas. This series provides excellent preheat characteristics required for machine cutting. SC12-1 can cut from 1/2 in. (13mm) to 5/8 in. (16mm) thick metal.
• SW200 Series Heavy Duty Welding Tip - The SW200 series is for general and heavy welding and brazing with acetylene gas. Swaged construction provides greater heat concentration for improved “puddle” control. . SW205 can weld up to 1/8 in. (3mm) thick metal.
• Heavy Duty Cutting Attachment - Cuts up to 8-inch (203 mm) thick steel.
• Silver-Brazed Connections - For extra protection, strength and leak resistance.
• Nickel-Plated Finish - Deflects heat and resists corrosion.
• Riveted Knobs - Will not come loose from the valve stem.
• Silver-Brazed Nickel-Plated Torch Joints - Provides strength, leak resistance and heat deflection.
• Stainless Steel Ball-Style Valves - Allows for smooth adjustment and positive seating to eliminate leaks.
• Slip-in Tip Design - No wrench is needed allowing for quick and easy tip changes. Learn More
• Three Tube Construction - Keeps gases separate in the cutting attachment until mixed at the tip for safety. Mixed gas stays farthest away from the operator.
• Triple O-Ring Seal - For easy 360-degree torch head rotation to reduce operator fatigue.
• Nickel-Plated Bonnet with Forged Brass Body - Protects against corrosion.
• 2-Inch Regulator Gauges - The large regulator gauges are easy to read and are constructed from shatter-resistant polycarbonate lenses.
