Miller Remote Hand Control RHC-14, 100ft #242211100

Part Number: 242211100
$687.75 + Free Shipping $731.00*
SAVE $43.25

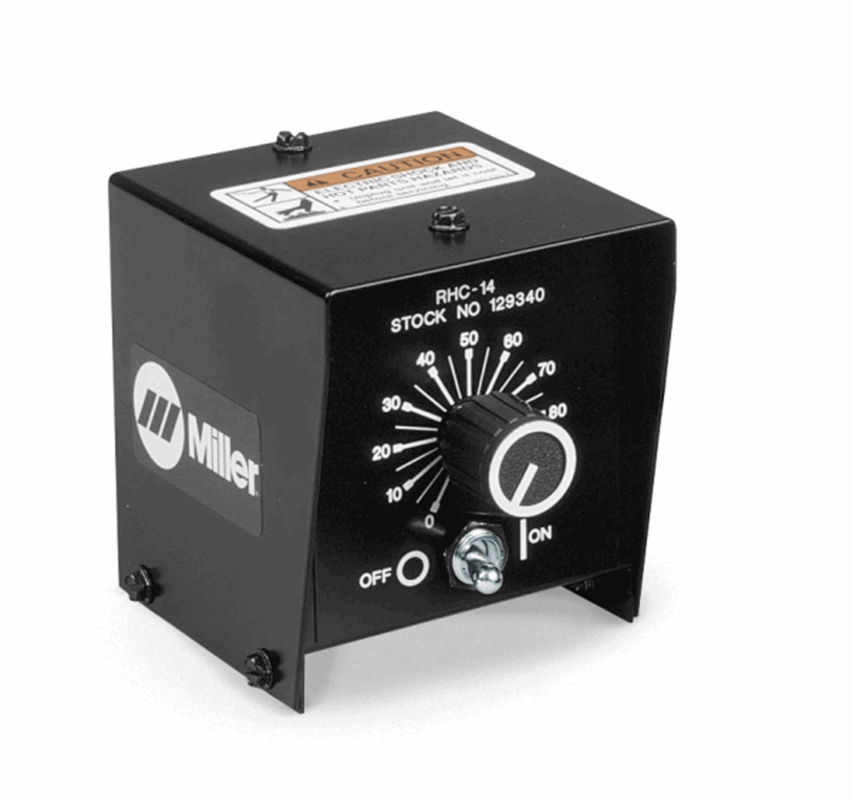

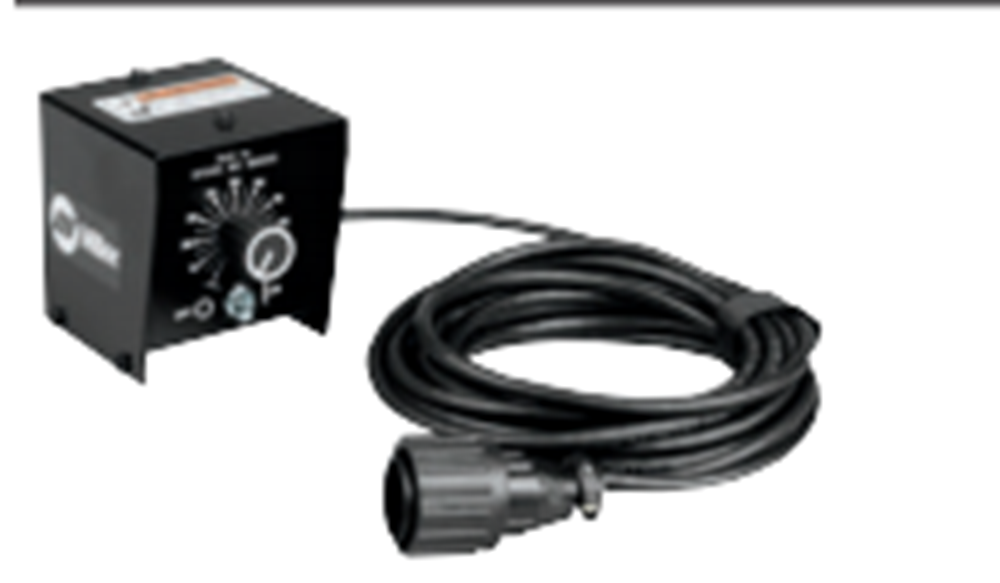

Miller Remote Hand Control RHC-14, 100ft #242211100

Housed in a heavy-duty steel chassis case and connected by a 100-foot (30.5 m) 14 pin cord, the 242211100 Miller Remote Hand Control RHC-14 is made to control your amperage output power quickly and efficiently. The easy to use remote hand control is made for Miller solid-state power sources. The control knob allows for complete current or voltage control from 0 -100%. The 14 pin connector fits the standard Miller 14 pin connector receptacles to allow for quick access and control of your welding generators.

*For Miller solid-state power sources AFTER serial number JK674521.

Features and Benefits:

  • Industrial Strength Chassis: The lightweight sturdy chassis is made for the toughest of welding jobs or manufacturing environments, the visor overhang on the chassis further protects the knob and on/off switch.
  • Industrial Knob and Potentiometer: The control knob is sturdy enough to stay in place with the movements of a job site, while still being smooth enough to quickly change to your desired output power. The industrial-sized knob is made for a welder's glove.
  • 100 ft. Cable: Provides additional flexibility when working on separate floors or when a large workspace radius is necessary. The 200 ft. works space diameter makes changing settings quick and easy.
  • 14 Pin Compatibility: The Miller standard in remote access to welding machines, just plug, and weld.
  • On/Off Switch: The killswitch allows you to quickly switch from the standard welding machine setting and the desired setting on the hand control.

View more welding machine accessories or place an order online with Welders Supply.

GENERAL SPECIFICATIONS

Title Remote Hand Control RHC-14, 100ft
Industries Interests Aerospace
Construction
Heavy Equipment Manufacturing
Infrastructure
Manufacturing
Railcar
Shipbuilding
Boat / Yacht
High Purity Processing

SHIPPING DIMENSIONS

Height: 7.00 Inches
Width: 8.00 Inches
Length: 8.00 Inches
Weight: 6 Lb(s) 0 Oz

Product Questions and Answers

How to Connect Receiver to Remote 14 Receptacle:

  1. Turn OFF.

    Turn off the welding power source.

  2. Insert Receiver.

    Insert the receiver into matching 14-socket receptacle on the welding power source.

  3. Tighten Nut.

    Tighten yellow nut clockwise.

  4. Turn ON.

    Turn welding power source on. Constant LED is on. Blinking LED is communicating with the transmitter. Slow blinking is learning mode.
