E684 ADF Welding Helmet #1006.500

Part Numbers: 1006.500

Included with your purchase ( ) :

Optrel E684 ADF Welding Helmet #1006.500
E684 ADF Welding Helmet #1006.500
Black Stallion Split Cowhide Gloves
FREE!
Black Stallion Split Cowhide Stick Glove...
$429.00 + Free Shipping $559.65*
SAVE $130.65
$429.00 + Free Shipping $559.65*
SAVE $130.65
Starts at $71.50/month with

Optrel

Helmet Viewing Area:

Large (6-9.9 in²)

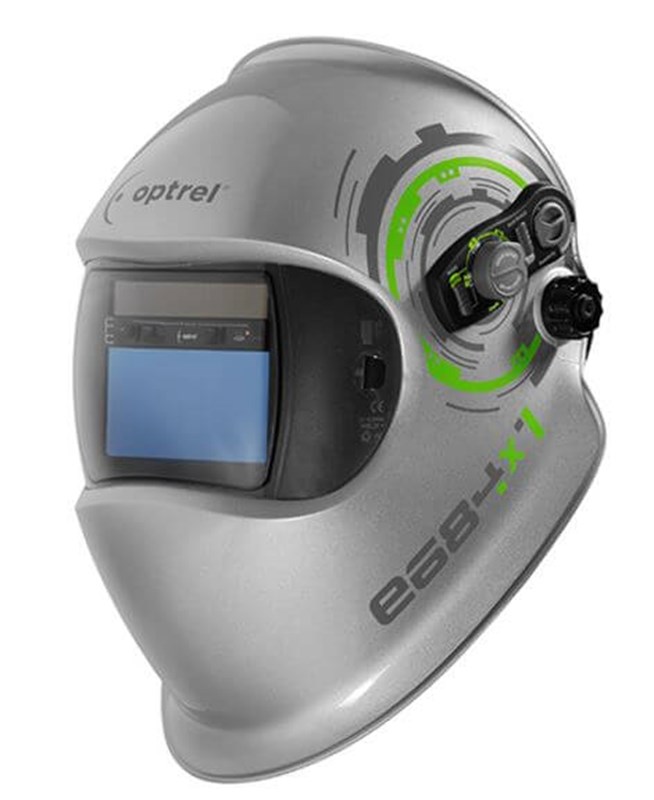

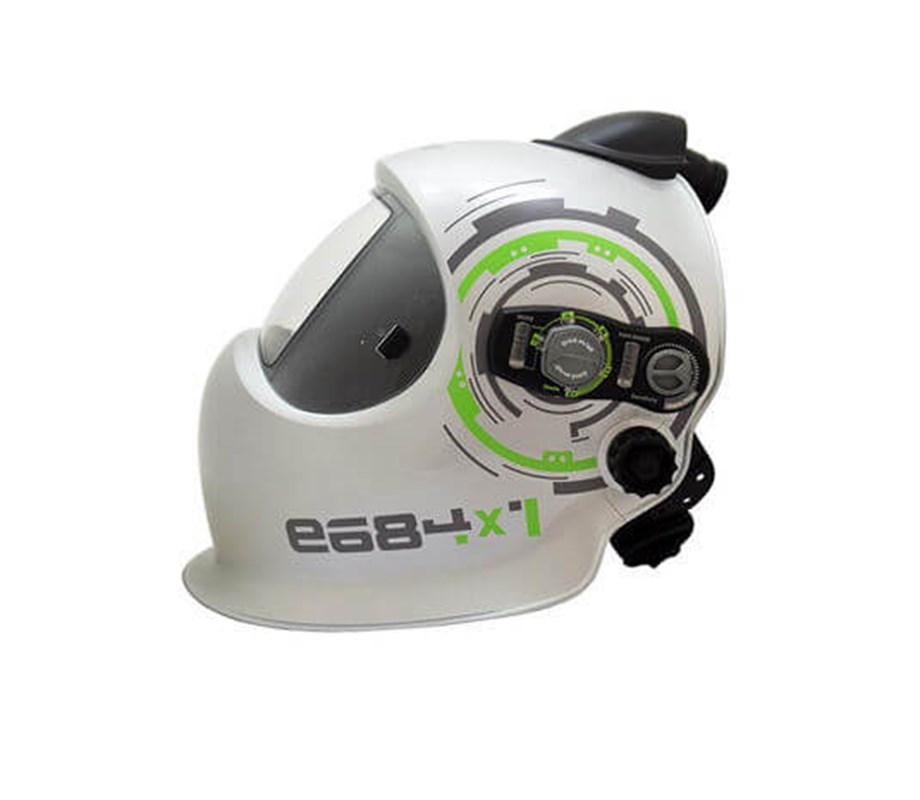

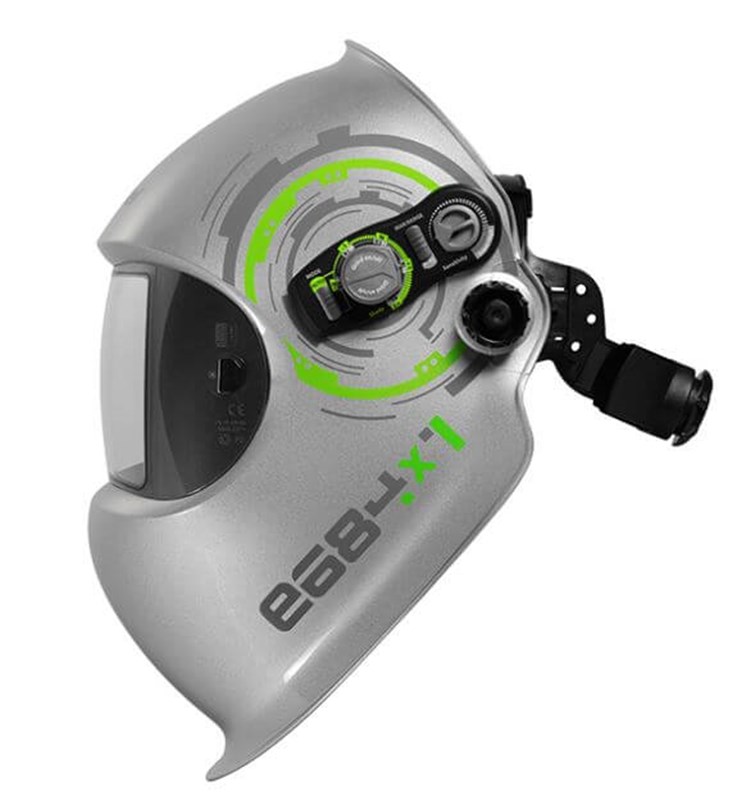

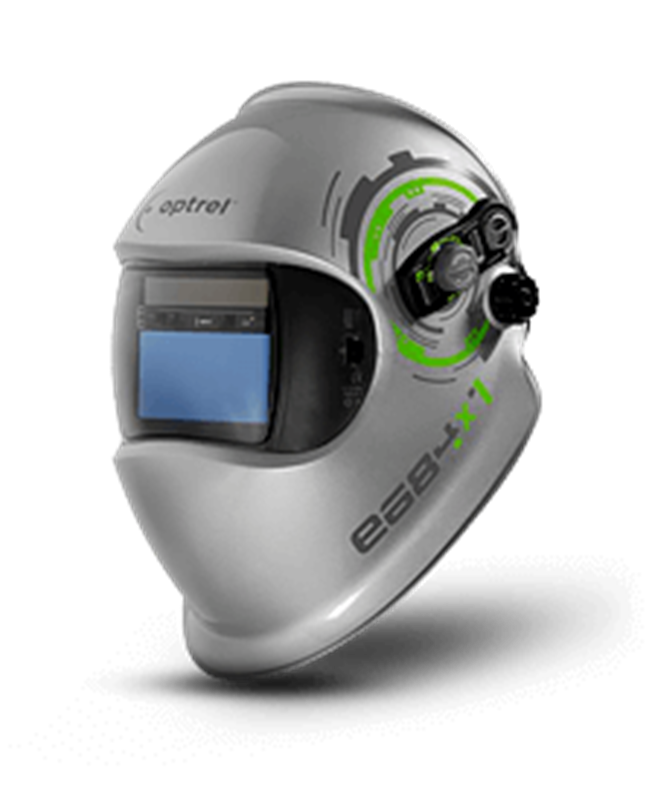

E684 ADF Welding Helmet #1006.500

Precision. That is the mission of every welder with every weld. The ability to clearly view the weld and the environment is essential to striking the perfect arc.

Taking optrel’s autodarkening filter technology to the next level, the e684 is the only welding helmet that fully automates protection through its Adaptive Shade Autopilot, automatically adjusting the shade level as one welds, in full high-definition viewing. This new level of clarity not only keeps welders better protected, it enables them to perform their job more efficiently, with greater accuracy and precision every time.

Adaptive Shade Autopilot – Set it and forget it. optrel’s exclusive Adaptive Shade Autopilot automatically adjusts the e684 ADF to the appropriate shade level as you weld – set it and forget it! Its third sensor helps the e684 immediately detect changes in arc intensity and adjust accordingly. This allows you to stay focused on what really matters: striking the perfect arc.

High Definition Viewing – Superior viewing at every angle. Like viewing a high definition television, the e684’s special HD lens provides a true color view to the welder. Its Class 1 angular dependency allows welders to see the clearest, crispest view possible, enabling welders to concentrate and make their weld with more precision.

Twilight ADF Technology – New technology reduces eye fatigue. Unlike other ADF lenses that rapidly return to light, the e684’s Twilight ADF Technology restores light more naturally, presenting a smoother transition to the eyes. This exclusive technology reduces eye fatigue on welders who are continuously welding, enabling them to work safer and more comfortably.

Cooling Helmet Design – Keep cool, even when the heat is on. Reflecting light and heat, the e684’s special silver helmet keeps the welder’s head cooler by 23% compared to other unpainted and dark helmets. In extremely hot environments, welders can work longer and be more comfortable over a long period of time.

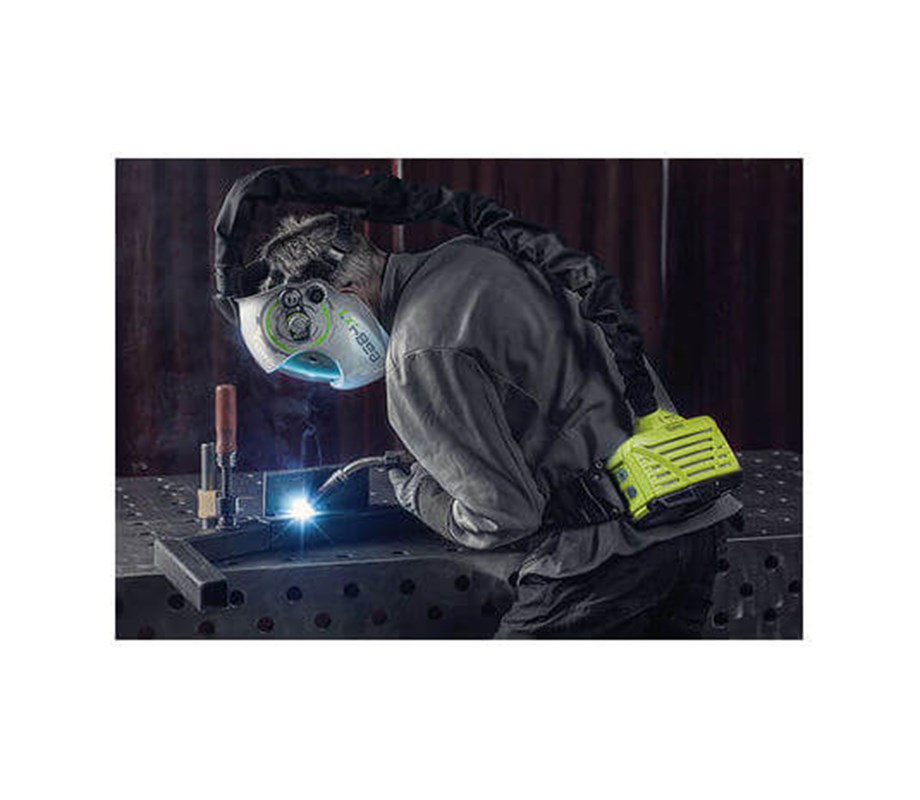

e3000 Compatible – Breathe easier. The e684 is compatible with the NIOSH-certified e3000 PAPR, uniting the most advanced welding and respiratory systems available. The e3000’s innovative HEPA class Th3 filters block more than 99.8% of particulates for increased safety. Users can adjust its two-channel air distribution inside the helmet to both mouth and nose, and forehead, improving overall comfort while reducing fatigue.

Multi-Purpose Use – Optimized for most welding applications. With shade levels 4/5-13, the e684 is suited for the majority of welding applications, including all electric arc welding, plasma welding and cutting, and oxy-gas welding, and acceptable for overhead welding. Plus, its external Grind Mode button makes it easy to switch modes.

More welding machine options are available on Welders Supply.
Replacement Lens

5012.480

Shade Levels

4/5-13

Adaptive Shade Autopilot

Yes

Infinite Shade Level Adjustment

Yes

Sensitivity Control

Yes

Opening Delay

Yes

# Sensors

3

High Definition Viewing

Yes

Optical Class

1/1/1/1

True Color Filter

Yes

Twilight ADF Technology

Yes

Helmet Weight

16.7 oz

e3000 Compatible

Yes

Overhead Welding

Yes

Grind Mode

Yes – Shade Level 4

Switching Time / Light to Dark

0.170ms at room temperature, 0.110ms at 131F

Switching Time / Dark to Light

0.1 – 0.2s (with patented Twilight ADF Technology)

Power

Solar Cells and 2 CR2032 Batteries (approx. 3,000 hours)

Warranty

2 Years Standard (3 Years with Registration on optrel.com)

Welding Applications

All Electric Arc Welding processes, Electrode Welding (Stick Welding, SMAW), MIG, MAG (GMAW), GMAW High Melting Rate Process, Flux Cored Wire Welding, TIG welding (GTAW), Plasma Arc Welding, Micro Plasma Arc Welding, and Plasma Cutting & Oxy-Gas Welding. Prohibited for laser and gas welding!

Color

Silver

SHIPPING DIMENSIONS

Height: 12.00 Inches
Width: 12.00 Inches
Length: 12.00 Inches
Weight: 10 Lb(s) 0 Oz

Product Questions and Answers


Q - What headgear is in this helmet? A - It has Optrel's ratcheting headgear with adjustments for fore/aft and top-of-head positions. The part number is 5003-250.
Q - Can you get a replacement cover lens for this? A - Yes, the part number is 5000-212

How to Manually Set Shade Level:

  1. Set to Manual.

    Set the helmet to manual mode.

  2. Adjust Range Slider.

    Select the range slider to between the range SL5 to SL9 to SL11 to SL13 as you desire.

  3. Set Potentiometer Knob.

    Set fine adjustment by turning the potentiometer knob.

  4. Automatic Mode.

    If you desire to set your helmet in automatic mode, set the range slider using EN 379 standards. Set potentiometer knob to “N”.
