Miller PSA-2 Control #141604

$731.10 $777.00 Reduced Price You Save $45.90
Product Number: 141604

Miller PSA-2 Control #141604

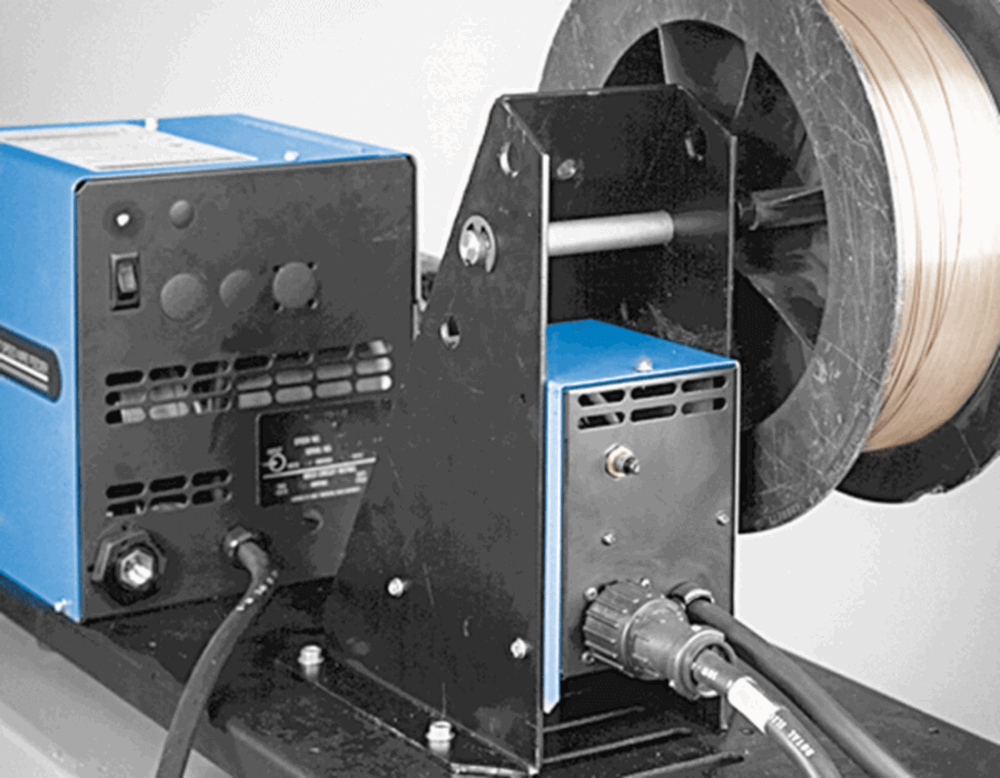

The Miller® PSA-2 Control is designed for use with 22A, 24A constant-speed wire feeders and XR™ - S, XR™ - D push-pull control feeders. The PSA-2 control is required with power sources having only 115 VAC or with competitive power sources demanding a contact closure for contactor control, power sources without a 14-pin connection, or power sources with 24-volt transformer). It's equipped with a 14-pin receptacle for direct connection of the wire feeder control and can be mounted on the wire feeder or positioned at the power source. A short cord with a four-pin amp plug is hard-wired to the control. A 10-foot (3 m) interconnecting cord with a four-pin amp for connection to the PSA-2 and Hubbell connectors for older-style Miller CV power sources is included. The PSA-2 control can also be used with competitive power sources requiring a contact closure for contactor control.



Miller PSA-2 Control 141604

Features and Benefits:

Convenient Design The chassis of the control is constructed to fit in the same tool space like the Miller wire like the 22A Constant Speed Wire Feeder. It can integrate easily into the wire feeder space.
Blue Warranty The PSA-2 control includes a  .25 year Miller Bue Warranty.

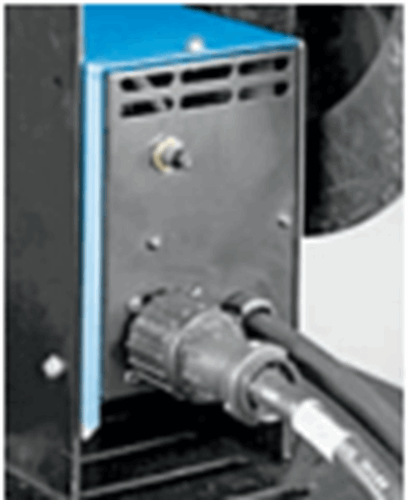

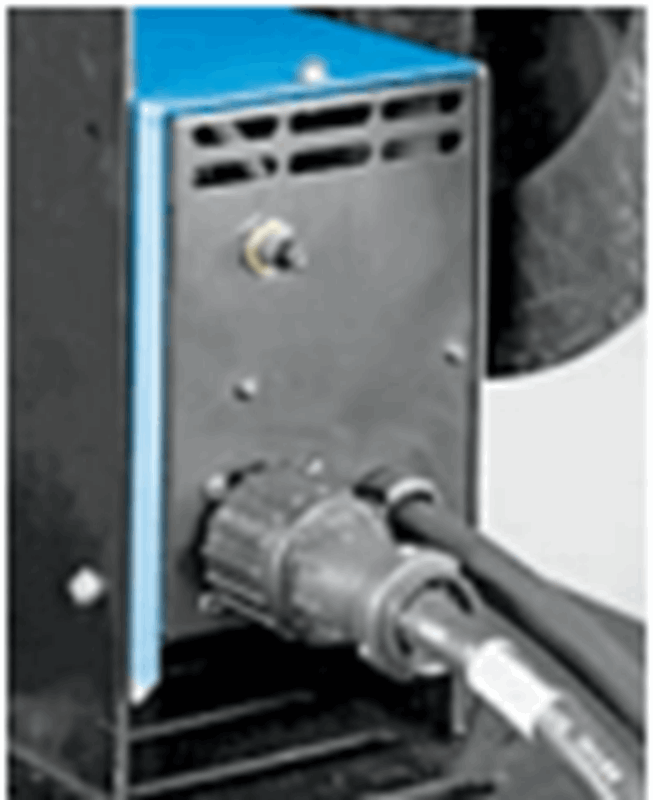

14-Pin Connection The standard Miller 14-pin connector for remotes and auxiliary power allows this controller to connect easily to Miller wire feeders.
Adaptability  The PSA-2 Control can also be used with competitive power sources
requiring a contact closure for contactor control.
10 ft. Cable Allows flexibility to connect to your wire feeders.



Extension Cords

These extension cords can be added to the standard 10 ft cord to extend feeder farther from the power source.

  • #122 973 25 ft (7.6 m)
  • #122 974 50 ft (15 m)
  • #122 975 75 ft (23 m)



View control units and other welding machine accessories available in store or online at Welders Supply

Product Specs

Power Source 115VAC

SHIPPING DIMENSIONS

Height: 9.00 Inches
Width: 11.00 Inches
Length: 14.00 Inches
Weight: 15 Lb(s) 0 Oz

Miller PSA-2 Control #141604 22A Wire Feeder Test



Miller PSA-2 Control #141604 22A Pulsed MIG Basics
