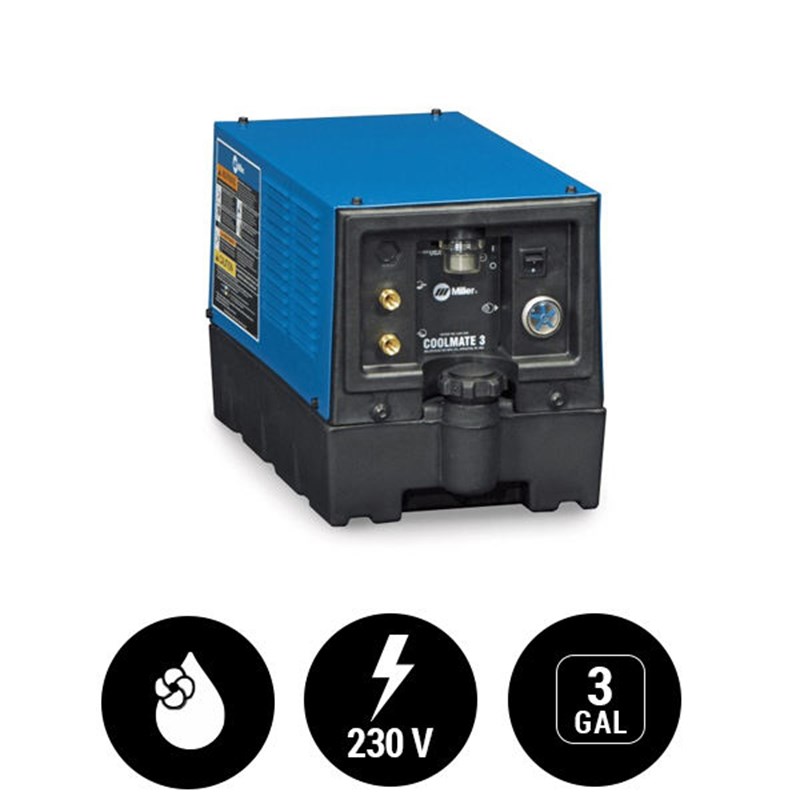

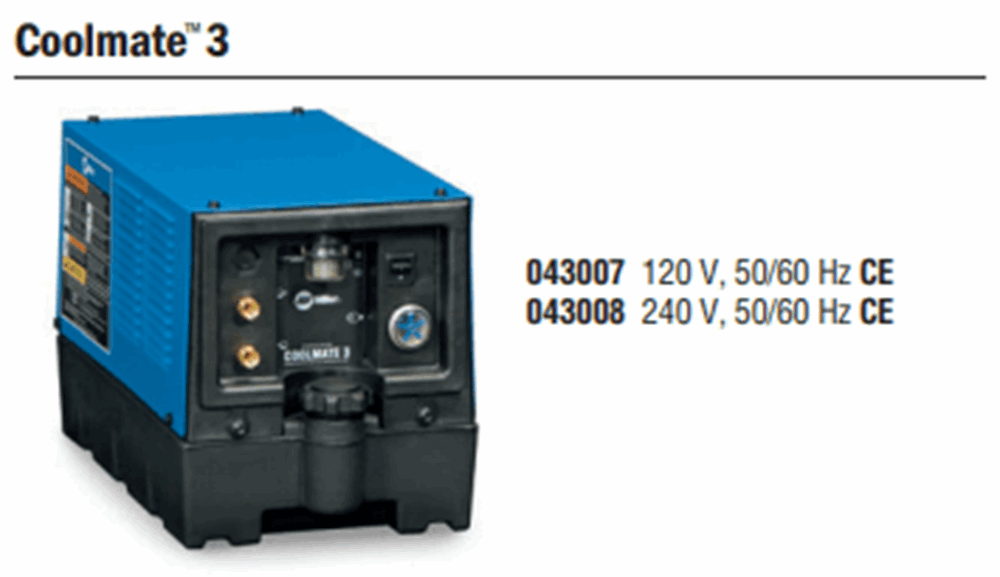

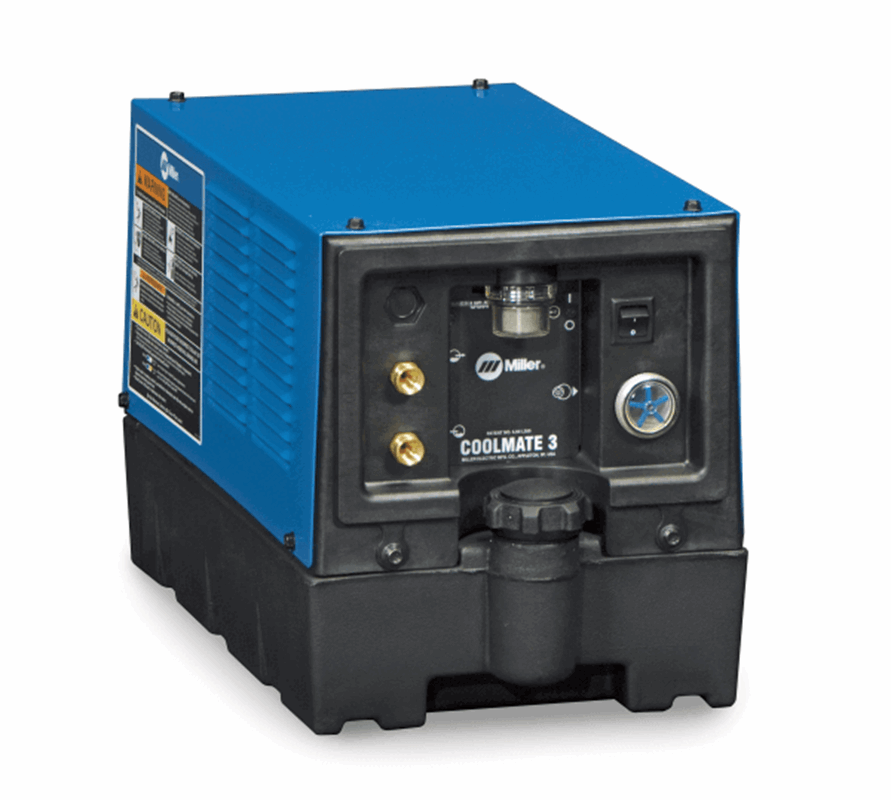

Miller Coolmate™ 3 230 V, CE #043008

$1,009.50 $1,118.91 Reduced Price You Save $109.41
Product Number: 043008
QTY:
Financing AVAILABLE!

Miller Coolmate™ 3 230 V, CE #043008

  • Designed and built to work with your water-cooled application and equipment. Features a closed-loop design with a radiator to reduce coolant temperatures an prevent overheating. TIG, MIG, resistance welding, or plasma cooling.
  • Economical, 3-gallon cooler designed for water-cooled torches rated up to 500 A
  • Compact horizontal design allows stacking and convenient mounting
  • Midsize cooler Weighs 40 lb (18 kg) dry
  • On/off power switch, "paddle wheel" coolant flow indicator, filter and coolant filling spout are all conveniently located on front panel.
  • Polyethylene-molded coolant tank, fan shroud and filler spout are rustproof.
  • Factory-set pressure relief valve (55 PSI) maintains consistent pressure during operation.
  • Thermally protected 1/4 HP motor guards against overheating.
  • Efficient fin and tube heat exchanger
  • Brass-body, positive displacement rotary vane pump provides consistent coolant flow and pressure rating with long pump-life expectancy.
Find more welding accessories from Welders Supply.

GENERAL SPECIFICATIONS

Title Coolmate™ 3 230 V, CE
Industries Interests Aerospace
Construction
Shipbuilding
Boat / Yacht
High Purity Processing
Manufacturing
Max Cooling Capacity 3820
Input Voltage 220/230/240 V
Input Phase 1-Phase
Input Hz 50 Hz
Max Current Draw 2.5 A
3 A
Rated Cooling Capacity 1420
Tank Capacity
11.4
Warranty Miller's True Blue Warranty

SHIPPING DIMENSIONS

Height: 15.00 Inches
Width: 15.00 Inches
Length: 24.00 Inches
Weight: 42 Lb(s) 0 Oz

Miller Coolmate™ 3 230 V, CE #043008 Water-Cooled Application Introduction



Miller Coolmate™ 3 230 V, CE #043008 Water-Cooled Application Demo
