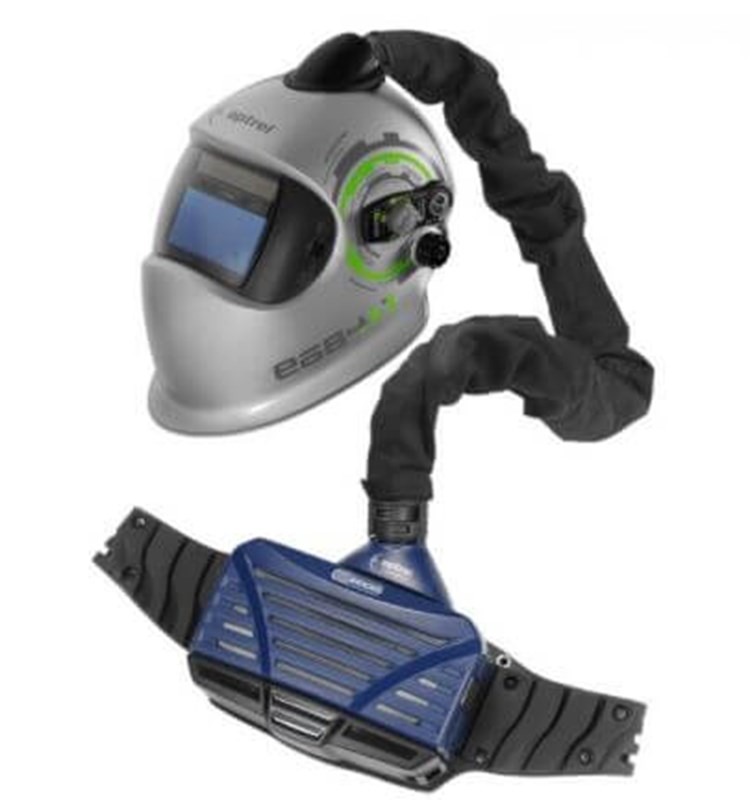

OPTREL E3000 PAPR WITH E684 HELMET #4550.103

Part Number: 4550.103

Optrel

Helmet Viewing Area:

6-9.9 in²

Related Products

OPTREL E3000 PAPR WITH E684 HELMET #4550.103

The Optrel e3000 PAPR with e684 Helmet (4550.103) is Optrel's top of the line helmet paired with their innovative HEPA class three filter that blocks more than 99.8% of particulates for increased safety. The Optrel e3000 PAPR provides maximum protection against exposures to smoke, dust, and other particulates. Its lightweight design and easy to access buttons make wearing it a pleasure.

Respiratory Protection – The e3000’s innovative HEPA class Th3 filters blocks more than 99.8% of particulates for increased safety. Its face seal prevents welders from being exposed to smoke and other debris when working.

Two-Channel Air Distribution – Its unique internal design presents clean air to the mouth and nose, and to the forehead for cooling, improving overall comfort while reducing fatigue over time. Welders can adjust to three levels of air flow depending on environmental needs or personal comfort preferences (200 to 240 nl/min).

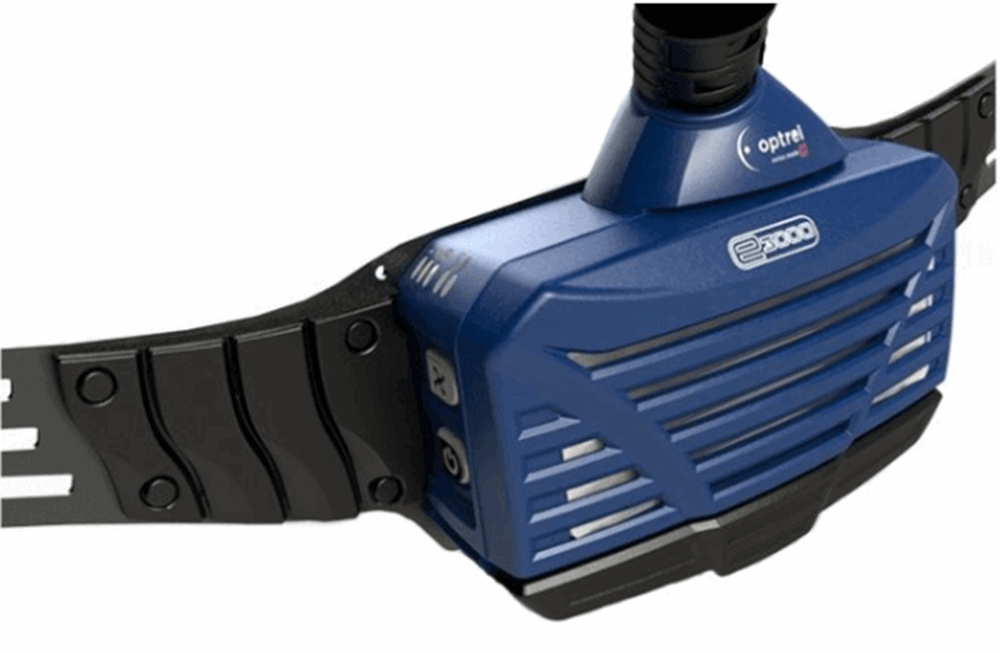

Ergonomically Designed – The e3000’s belt-based blower unit sits comfortably at the welder’s center of gravity, with easy access buttons to control the unit. Its hose connections on the helmet and blower swivel to ensure full range of movement, reducing the potential for tangling or snagging on surrounding structures.

Enhanced Productivity – Integrated flow sensors perform an automatic air flow check at start up, eliminating the need for welders to manually check their system each time of use. Plus, its rechargeable battery operates up to 12 hours continuously without replacement.

Audible Alarms – Audible and visible alarms alert welders of a missing or clogged filter, and when the battery is running low.

Maximum Protection – Provides maximum protection from exposures to smoke, dust, and other particulates, including Hexavalent chromium (CrVI).

Includes:

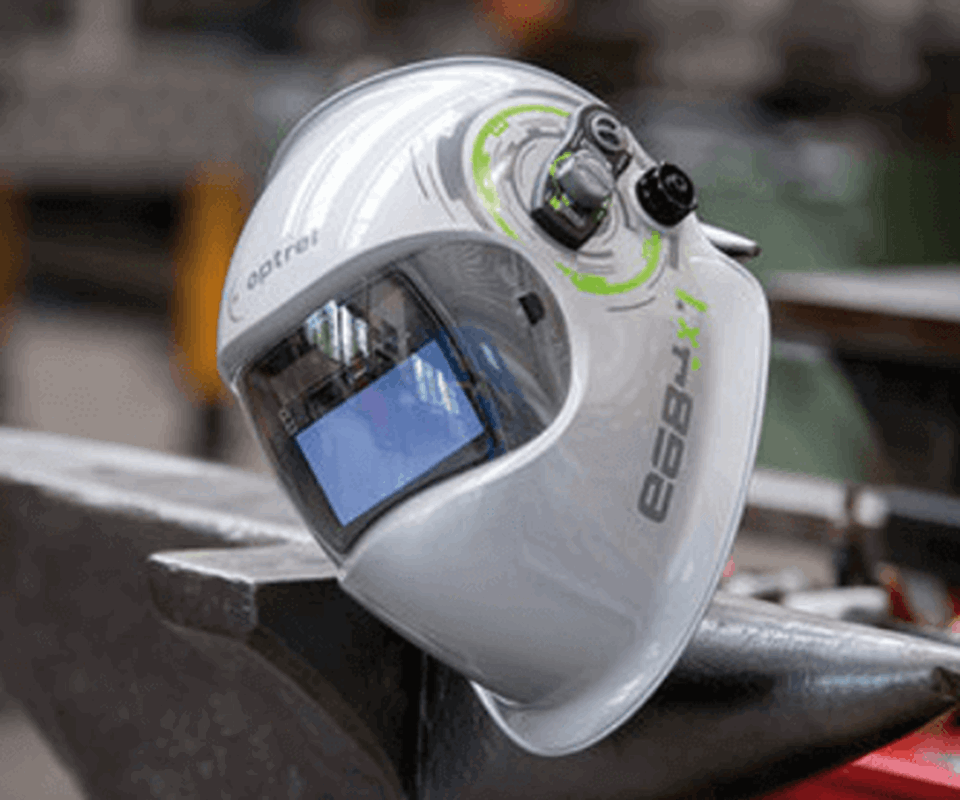

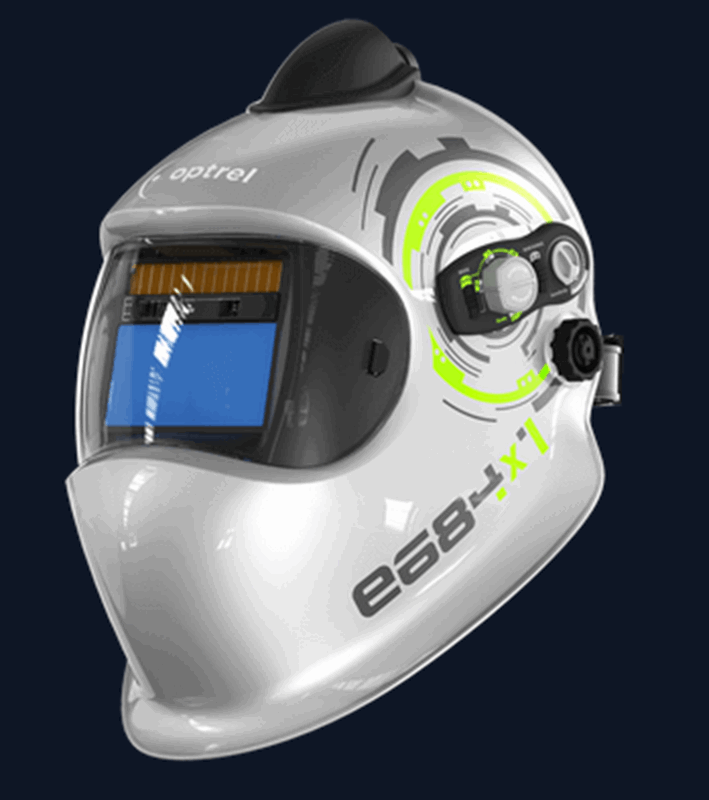

• e684 Welding Helmet
• Blower Unit with Hose and Belt
• Protection Sleeve
• TH3P R SL Filter
• Battery and Battery Charger
• Instruction Manual
• 2 Year Mfg Warranty (no battery warranty)

Explore Welders Supply online for more welding machine options.

PAPR Quick Specs
• NIOSH Certification - P100 (42 CFR 84)
• Filter - HEPA Class Th3
• Air Flow - 3 Levels (200 – 240 nl/min)
• Blower Unit Weight - 3.5 lbs (including filter, belt and battery)
• Battery – Li-Ion rechargeable (approx. 12 hours of continuous use per full-charge)

SHIPPING DIMENSIONS

Height: 12.00 Inches
Width: 12.00 Inches
Length: 12.00 Inches
Weight: 15 Lb(s) 0 Oz

Product Questions and Answers


Q - What is the warranty on the PAPR system? A - 2 years from date of sale for manufacturing and material defects; 6 month warranty on battery.
Q - What replacement filter do I need for the PAPR? A - This takes an HE Particulate Filter. The part number is 4088-200.

How to Replace a Filter:

  1. Find Filter Replacement.

    Find the correct filter using replacement number #4088.104 for only a filter or #4088.103 for a starter kit.

  2. Unlock Filter.

    Open the filter cartridge.

  3. Remove the Old Filter.

    Remove the old filter and dispose of it properly.

  4. Replace Filter.

    Open filter packaging and immediately replace the filter to maximize filter life.
