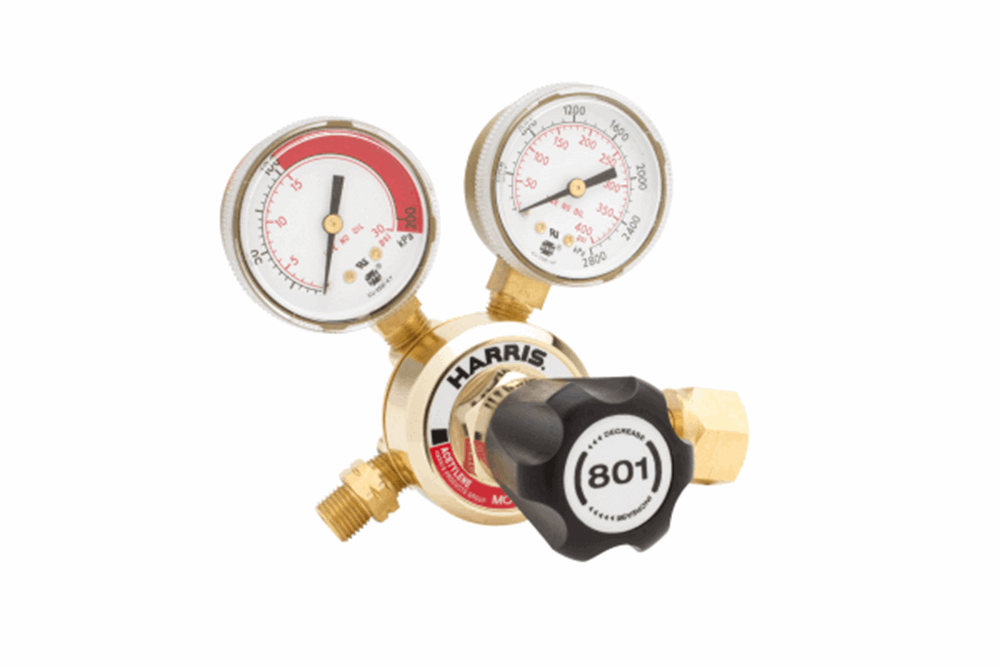

Harris® 801 Model Acetylene Regulator (CGA 300) 801-15-300 #3002195

Part Number: 3002195
$106.10 $160.60*
SAVE $54.50

Harris® 801 Model Acetylene Regulator (CGA 300) 801-15-300 #3002195

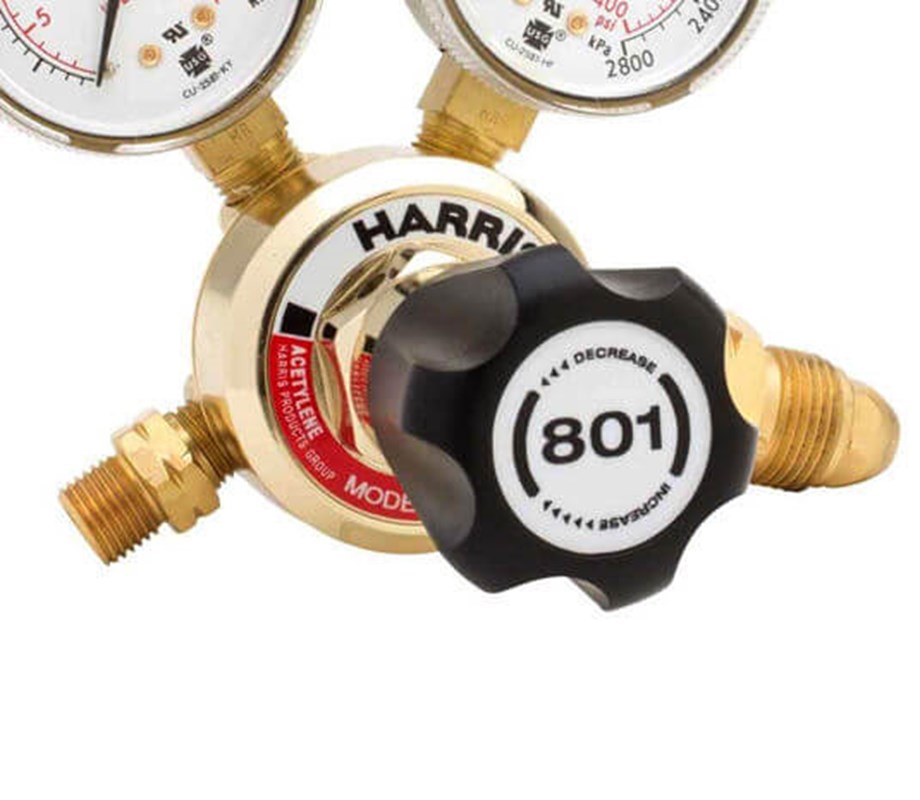

This Acetylene Regulator from Harris® is a single-stage, solid-brass regulator designed for medium-duty welding, cutting and brazing applications. The Harris 801 acetylene regulator features dual 2-inch steel pressure gauges and has a max outlet pressure rating of 15 PSIG. The ergonomic adjusting knob provides precise operation and longer service life.

Features:

  • Comes with a 7-year warranty
  • Medium-duty capacity

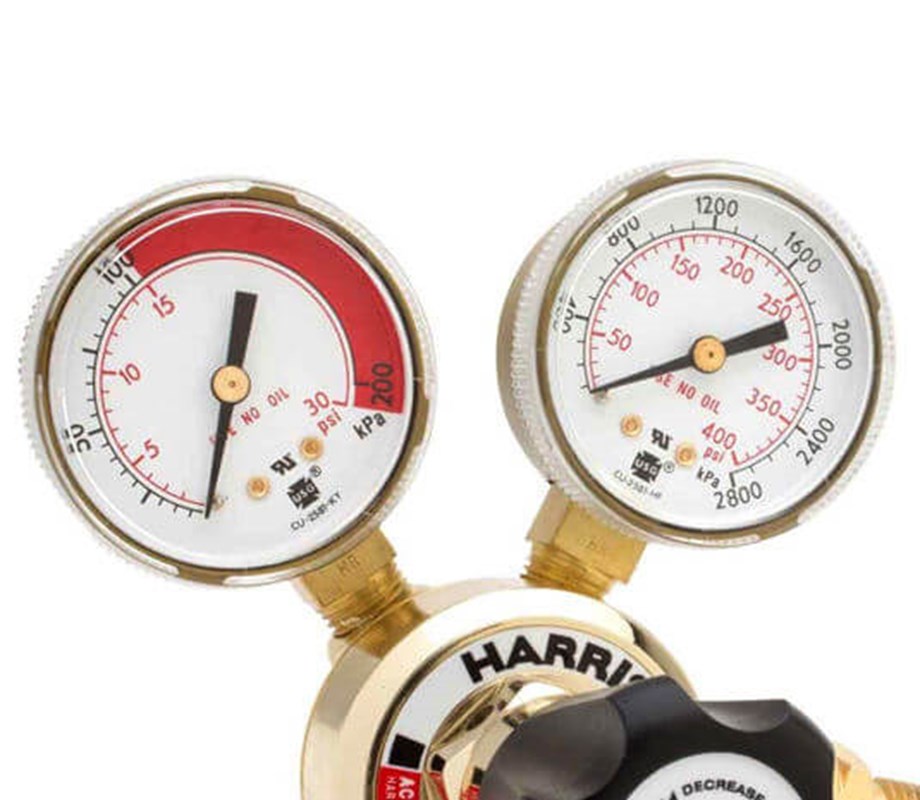

  • 2" Steel dual scale gauge
  • Encapsulated seat with internal filter and PTFE Teflon® seat



Shop for more Gas Welding Accessories or Gas Welding & Cutting Equipment online from Welders Supply.

Harris® 801 Model Acetylene Regulator - #3002195

Model Number:

  • 801-15-300

Cylinder Gas:

  • Acetylene

Max Inlet:

  • 500 PSIG

Delivery Pressure Range:

  • 0 - 15 PSIG

Delivery Pressure Gauge:

  • 30 RZ PSIG

Supply Pressure Gauge:

  • 400 PSIG

Inlet Connection:

  • CGA 300

Outlet Connection:

  • 9/16" - 18 LH

SHIPPING DIMENSIONS

Height: 2.00 Inches
Width: 12.00 Inches
Length: 12.00 Inches
Weight: 3 Lb(s) 0 Oz
