Walter Surfox Mini #54-D-055

Part Number: 54-D-055
$2,100.00 + Free Shipping

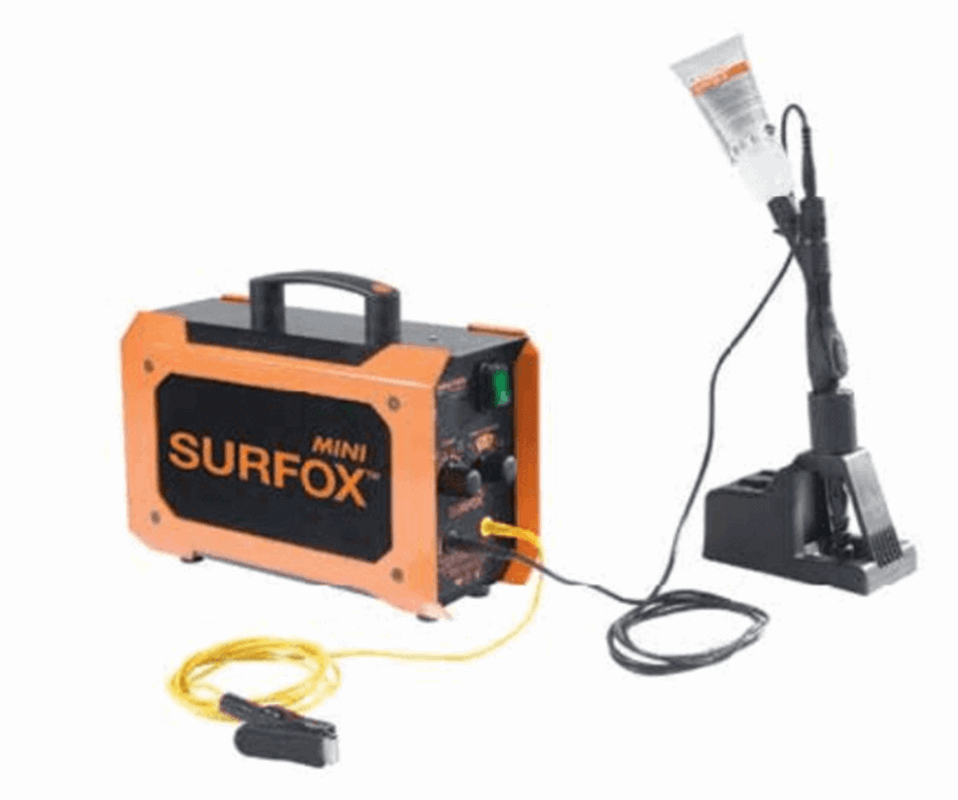

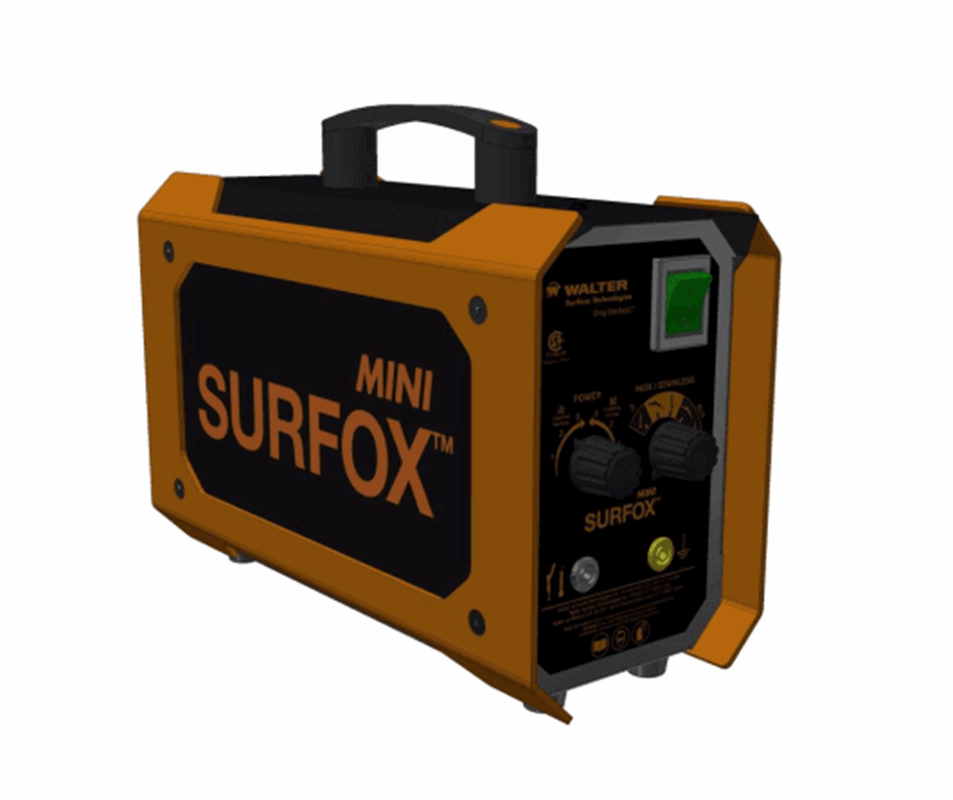

54-D0-55 SURFOX Mini Portable Stainless Steel Weld Cleaning System

The ergonomically designed SURFOX™ Mini electrochemical weld cleaning system #54-D-055 is a highly effective method of removing heat tint in the heat affected and compromised zones,  all without altering the surface of the material. The SURFOX™ Mini comes equipped with a variable power setting that ensures a perfect finish on even the most delicate surfaces. Similar to the SURFOX™ 205, this unit can clean TIG or spot welds on stainless steel and MIG, TIG or spot welds on aluminum. The SURFOX Mini Weld Cleaning System can also mark stainless steel, aluminum and titanium surfaces with the use of a SURFOX marking kit. Because it utilizes refillable electrolyte cartridges instead of an integrated tank, it significantly reduces the weight and increases portability on a job site. Excellent for use on repairs, touch-ups, and small jobs, but with the flexibility and swiftness of a portable unit.

Features and Benefits:

  • Cut time-consuming and physical labor with the electro-chemical quick cleaning process
  • Eliminate bottlenecks in the production process by easily refilling with SURFOX cartridges
  • Etch metals without compromising their rust resistant properties
  • Nitric and hydrofluoric acid-free SURFOX electrolyte solutions make a safer work environment Railroad Maintenance
  • Control the output current power easily with pre-set settings for all types of cleaning levels
  • Electropolish to make the finished product shine for the end user

Cleaning System Applications:

Material

Welding Process

Application

Stainless Steel TIG Cleaning, Electro Polishing, Marking, and Etching
Aluminum MIG and TIG Cleaning, Electro Polishing, Marking, and Etching



View our large selection of Mig, Tig, and Stick welders with the greatest values online.

Each unit comes with:

  • 1 micro-wand
  • 1 x micro-wand holder (48-R 286)
  • 1 x micro wand holder extension sleeve (48-R 460)
  • 1 x narrow tungsten insert (54-B 038)
  • 1 x narrow cleaning pad (54-B 028)
  • 1 x teflon ring (54-B 020)
  • 1 x carbon fiber micro-brush 54-B 117
  • 1 x adaptor for micro-brush 54-B 100

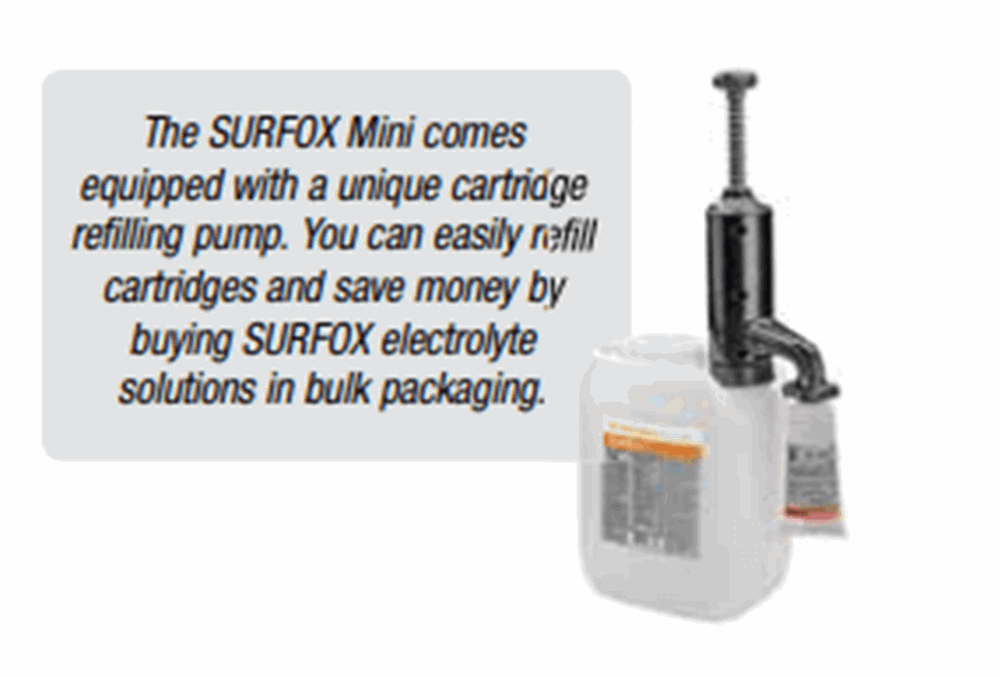

  • 1 x manual refilling pump 54-B 092
  • 1 x ground cable 48-R 283
  • 1 x user guide
  • 1 x DVD
  • 1 x carrying case

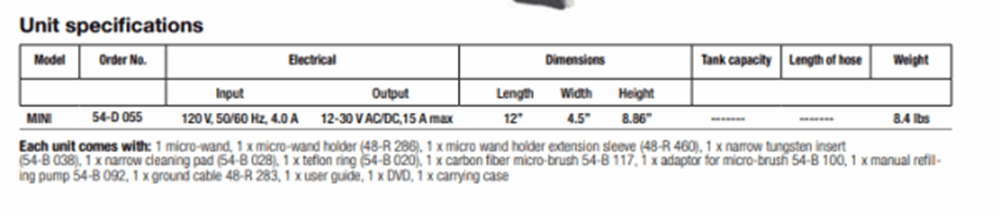

SHIPPING DIMENSIONS

Height: 9.00 Inches
Width: 4.50 Inches
Length: 13.00 Inches
Weight: 8 Lb(s) 6 Oz

Product Questions and Answers


Q - What is the kit you need to mark stainless steel, aluminum and titanium? A - It's Part #54B080.
Q - Does this run on 120V? A - Yes, 120V AC, 50/60 Hz, 4.0 A
