Miller Dynasty® 800 Wireless Foot Control Complete #951000264

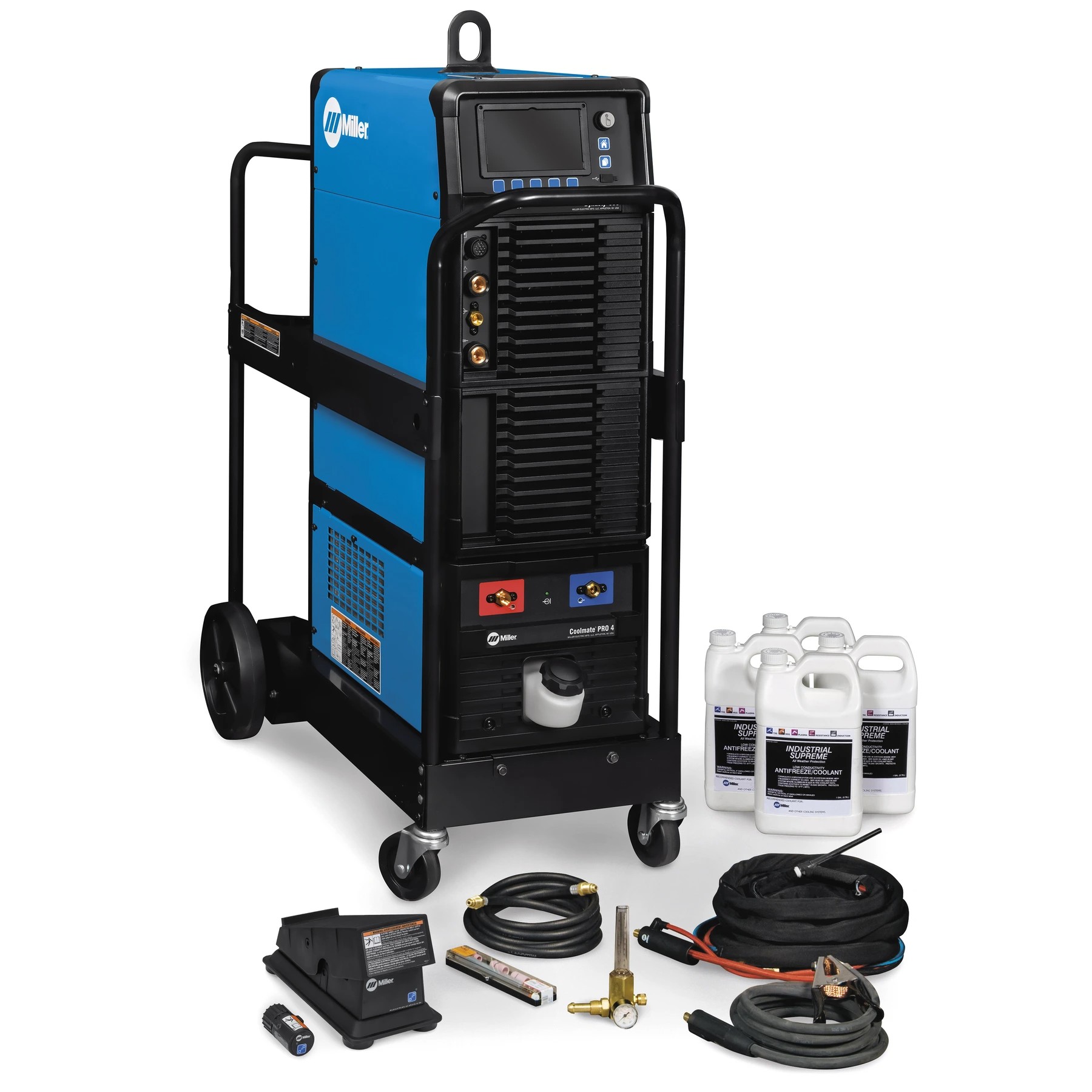

The Dynasty® 800 Wireless Foot Control Complete is a full high-amperage TIG system in a single package. It includes the 800-amp Dynasty 800, a Coolmate™ PRO 4 cooler, Runner cart, four gallons of coolant, a Weldcraft™ W-400 water-cooled torch kit, and Miller's wireless foot control. The system welds aluminum and steel up to 1 inch thick.

Highlights

• Complete High-Amperage TIG System: Power source, cooler, coolant, torch, cart, and foot control arrive together as matched components.
• Wireless Foot Control: Takes the pedal cable off the floor. Miller rates it for a 90 ft range and up to 1,500 hours of battery life.
• Weldcraft™ W-400 Super Cool™ Torch: A heavy-duty water-cooled torch with a stubby collet body and textured handle for high-amperage work.
• Coolmate™ PRO 4 with CPS: The 4-gallon cooler runs off the welder's Cooler Power Supply receptacle and ships with four 1-gallon bottles of Miller coolant.
• 800-Amp Output: 5 to 800 A range with a 600 A rating at 60% duty cycle.
• Auto-Line™ Technology: Connects to single-phase or three-phase power from 208 to 600 V with no manual linking.
• Advanced AC TIG Controls: Independent EP and EN amperage, extended AC balance, 20 to 400 Hz AC frequency, and four AC waveforms.
• High-Speed DC Pulse and QuietPulse™: Up to 5,000 pulses per second, with Sine or Triangular waveshapes for a quieter pulsed arc.
• Program Memory and Locks/Limits: 99 named programs with USB transfer and locked parameter ranges to hold operators to the WPS.
• Pro-Set™: One-press presets for balance, frequency, pulse, and DIG.
• Blue Lightning™ HF Arc Starter: Reliable non-contact arc starts.

What's Included

• Dynasty® 800 power source
• (1) Water-cooled thread-lock torch adapter #225028 for #18 or #20 torches
• Coolmate™ PRO 4 water cooler
• Runner cart
• Low-Conductivity Antifreeze/Coolant #043810 (4 one-gallon bottles)
• Weldcraft™ W-400 Super Cool™ torch kit and accessories #300186
• Wireless Foot Control System #301580

Applications

• Heavy aluminum fabrication
• Aerospace manufacturing
• Heavy equipment
• Industrial welding
• High-amperage production welding
