50 items found
Dynasty® 800 Wireless Foot Control Complete
$29,733.00
$34,336.64
View Product
Part Number: 951000008
Miller Dynasty 280 DX (Auto-Line 208-575), CPS, VS #907514007
$10,751.00
$12,415.00
(1)
View Product
Part Number: 907514007
Dynasty® 300 Water-Cooled Complete Package w/ Wireless Foot Control #951937
$14,261.00
View Product
Part Number: 951937
Dynasty 280 Multiprocess w/ ArcReach SuitCase 12 #951798
$15,647.00
$18,069.00
(1)
View Product
Part Number: 951798
Miller Dynasty® 280 DX (CPS) TIGRunner®
$11,777.00
$13,603.00
(1)
View Product
Part Number: 907514001
Used Miller Dynasty 210 Foot Control Contractor Kit
$1,265.75
$1,590.00
View Product
Part Number: 301309

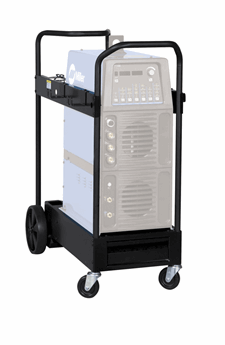

Dynasty®/Maxstar® 350/700, 4 Wheel Cart #300244
$1,186.45
$1,286.00
View Product
Part Number: 300244
Dynasty® 400 208-600 V, Wireless Foot Control Complete Package
$17,864.00
$20,630.48
View Product
Part Number: 951000002
Miller Dynasty 280 DX (Auto-Line 208-575 V) with CPS
$9,626.00
$11,116.00
(1)
View Product
Part Number: 907514
Miller Dynasty® Series TIG Welders
With a compact design and superior arc performance and control, these TIG welders help increase productivity and improve weld quality while lowering installation and operating costs.
- Advanced AC/DC TIG/STICK technology for all metals
- Optimum arc & puddle control
- Improved efficiency
- Compact, easily transported design
Miller Dynasty Models Compared | ||||
---|---|---|---|---|
Dynasty 210 | Dynasty 300 | Dynasty 400 | Dynasty 800 | |
Configurations | ||||
Processes | AC/DC TIG (GTAW) Pulsed TIG (GTAW-P) Stick (SMAW) |
AC/DC TIG (GTAW) Pulsed TIG (GTAW-P) Stick (SMAW) Air carbon arc (CAC-A) |
TIG (GTAW) Pulsed TIG (GTAW-P) Stick (SMAW) Air carbon arc (CAC-A) |
TIG (GTAW) Pulsed TIG (GTAW-P) Stick (SMAW) Air carbon arc (CAC-A) |
Weldable Materials | Steel, stainless steel, aluminum | Steel, stainless steel, aluminum | Steel, stainless steel, aluminum | Steel, stainless steel, aluminum |
Max Welding Thickness | Up to 1/4” | Up to 3/8” | Up to 5/8” | Up to 1” |
AC TIG Material Thickness Range | 0.012–1/4 in. (0.3–6.4 mm) | 0.012–3/8 in. (0.3–9.5 mm) | .015–5/8 in. (0.38–15.9 mm) | .020–1 in. (0.5–25.4 mm) |
DC TIG Material Thickness Range | 0.002–1/4 in. (0.05–6.4 mm) | 0.004–3/8 in. (0.1–9.5 mm) | .012–5/8 in. (0.3–15.9 mm) | .020–1 in. (0.5–25.4 mm) |
Input Power | 120–480 V, 3-phase or 1-phase | 208–600 V, 3-phase or 1-phase | 208–600 V, 3-phase or 1-phase | 208–600 V, 3-phase or 1-phase |
Aperage Range | 1–210 A (DC) 2–210 A (AC) |
1–300 A (DC) 2–300 A (AC) |
3–400 A | 5–800 A |
Rated Output | 210 A at 18.4 V, 60% duty cycle | 250 A at 20 V, 60% duty cycle | 300 A at 32 V, 60% duty cycle | 600 A at 44 V, 60% duty cycle |
Application Class(es) | Personal, Light Industrial, Industrial | Personal, Light Industrial, Industrial | Light Industrial, Industrial | Light Industrial, Industrial |
Industry Targets | Aerospace Heavy fabrication Precision fabrication Aluminum ship repair Pipe and tube fabrication Anodized aluminum fabrication |
Aerospace Heavy fabrication Precision fabrication Aluminum ship repair Pipe and tube fabrication Anodized aluminum fabrication |
Aerospace Heavy fabrication Precision fabrication Aluminum ship repair Pipe and tube fabrication Anodized aluminum fabrication |
Aerospace Heavy fabrication Precision fabrication Aluminum ship repair Pipe and tube fabrication Anodized aluminum fabrication |
Generator Requirements | 9 kW | 12.5 kW | 20 kVA | 50 kVA |
Portable | ✓ | ✓ | ||
Machine Weight | 47 lbs | 55 lbs | 126 lbs | 201 lbs |
2024 Spec Sheet | Miller Dynasty 210 - 2024 Specifications (PDF) | Miller Dynasty 300 - 2024 Specifications (PDF) | Miller Dynasty 400 - 2024 Specifications (PDF) | Miller Dynasty 800 - 2024 Specifications (PDF) |
