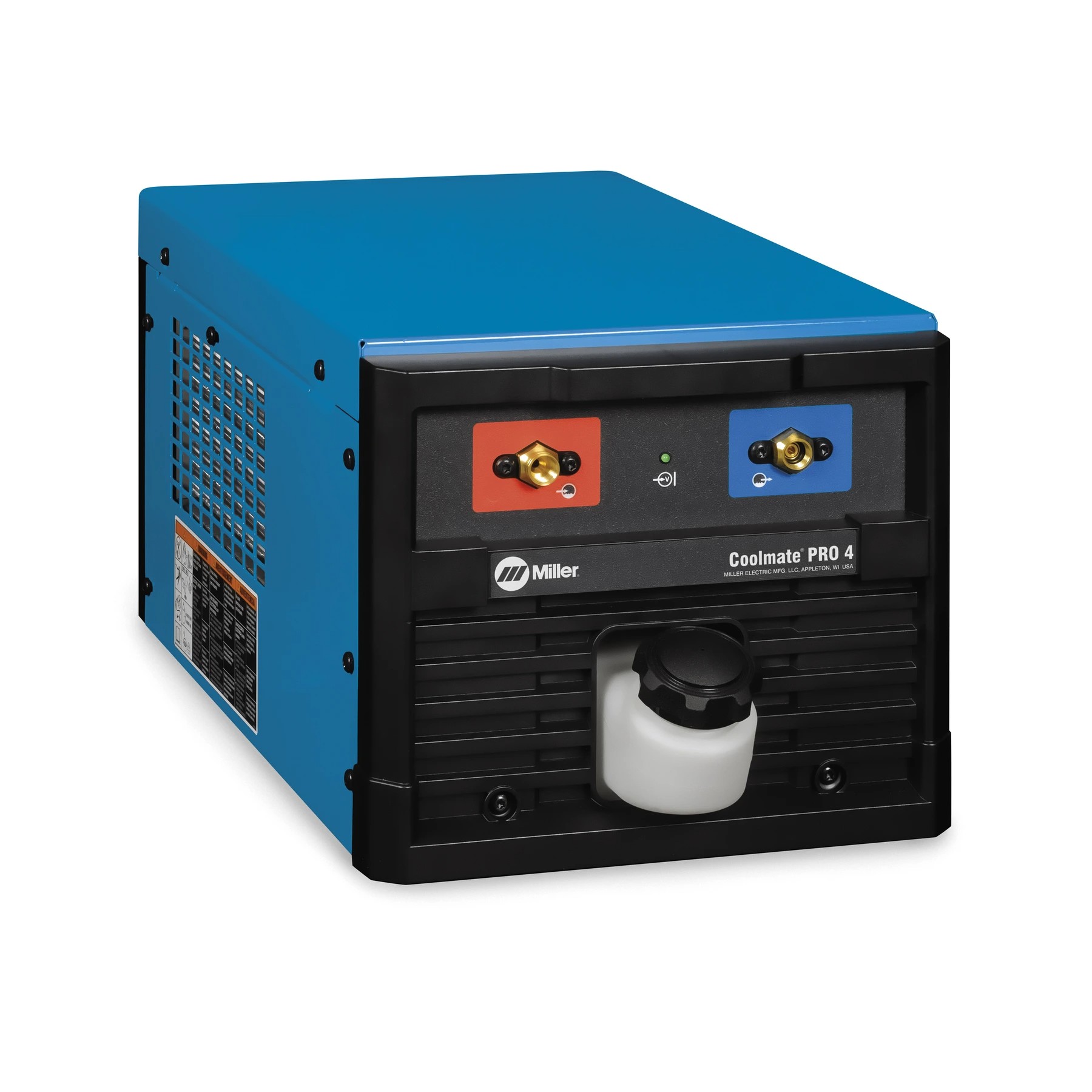

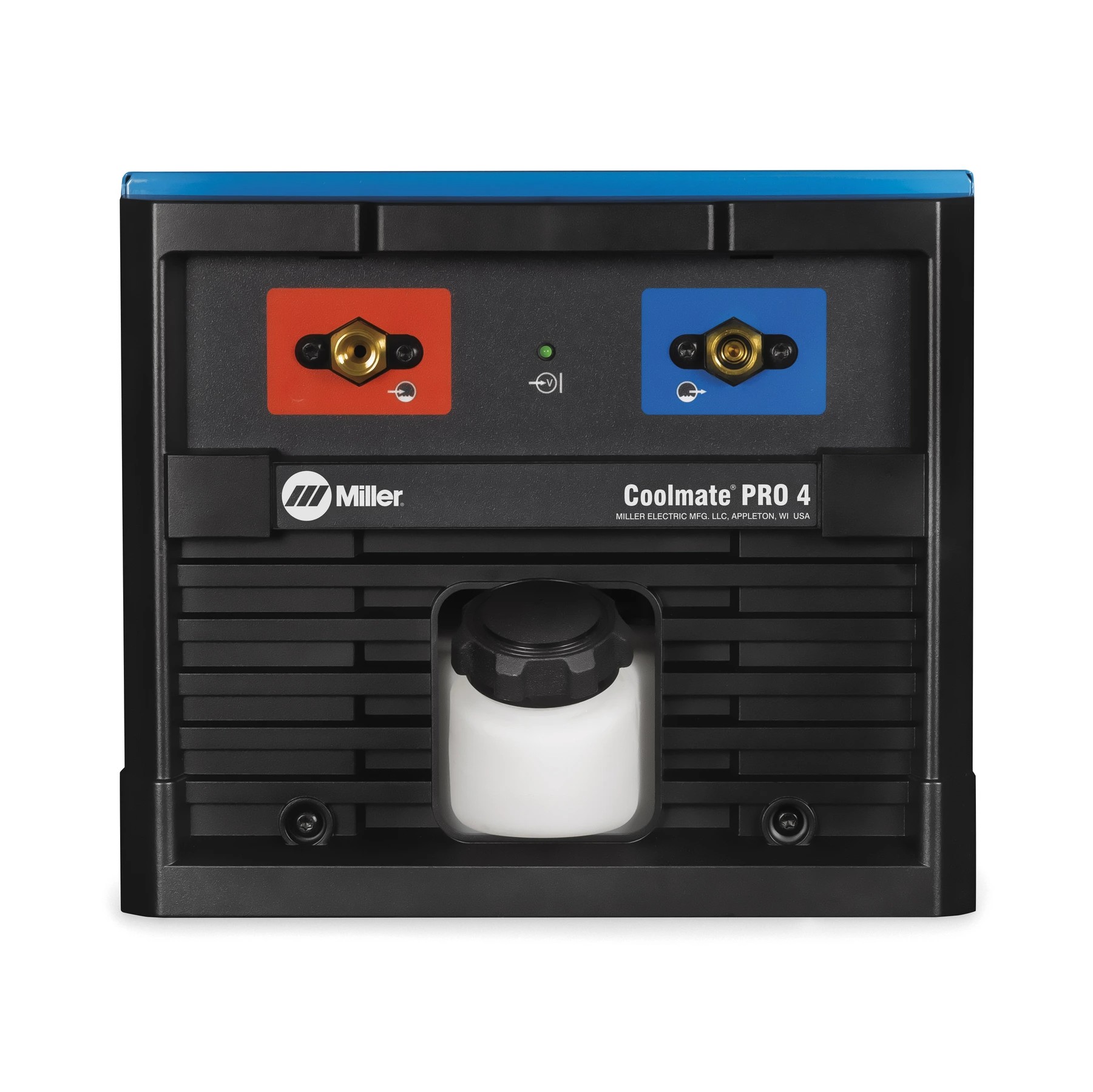

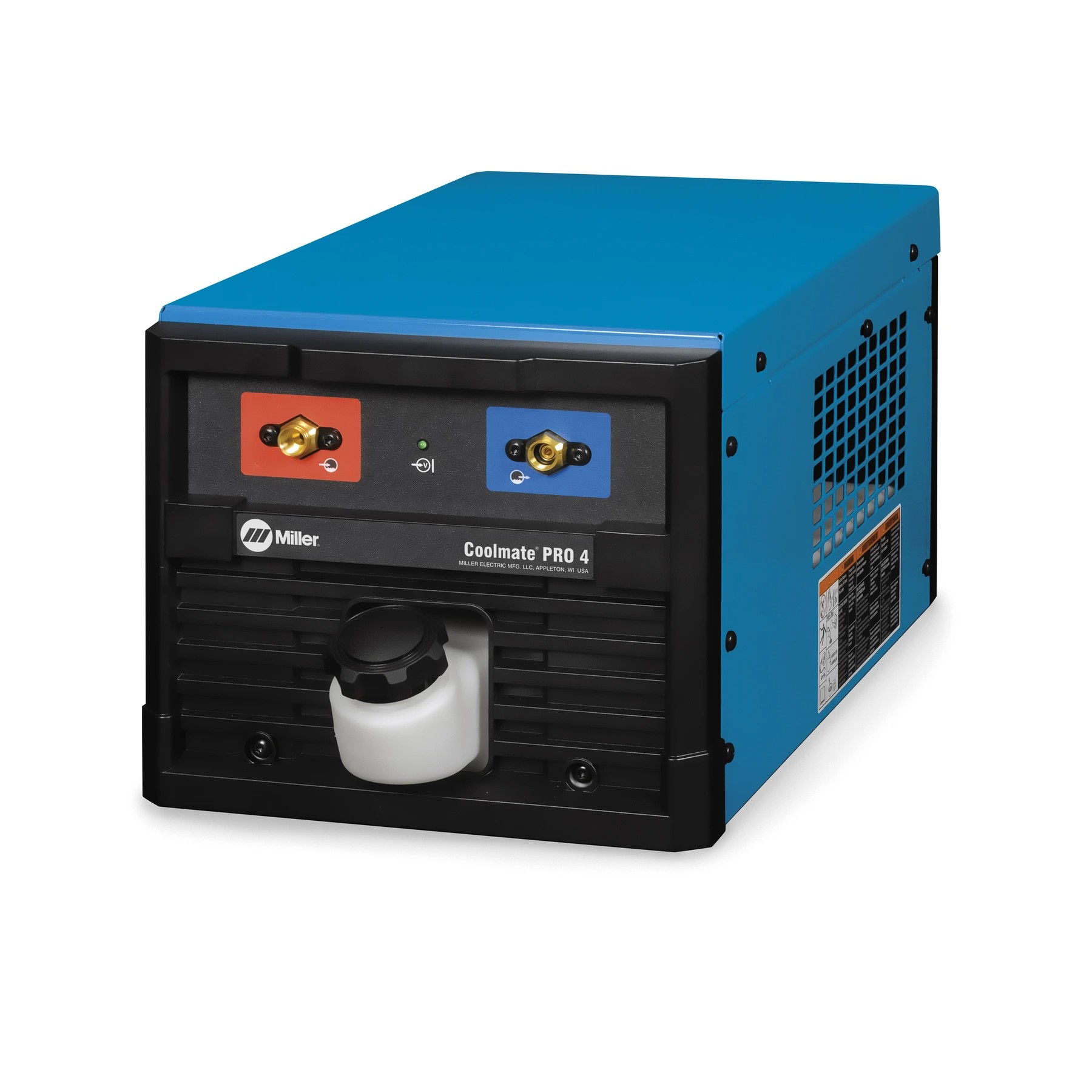

Miller Coolmate™ PRO 4 Water Cooler #301905

The Miller Coolmate™ PRO 4 is an industrial 4-gallon cooler for water-cooled TIG torches rated up to 600 amps. It is designed to integrate with the Dynasty® 400, Dynasty® 800, and Maxstar® 400, and it runs on 120 or 240 V. It delivers up to 5,010 W of maximum cooling and 2,370 W of rated cooling capacity.

Highlights

• 4-Gallon (15.1 L) Tank: Holds enough coolant for long, high-amperage TIG runs.
• Rated for Torches up to 600 Amps: Supports heavy water-cooled torches such as the Weldcraft™ W-375 and W-400.
• 5,010 W Max Cooling Capacity: 2,370 W rated capacity keeps torch temperatures down during production welding.
• Powered by the Welder: The Dynasty 400, Dynasty 800, and Maxstar 400 each have a dedicated Cooler Power Supply (CPS) receptacle that runs the Coolmate PRO 4. No separate wall outlet is needed.
• 120/240 V Input: Low current draw of 1.2 A at 50 Hz.
• Cart Compatible: Mounts with the welder on the Dynasty/Maxstar 400/800 Runner cart #300244.

What's Included

• Coolmate™ PRO 4 cooler

Coolant is sold separately. Miller recommends Low-Conductivity Antifreeze/Coolant #043810.

Compatible With

• Dynasty® 400, Dynasty® 400 TIGRunner, and Dynasty® 400 Wireless Foot Control Complete
• Dynasty® 800, Dynasty® 800 TIGRunner, and Dynasty® 800 Wireless Foot Control Complete
• Maxstar® 400, Maxstar® 400 TIGRunner, and Maxstar® 400 Wireless Foot Control Complete

Applications

• Water-cooled TIG welding
• Aerospace manufacturing
• Automotive welding
• Welding automation
