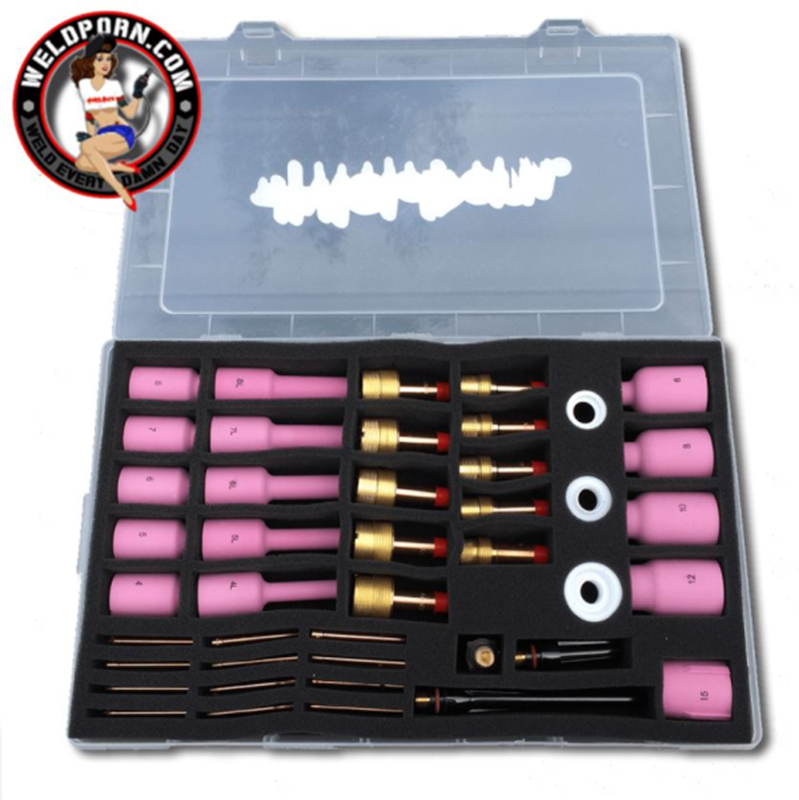

Weldporn® Tig Torch Box #WP-TACKLEBOX-TIG

This kit fits all 17 & 26 series air cooled torches and 18 series water cooled torches

Package Quantity:

TIG Back Cap 3pcs
1pcs 57Y02
1pcs 57Y03
1pcs 57Y04

Insulators Cap Gaskets 1pcs
1pcs 18-7

TIG Collet 12pcs
2pcs 10N21  0.020 ”
2pcs 10N22  0.040 ”
2pcs 10N23  1/16 ”
2pcs 10N24  3/32 ”
2pcs 10N25  1/8 ”
2pcs 54N20  5/32″

Gas Lens Cup Insulator 1pcs
1pcs 54N01

TIG Gas Lens Collet Body 5pcs
1pcs 45V24  0.040 ”
1pcs 45V25  1/16 ”
1pcs 45V26  3/32 ”
1pcs 45V27  1/8 ”
1pcs 45V28  5/32″

TIG Gas Lens Alumina Nozzle 5pcs
1pcs 54N18 D6.5 x 47.6 mm 1/4″ Size 4
1pcs 54N17 D8.0x 47.6 mm 5/16″ Size 5
1pcs 54N16 D9.5 x 47.6 mm 3/8″ Size 6
1pcs 54N15 D11.0 x 47.6 mm 7/16″ Size 7
1pcs 54N14 D12.5 x 47.6 mm 1/2″ Size 8

TIG Gas Lens Long Alumina Nozzle 5pcs
1pcs 54N18L D6.5 x 76.2 mm 1/4″ Size 4
1pcs 54N17L D8.0x 76.2 mm 5/16″ Size 5
1pcs 54N16L D9.5 x 76.2 mm 3/8″ Size 6
1pcs 54N15L D11.0 x 76.2 mm 7/16″ Size 7
1pcs 54N14L D12.5 x 76.2 mm 1/2″ Size 8

Jumbo Cup Insulator 1pcs
1pcs 54N63

TIG Collet Body Gas Lens Larger Diameter 5pcs
1pcs 45V0204  0.040 ”
1pcs 45V116  1/16 ”
1pcs 45V64  3/32 ”
1pcs 995795  1/8 ”
1pcs 45V63  5/32 ”

TIG Alumina nozzle Larger Diameter 5pcs
1pcs 57N75 D9.50mm x 3/8″-size 6
1pcs 57N74 D12.50mm x 1/2″-size 8
1pcs 53N88 D16.0mm x 5/8″-size 10
1pcs 53N87 D19.50mm x 3/4″-size 12
1pcs 53N89 D24.00mm x 1.0″-size 15
