ESAB® SAVAGE A40 PAPR Welding Helmet Kit 0700002400

Part Number: 0700002400
$1,299.00 + Free Shipping $1,599.00*
SAVE $300.00
Starts at $216.50/month with

Helmet Viewing Area:

6-9.9 in²

ESAB® SAVAGE A40 PAPR Welding Helmet Kit 0700002400

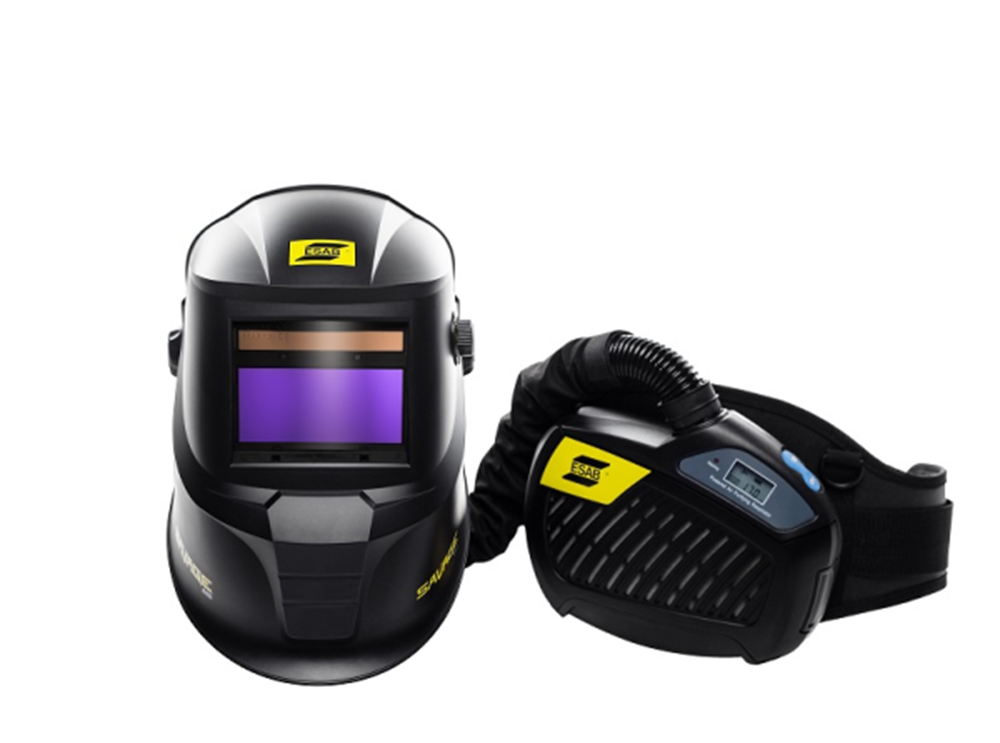

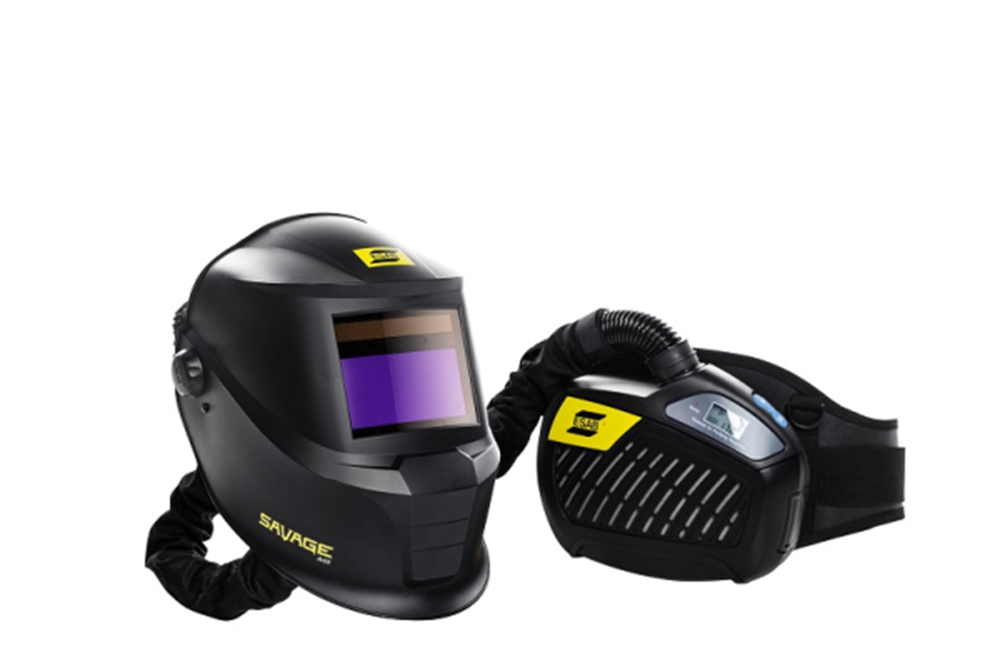

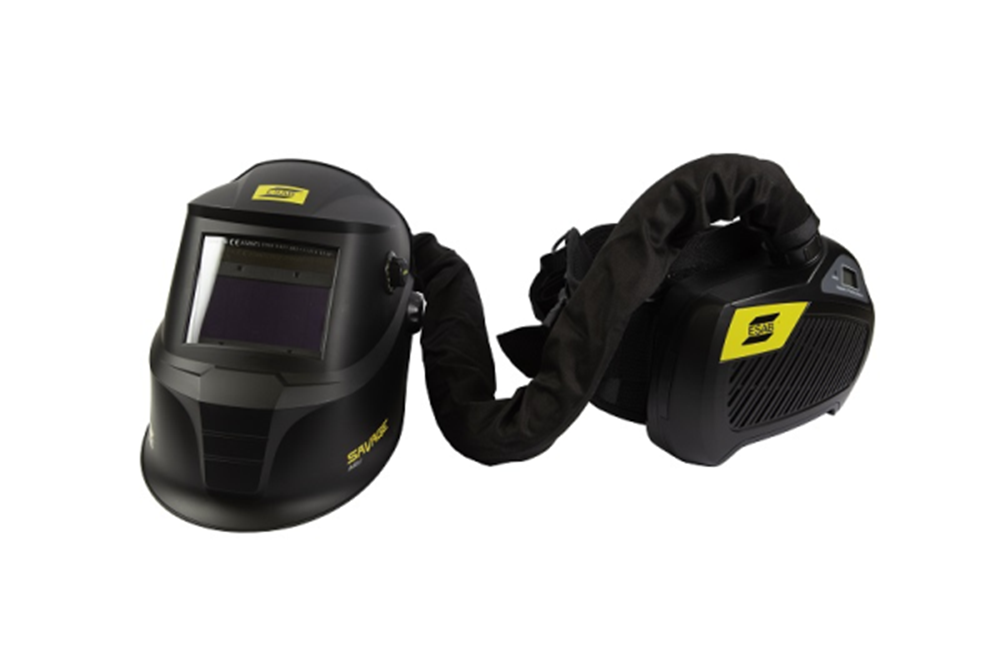

ESAB® SAVAGE A40 PAPR Welding Helmet Kit 0700002400The Savage A40 PAPR pairs the advanced features of the Savage A40 welding helmet with a powerful PAPR system designed to filter 99.9% of fine particles from the air during routine procedures. As a fully featured system, welders can now experience optimal True Color with 1/1/1/2 class optical view of the weld pool through a large 100 x 50 mm (3.93 x 1.96 in.) ADF. The external grind button and knob make it simple to adjust the shade control from 9-13, allowing an easy switch for different welding processes. The Savage A40 PAPR NIOSH-approved welding system represents the features welders need to get the job done quickly, accurately and safely.

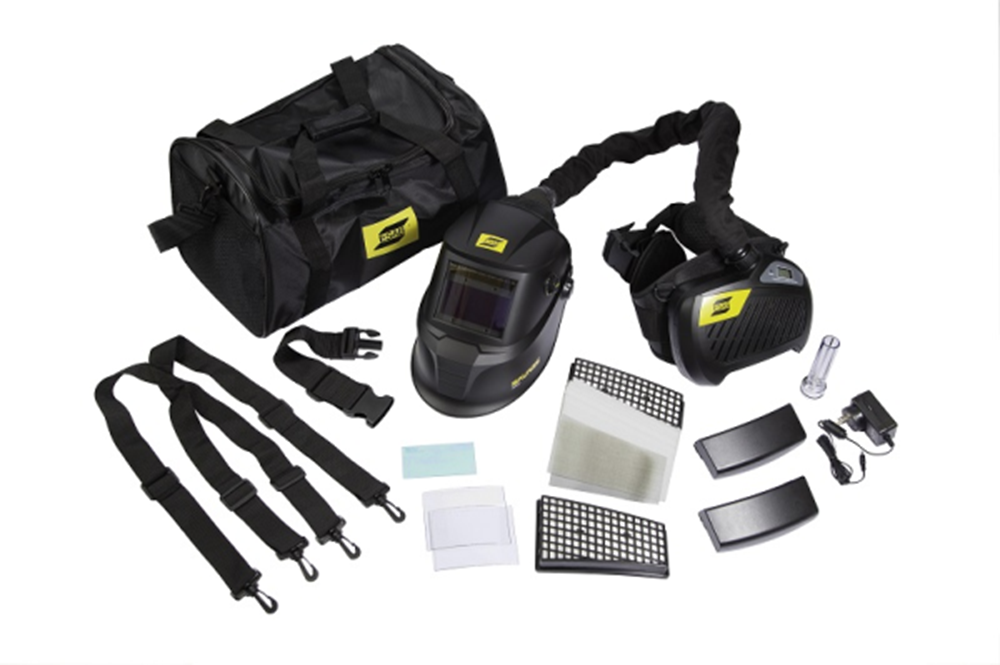

Whats Included:

  • Savage A-40 Helmet prepared for PAPRNIOSH-PAPR Filter
  • Waist Belt w/Shoulder Strap
  • Battery Charger

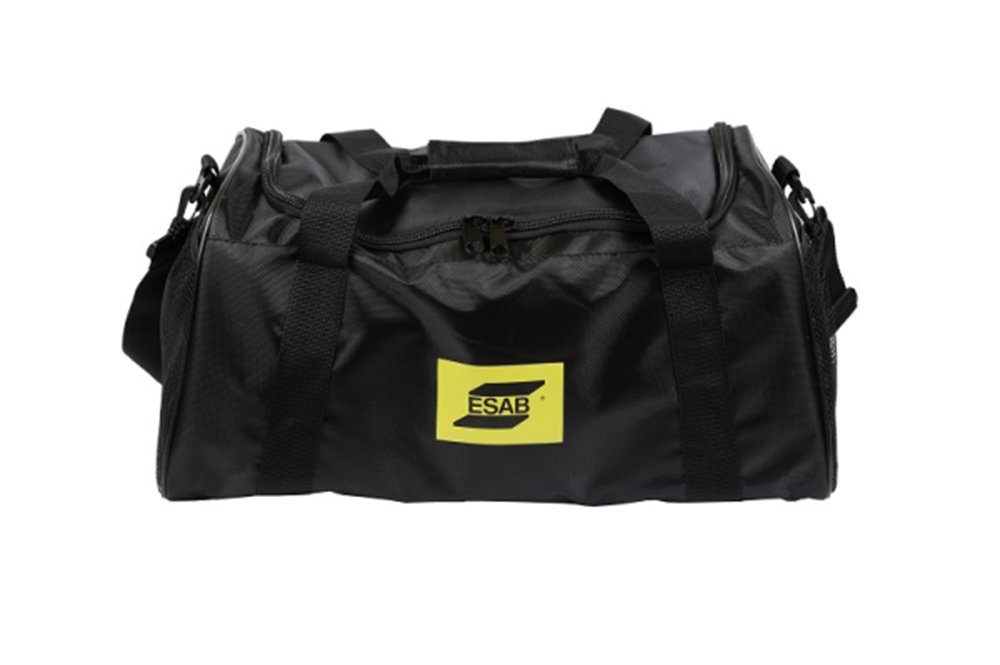

  • Carrier Bag
  • Breathing tube
  • battery
  • Filters
  • blower units


  • Ergonomic Headgear- Adjustable headgear provides exceptional comfort while protecting from heat, sparks and spatter
  • Large Viewing Area- Wide lens provides a wider field of vision and greater spatial awareness
  • 1/1/1/2 Optical Lens- 1/1/1/2 optical-class lens features ultra-clear true color technology for increased weld pool clarity and enhanced definition.

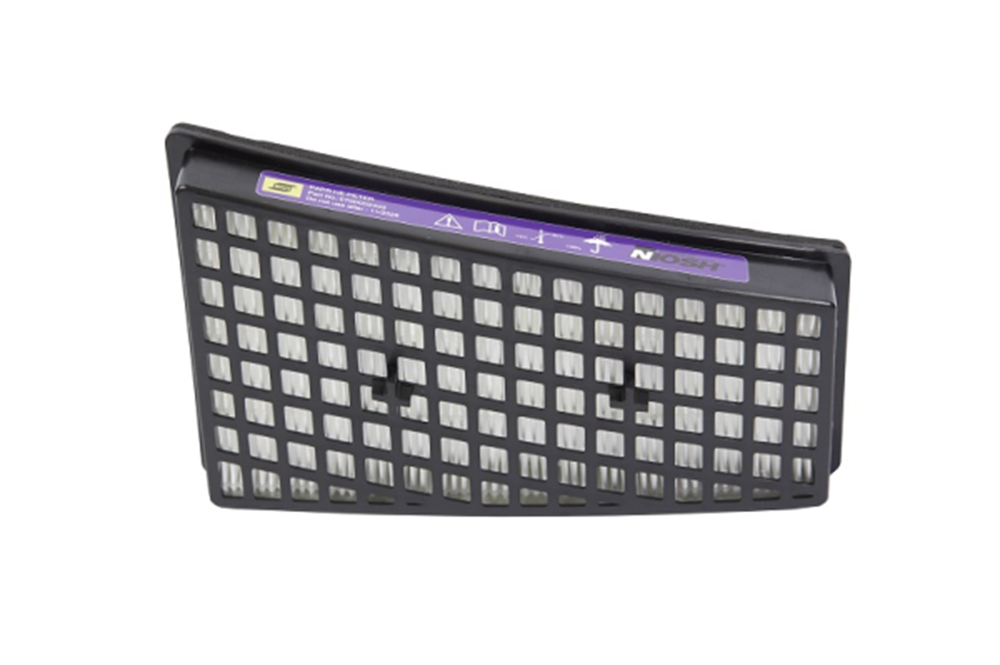

  • 2-Stage Filter- 2-stage replaceable filter reduces fine particles by more than 99.97%

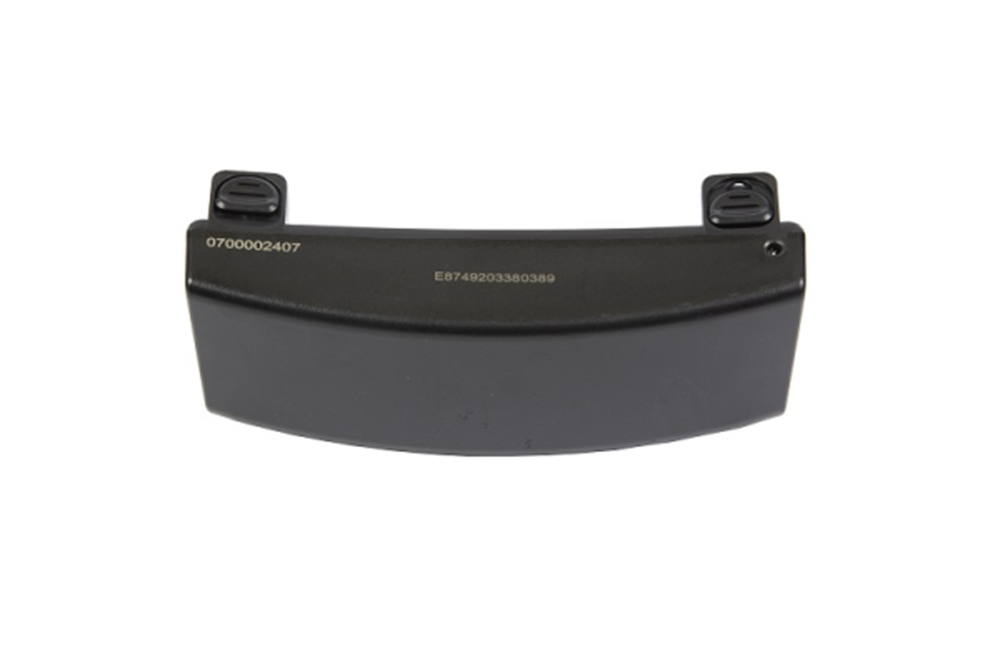

  • Lithium-Ion Battery- High-capacity, rechargeable lithium-ion battery powers the quiet blower system for up to 8 hours between charges.
  • NIOSH PAPR- Advanced PAPR systems uses a push-button, digitally controlled 3-setting airflow adjustment, allowing from 170 liters to 230 liters per minute through a spart arrestor shield and 2-stage replaceable filter.
  • Grind Button- External grind mode, for superior convenience, change from welding view to grind view ont he fly without having to remove your helmet
View more ESAB Products




  • Plasma Cutting
  • Oxy-Fuel Cutting
  • SMAW/MMA (Stick)
  • GTAW (TIG)
  • PAW - Plasma Arc Welding
  • Grinding



Cartridge Dimensions 110 x 90 x 7.8 mm (4.33 x 3.54 x 0.3 in.)
Viewing Area 100 x 50 mm (3.93 x 1.96 in.)
Lens Shade DIN 4, 9-13 Automatic
Power Supply (helmet) Replaceable CR2450 battery with solar cell backup. Alerts when low battery.
Power Supply (PAPR) 4400mAh Li-Ion rechargeable battery (charger included).
Alerts when low battery.
Sensors 4
Switch Time, from Dark to Light 0.1-0.9 s
Switch Time, at 23°C (73°C) 0.07 ms
Classification 1/1/1/2
Standards NIOSH, ANSI Z87.1, CSA Z94.3, CE EN379, EN175, & AS/NZS 1338.1
Weight 1350 g (2.97 lbs)
