Lincoln Electric Prism® Circulator w/ Nano Filter (230V 3PH) #K5140-2

Part Number: K5140-2
UPC: 15082981840
$30,487.80 + Free Shipping

Call 844-682-0205 or CHAT for more options

Power supply:

220V 3 Phase

220V 3 Phase

  • 230 volt input230V Input
  • 3-phase input power3-Phase Input
  • 4000 SCFM air filtration4000 SCFM
  • 4 PTFE Filters heavy duty welding air filtration4 Nano Filters
  • Lincoln Electric 3-Year WarrantyLincoln Electric 3-Year Warranty

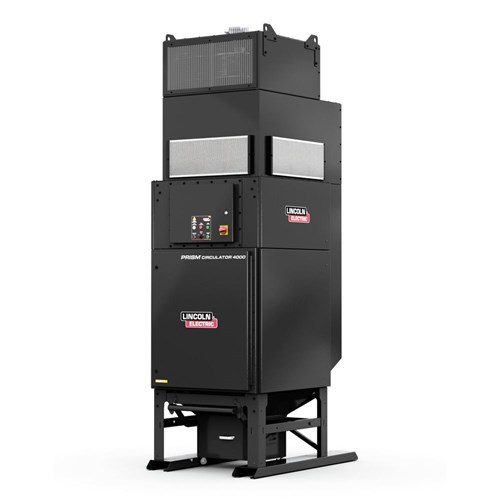

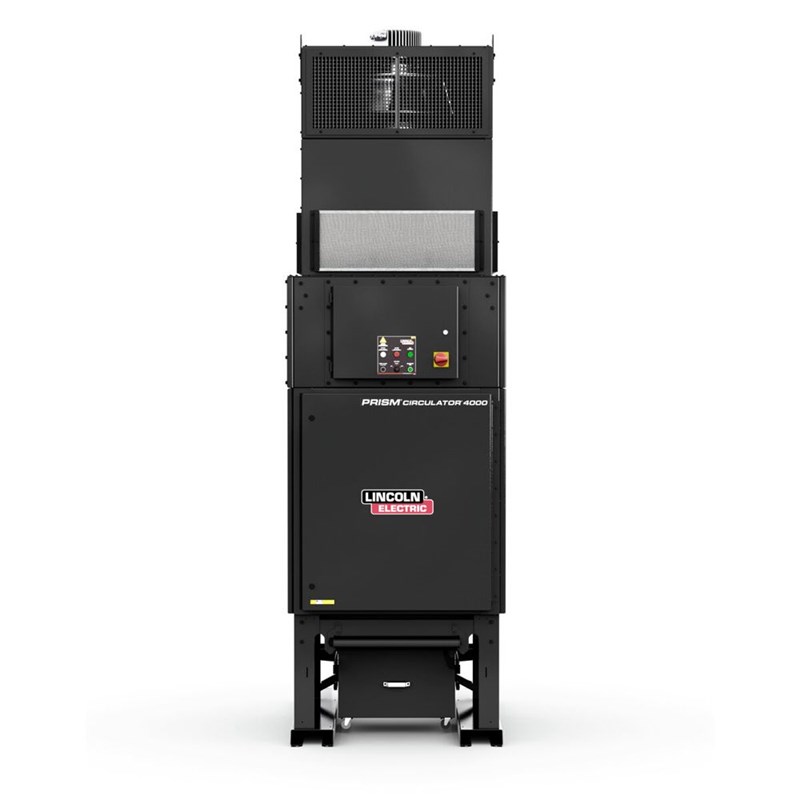

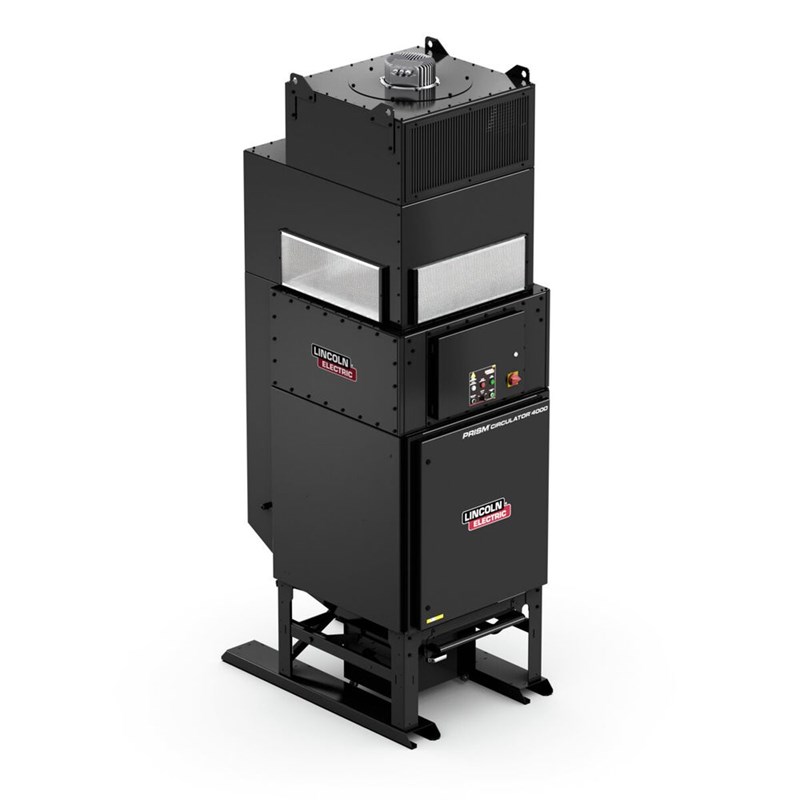

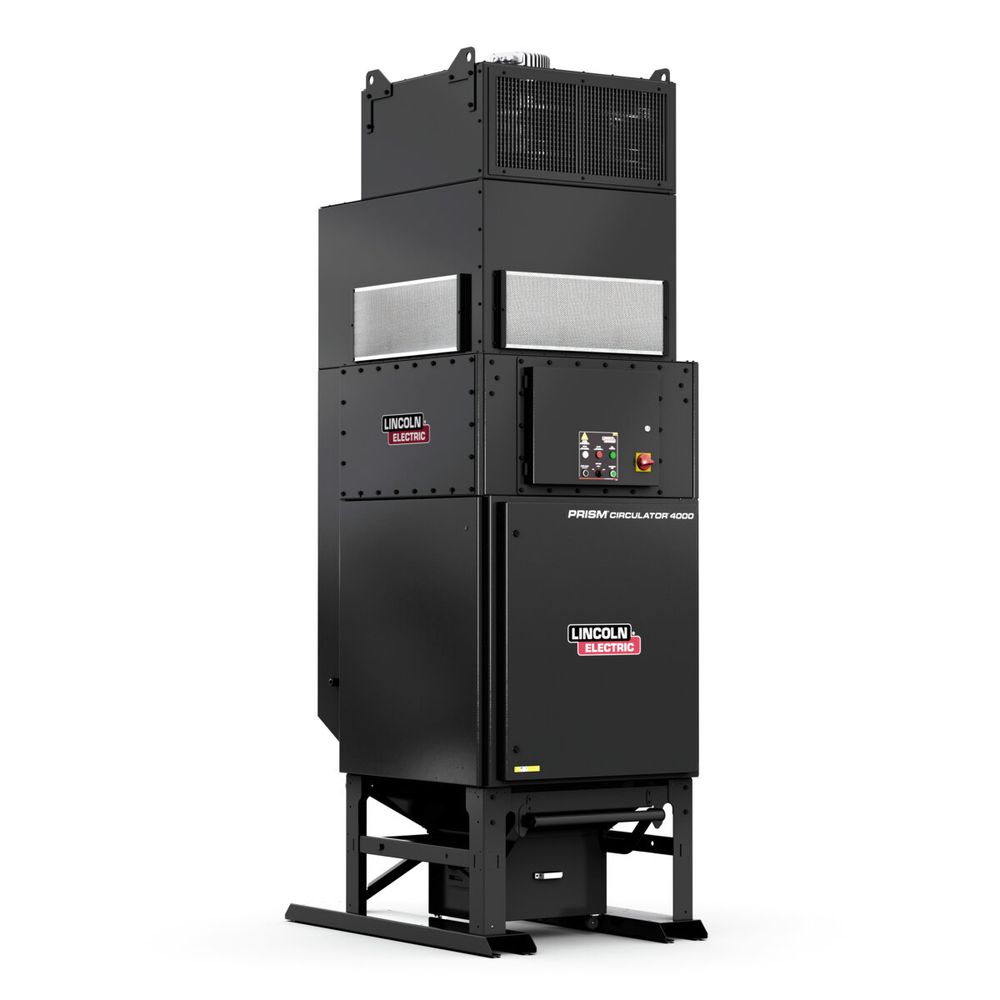

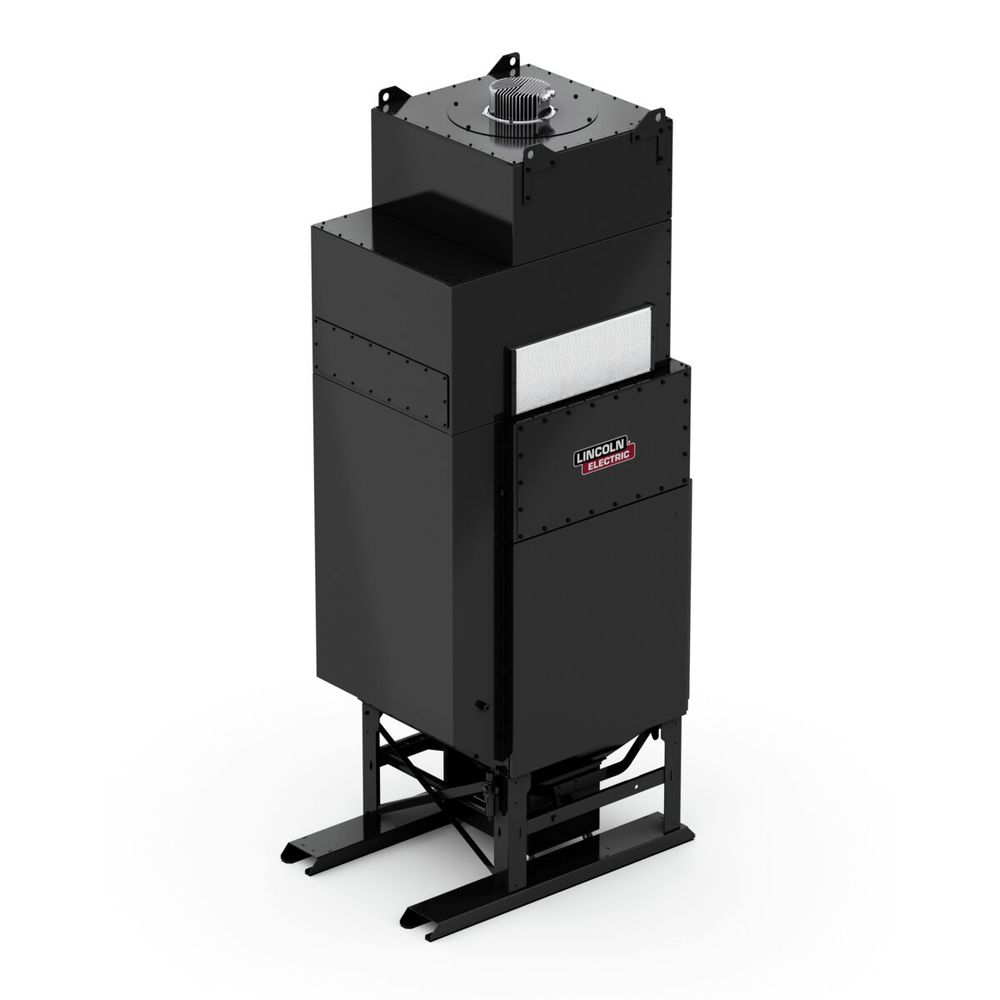

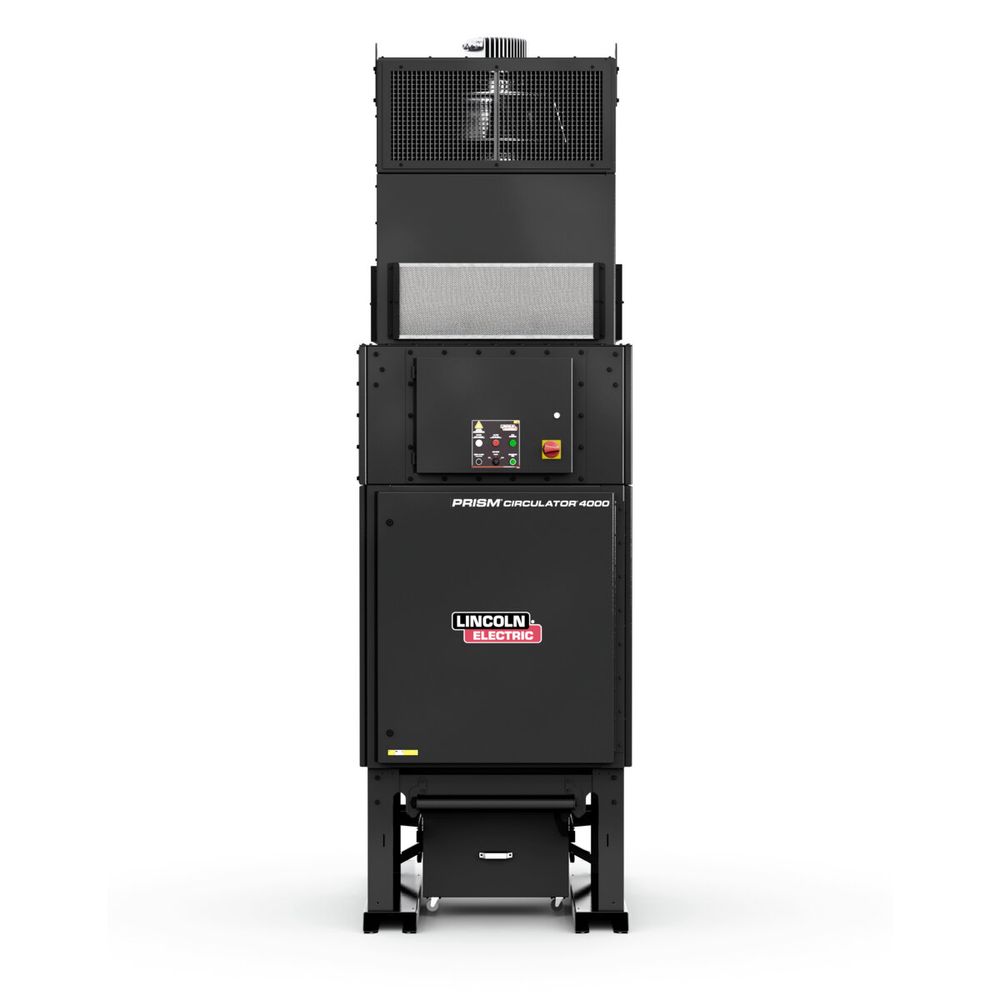

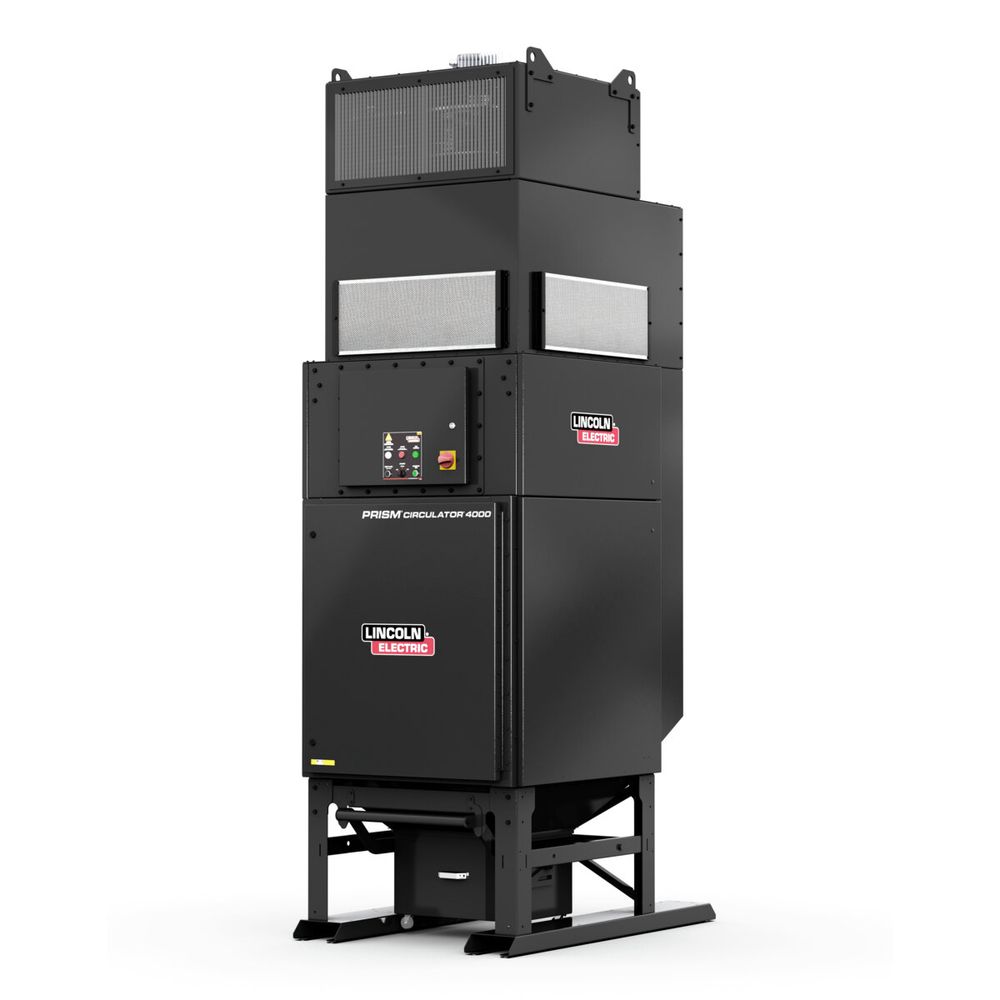

Lincoln Prism® Circulator 230V Input Nano Filter Air Filtration System #K5140-2

The Lincoln Electric Prism® Circulator with a 230V input and Nano Filter offers a powerful solution for welding fume extraction.

Delivering 4000 SCFM of high airflow, this system filters 40,000 cu. ft. of ambient air every 10 minutes, making it suitable for both large and small shop environments.

With its easy transportability and one-hour installation time, it provides maximum convenience without compromising on performance.

Lincoln Electric warranty

Highlights

  • 230V input for flexible use in different shop settings
  • Nano Filter for standard (non-oily) particle filtration
  • 4000 SCFM airflow filters 40,000 cu. ft. of air every 10 minutes
  • Ideal for environments where installing ductwork is impractical
  • Portable design with easy 1-hour installation

Industries

  • Automotive Manufacturing
  • Metal Fabrication
  • Aerospace
  • Shipbuilding
  • Heavy Equipment Production

What’s Included

  • (1) Prism Circulator (230 V)
  • (4) KP4519-2 MERV 16 Nano Filters

Benefits of the Lincoln Electric Prism® Circulator

  • Enhances air quality with continuous ambient air filtration
  • Compact, transportable design for easy movement
  • No need for complex and costly ductwork installations
  • Nano filter provides efficient and reliable fume extraction
  • Suitable for both large and small welding shops

Fast, Free Shipping & Easy Returns

At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE, and demo items. For more details, contact our customer service team at 1-844-682-0205.

Browse all fume extractors or explore Lincoln Electric welding supplies at the best prices online.

General

Product Type Plug and Play
Style Circulator
Motor Power (HP) 7.5 EC Motor
Protection Class Fan Motor IP55
Input Current (Amps) 19.5
Input Hertz 60
Input Phase 3
Input Voltage 230
Duty Cycle 100%
Sound Level 72 db
Air Flow 4000 SCFM @ 6.5 IN WG
Filtration (4) KP4519-2 Nano Filters
Filter Area sq ft (sq m) 1280 (118)
Filter Type (MERV Rating) MERV 16
Type of Cleaning Pulse Jet
High Vac or Low Vac Low Vac
Minimum Temperature F(C) -4(-20)
Maximum Temperature F(C) 113(45)

Warranty

Warranty 3 Year

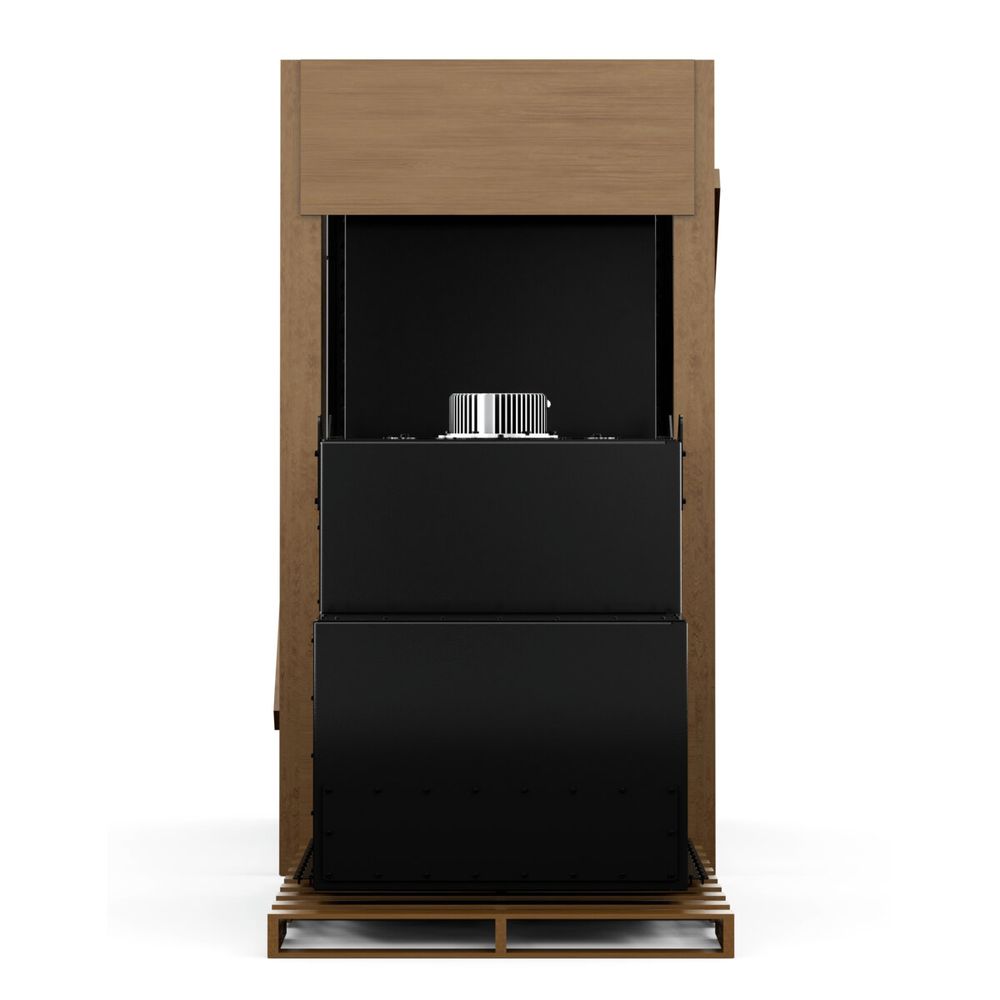

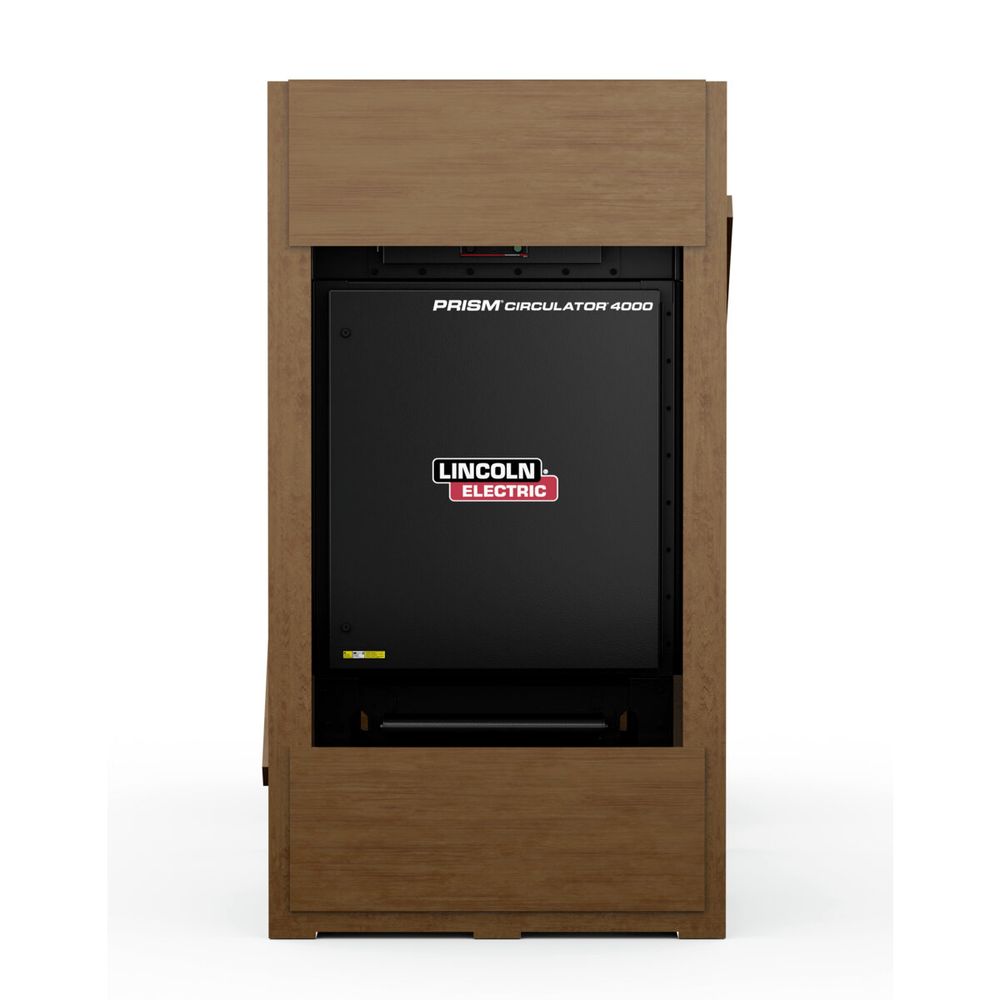

SHIPPING DIMENSIONS

Height: 101.00 Inches
Width: 50.00 Inches
Length: 138.00 Inches
Weight: 2070 Lb(s) 0 Oz
