Lincoln Electric Prism® Circulator w/ PTFE Filter (480V) #K5140-3

Part Number: K5140-3
UPC: 15082697826

Ships Free To Lower 48 States

Lincoln Electric Prism® Circulator w/ PTFE Filter (480V) #K5140-3

Part Number: K5140-3
UPC: 15082697826
$36,242.21 + Free Shipping $40,180.00*
SAVE $3,937.79

Power supply:

460V

460V

Related Products

  • 460 volt input460V Input
  • 3-phase input power3-Phase Input
  • 4000 SCFM air filtration4000 SCFM
  • 4 PTFE Filters heavy duty welding air filtration4 PTFE Filters
  • Lincoln Electric 3-Year WarrantyLincoln Electric 3-Year Warranty

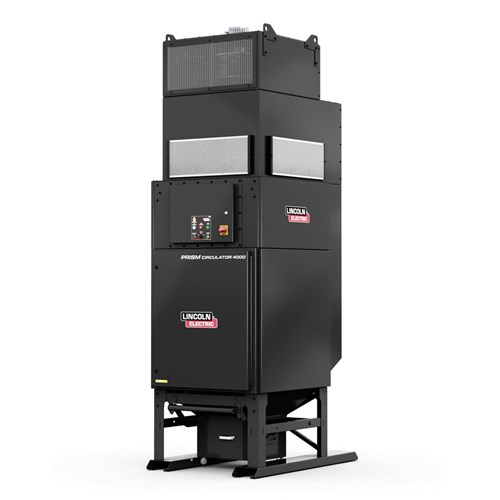

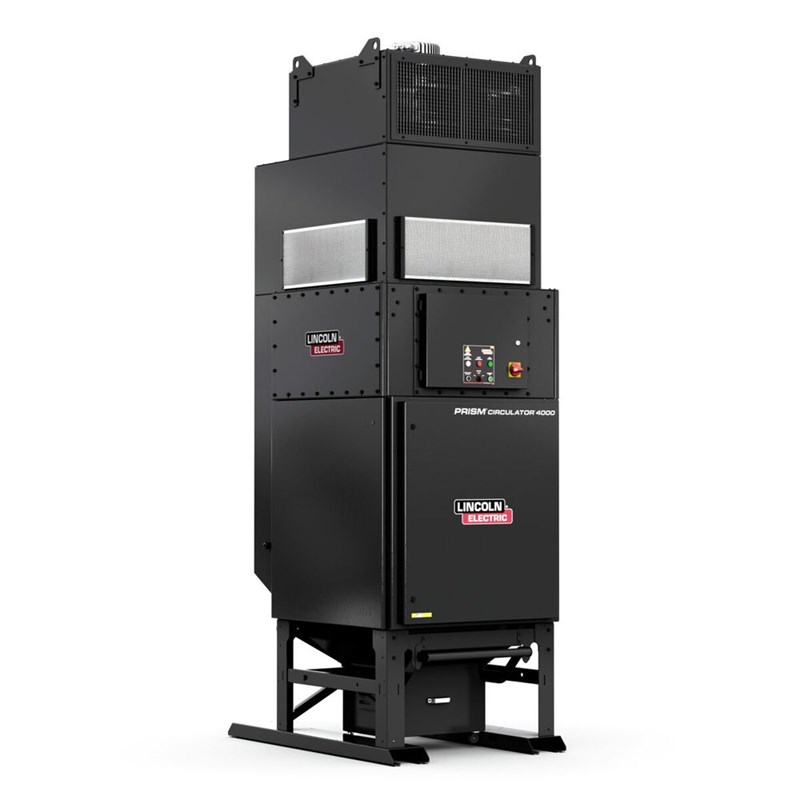

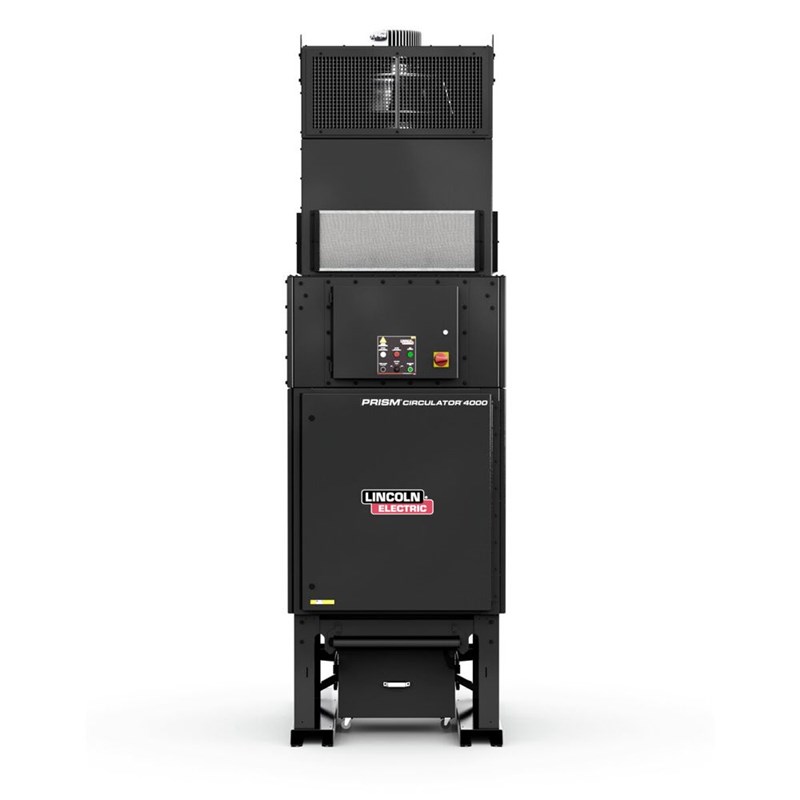

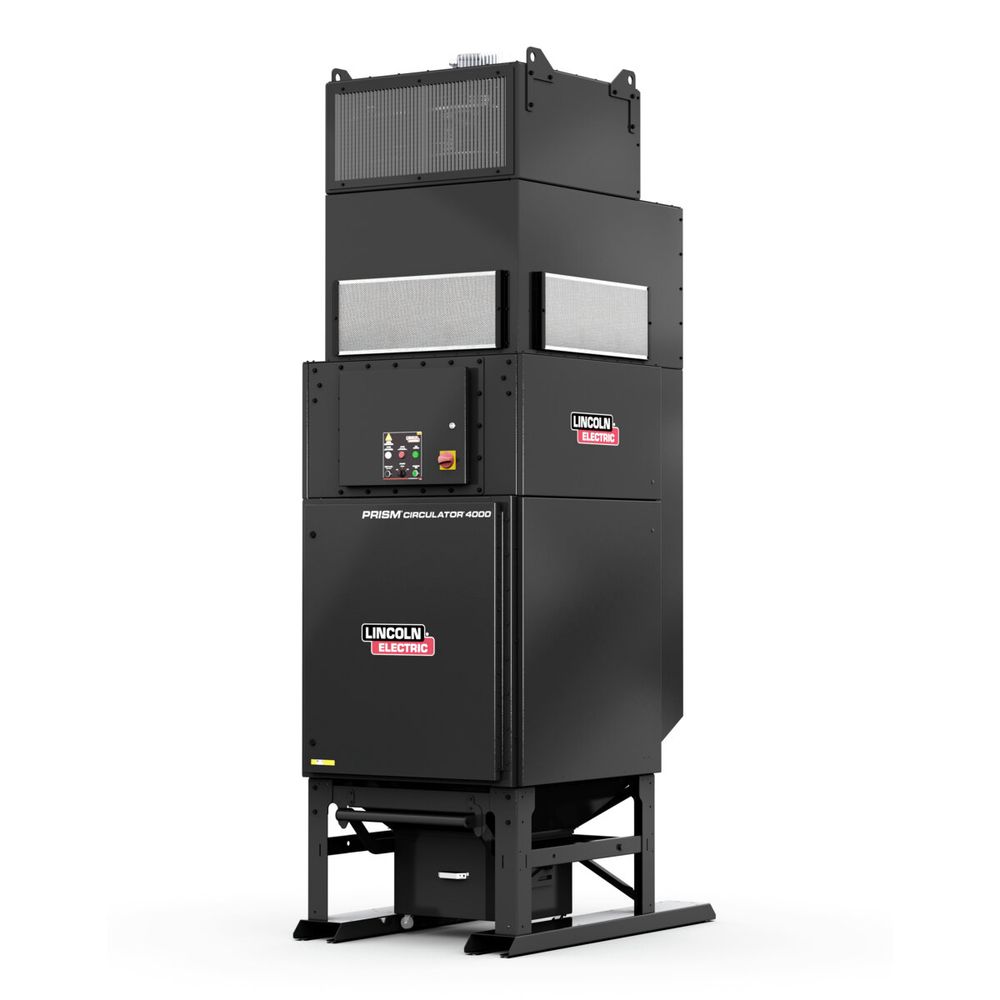

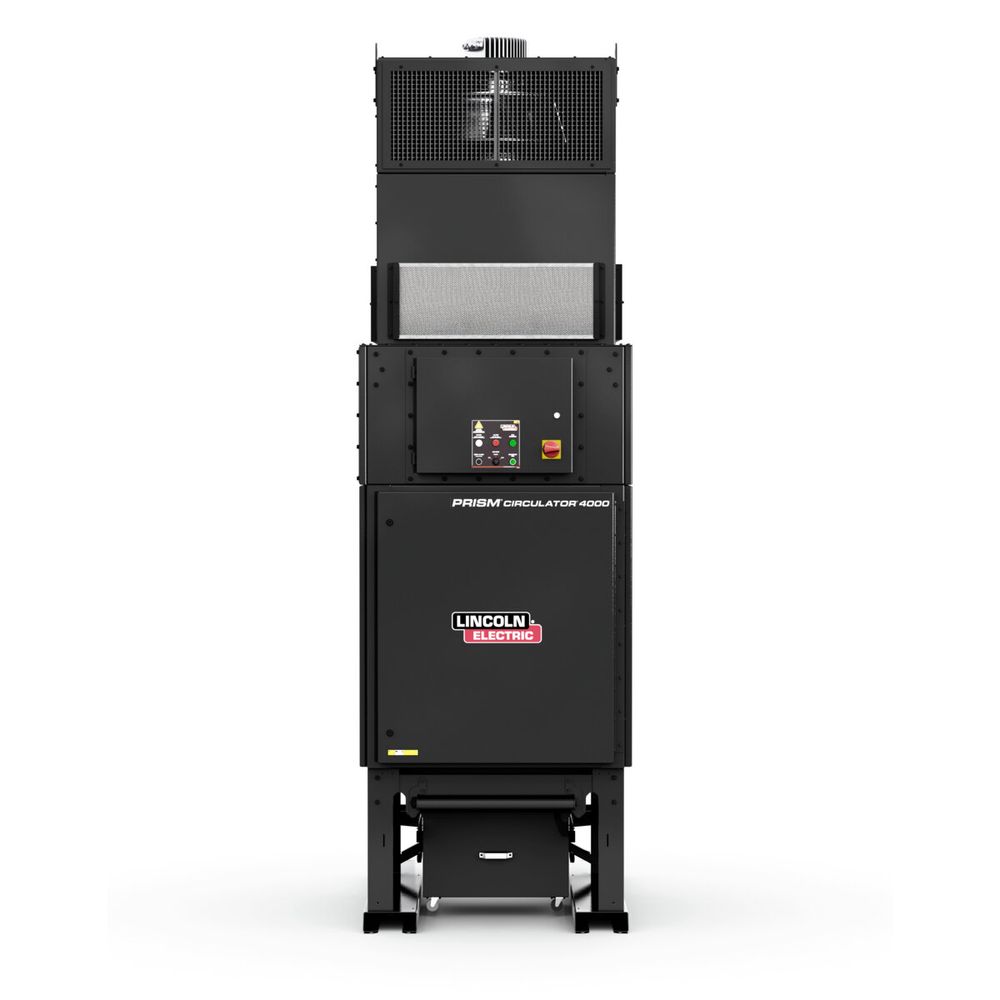

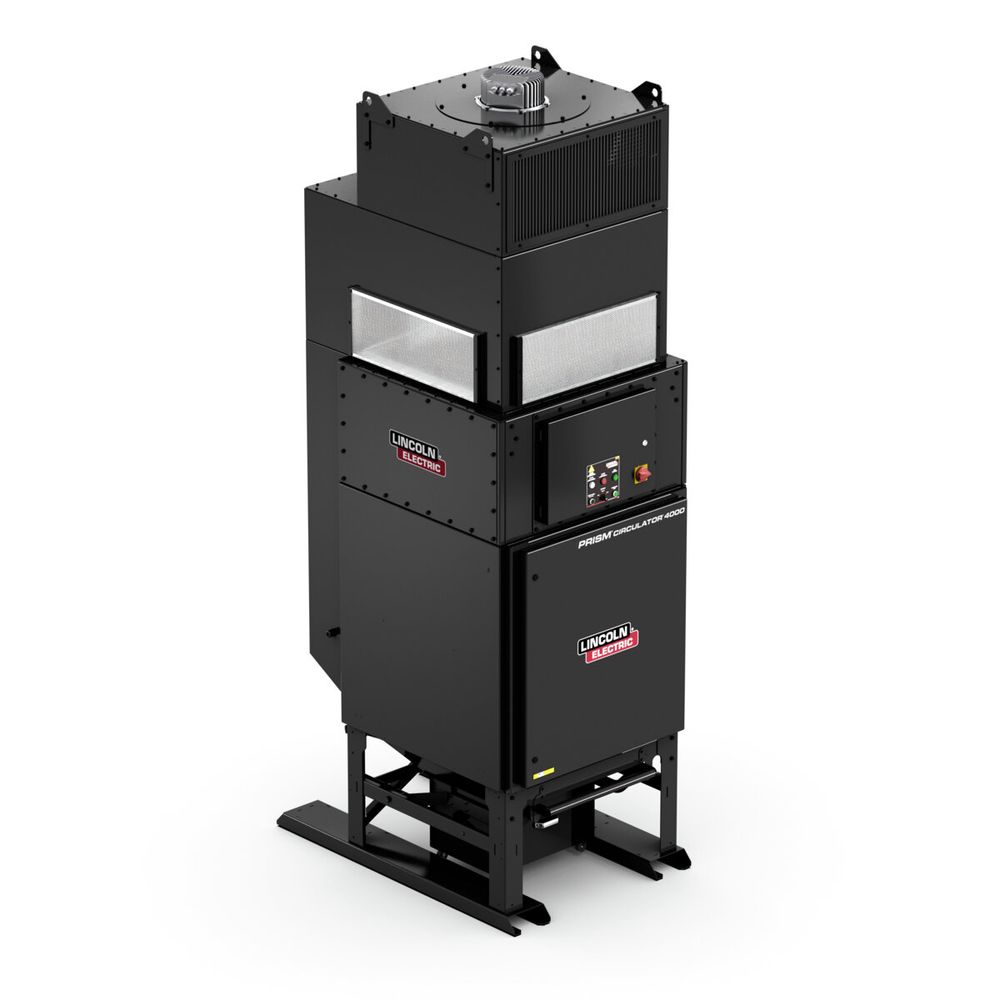

Lincoln Prism® Circulator Ambient Air Filtration Unit for Welding Fume Extraction (480V) #K5140-3

The Lincoln Electric Prism® Circulator is an advanced air filtration system designed to efficiently extract welding fumes in facilities where additional ductwork installation is not feasible.

This powerful unit continuously circulates and filters ambient air, making it an ideal solution for both large and small shop environments.

Lincoln Electric warranty

Highlights

  • 4000 SCFM high airflow capacity
  • Filters 40,000 cu. ft. of ambient air every 10 minutes
  • PTFE filter for standard (non-oily) particulate capture
  • Easy transport and 1-hour installation
  • 480V power input

Industries

  • Manufacturing
  • Fabrication Shops
  • Welding Schools
  • Maintenance Facilities
  • Shipyards

What’s Included

  • Lincoln Electric Prism® Circulator unit
  • PTFE filter
  • Operator’s manual
  • Limited warranty documentation

Benefits of the Lincoln Electric Prism® Circulator

  • Improves air quality without the need for additional ductwork
  • Highly efficient PTFE filter captures fine welding particulates
  • Portable design allows for flexible placement in various shop layouts
  • Quick setup reduces downtime during installation
  • Helps maintain compliance with air quality regulations
  • Reduces overall facility maintenance by minimizing fume buildup
  • 480V input for compatibility with industrial power systems

Fast, Free Shipping & Easy Returns

At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE, and demo items. For more details, contact our customer service team at 1-844-682-0205.

Browse all fume extractors or explore Lincoln Electric welding supplies at the best prices online.

General

Product Type Plug and Play
Style Circulator
Motor Power (HP) 7.5 EC Motor
Protection Class Fan Motor IP55
Input Current (Amps) 9
Input Hertz 60
Input Phase 3
Input Voltage 460
Duty Cycle 100%
Sound Level 72 db
Air Flow 4000 SCFM @ 6.5 IN WG
Filtration (4) KP4519-3 PTFE Filters
Filter Area sq ft (sq m) 1280 (118)
Filter Type (MERV Rating) MERV 16
Type of Cleaning Pulse Jet
High Vac or Low Vac Low Vac
Minimum Temperature F(C) -4(-20)
Maximum Temperature F(C) 113(45)

Warranty

Warranty 3 Year

SHIPPING DIMENSIONS

Height: 147.00 Inches
Width: 45.00 Inches
Length: 65.00 Inches
Weight: 1830 Lb(s) 0 Oz
