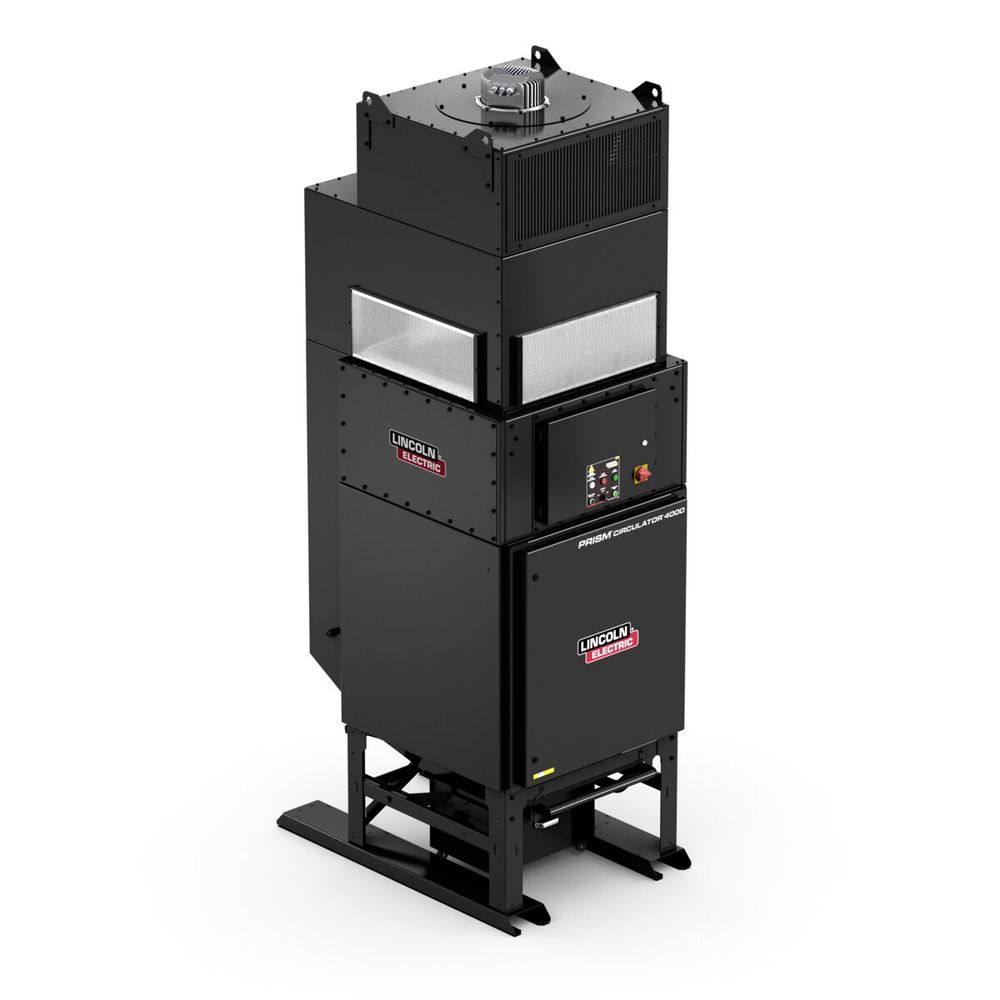

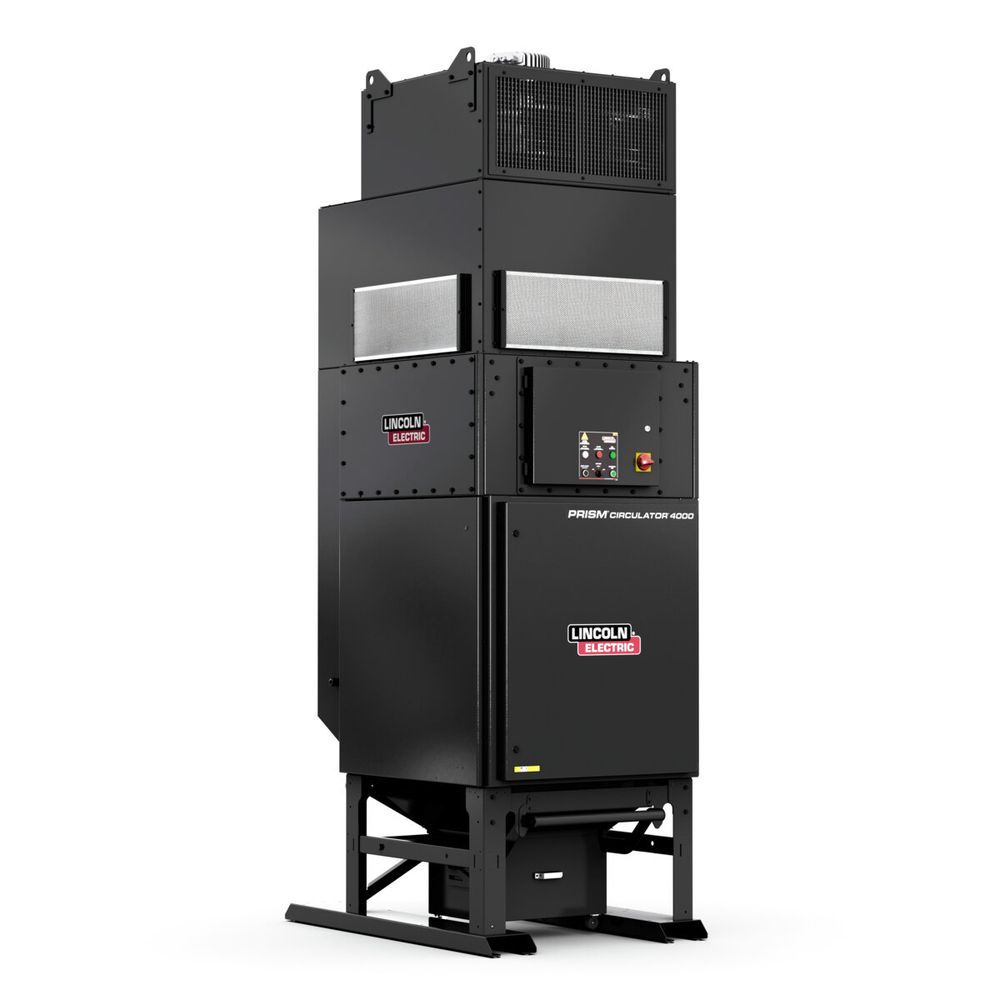

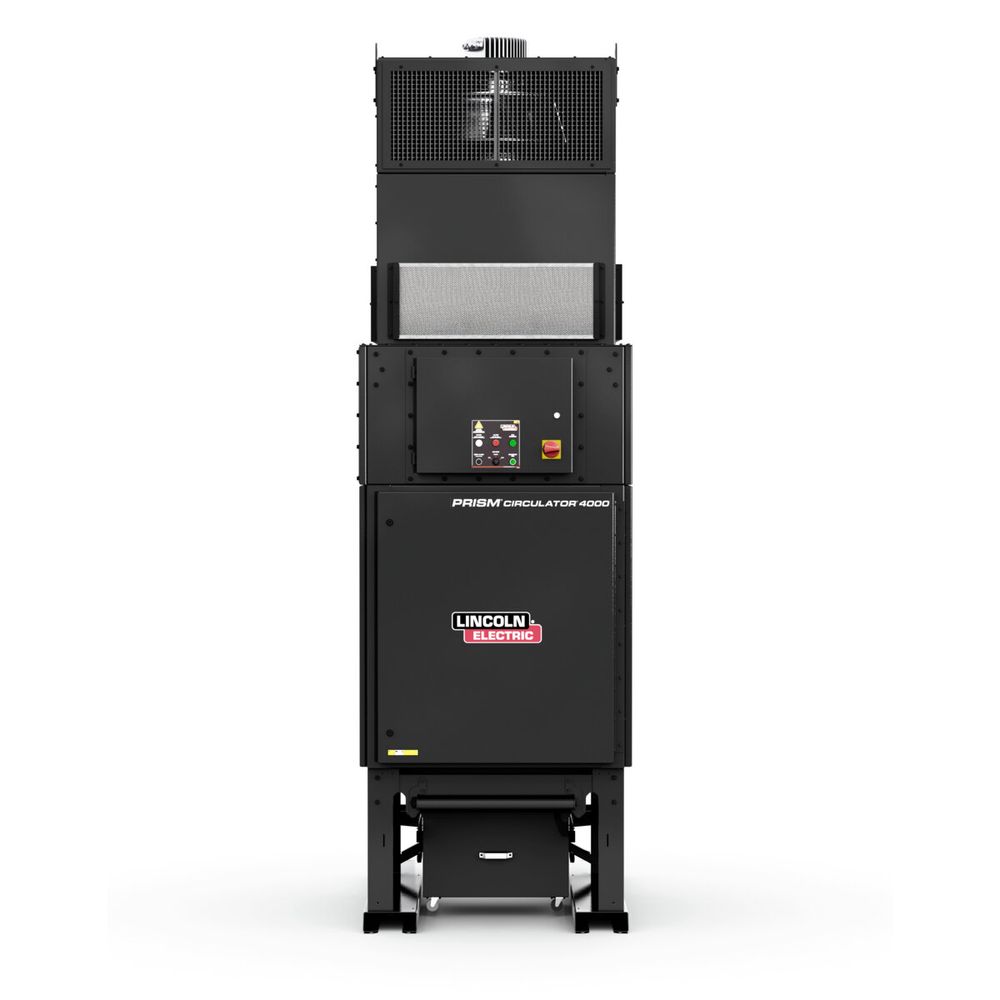

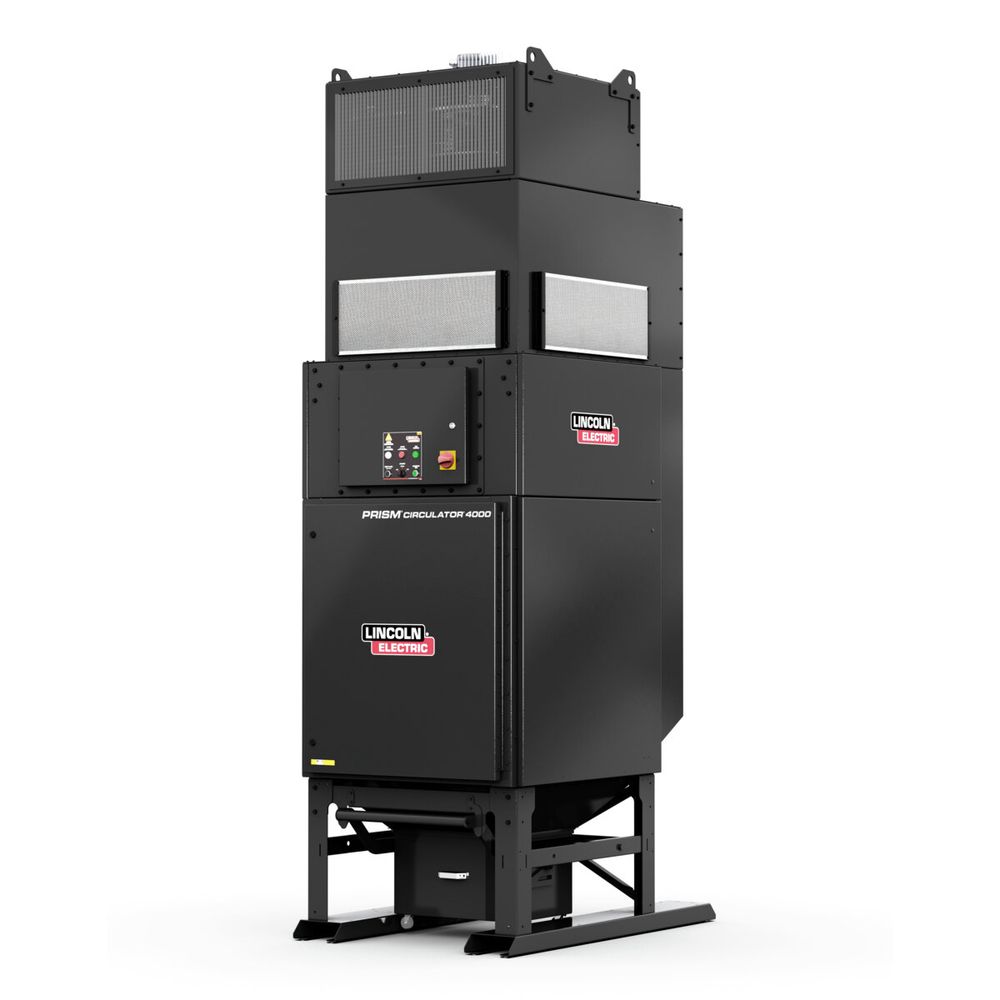

Lincoln Electric Prism® Circulator w/ PTFE Filter (230V 3PH) #K5140-4
Lincoln Electric Prism® Circulator w/ PTFE Filter (230V 3PH) #K5140-4

Power supply:

The Lincoln Electric Prism® Circulator is an advanced air filtration system that provides high airflow for welding fume extraction without the need for additional ductwork.
Delivering up to 4000 SCFM of airflow, this unit is perfect for both large and small shop environments, efficiently filtering 40,000 cubic feet of air every 10 minutes.
With easy transport and a quick 1-hour installation, the Prism Circulator is ideal for improving air quality in welding facilities.
At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE, and demo items. For more details, contact our customer service team at 1-844-682-0205.
Product Type | Plug and Play |
Style | Circulator |
Motor Power (HP) | 7.5 EC Motor |
Protection Class Fan Motor | IP55 |
Input Current (Amps) | 19.5 |
Input Hertz | 60 |
Input Phase | 3 |
Input Voltage | 230 |
Duty Cycle | 100% |
Sound Level | 72 db |
Air Flow | 4000 SCFM @ 6.5 IN WG |
Filtration | (4) KP4519-3 PTFE Filters |
Filter Area sq ft (sq m) | 1280 (118) |
Filter Type (MERV Rating) | MERV 16 |
Type of Cleaning | Pulse Jet |
High Vac or Low Vac | Low Vac |
Minimum Temperature F(C) | -4(-20) |
Maximum Temperature F(C) | 113(45) |
Warranty | 3 Year |
SHIPPING DIMENSIONS |
|
Height: | 147.00 Inches |
Width: | 45.00 Inches |
Length: | 65.00 Inches |
Weight: | 1830 Lb(s) 0 Oz |
