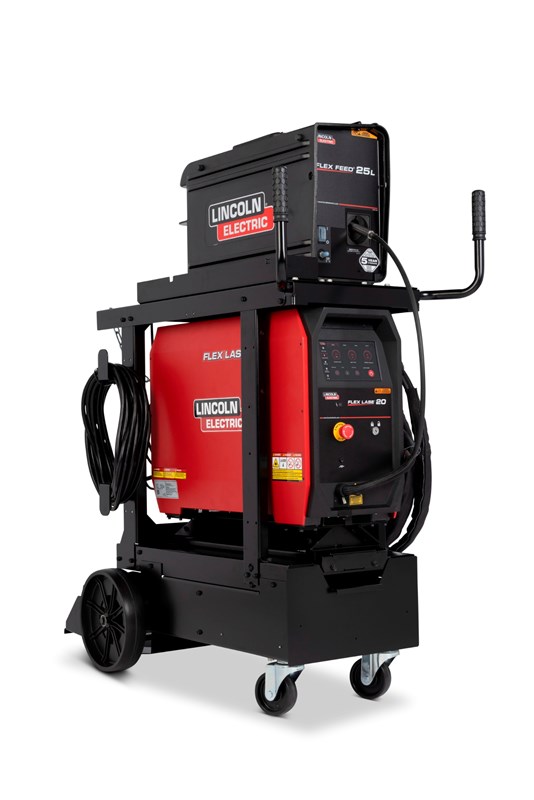

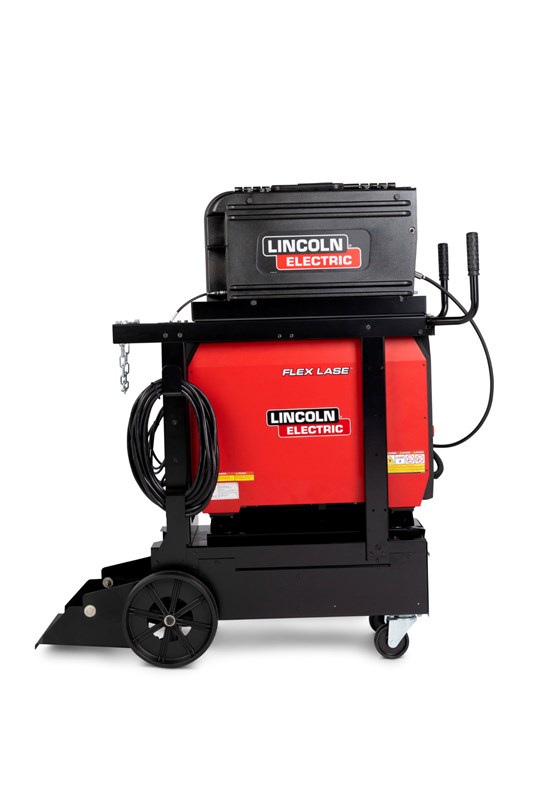

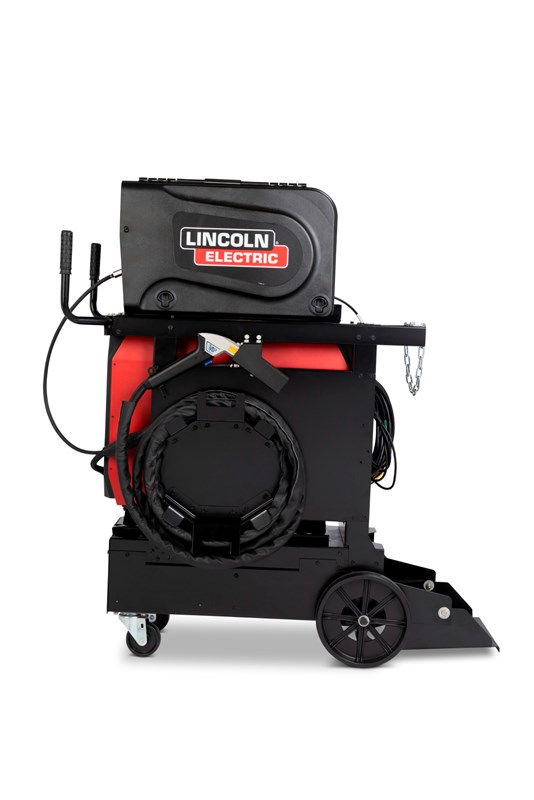

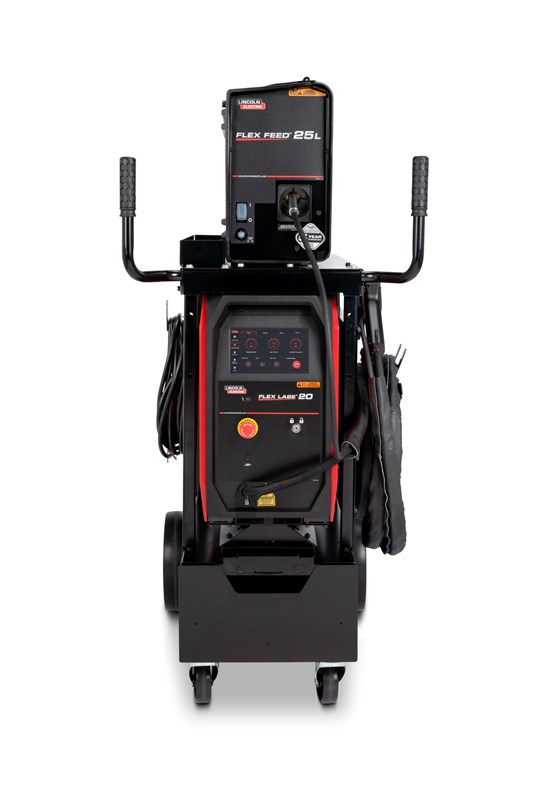

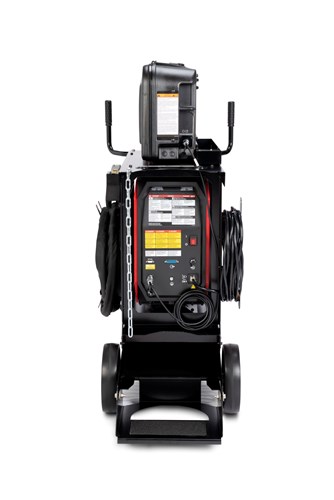

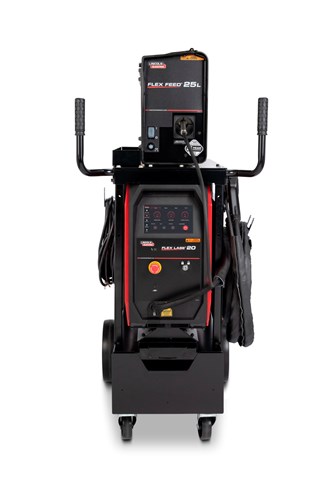

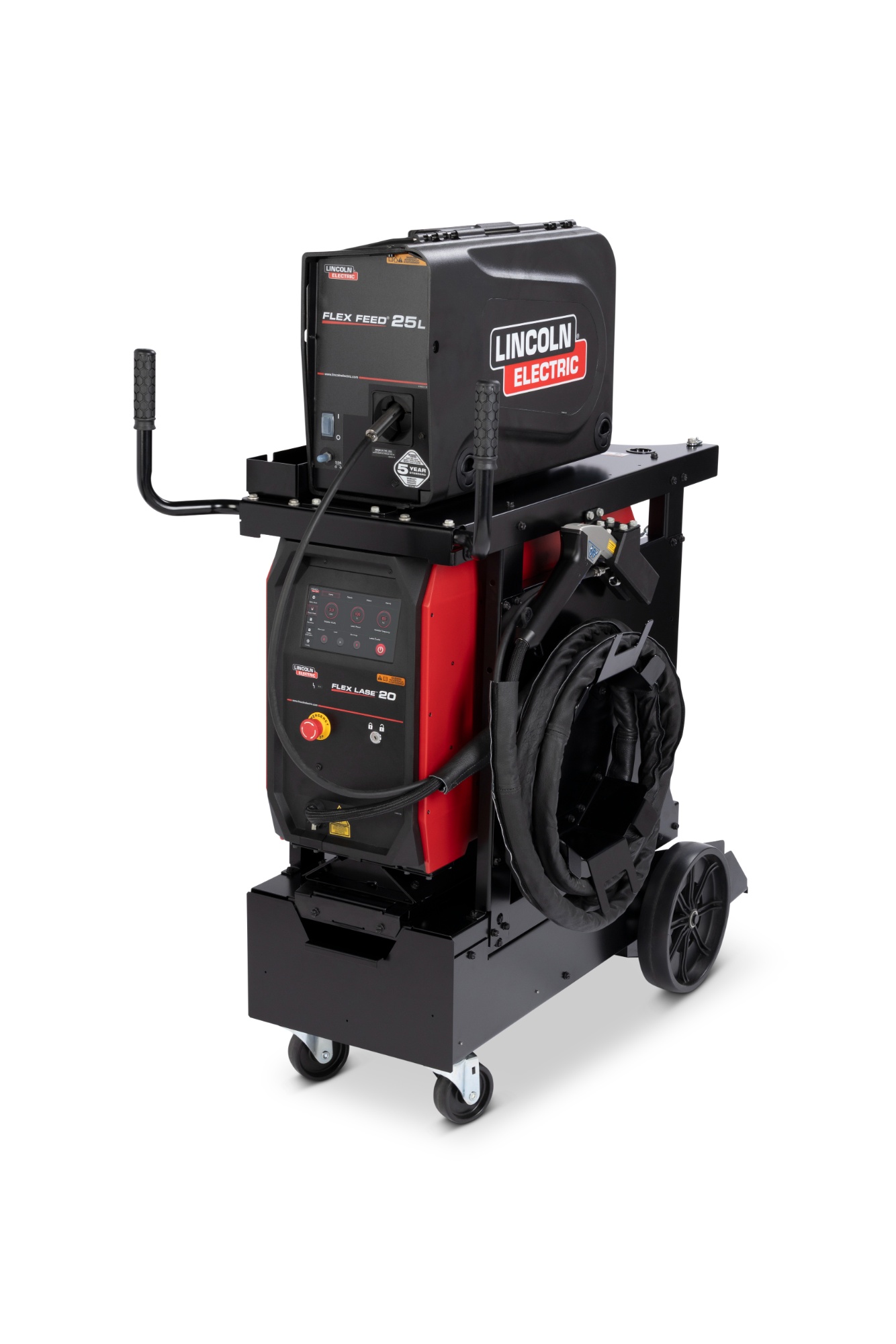

Flex Lase™ Handheld Laser Welding System (K5772-1)
The easy-to-use Flex Lase™ handheld laser welding system puts power, speed and precision at your fingertips. With 2kW of laser output power and a robust package, operators can tackle high-precision welding applications with faster travel speeds – up to four times faster than TIG – helping to improve productivity without sacrificing quality.
Flex Lase™ Features
- Easy Onboarding – Reduce training time and have new operators executing production-quality welds sooner than traditional welding processes.
- Fast Travel Speeds – Boost productivity with travel speeds up to four times faster than a typical TIG welding process.
- High-Precision Welding – Reduce material distortion, minimize spatter, and improve process quality with a focused heat input and smaller heat-affected zone. Achieve larger welds using Lincoln Electric’s HyperFill® twin-wire process.
- Industry-Driven Design – Have confidence in equipment built to withstand industry demands. The Flex Lase power source comes with a 2-year warranty, and the Flex Feed® wire feeder boasts a market-leading 5-year warranty.

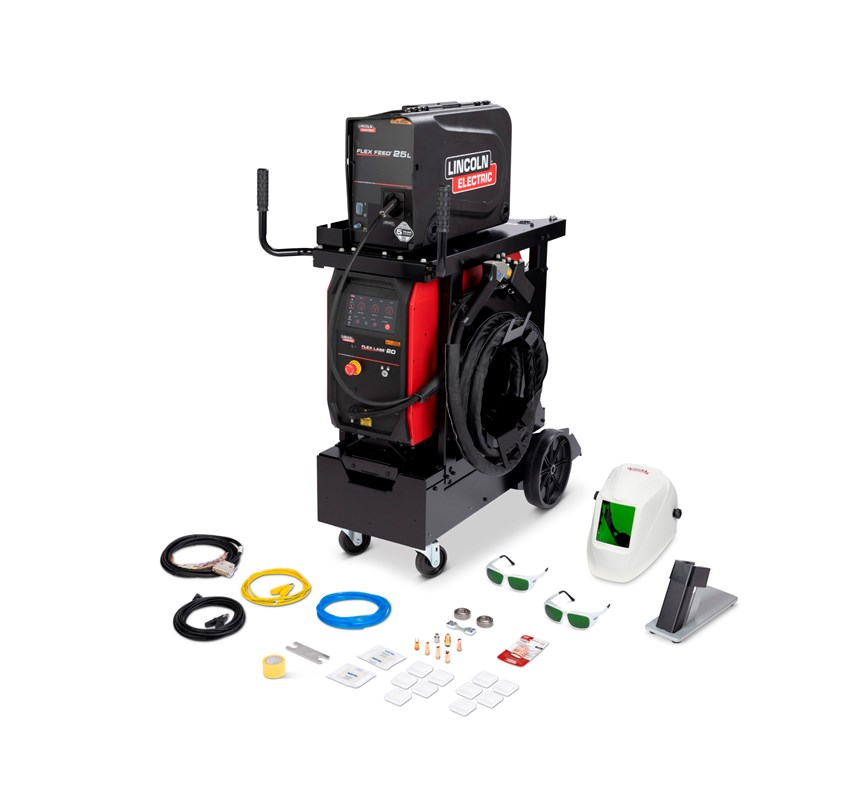

What's Included:
- Flex Feed 25L Wire Feeder
- Flex Lase 20 Power Source
- Laser Rated Welding Helmet - Passive Lens
- Laser Rated Glasses - 2x Pair
- 0.045 in. (1.2 mm) Contact Tips

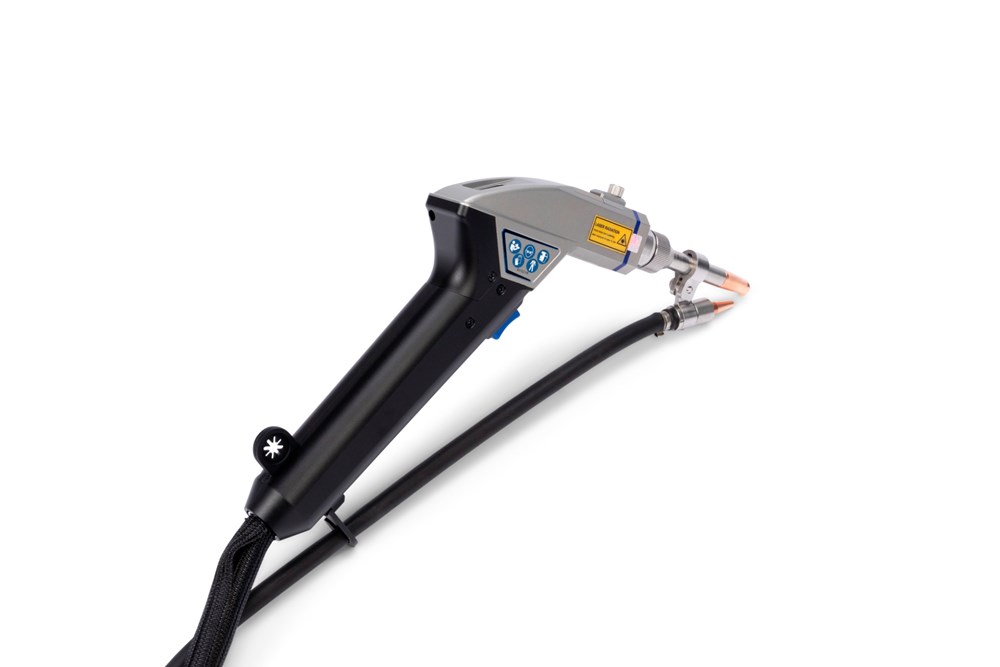

- Handheld Laser Nozzles
- Welding Gun Protective Windows
- Cables for Safety/Interlock/Case Ground
- Table-top Laser Welding Gun Holster
- Focal Tube Adjustment Tool
- Welding Gun Cavity Protection Tape
- Gas Filter Regulator Assembly
- Industrial Cart
Industries Served
- General Fabrication
- Aerospace
- HVAC & Appliance
- Automotive
- Maintenance & Repair
Highlights
- Easy Onboarding: Reduce training time and have new operators executing production-quality welds sooner than traditional welding processes.
- Fast Travel Speeds: Boost productivity with travel speeds up to four times faster than a typical TIG welding process.
Flex Lase™ Specifications | |
---|---|
Brand | Lincoln Electric |
Model | Flex Lase™ |
SKU | K5772-1 |
Processes | Semiautomatic Laser Welding |
Input Power Voltage | AC 230V / 1 / 50/60Hz |
Rated Output | 2000W |
Input Current |
26A |
Output Range | 200 - 2000W |
Weight | 246 lbs. |
SHIPPING DIMENSIONS |
|
Height: | 53.70 Inches |
Width: | 23.00 Inches |
Length: | 45.50 Inches |
Weight: | 246 Lb(s) 0 Oz |
