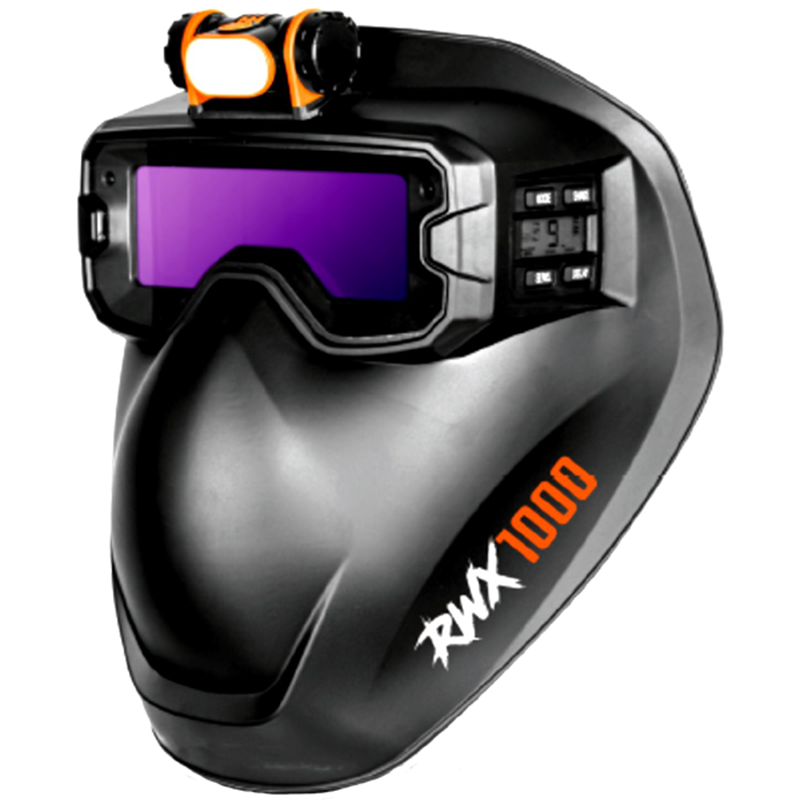

Razorweld RWX1000 Automatic Welding Goggles w/ Mask
Part Number:
RVRWX1000
Razorweld RWX1000 Automatic Welding Goggles w/ Mask
Part Number:
RVRWX1000
DocumentsRWX1000 Automatic Welding Goggles
Highlights
- Face & Eye Protection: Shields against spatter, UV, and IR radiation with a compact, versatile goggle design
- True Color Lens Technology: Provides a natural, clear view of your workpiece and surroundings
- Adjustable Shade & Grind Mode: Shade range of DIN 5–13 with built-in GRIND mode and dual arc sensors for reliable protection and visibility
- Respirator Compatible: Designed to fit over a standard half-mask respirator for enhanced safety
- Modular Use Options: Detachable mask and optional elastic headband allow for goggles-only or full-face use
- Comfortable, Adaptable Fit: Multiple wear configurations support a wide range of applications and preferences
What's Included:
- RAZORWELD RWX1000 Auto Darkening Goggles
- Carry Bag
- 2 x Spare Outer Lens
- 1x Spare Inner Lens
- Elastic Headband
- Optional LED (RV10013)
- Operating Manual
| Feature | Specification |
|---|---|
| Filter Dimensions | 6.75" x 3.05" |
| View Size | 4.33" x 1.57" |
| Arc Sensors | 2 |
| Classification | 1/1/1/2 |
| Light State | 3 |
| Dark State | 5-9 / 9-13 |
| UV/IR Protection | DIN15 |
| Time from Light to Dark | 0.08 ms |
| Time from Dark to Light | 0.1–0.9 s |
| Sensitivity Delay | Adjustable (External) |
| Power Supply | Solar Cells & CR2450 Replaceable Battery |
| Warranty | 2 Years |
| Operating Temperature | 14 – 149 °F |
| Storage Temperature | -4 – 176 °F |
| Shade Control | Yes (External) |
| Grind Mode | Yes (External) |
| Minimum TIG Amperage | 5A |
| Standards | AS/NZS 1337.1:2010, AS/NZS 1338.1:2012, CE, ANSI, CSA |
SHIPPING DIMENSIONS |
|
| Height: | 1.00 Inches |
| Width: | 1.00 Inches |
| Length: | 1.00 Inches |
| Weight: | 1 Lb(s) 0 Oz |
