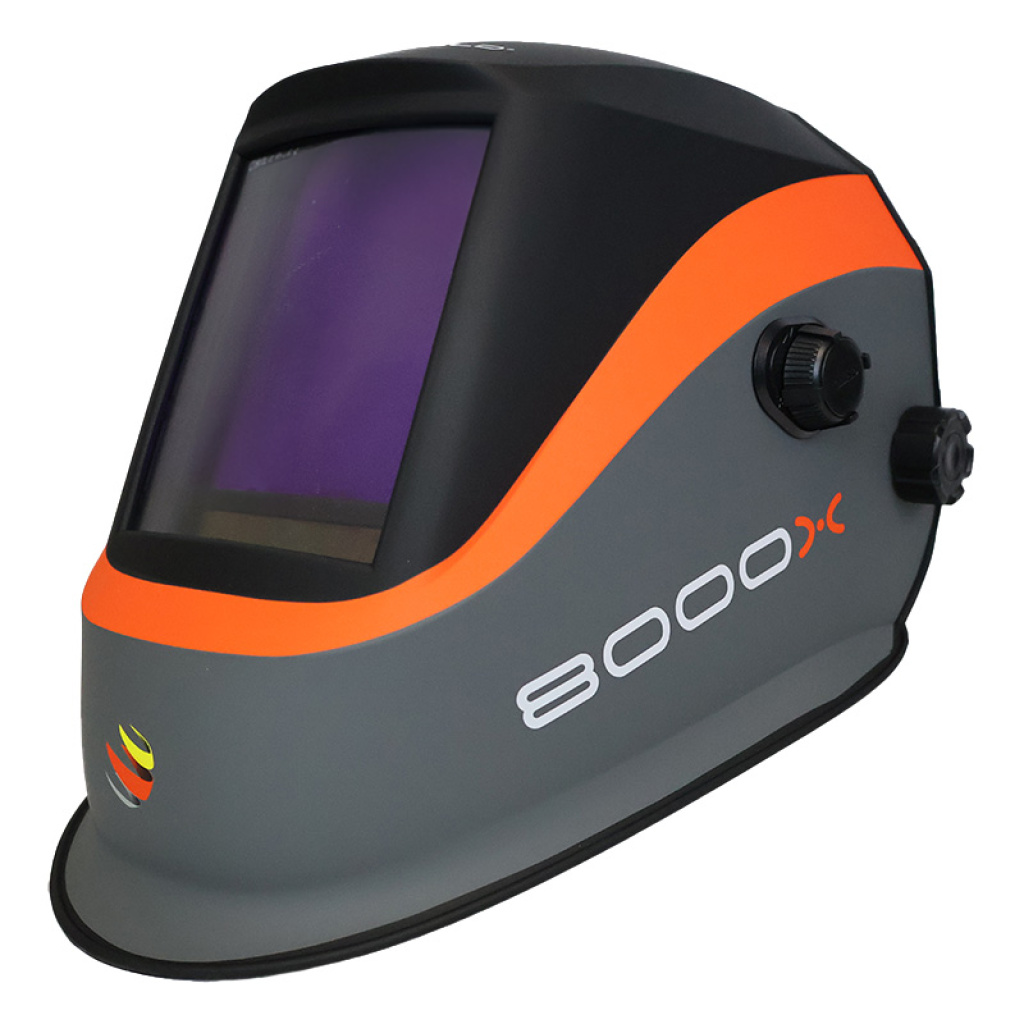

Razorweld RW8000X Automatic Welding Helmet
Part Number:
RW8000X
Razorweld RW8000X Automatic Welding Helmet
Part Number:
RW8000X
$199.12
DocumentsRW8000X Automatic Welding Helmet
The Auto-Darkening Welding Helmet features a large 4.04" x 4.04" viewing area, True Color high-definition optics, and both manual and automatic shade modes for versatile protection. With four arc sensors, one ambient light sensor, and a dedicated external grind mode, it ensures fast, reliable eye protection in all conditions. Rated for TIG down to 2 amps and CSA approved, it’s ideal for welding, cutting, spraying, and gouging — all in a lightweight, hands-free design built for performance and safety.
Highlights
- Large Viewing Area: 4.04" x 4.04" (16.32 in²) viewing window offers an expansive, unobstructed view of your work
- Manual or Auto Mode: Easily switch between manual and automatic shade adjustment for full control in any application
- Low Amp TIG Compatible: Rated for TIG welding down to 2 amps for precision and versatility
- Certified Safety: CSA approved for high standards in eye and face protection
- Fast & Reliable Arc Detection: Equipped with 4 arc sensors plus 1 ambient light sensor for accurate light response
- External Grind Mode: Dedicated grind button allows quick switching without removing the helmet
- Next-Gen Optics & Protection: High-definition filter optics and advanced LCD + sensor integration ensure fast switching and full-spectrum safety
- Hands-Free Accuracy: Auto-darkening function enables both hands to stay on the job for faster, more accurate arc starts
- Multi-Process Ready: Ideal for welding, cutting, spraying, and arc gouging in demanding environments
What's Included:
- RAZORWELD RW8000X Auto Darkening Helmet
- Carry Bag
- 1 x Spare Outer Lens
- 1 x Spare Inner Lens
- Operating Manual
| Feature | Specification |
|---|---|
| LCD Viewing Area | 4.5" x 5.25" |
| ADF Cartridge Size | 4.04" x 4.04" |
| Light State Shade | DIN 3 |
| Shade Range | Auto Mode: 3/7–13M, Manual Mode: 3/5–13 |
| Shade Deviation | ±2.0 |
| UV/IR Protection | Up to DIN 15 at all times |
| Switching Time (Light to Dark) | 0.04 ms (ANSI) |
| Delay Time (Dark to Light) | Adjustable (Level 1–5 for 0.1–0.9 s) |
| Sensitivity Control | Adjustable (Level 1–5: Low to High) |
| Auto Shade | Yes |
| Lock Shade | Yes |
| Arc Sensors | 4 |
| Ambient Light Sensor | 1 |
| Grind Function | Yes |
| Power Supply | Solar Cell, Replaceable Battery (CR2450 ×2) |
| Operating Temperature | 14°F – 149°F |
| Inside PC Lens | 4.25" x 4.25" |
| Outside PC Lens | 4.5" x 5.25" |
| Warranty | 2 Years |
SHIPPING DIMENSIONS |
|
| Height: | 1.00 Inches |
| Width: | 1.00 Inches |
| Length: | 1.00 Inches |
| Weight: | 1 Lb(s) 0 Oz |
