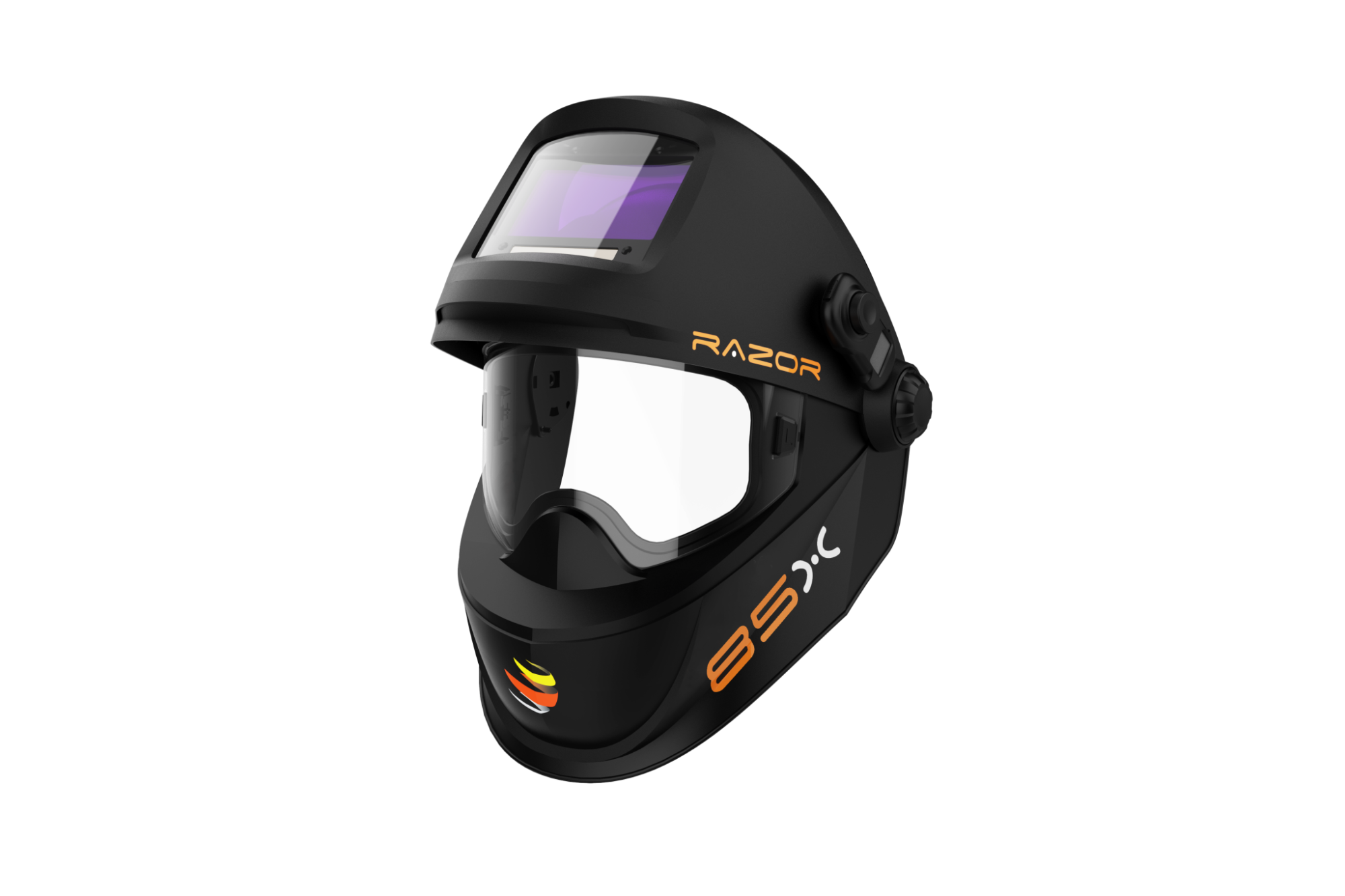

Razorweld RW85X Automatic Welding Helmet
Part Number:
RW85X
Razorweld RW85X Automatic Welding Helmet
Part Number:
RW85X
$192.95
DocumentsRW85X Welding Helmet
The Auto-Darkening Welding Helmet features True Color optics, a 3.94" x 2.36" viewing area, and a fast 0.08 ms switching time for superior clarity and protection. With a wide DIN 5–13 shade range, grind mode, adjustable delay and sensitivity, and dual power via solar and CR2032 batteries, it’s a reliable, comfortable solution for welding and grinding in any environment. Certified to CE, ANSI, CSA, and AS/NZS standards.
Highlights
- High-Definition Optics: Enhanced filter clarity provides a sharper, more natural view of the weld and work area
- Advanced Auto-Darkening Tech: Combines LCD, optoelectronic sensors, solar power, and microelectronics for fast, reliable protection
- Full Face & Eye Protection: Shields against sparks, spatter, and harmful UV/IR radiation during all welding processes
- Hands-Free Operation: Allows for accurate arc strikes and better control, improving efficiency and weld quality
- Multi-Process Compatible: Ideal for welding, cutting, spraying, and arc gouging across various jobsite conditions
| Feature | Specification |
|---|---|
| CE Classification | 1/1/1/1 |
| True Color | Yes |
| Viewing Area | 3.94" x 2.36" |
| Light State Shade | DIN 4 |
| Dark Shade Range | DIN 5-9 / 9-13 |
| Switching Time | 0.08 ms |
| Delay Time | Adjustable (0.1–0.9 s) |
| Sensitivity | Adjustable (Low–High) |
| Arc Sensors | 3 |
| Grind Function | Yes |
| Power Supply | Solar Cell & 2x CR2032 Li-ion Batteries |
| Operating Temperature | 14°F – 149°F |
| Inner Lens Size | 4.17" x 2.59" |
| Outer Lens Size | 4.65" x 3.82" |
| Certifications | CE EN379, ANSI Z87.1, CSA Z94.3, AS/NZS |
| Warranty | 2 Years (Shell), 1 Year (ADF) |
SHIPPING DIMENSIONS |
|
| Height: | 1.00 Inches |
| Width: | 1.00 Inches |
| Length: | 1.00 Inches |
| Weight: | 1 Lb(s) 0 Oz |
