Hypertherm Powermax 30 AIR Consumable Kit #851462

Part Number: 851462
$145.30 $179.00*
SAVE $33.70

Hypertherm Powermax 30 AIR Consumable Kit #851462

Your Hypertherm Powermax 30 Air is a worthy investment, helping you get jobs done properly and efficiently. Protect your investment by using only high-quality, genuine consumables. Hypertherm systems and consumables are engineered to work together. The Hypertherm Powermax 30 AIR Consumable Kit will keep your Powermax plasma system at top performance for the long haul.

Experts recommend changing electrodes and nozzles 5-10 times more frequently than other consumable kit components. The Hypertherm Powermax AIR Consumable Kit provides you with a 7:1 ratio of nozzles and electrodes to other components, ensuring your kit lasts longer and prevents you from having to reorder to replace a single part. When you are ready to reorder, you will receive all of the components needed to refresh your genuine Hypertherm cutting consumables.

When to Reorder

The Hypertherm Powermax 30 AIR Consumable Kit is made to last as long as effectively possible. To ensure the quality of your work remains high, reorder your consumables kit when you begin to see any of the following signs of wearing:

  • The tip of the nozzle enlarges or begins to adopt an oval shape (when this happens, you will only need to reorder when you put on the 7th nozzle!)
  • The pit depth of hafnium/tungsten is over 1/32
  • Cracks appear in the retaining cap
  • Slag build-up appears on the shield

If you are cutting through thicker materials or cutting with a slower speed, you may need to reorder more often.

The Ideal Environment to Prolong the Life of Your Investments

In addition to pairing your Hypertherm system with Hypertherm consumables for maximum effectiveness, your work environment plays a factor in prolonging the life of these products. Working with or storing products in an environment containing water or oil in the air will decrease the life of your consumables. The best practice is to work with and store consumables in a dry environment and use an air compressor to minimize moisture. The Hypertherm Powermax 30 Air employs a built-in air compressor to help you create this ideal environment.

Shop for Hypertherm products, Hypertherm accessories, and safety apparel at Welders Supply.

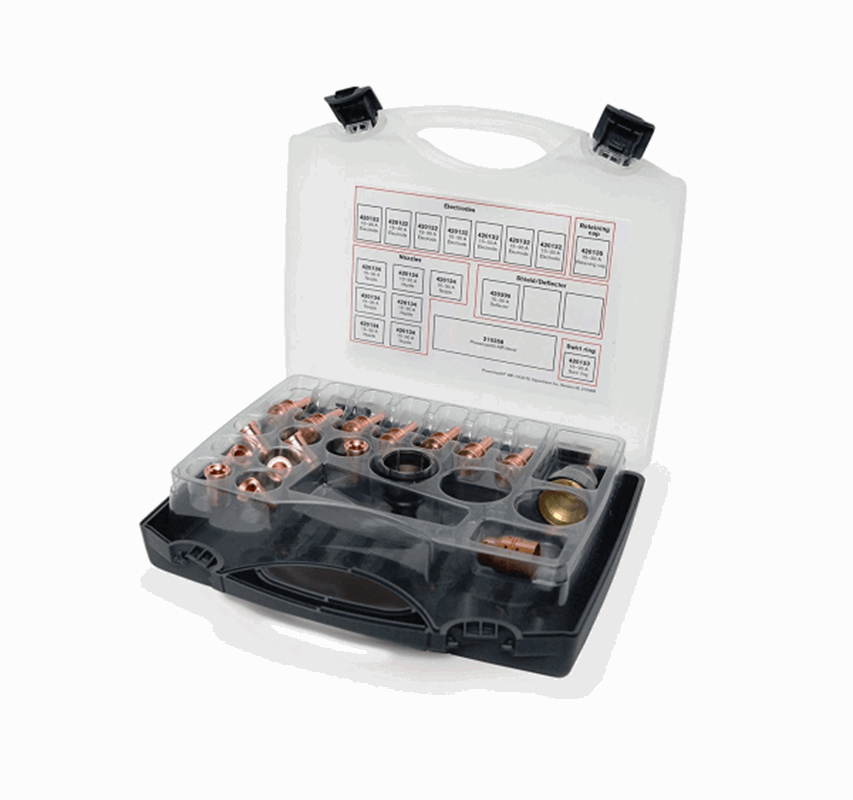

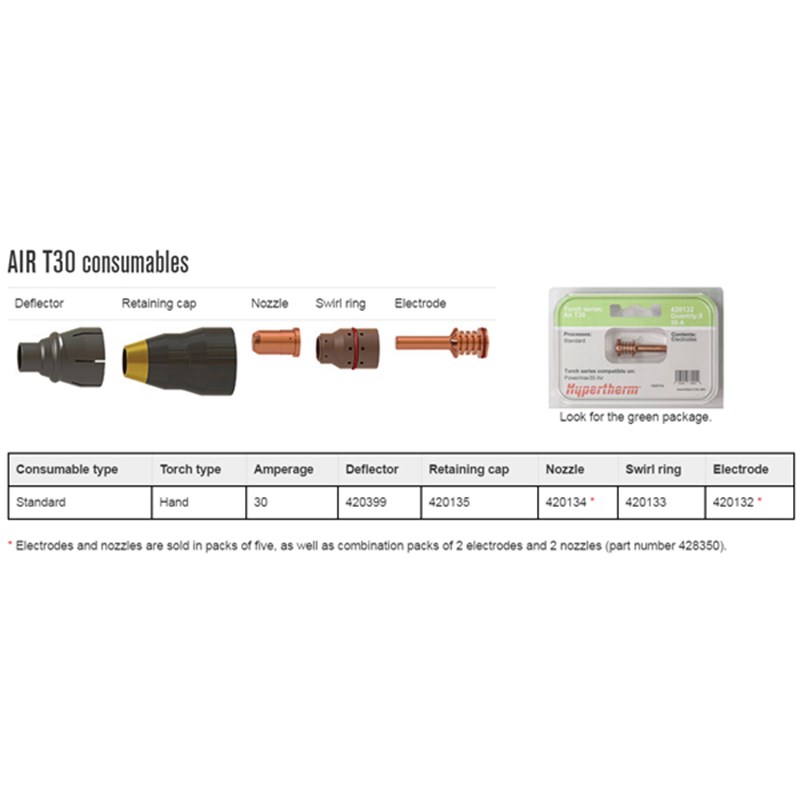

Hypertherm Powermax30 AIR Consumable Kit Contents Part #851462 Specs

Part #Product Name & Quantity
Total # of Products = 17
420399
  • Deflector - 1
420135
  • Retaining Cap - 1
420134

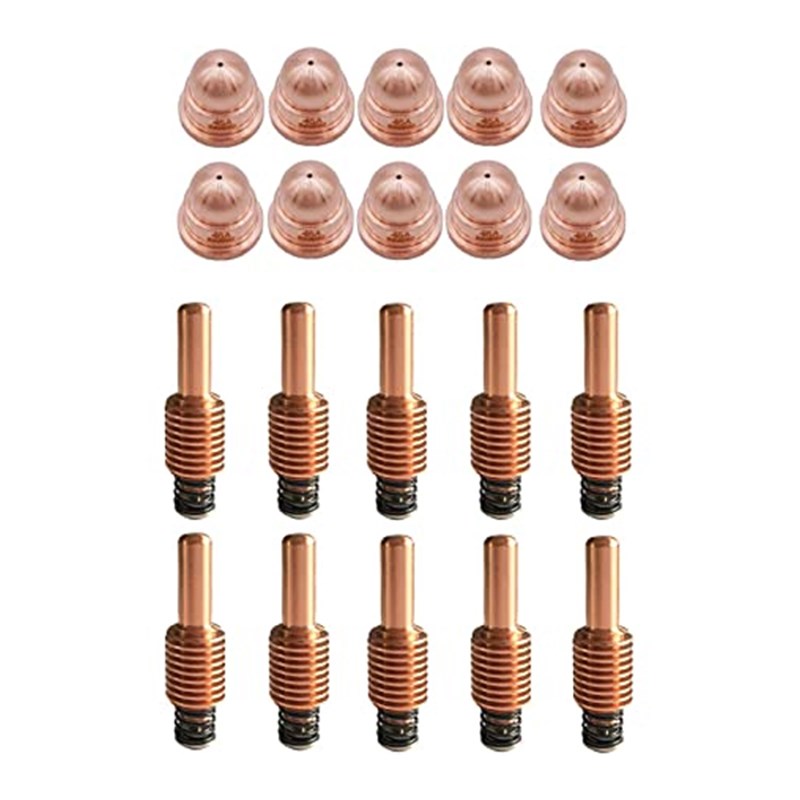

  • Nozzle - 7
420132
  • Electrode - 7
420133
  • Swirl ring - 1

Product Questions and Answers


Q - When should I reorder my Powermax 30 Air consumables kit? A - Reorder your Powermax 30 Air consumables kit when your 7th nozzle is enlarged or oval, when the pit depth of hafnium/tungsten is over 1/32 in., when cracks appear in the retaining cap, or when slag starts to build up on the shield.
Q - How do I prolong the life of my consumables? A - Store your consumable products in environments without water or oil in the air to increase their shelf-life.
Q - Is this a better deal than ordering the parts individually? A - Yes, buying the kit is cheaper than buying all the parts individually, plus it comes with a case to hold it all.
Q - How long will this whole kit last? A - It greatly depends on what work is being done and the frequency of use, though the ratio of parts should be consistent with how quickly they typically wear.

Have a question about this product? Submit your question using the form below
