Razorweld RazorTig 200Pdi Tig/Stick Welder - JRW200Pdi

Part Number: JRW200Pdi

Welding type:

TIG

TIG

Stick

Stick

RazorTig 200Pdi #JRW200Pdi

The RAZORTIG 200Pdi is a high-performance AC/DC TIG and Stick welder designed for serious fabricators and professionals. With advanced pulse TIG controls, Smart Lift and HF TIG starting, and both AC and DC output capabilities, it offers precision and versatility for aluminum, stainless steel, and mild steel welding. Compact, lightweight, and generator-ready, the 200Pdi is built with safety features and pro-grade customization in a rugged ergonomic design.

Highlights

  • AC/DC TIG & Stick Capability: Weld a wide range of materials including aluminum and stainless using both AC and DC modes
  • HF & Smart Lift TIG: Provides smooth arc starts with high-frequency or contactless lift options
  • Full Pulse TIG Controls: Advanced control over pulse frequency, waveform, and duty cycle for high-precision welding
  • ClearVision Technology: Enhances visibility and arc clarity for improved weld quality
  • Flexible Voltage Input: Operates on 115V or 230V—ideal for shop and field use
  • Power Factor Correction: Increases efficiency and enables use with long extension cords or generators

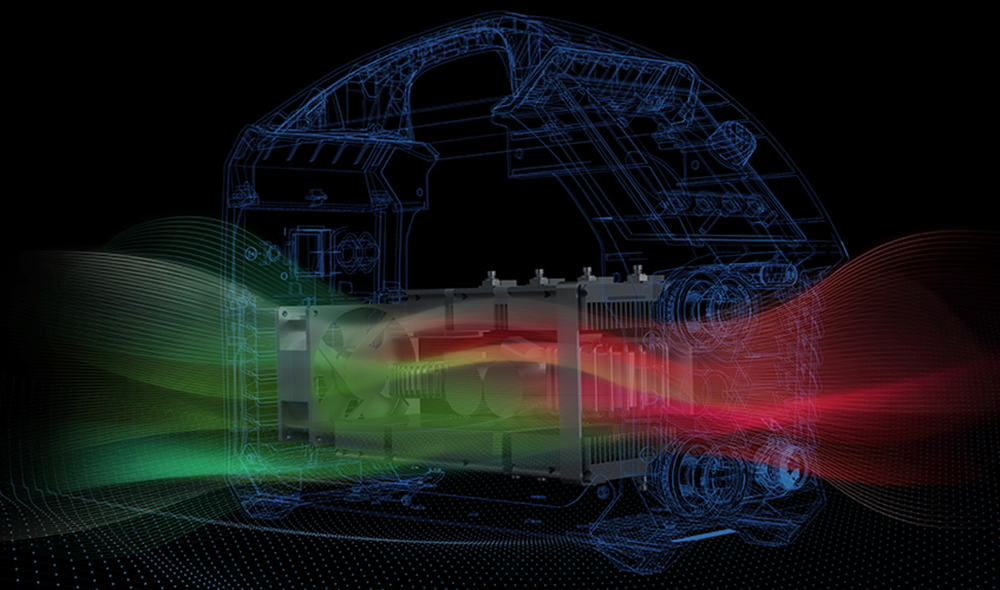

  • ABAP: Active Balancing Air Passage: Maintains internal cooling performance and extends component life
  • Smart Gas Technology: Minimizes gas waste with optimized shielding control
  • On-Demand Fan: Reduces noise and energy use by activating only when needed
  • Built-In Safety Features: Includes VRD, thermal overload, and overcurrent protection for operator safety
  • Remote Control Ready: Compatible with remote control modules for added welding convenience
  • Lightweight Industrial Design: Compact 20 lb build with rugged frame for easy transport and durability

What's Included:

  • RAZORTIG 200Pdi Welder
  • Arc Lead Set
  • Ground Cable
  • Power Adaptor
  • Regulator
  • Operating Manual
RAZORTIG 200Pdi Specifications
Input Power AC 95–265V, 50/60 Hz
Open Circuit Voltage 68V
TIG Output Range 5–160A (115V), 5–200A (230V)
TIG Rated Duty Cycle 25%
Stick Output Range 10–120A (115V), 10–180A (230V)
Stick Rated Duty Cycle 25%
Efficiency 84%
Power Factor 0.99
Idle State Power 33W (MMA/STICK/TIG), 7W (TIG)
Protection Class IP23S
Insulation Class H
Dimensions (L x W x H) 18" x 6" x 12.5"
Net Weight 20 lbs

SHIPPING DIMENSIONS

Height: 12.50 Inches
Width: 6.00 Inches
Length: 18.00 Inches
Weight: 20 Lb(s) 0 Oz
