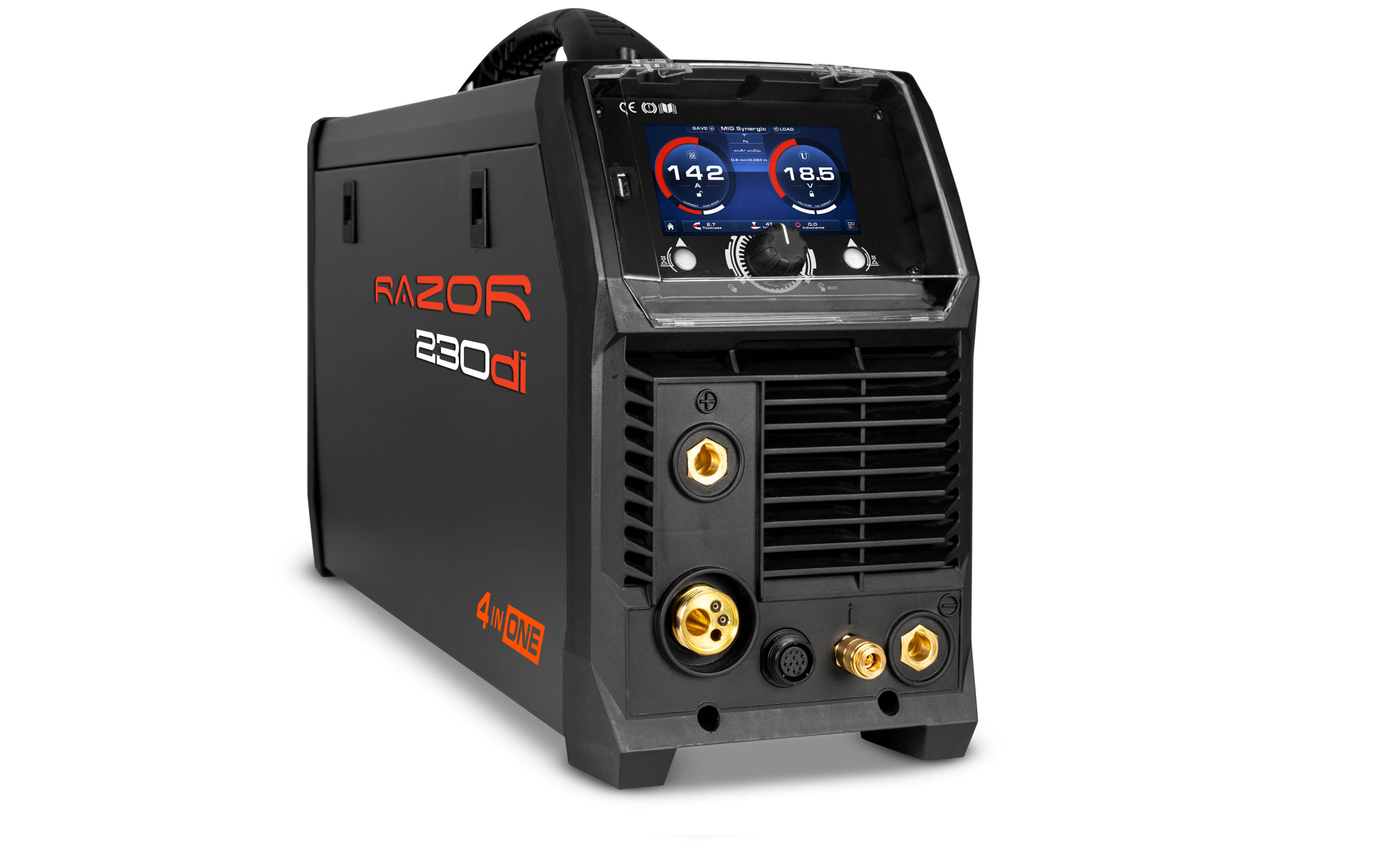

Razorweld 230di Multi-Process Welder #JRW230di
Part Number:
JRW230di
Ships Free To Lower 48 States
Razorweld 230di Multi-Process Welder #JRW230di
Part Number:
JRW230di
DocumentsRazorweld 230di #JRW230di
The RAZORWELD 230di is a powerful 4-in-1 digital multiprocess welder designed for serious professionals. With MIG, High Frequency AC/DC TIG, Pulse TIG, and Stick capabilities, it delivers maximum performance across a wide range of materials. Featuring fully customizable smart settings, spool gun readiness, and an included foot pedal, this machine is ready for aluminum, stainless, and more—backed by a 3-year warranty.
Highlights
- 4-in-1 Multiprocess Welding: Supports MIG, HF AC/DC TIG, Pulse TIG, and Stick for unmatched versatility
- HF AC/DC TIG with Pulse: High-frequency arc starts with pulse mode for premium TIG control
- MIG & TIG Smart Set: Fully customizable MIG and TIG settings for precise control

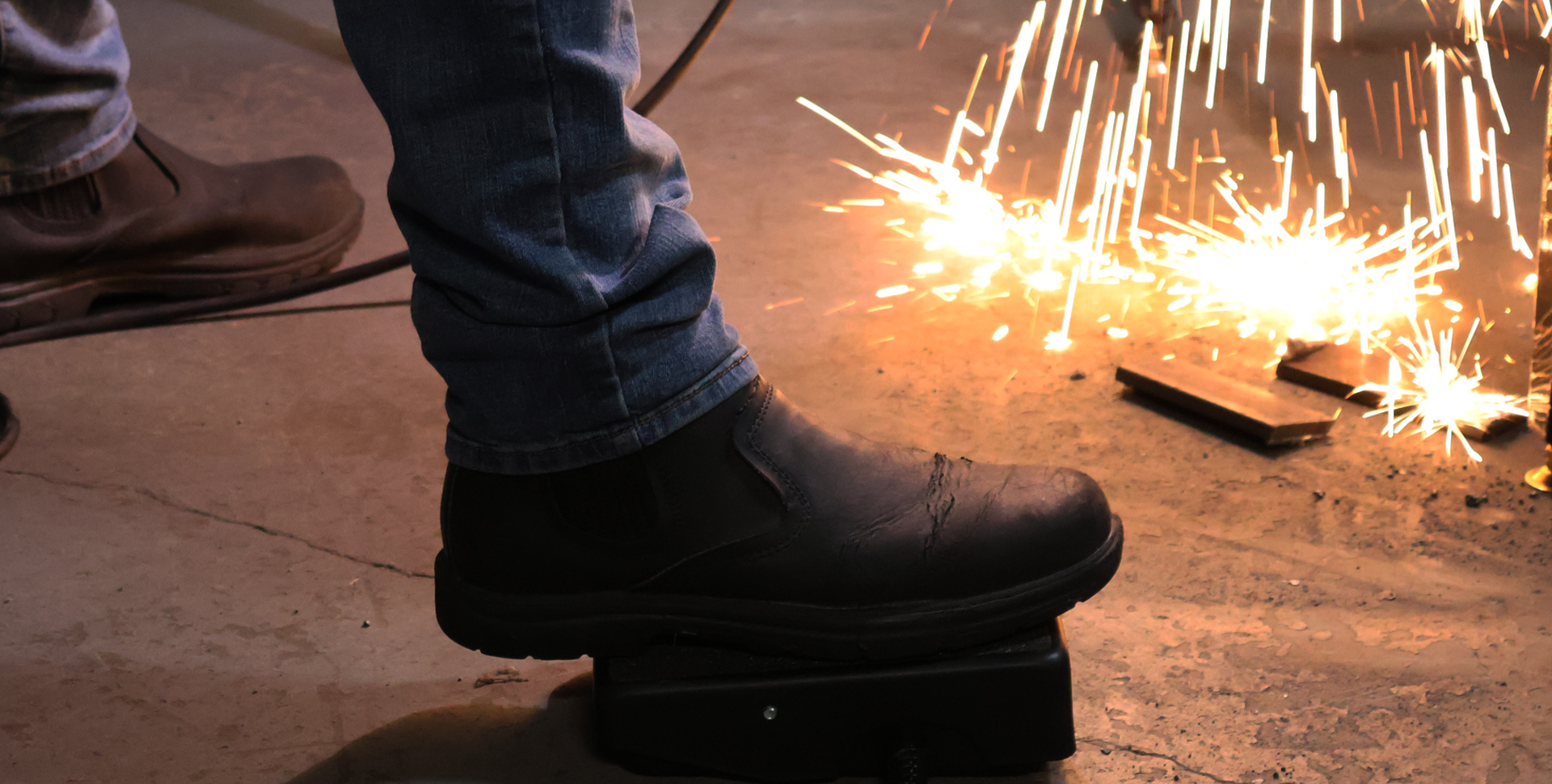

- Foot Pedal Included: Comes standard with foot pedal for hands-free TIG control
- Spool Gun Ready: Weld aluminum with ease using a compatible spool gun
- Wide Welding Range: Welds mild steel, stainless, cast iron, aluminum, silicon bronze, copper, and more
- High Output Performance: Weld up to 7/16" with MIG and 5/16" with TIG at up to 230 amps
- Durable & Portable: Rugged build and ergonomic design ideal for both workshop and jobsite use

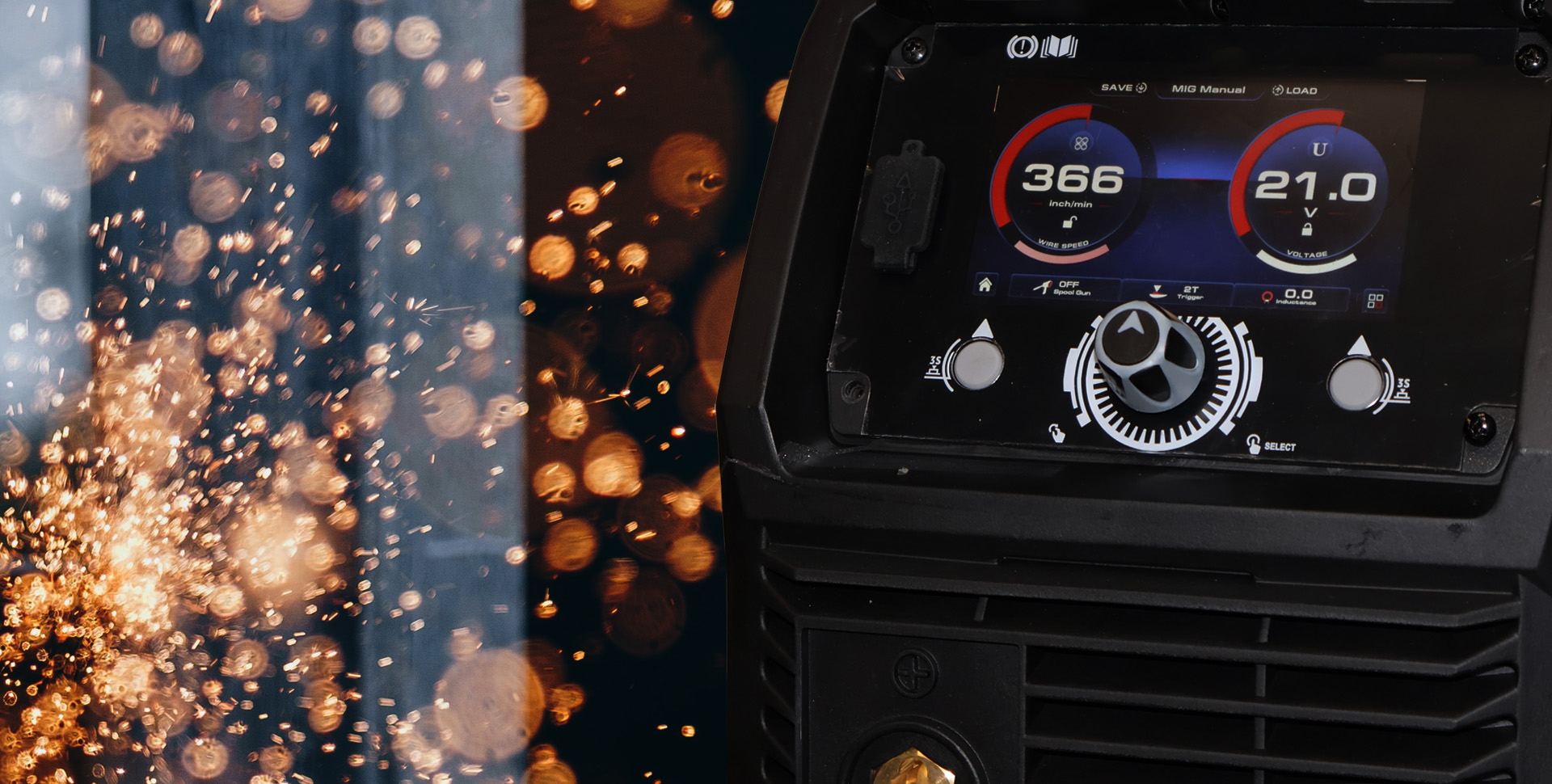

- Digital Control Interface: Intuitive interface for quick setup and fine-tuning
- Backed by Warranty: Includes a 3-year warranty for long-term peace of mind
What's Included:
- RAZORWELD 230di Welder
- TWECO 2 Style 10FT MIG Torch
- WP17F 12.5FT TIG Torch
- Foot Pedal
- Arc Lead Set
- Ground Cable
- Regulator
- Power Adaptor
- Operating Manual
| RAZORWELD 230di Specifications | |
|---|---|
| Input Power | 110/220V Single Phase |
| Supply Plug | 6-50 NEMA |
| Rated Output | 35% @ 230A (TIG) |
| MIG Current Range | 25–230A |
| MIG Duty Cycle | 25% @ 230A |
| MIG Wire Size Range | 0.023" – 0.045" |
| MIG Wire Spool Size | 11 lbs |
| MIG Welding Thickness | 3/64" – 7/16" |
| TIG Function Type | AC/DC High Frequency |
| TIG Current Range | 10–230A |
| TIG Duty Cycle @ 105°F | 35% @ 230A, 60% @ 175A, 100% @ 136A |
| TIG Welding Thickness | 3/64" – 5/16" |
| Stick Current Range | 10–200A |
| Stick Duty Cycle @ 105°F | 25% @ 200A, 60% @ 130A, 100% @ 100A |
| Stick Electrode Range | 3/32" – 5/32" |
| Stick Welding Thickness | 5/64" – 1/2" |
| Protection Class | IP21 |
| Insulation Class | H |
| Dimensions (L x W x H) | 26" x 8.5" x 13" |
| Net Weight | 44 lbs |
| Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 13.00 Inches |
| Width: | 8.50 Inches |
| Length: | 26.00 Inches |
| Weight: | 44 Lb(s) 0 Oz |
Consumables
