Razorweld 250diT Multi-Process Welder - FRW250diT
Part Number: JRW250diT
DocumentsRazorweld 250diT #FRW250diT

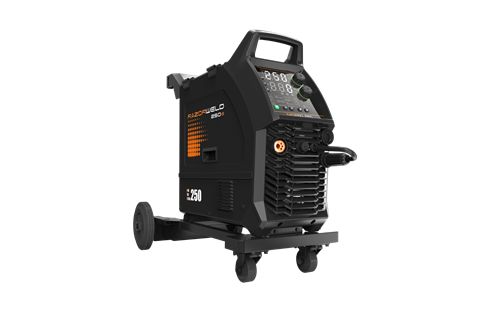

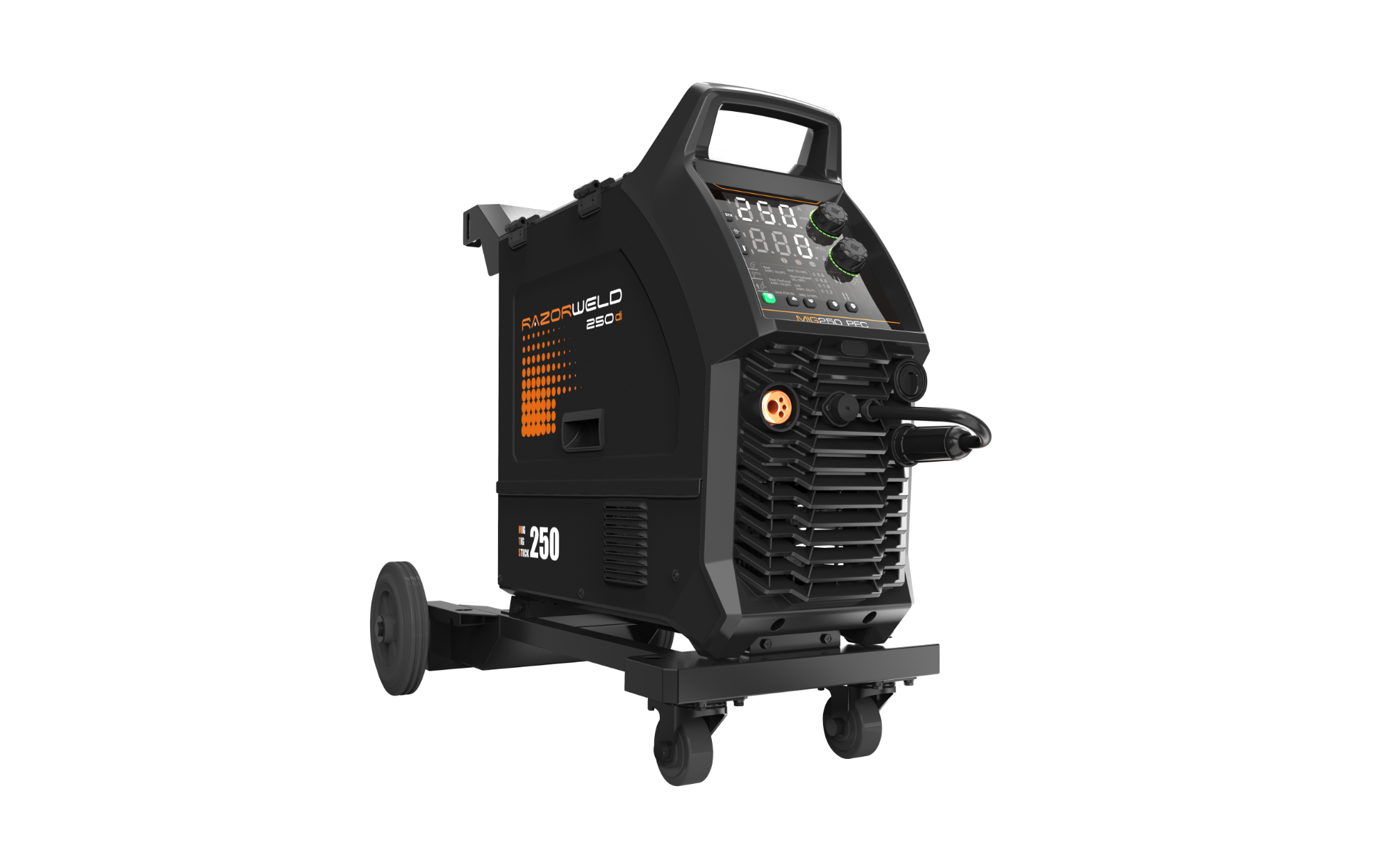

The RAZORWELD 250diT is a high-performance 3-in-1 multiprocess welder built to power through the toughest jobs. Engineered for MIG, TIG, and Stick welding, it includes intelligent synergic settings, spool gun readiness, and foot pedal compatibility. Whether you're in the shop or on-site, this robust machine delivers precise control, maximum versatility, and serious power—covered by a 3-year warranty.
Highlights
- 3-in-1 Multiprocess Welding: Seamlessly switch between MIG, TIG, and Stick modes for a full-range welding experience
- MIG Synergic Settings: Customize your MIG welds with intelligent synergic controls
- Spool Gun Ready: Easily connect a spool gun to tackle aluminum welding projects
- Smart Lift TIG: Lift TIG function allows smooth arc starts and precise control
- High Output Performance: Weld up to 3/8" thick material with 250A max output
- Foot Pedal Compatible: Enhance TIG welding control with optional foot pedal support
- Wide Voltage Flexibility: Dual voltage input (115V/230V) makes it perfect for shop or field work
- Built for Durability: IP21S protection class and heavy-duty construction withstand tough environments
- Universal Material Support: Welds steel, stainless, cast iron, silicon bronze, aluminum, copper, and more
- Covered by Warranty: Includes a 3-year manufacturer’s warranty for peace of mind
What's Included:
- RAZORWELD 250diT Welder
- TWECO 2 Style 15FT MIG Torch
- WP17F 12.5FT TIG Torch
- Arc Lead Set
- Ground Cable
- Regulator
- Power Adaptor
- Operating Manual
| RAZORWELD 250diT Specifications | |
|---|---|
| Input Power | 115/230V |
| Supply Plug | 6-50 NEMA |
| Rated Output | 30% @ 250A |
| MIG Current Range | 30–250A |
| MIG Duty Cycle | 30% @ 250A |
| MIG Wire Size Range | 0.023" – 0.045" |
| MIG Wire Spool Size | 11 lb and 33 lb |
| MIG Welding Thickness | 1/32" – 3/8" |
| TIG Function Type | DC Lift Arc |
| TIG Current Range | 5–250A |
| TIG Duty Cycle @ 105°F | 30% @ 250A, 60% @ 177A, 100% @ 137A |
| TIG Welding Thickness | 1/32" – 3/8" |
| Stick Current Range | 20–220A |
| Stick Duty Cycle @ 105°F | 30% @ 220A, 60% @ 156A, 100% @ 121A |
| Stick Electrode Range | 1/16" – 5/32" |
| Stick Welding Thickness | 1/16" – 3/8" |
| Protection Class | IP21S |
| Insulation Class | B |
| Dimensions (L x W x H) | 35.4" x 19" x 30" |
| Net Weight | 91 lbs (with trolley) |
| Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 30.00 Inches |
| Width: | 19.00 Inches |
| Length: | 35.40 Inches |
| Weight: | 91 Lb(s) 0 Oz |
