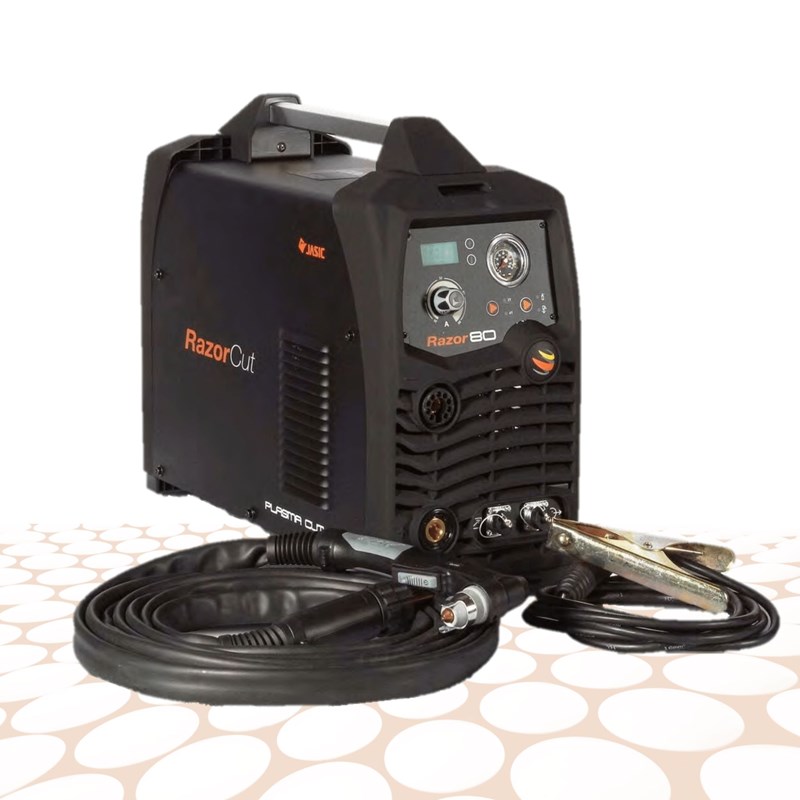

Razorweld Razorcut 80i Plasma Cutter - JRW80i
Part Number:
JRW80i
Ships Free To Lower 48 States
Razorweld Razorcut 80i Plasma Cutter - JRW80i
Part Number:
JRW80i
$2,745.00
Cut capacity:
DocumentsRazorcut 80i #JRW80i
The RAZORCUT 80i is an industrial-grade plasma cutter built with advanced IGBT inverter technology. Designed for precision and power, this robust machine delivers clean cuts on all conductive metals—including stainless, aluminum, copper, and more. Lightweight and portable, yet powerful enough for industrial applications, the RAZORCUT 80i is your go-to solution for demanding jobs in fabrication, automotive, maintenance, and beyond.
Highlights
- Advanced IGBT Technology: Built with the latest inverter tech for high efficiency and performance
- CNC & Euro Torch Ready: Comes equipped with CNC port and safe Euro-style torch connection
- Cuts All Conductive Materials: Cleanly slices through stainless, aluminum, copper, cast iron, and more
- J100XC Plasma Torch: Includes premium 19' torch with long-life consumables and effortless starts
- Industrial-Grade Design: Ideal for fabrication shops, automotive, ductwork, and heavy-duty repair
- Generator Compatible: Runs reliably on pure sine wave generators in field work
- Pre-Set Regulator Included: Ensures steady, accurate air pressure for consistent plasma output
- Portable Yet Powerful: Compact, rugged chassis with the performance to take on serious cutting jobs
- Air-Cooled System: Efficient and low-maintenance cooling system ideal for long-duty cycles
- Voltage Tolerance: Operates smoothly even with ±10% fluctuations in input voltage
What's Included:
- RAZORCUT 80i Plasma Cutter
- 19.5FT Plasma Torch
- Ground Cable
- Power Adaptor
- Operating Manual
| RAZORCUT 80i Specifications | |
|---|---|
| Input Power Supply | 230V 1-phase / 230V 3-phase / 460V 1- or 3-phase, 50/60Hz |
| Rated Input Capacity | 7.9 kVA (230V 1ph), 11.3 kVA (460V 3ph) |
| Power Factor | 0.56 – 0.91 depending on model |
| Output Current Range | 20–60A (230V), 20–80A (460V) |
| Rated Output Voltage | 60–104V (230V), 80–112V (460V) |
| No-load Voltage | 350V |
| Rated Duty Cycle | 40% |
| Post-flow Time | 20 seconds |
| Arc Ignition Mode | Non-High Frequency (NHF) |
| Gas Pressure Range | 0.4 – 0.6 MPa |
| Cooling Mode | Air Cooled |
| Enclosure Protection | IP21S |
| Insulation Class | B |
| Efficiency | 85% |
SHIPPING DIMENSIONS |
|
| Height: | 1.00 Inches |
| Width: | 1.00 Inches |
| Length: | 1.00 Inches |
| Weight: | 1 Lb(s) 0 Oz |
Consumables
