Razorweld ViperMIG 180i MIG/Stick Welder - JVMIG180i
Part Number:
JVMIG180i
Ships Free To Lower 48 States
Razorweld ViperMIG 180i MIG/Stick Welder - JVMIG180i
Part Number:
JVMIG180i
DocumentsViperMIG 180i #JVMIG180i
The ViperMIG 180i is a dual-voltage MIG and Stick welder built for home and workshop use. With support for both gas-shielded and flux-cored welding, it's 100% spool gun compatible and packed with features like burn back control and stepless settings. Rugged, portable, and easy to use.

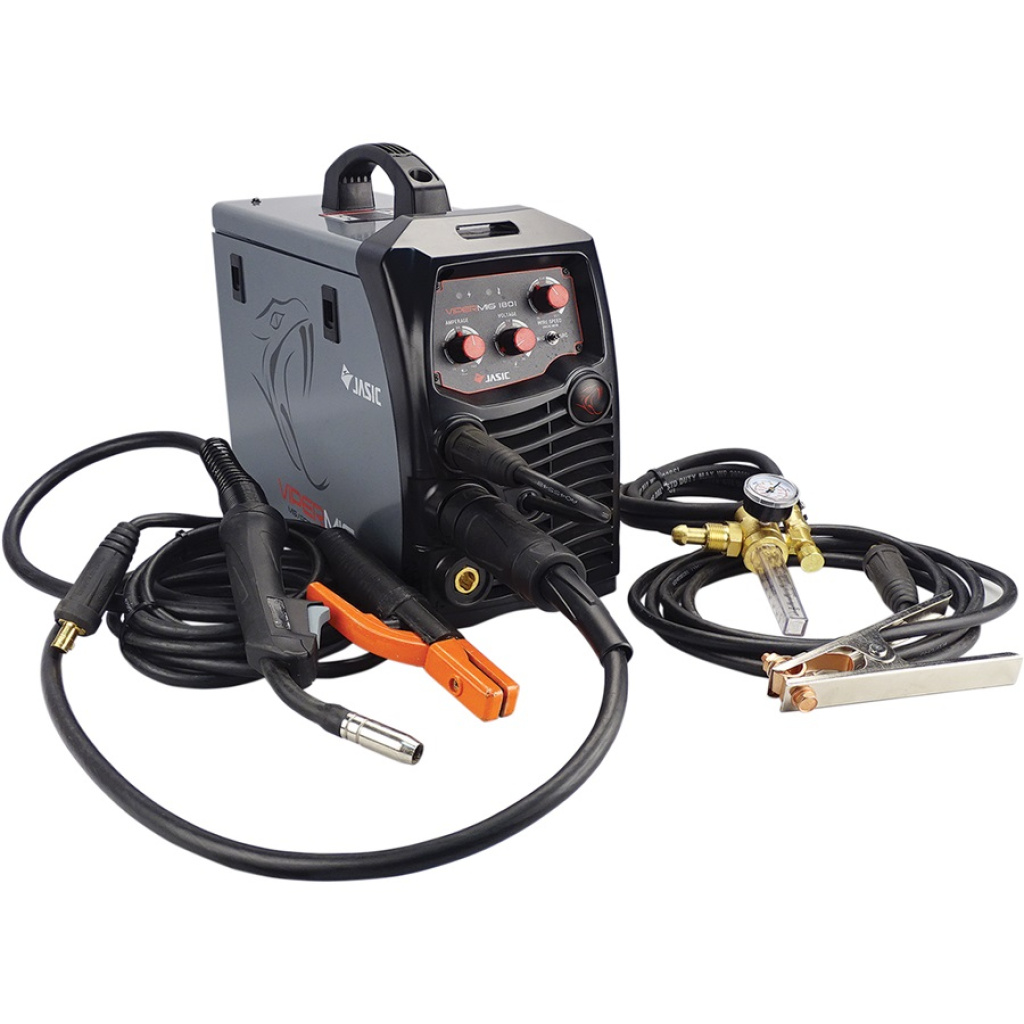

What's Included:
- VIPERMIG 180i Welder
- SB15 MIG Torch
- TWC2 Style MIG Torch
- Arc Lead Set
- Ground Cable
- Regulator
- Power Adaptor
- Operating Manual
| ViperMIG 180i Specifications | |
|---|---|
| Input Voltage | Single Phase 115V / 230V ±15%, 50/60 Hz |
| No-load Voltage | 53V (230V), 51V (115V) |
| Wire Feeding Speed Range | 79–551 in/min (230V), 79–433 in/min (115V) |
| Welding Wire Diameter | 0.023" / 0.030" / 0.035" / 0.040" |
| MIG Output (230V) | 30A–180A @ 23V |
| MIG Duty Cycle (230V) | 30% @ 180A, 60% @ 127A, 100% @ 99A |
| ARC Output (230V) | 10A–160A @ 26.4V |
| ARC Duty Cycle (230V) | 30% @ 160A, 60% @ 113A, 100% @ 88A |
| MIG Output (115V) | 30A–80A @ 18V |
| MIG Duty Cycle (115V) | 50% @ 80A, 60% @ 70A, 100% @ 63A |
| ARC Output (115V) | 10A–60A @ 22.4V |
| ARC Duty Cycle (115V) | 30% @ 60A, 60% @ 46A, 100% @ 40A |
| Efficiency | 85% (230V), 82% (115V) |
| Power Factor | 0.94 (230V), 0.64 (115V) |
| Protection Class | IP21S |
| Insulation Class | B |
| Cooling | Air cooled |
SHIPPING DIMENSIONS |
|
| Height: | 1.00 Inches |
| Width: | 1.00 Inches |
| Length: | 1.00 Inches |
| Weight: | 1 Lb(s) 0 Oz |
- ViperMIG 180i User Manual
- ViperMIG 180i Brochure
Consumables
Product Questions and Answers
Have a question about this product? Submit your question using the form below
